09388+4748 TDS 6715



09h 38m 49.15s +47° 47' 51.7" P.A. 325.00 sep 0.6 mag 10.49,11.08


Coord 2000 09388+4748 Discov num TDS6715 Comp Coord arcsec 2000 09 38 49.15 +47 47 51.7
Date first 1991 Date last 1991 Obs 1
Pa first 325 Pa last 325.3 P.A. Now (θ) 325.3°
Sep first 0.6 Sep last 0.56 Sep. Now (ρ) 0.56"
Mag pri 10.49 Mag sec 11.08 delta mag (ΔM) 0.59 Spectral class
Pri motion ra +001 Sec motion ra +001
Pri motion dec -014 Sec motion dec -014
Notes X (Dubious double)
Nature of this double is uncertain.


OTHER CATALOGS AND DESIGNATIONS


Constellation Ursa Major Tycho2 3429-00889-1 Gaia DR2 824701516892112640


WDS 09388+4748 TDS 6715 : NOTES


No records found.



DISCOVERER


discov author
TDS Tycho Double Star (from additional DD list)


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
09388+4748 TDS6715 1991 1 325 0.6 10.49 11.08 093849.15+474751.7

If you need more information about this double, apply for a data request form to the WDS.



WDS 09388+4748 TDS 6715 : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 09388+4748 TDS 6715 : MEASURES


No records found.

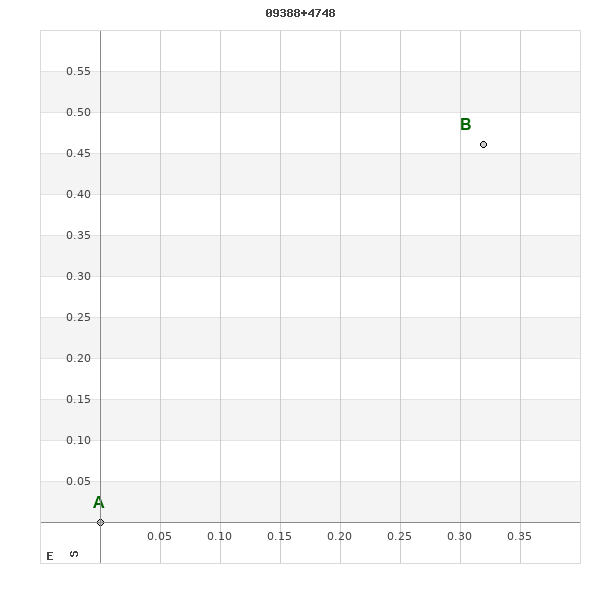

WDS 09388+4748 : VIRTUAL EYEPIECE



09388+4748 TDS6715A mag 10.49 09388+4748 TDS6715B sep 0.6 P.A. 325.30 mag 11.08 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 09388+4748 : ALADIN DSS IMAGE @ 09h 38m 49.15s +47° 47' 51.7"




WDS 09388+4748 TDS 6715 : NEIGHBORHOODS


FoV:
Limit:
Primaries only

09388+4748 TDS6715 distance=0' 09378+4800 HDS1386 distance=16' 09373+4720 TDS6692 distance=32' 09383+4826 DAM1676 distance=40' 09383+4827 OSO 28 distance=40' 09354+4719 COU2501 distance=46' 09346+4818 HDS1380 distance=52' 09427+4826 HDS1399 distance=55' 09372+4656 TDS6691AB distance=55' 09425+4707 DAM1706 distance=56' 09421+4703 DAM1702 distance=56' 09428+4708 TDS6760 distance=57' 09370+4653 DAM1667AC distance=58' 09438+4717 TDS6770 distance=59' 09344+4704 COU2500 distance=63' 09425+4653 UC 1824 distance=67' 09424+4847 KPP3222 distance=69' 09445+4830 HJ 2503 distance=71' 09469+4759 CVR1240 distance=83' 09308+4817 LDS3900 distance=86' 09470+4823 TDS6806 distance=89' 09449+4638 GRV1178 distance=93' 09422+4921 ES 600 distance=100' 09289+4751 CVR 533 distance=100' 09409+4608 CVR 90 distance=103' 09307+4856 TDS6614 distance=106' 09434+4931 TDS6766 distance=113' 09455+4616 LDS3922 distance=114' 09379+4554 A 1765 distance=115' 09340+4604 TDS6653 distance=116' 09408+4553 SLW 380 distance=117' 09484+4646 HJ 1171 distance=117' 09464+4619 TDS6797 distance=118' 09284+4847 UC 133 distance=120' 09503+4828 TDS6845 distance=122' 09322+4557 TDS6633 distance=131' 09307+4604 A 1764 distance=134' 09519+4810 TDS6863 distance=134' 09372+5001 CVR 536 distance=135' 09370+5002 TDS6688Aa,Ab distance=136' 09370+5002 ES 719AB distance=136' 09491+4918 CVR1245 distance=137' 09357+5004 HU 565 distance=141' 09457+4953 NSN 597 distance=143' 09460+4952 UC 137 distance=143' 09475+4552 ES 601 distance=147' 09243+4739 TDS6538 distance=147' 09242+4756 ES 912 distance=148' 09245+4827 STJ 108 distance=149' 09541+4809 ES 602 distance=156' 09467+4536 SKF2178 distance=156' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 09388+4748 TDS6715 325 0.6 0
Show 09378+4800 HDS1386 359 0.8 16
Show 09373+4720 TDS6692 164 0.6 32
Show 09383+4826 DAM1676 62 5.8 40
Show 09383+4827 OSO 28 62 5.8 40
Show 09354+4719 COU2501 218 1.7 46
Show 09346+4818 HDS1380 299 0.8 52
Show 09427+4826 HDS1399 196 0.4 55
Show 09372+4656 TDS6691 AB 291 0.5 55
Show 09425+4707 DAM1706 107 2.8 56
Show 09421+4703 DAM1702 10 2.3 56
Show 09428+4708 TDS6760 284 0.6 57
Show 09370+4653 DAM1667 AC 119 4.9 58
Show 09438+4717 TDS6770 169 1.9 59
Show 09344+4704 COU2500 232 0.9 63
Show 09425+4653 UC 1824 326 17.6 67
Show 09424+4847 KPP3222 71 13.4 69
Show 09445+4830 HJ 2503 158 37.0 71
Show 09469+4759 CVR1240 85 3.5 83
Show 09308+4817 LDS3900 174 127.5 86
Show 09470+4823 TDS6806 312 1.7 89
Show 09449+4638 GRV1178 345 21.4 93
Show 09422+4921 ES 600 63 4.5 100
Show 09289+4751 CVR 533 332 7.9 100
Show 09409+4608 CVR 90 248 49.4 103
Show 09307+4856 TDS6614 202 0.5 106
Show 09434+4931 TDS6766 325 0.4 113
Show 09455+4616 LDS3922 22 21.7 114
Show 09379+4554 A 1765 144 0.1 115
Show 09340+4604 TDS6653 288 0.8 116
Show 09408+4553 SLW 380 215 15.2 117
Show 09484+4646 HJ 1171 176 17.4 117
Show 09464+4619 TDS6797 256 3.4 118
Show 09284+4847 UC 133 33 57.8 120
Show 09503+4828 TDS6845 342 2.4 122
Show 09322+4557 TDS6633 126 0.6 131
Show 09307+4604 A 1764 106 0.1 134
Show 09519+4810 TDS6863 327 0.5 134
Show 09372+5001 CVR 536 286 9.3 135
Show 09370+5002 TDS6688 Aa,Ab 293 0.5 136
Show 09370+5002 ES 719 AB 257 4.8 136
Show 09491+4918 CVR1245 96 3.9 137
Show 09357+5004 HU 565 4 2.0 141
Show 09457+4953 NSN 597 221 1.2 143
Show 09460+4952 UC 137 251 26.9 143
Show 09475+4552 ES 601 289 3.3 147
Show 09243+4739 TDS6538 42 1.8 147
Show 09242+4756 ES 912 121 11.9 148
Show 09245+4827 STJ 108 220 1.3 149
Show 09541+4809 ES 602 32 3.6 156
Show 09467+4536 SKF2178 80 30.5 156



WDS 09388+4748 : COMPONENTS


  A
B pa=325.3°
sep=0.56"


09388+4748 A


Coord arcsec 2000 093849.15+474751.7 Mag 10.49 PmRA 1.00 PmDE -14.0
Tycho2 3429-00889-1
Tycho2
Tycho2 3429-00889-1 Pflag RAmdeg 144.70477639 DEmdeg 47.79773919
PmRA 1.3 PmDE -14.3 E RAmdeg 17 E DEmdeg 20
E pmRA 1.9 E pmDE 1.8 EpRAm 1989.75 EpDEm 1988.87
Num 4 Q RAmdeg 1.4 Q DEmdeg 0.4 Q pmRA 1.3
Q pmDE 0.4 BTmag 11.166 E BTmag 0.048 VTmag 10.065
E VTmag 0.027 Prox 999 TYC T HIP
CCDM RAdeg 144.70477694 DEdeg 47.79777111 EpRA 1990 1.74
EpDE 1990 1.67 E RAdeg 19.4 E DEdeg 22.6 Posflg
Corr 0.3


09388+4748 B


Coord arcsec 2000 093849.12+474752.2 Mag 11.08 PmRA 1.00 PmDE -14.0
Delta magnitude 0.59 Coordinate calculated yes
