19535+2405 DJU   4 (13 Vul)



19h 53m 27.69s +24° 04' 46.6" P.A. 247.00 sep 1.4 mag 4.63,7.37 Sp B9.5III dist. 102.56 pc (334.55 l.y.)


Coord 2000
19535+2405
 Discov num
DJU   4
 Comp
Coord arcsec 2000
19 53 27.69 +24 04 46.6
Date first
1953
 Date last
2016
 Obs
49
Pa first
242
 Pa last
246
 P.A. Now (θ)
247°
Sep first
0.8
 Sep last
1.4
 Sep. Now (ρ)
1.38"
Mag pri
4.63
 Mag sec
7.37
 delta mag (ΔM)
2.74
 Spectral class
B9.5III (blue-white)
Pri motion ra
+020
 Sec motion ra
+020
Pri motion dec
+033
 Sec motion dec
+033
Notes
N O (See Notes, Orbital solution)
Visually invisible, K-band or other infrared star This double is physical.


OTHER CATALOGS AND DESIGNATIONS


Precise pa
245.6
 Precise sep
1.425
 Name
13 Vul
 Constellation
Vulpecula
SAO
87883
 HIP
97886
 Tycho2
2140-03051-1
 Gaia DR2
61117254272
HD
188260
 HR
7592
 GC
27544
 BD
BD+23 3820
Flamsteed
13 Vulpeculae
 Flamsteed name
13 Vul
 Distance
102.56
 Distance ly
334.55
last precise pa
245.6
 last precise sep
1.425


ORBITAL ELEMENTS


Period (P)615.25y± 104.12 Periastron (T)2027.82y± 94.79 Semi-major axis (a)1.555a± 0.241
Eccentricity (e)0.079± 0.042 Inclination (i)85.9°± 1.5 Longitude of periastron (ω)169.7°± 4.4
Node (Ω)68.1°± 0.3 Note Grade5(1=Definitive, 9=Indet.)
Equinox2000 Last observation2004
label rho theta
2000 1.254 245.8
2001 1.262 245.9
2002 1.270 245.9
2003 1.277 246.0
2004 1.285 246.0
2005 1.292 246.1
2006 1.299 246.2
2007 1.306 246.2
2008 1.313 246.3
2009 1.319 246.3
2010 1.326 246.4
2011 1.332 246.5
2012 1.338 246.5
2013 1.344 246.6
2014 1.349 246.6
2015 1.355 246.7
2016 1.360 246.7
2017 1.365 246.8
2018 1.370 246.8
2019 1.375 246.9
2020 1.380 247.0
2021 1.384 247.0
2022 1.388 247.1
2023 1.392 247.1
2024 1.396 247.2
2025 1.400 247.2
2026 1.403 247.3
2027 1.407 247.3
2028 1.410 247.4
2029 1.413 247.4
2030 1.415 247.5

Note: Theta is PA, Rho is Sep. For yearly orbits, data refer to Jan 1st.

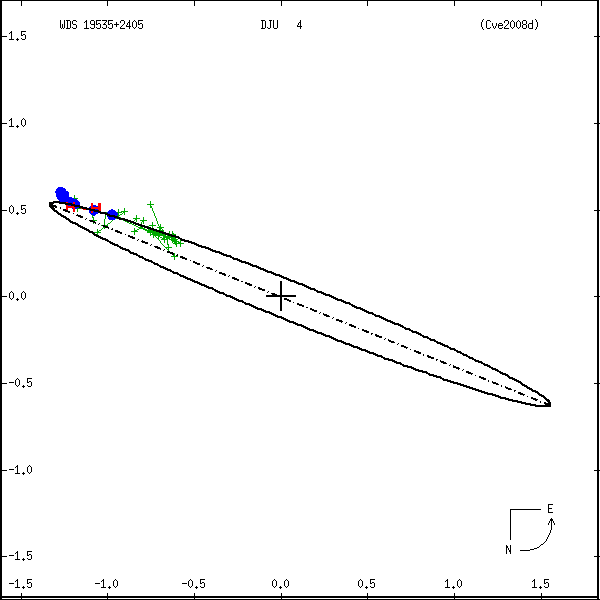

 grafico orbita


wds19535%2B2405a.png orbit plot
Measures: green=micrometric, blue=interferometric, purple=photographic


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr notes coord_arcsec_2000
19535+2405 DJU 4 2004 42 246 1.3 4.63 7.37 B9.5III NOD 195327.69+240446.6
19535+2405 DJU 4 2007 43 246 1.3 4.63 7.37 B9.5III NOD 195327.69+240446.6
19535+2405 DJU 4 2009 44 245 1.4 4.63 7.37 B9.5III NOD 195327.69+240446.6
19535+2405 DJU 4 2011 46 245 1.4 4.63 7.37 B9.5III NO 195327.69+240446.6
19535+2405 DJU 4 2012 48 245 1.4 4.63 7.37 B9.5III NO 195327.69+240446.6
19535+2405 DJU 4 2016 49 246 1.4 4.63 7.37 B9.5III NO 195327.69+240446.6

If you need more information about this double, apply for a data request form to the WDS.
