00114+5850 SKW 1 Aa,Ab



00h 11m 25.83s +58° 49' 28.6" P.A. 253.00 sep 0.0 mag 15.00,19.00


Coord 2000 00114+5850 Discov num SKW   1 Comp Aa,Ab Coord arcsec 2000 00 11 25.83 +58 49 28.6
Date first 1996 Date last 2003 Obs 7
Pa first 242 Pa last 253 P.A. Now (θ) 253°
Sep first 0.1 Sep last 0.049 Sep. Now (ρ) 0.049"
Mag pri 15.00 Mag sec 19.00 delta mag (ΔM) 4 Spectral class
Pri motion ra +003 Sec motion ra
Pri motion dec -008 Sec motion dec
Notes N O (See Notes, Orbital solution)
This double is physical.


00114+5850 SYSTEM COMPONENTS


Show name SAO coord wds_name last obs pa sep mag1 mag2 d_mag orb current
Show 00 11 26 +58 49 29 SKW 1 Aa,Ab 2003 7 253 0.0 15.00 19.00 4.00 Y <===
Show 00 11 26 +58 49 29 LGG 1 AB 1992 2 3 5.5 14.30 16.00 1.70
Triple system
2 estimated visually detectable stars in this system


OTHER CATALOGS AND DESIGNATIONS


Constellation Cassiopeia Gaia DR2 422993981619055104


ORBITAL ELEMENTS SOLUTION #1


Period (P)178y Periastron (T)2021y Semi-major axis (a)0.1a
Eccentricity (e)0.31 Inclination (i)70° Longitude of periastron (ω)300°
Node (Ω)48° Notesn ReferenceSKW2005
Equinox Last observation2003 Grade4(1=Definitive, 9=Indet.)
label theta rho
2000 247.4 0.061
2001 249.3 0.058
2002 251.3 0.055
2003 253.7 0.052
2004 256.3 0.048
2005 259.4 0.045
2006 262.9 0.041
2007 267.1 0.038
2008 272.1 0.035
2009 278.0 0.032
2010 285.0 0.029
2011 293.3 0.027
2012 302.9 0.025
2013 313.5 0.025
2014 324.6 0.024
2015 335.3 0.025
2016 345.3 0.027
2017 354.0 0.029
2018 1.4 0.031
2019 7.7 0.034
2020 12.9 0.037
2021 17.4 0.040
2022 21.1 0.043
2023 24.4 0.047
2024 27.2 0.050
2025 29.8 0.053
2026 32.0 0.056
2027 34.0 0.059
2028 35.8 0.061
2029 37.5 0.064
2030 39.0 0.066
2031 40.5 0.069
2032 41.9 0.071
2033 43.1 0.072
2034 44.4 0.074
2035 45.5 0.076
2036 46.7 0.077
2037 47.8 0.078
2038 48.8 0.079
2039 49.9 0.080
2040 50.9 0.080
2041 51.9 0.081
2042 52.9 0.081
2043 53.9 0.081
2044 54.9 0.081
2045 55.9 0.081
2046 56.9 0.081
2047 57.9 0.080
2048 58.9 0.080
2049 60.0 0.079
2050 61.0 0.079

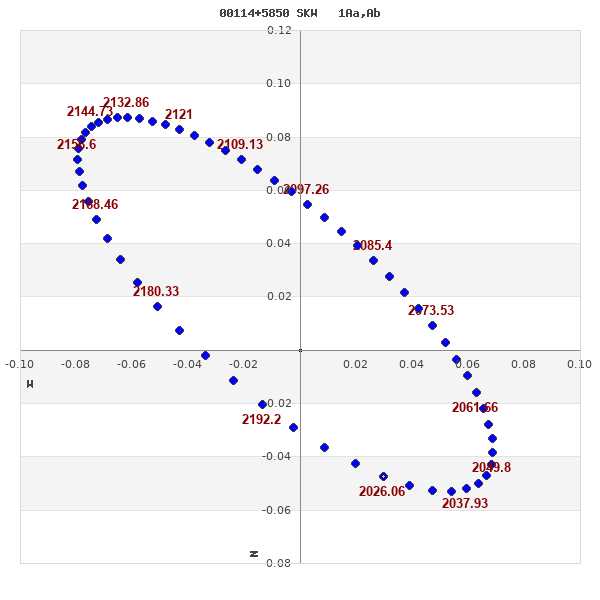

 grafico orbita
Note: Theta is PA, Rho is Sep. For yearly orbits, data refer to Jan 1st.

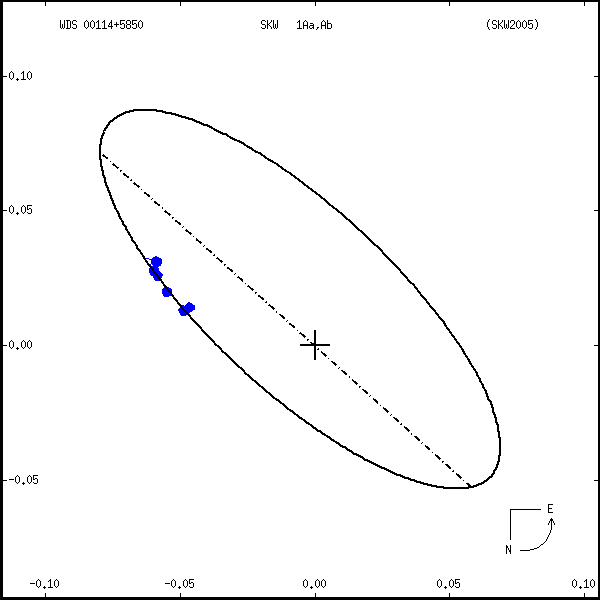

wds00114%2B5850a.png orbit plot
Measures: green=micrometric, blue=interferometric, purple=photographic


ORBITAL ELEMENTS SOLUTION #2


Period (P)412.1y Periastron (T)2009y Semi-major axis (a)0.17a
Eccentricity (e)0.69 Inclination (i)70° Longitude of periastron (ω)63°
Node (Ω)243° Notesn ReferenceSKW2005
Equinox Last observation2003 Grade4(1=Definitive, 9=Indet.)
label theta rho
2000 246.6 0.062
2001 248.3 0.059
2002 250.2 0.056
2003 252.4 0.052
2004 254.8 0.049
2005 257.7 0.045
2006 261.0 0.041
2007 265.1 0.037
2008 270.3 0.033
2009 276.9 0.029
2010 285.6 0.025
2011 297.0 0.022
2012 311.8 0.020
2013 328.9 0.019
2014 346.1 0.020
2015 0.8 0.022
2016 12.2 0.025
2017 20.8 0.029
2018 27.3 0.033
2019 32.3 0.038
2020 36.3 0.042
2021 39.5 0.047
2022 42.1 0.051
2023 44.3 0.055
2024 46.2 0.060
2025 47.9 0.064
2026 49.3 0.068
2027 50.6 0.072
2028 51.8 0.076
2029 52.8 0.079
2030 53.7 0.083
2031 54.6 0.087
2032 55.4 0.090
2033 56.2 0.093
2034 56.9 0.096
2035 57.5 0.100
2036 58.1 0.103
2037 58.7 0.106
2038 59.2 0.108
2039 59.8 0.111
2040 60.3 0.114
2041 60.7 0.117
2042 61.2 0.119
2043 61.6 0.122
2044 62.0 0.124
2045 62.4 0.126
2046 62.8 0.129
2047 63.2 0.131
2048 63.5 0.133
2049 63.9 0.135
2050 64.2 0.137



 grafico orbita
Note: Theta is PA, Rho is Sep. For yearly orbits, data refer to Jan 1st.

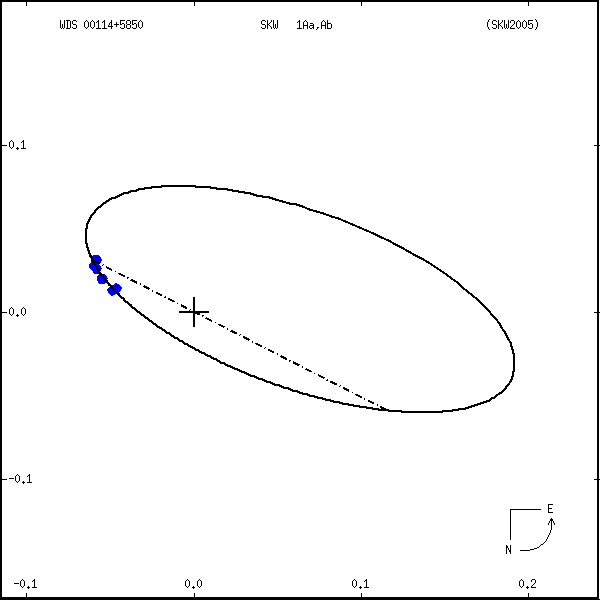

wds00114%2B5850b.png orbit plot
Measures: green=micrometric, blue=interferometric, purple=photographic


ORBITAL ELEMENTS SOLUTION #3


Period (P)462.7y Periastron (T)2014y Semi-major axis (a)0.14a
Eccentricity (e)0.9 Inclination (i)0.3° Longitude of periastron (ω)344°
Node (Ω)31° Notesn ReferenceSKW2005
Equinox Last observation2003 Grade4(1=Definitive, 9=Indet.)
label theta rho
2000 246.4 0.061
2001 248.4 0.057
2002 250.5 0.054
2003 252.9 0.051
2004 255.6 0.048
2005 258.8 0.044
2006 262.5 0.041
2007 266.9 0.037
2008 272.4 0.033
2009 279.2 0.029
2010 288.2 0.025
2011 300.4 0.021
2012 317.9 0.018
2013 342.8 0.015
2014 15.0 0.014
2015 47.2 0.015
2016 72.1 0.018
2017 89.6 0.021
2018 101.8 0.025
2019 110.8 0.029
2020 117.6 0.033
2021 123.1 0.037
2022 127.5 0.041
2023 131.2 0.044
2024 134.4 0.048
2025 137.1 0.051
2026 139.5 0.054
2027 141.6 0.057
2028 143.6 0.061
2029 145.3 0.064
2030 146.8 0.067
2031 148.3 0.069
2032 149.6 0.072
2033 150.8 0.075
2034 152.0 0.078
2035 153.0 0.080
2036 154.0 0.083
2037 155.0 0.086
2038 155.8 0.088
2039 156.7 0.091
2040 157.5 0.093
2041 158.2 0.095
2042 158.9 0.098
2043 159.6 0.100
2044 160.3 0.102
2045 160.9 0.104
2046 161.5 0.107
2047 162.1 0.109
2048 162.6 0.111
2049 163.1 0.113
2050 163.7 0.115



 grafico orbita
Note: Theta is PA, Rho is Sep. For yearly orbits, data refer to Jan 1st.






wds00114%2B5850c.png orbit plot
Measures: green=micrometric, blue=interferometric, purple=photographic


ORBITAL ELEMENTS SOLUTION #4


Period (P)62.7y Periastron (T)2009.5y Semi-major axis (a)0.05a
Eccentricity (e)0.9 Inclination (i)0.4° Longitude of periastron (ω)14°
Node (Ω)33° Notesn ReferenceSKW2005
Equinox Last observation2003 Grade4(1=Definitive, 9=Indet.)
label theta rho
2000 247.2 0.061
2001 248.9 0.058
2002 251.0 0.054
2003 253.3 0.049
2004 256.2 0.044
2005 259.8 0.039
2006 264.7 0.033
2007 271.8 0.026
2008 284.7 0.018
2009 323.6 0.009
2010 130.4 0.009
2011 169.3 0.018
2012 182.2 0.026
2013 189.3 0.033
2014 194.2 0.039
2015 197.8 0.044
2016 200.7 0.049
2017 203.0 0.054
2018 205.1 0.058
2019 206.8 0.061
2020 208.4 0.065
2021 209.8 0.068
2022 211.2 0.071
2023 212.4 0.074
2024 213.5 0.076
2025 214.5 0.078
2026 215.5 0.080
2027 216.5 0.082
2028 217.4 0.084
2029 218.2 0.086
2030 219.1 0.087
2031 219.9 0.089
2032 220.6 0.090
2033 221.4 0.091
2034 222.1 0.092
2035 222.9 0.093
2036 223.6 0.094
2037 224.3 0.094
2038 225.0 0.094
2039 225.7 0.095
2040 226.4 0.095
2041 227.1 0.095
2042 227.8 0.095
2043 228.5 0.095
2044 229.2 0.094
2045 229.9 0.094
2046 230.6 0.093
2047 231.3 0.093
2048 232.1 0.092
2049 232.8 0.091
2050 233.6 0.090



 grafico orbita
Note: Theta is PA, Rho is Sep. For yearly orbits, data refer to Jan 1st.






wds00114%2B5850d.png orbit plot
Measures: green=micrometric, blue=interferometric, purple=photographic
