12021+4303 ARN 5 AC



12h 02m 06.80s +43° 02' 44.3" P.A. 25.00 sep 375.9 mag 5.24,8.47 Sp F0Vam dist. 34.27 pc (111.79 l.y.)


Coord 2000 12021+4303 Discov num ARN   5 Comp AC Coord arcsec 2000 12 02 06.80 +43 02 44.3
Date first 1897 Date last 2015 Obs 11
Pa first 19 Pa last 24.9 P.A. Now (θ) 24.9°
Sep first 369.3 Sep last 375.9 Sep. Now (ρ) 375.9"
Mag pri 5.24 Mag sec 8.47 delta mag (ΔM) 3.23 Spectral class F0Vam (yellow-white)
Pri motion ra -349 Sec motion ra -008
Pri motion dec +057 Sec motion dec +005
Notes N (See Notes)
rPM=0.975
This double is not physical.


12021+4303 SYSTEM COMPONENTS


Show name SAO coord wds_name last obs pa sep mag1 mag2 d_mag orb current
Show 67 UMa 44002 12 02 07 +43 02 44 FOR 1 AB 2015 15 62 274.4 5.24 6.72 1.48
Show 44002 12 02 07 +43 02 44 ARN 5 AC 2015 11 25 375.9 5.24 8.47 3.23 <===
Show 44002 12 02 07 +43 02 44 FOR 1 AD 2015 14 268 363.2 5.24 8.91 3.67
Show 44005 12 02 29 +43 05 03 FOR 1 BC 2015 8 339 227.3 6.72 8.47 1.75
Show 12 01 33 +43 02 30 HDS 1690 Da,Db 2015 3 96 0.8 9.01 12.32 3.31
Show 12 01 33 +43 02 30 HDS 1690 Da,Dc 2015 2 36 0.3 9.01
Sextuple system
6 estimated visually detectable stars in this system


OTHER CATALOGS AND DESIGNATIONS


Var name DP UMa Constellation Ursa Major SAO 44002 HIP 58684
Tycho2 3019-02030-1 HD 104513 HR 4594 GC 16445
BD BD+43 2179 Flamsteed 67 Ursae Majoris Flamsteed name 67 UMa FK5 2965
Distance 34.27 Distance ly 111.79


WDS 12021+4303 ARN 5 AC : NOTES


discov_num notes refcode
FOR 1 67 UMa. A is a Delta Scuti-type variable, DP UMa.
Position of B (+43@2182): 12 02.5 +43 05.


DISCOVERER


discov author
ARN Arnold, D.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
12021+4303 ARN 5 AC 2002 6 26 373.3 5.24 8.47 D 120206.80+430244.3
12021+4303 ARN 5 AC 2004 8 24 375.9 5.24 8.47 N D 120206.80+430244.3
12021+4303 ARN 5 AC 2012 9 25 375.3 5.24 8.47 N D 120206.80+430244.3
12021+4303 ARN 5 AC 2015 11 25 375.9 5.24 8.47 F0Vam N 120206.80+430244.3

If you need more information about this double, apply for a data request form to the WDS.



WDS 12021+4303 ARN 5 AC : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 12021+4303 ARN 5 AC : MEASURES


No records found.

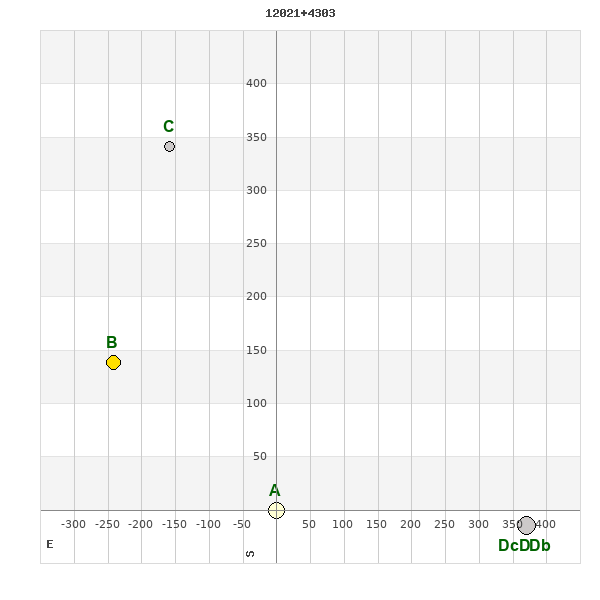

WDS 12021+4303 : VIRTUAL EYEPIECE



12021+4303 FOR 1A mag 5.24 Sp A7m 12021+4303 FOR 1B sep 279.1 P.A. 60.30 mag 6.72 Sp G8Vwk 12021+4303 ARN 5C sep 375.9 P.A. 24.90 mag 8.47 12021+4303 HDS1690D sep 369.8 P.A. 267.80 mag 9.01 Sp F6II 12021+4303 HDS1690Db sep 369.1 P.A. 267.80 mag 12.32 12021+4303 HDS1690Dc sep 369.6 P.A. 267.80 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 12021+4303 : ALADIN DSS IMAGE @ 12h 02m 06.80s +43° 02' 44.3"




WDS 12021+4303 ARN 5 AC : NEIGHBORHOODS


FoV:
Limit:
Primaries only

12021+4303 ARN 5AC distance=0' 12021+4303 FOR 1BC distance=5' 12021+4303 HDS1690Da,Db distance=7' 12021+4303 HDS1690Da,Dc distance=7' 12039+4257 LDS4174 distance=22' 12038+4238 KZA 25 distance=32' 12040+4236 SKF2643 distance=34' 12006+4337 STF1589 distance=39' 12051+4322 KZA 26 distance=39' 11590+4240 PKO 32 distance=42' 12010+4347 A 1779 distance=47' 11577+4320 BVD 219 distance=52' 11575+4251 UC 2238 distance=52' 12065+4320 KZA 27 distance=52' 12073+4306 HJ 2596 distance=58' 12028+4205 BFR 7 distance=59' 12044+4356 TDS8204 distance=59' 11563+4302 SKF2638 distance=64' 12013+4158 CVR 640 distance=66' 12080+4242 A 1998 distance=68' 11559+4309 LDS4159 distance=69' 12026+4418 BVD 221 distance=76' 12054+4154 CVR1405 distance=78' 11583+4150 BVD 220 distance=84' 12083+4354 ES 2641 distance=86' 12097+4327 UC 168 distance=87' 11536+4255 STT 240 distance=94' 12051+4134 HDS1703 distance=95' 12062+4139 SKF2699 distance=96' 11534+4317 ES 1154 distance=96' 12083+4153 CBL 592 distance=98' 12035+4124 BU 1323AB distance=100' 12035+4124 STF1594AC distance=100' 12035+4124 STF1594AD distance=100' 12003+4124 SKF2696 distance=101' 11528+4336 A 1776AB distance=106' 11528+4336 A 1776AC distance=106' 11528+4336 GII 94AD distance=106' 11528+4336 GII 94AE distance=106' 12026+4117 HDS1692 distance=107' 12114+4334 LDS4186AB distance=107' 12114+4334 LDS4186AC distance=107' 11539+4159 CVR1390 distance=111' 12121+4340 DVG 37 distance=115' 12068+4450 FAR 13BC distance=119' 12068+4450 WSI 116AB distance=119' 12001+4107 LDS5212 distance=120' 12091+4128 SKF2700 distance=123' 12010+4058 SKF2641 distance=126' 12035+4054 SKF2642 distance=131' 11512+4405 STF1574 distance=134' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 12021+4303 FOR 1 AB 62 274.4 0
Show 12021+4303 FOR 1 AD 268 363.2 0
Show 12021+4303 ARN 5 AC 25 375.9 0
Show 12021+4303 FOR 1 BC 339 227.3 5
Show 12021+4303 HDS1690 Da,Db 96 0.8 7
Show 12021+4303 HDS1690 Da,Dc 36 0.3 7
Show 12039+4257 LDS4174 226 16.9 22
Show 12038+4238 KZA 25 287 35.5 32
Show 12040+4236 SKF2643 52 10.3 34
Show 12006+4337 STF1589 158 2.2 39
Show 12051+4322 KZA 26 106 16.9 39
Show 11590+4240 PKO 32 233 0.3 42
Show 12010+4347 A 1779 22 0.6 47
Show 11577+4320 BVD 219 27 46.0 52
Show 11575+4251 UC 2238 44 5.1 52
Show 12065+4320 KZA 27 147 36.3 52
Show 12073+4306 HJ 2596 235 34.3 58
Show 12028+4205 BFR 7 43 7.7 59
Show 12044+4356 TDS8204 172 0.5 59
Show 11563+4302 SKF2638 260 11.4 64
Show 12013+4158 CVR 640 49 12.1 66
Show 12080+4242 A 1998 347 0.3 68
Show 11559+4309 LDS4159 273 27.3 69
Show 12026+4418 BVD 221 239 12.9 76
Show 12054+4154 CVR1405 88 3.7 78
Show 11583+4150 BVD 220 42 19.2 84
Show 12083+4354 ES 2641 259 15.8 86
Show 12097+4327 UC 168 347 59.2 87
Show 11536+4255 STT 240 318 8.4 94
Show 12051+4134 HDS1703 325 0.4 95
Show 12062+4139 SKF2699 357 17.3 96
Show 11534+4317 ES 1154 338 3.5 96
Show 12083+4153 CBL 592 65 11.9 98
Show 12035+4124 BU 1323 AB 322 2.1 100
Show 12035+4124 STF1594 AC 142 11.0 100
Show 12035+4124 STF1594 AD 71 27.2 100
Show 12003+4124 SKF2696 60 11.1 101
Show 11528+4336 A 1776 AB 206 1.8 106
Show 11528+4336 A 1776 AC 205 21.7 106
Show 11528+4336 GII 94 AD 293 4.3 106
Show 11528+4336 GII 94 AE 66 4.4 106
Show 12026+4117 HDS1692 211 0.1 107
Show 12114+4334 LDS4186 AB 256 124.9 107
Show 12114+4334 LDS4186 AC 229 10.3 107
Show 11539+4159 CVR1390 82 3.9 111
Show 12121+4340 DVG 37 72 38.0 115
Show 12068+4450 FAR 13 BC 280 84.3 119
Show 12068+4450 WSI 116 AB 285 4.8 119
Show 12001+4107 LDS5212 173 7.2 120
Show 12091+4128 SKF2700 80 11.6 123
Show 12010+4058 SKF2641 64 5.0 126



WDS 12021+4303 : COMPONENTS


  A B C D Db
B pa=60.3°
sep=279.13"

C pa=24.9°
sep=375.85"
pa=337.4°
sep=219.33"

D pa=267.8°
sep=369.82"
pa=256.0°
sep=630.59"
pa=236.0°
sep=635.85"

Db pa=267.8°
sep=369.06"
pa=256.0°
sep=629.87"
pa=236.0°
sep=635.26"
pa=95.8°
sep=0.76"

Dc pa=267.8°
sep=369.63"
pa=256.0°
sep=630.36"
pa=236.0°
sep=635.56"
pa=35.8°
sep=0.30"
pa=299.0°
sep=0.67"


12021+4303 A


Name 67 UMa Var name DP UMa Coord arcsec 2000 120206.80+430244.3 Mag 5.24
Spectral class A7m (white) PmRA -327.00 PmDE 72.0 SAO 239599
Tycho2 3019-02030-1 DM CP-51 4728 Flamsteed 67 Ursae Majoris Flamsteed name 67 UMa
Tycho2
Tycho2 3019-02030-1 Pflag RAmdeg 180.52834110 DEmdeg 43.04564026
PmRA -326.5 PmDE 71.7 E RAmdeg 3 E DEmdeg 3
E pmRA 0.9 E pmDE 0.9 EpRAm 1991.57 EpDEm 1991.59
Num 13 Q RAmdeg 1.3 Q DEmdeg 1.0 Q pmRA 1.3
Q pmDE 1.0 BTmag 5.534 E BTmag 0.014 VTmag 5.241
E VTmag 0.009 Prox 999 TYC T HIP 58684
CCDM RAdeg 180.52936861 DEdeg 43.04547556 EpRA 1990 1.72
EpDE 1990 1.73 E RAdeg 3.2 E DEdeg 3.4 Posflg
Corr 0.0
SAO
SAO 239599 DelFlag RA1950 PmRA1950 -0.0034
DE1950 PmDE1950 -0.013 Vmag 8.5 SpType A2
Double code Source 48 CatNum 10032 DM CP-51 4728
DMcomp BDsup HD 104509 M HD 0
GC RA1950rad 3.1393678 DE1950rad -0.89958355 PmRA2000 -0.0034
PmDE2000 -0.01


12021+4303 B


Coord arcsec 2000 120228.92+430502.7 Coord calc 120228.92+430502.7 Mag 6.72 Spectral class G8Vwk (yellow)
PmRA -347.00 PmDE -512.0 Tycho2 3019-02029-1 HD 104556
Delta magnitude 1.48
Tycho2
Tycho2 3019-02029-1 Pflag RAmdeg 180.62048409 DEmdeg 43.08408362
PmRA -347.3 PmDE -511.6 E RAmdeg 4 E DEmdeg 4
E pmRA 0.8 E pmDE 0.9 EpRAm 1991.34 EpDEm 1991.45
Num 13 Q RAmdeg 0.5 Q DEmdeg 0.5 Q pmRA 0.6
Q pmDE 0.4 BTmag 7.714 E BTmag 0.015 VTmag 6.719
E VTmag 0.010 Prox 999 TYC T HIP 58708
CCDM RAdeg 180.62157611 DEdeg 43.08525889 EpRA 1990 1.73
EpDE 1990 1.73 E RAdeg 3.8 E DEdeg 4.1 Posflg
Corr 0.0


12021+4303 C


Coord arcsec 2000 120221.24+430825.3 Mag 8.47 PmRA -8.00 PmDE 5.0
Tycho2 3019-01727-1 Delta magnitude 3.23 Coordinate calculated yes
Tycho2
Tycho2 3019-01727-1 Pflag RAmdeg 180.58677462 DEmdeg 43.14060128
PmRA -8.5 PmDE 4.0 E RAmdeg 6 E DEmdeg 9
E pmRA 1.0 E pmDE 1.1 EpRAm 1991.29 EpDEm 1990.59
Num 8 Q RAmdeg 0.7 Q DEmdeg 0.4 Q pmRA 0.7
Q pmDE 0.5 BTmag 9.834 E BTmag 0.023 VTmag 8.468
E VTmag 0.013 Prox 999 TYC T HIP 58698
CCDM RAdeg 180.58680111 DEdeg 43.14059222 EpRA 1990 1.86
EpDE 1990 1.70 E RAdeg 6.3 E DEdeg 8.7 Posflg
Corr -0.1


12021+4303 D


Coord arcsec 2000 120133.09+430230.1 Coord calc 120133.70+430229.1 Mag 9.01 Composed magnitude 8.91
Spectral class F6II (yellow-white) PmRA 66.00 PmDE -21.0 HIP 58648
Tycho2 3019-00818-1 HD 104425 BD BD+43 2177 Delta magnitude 3.77
Tycho2
Tycho2 3019-00818-1 Pflag RAmdeg 180.38810937 DEmdeg 43.04164776
PmRA 65.1 PmDE -22.5 E RAmdeg 7 E DEmdeg 8
E pmRA 1.1 E pmDE 1.1 EpRAm 1991.09 EpDEm 1990.90
Num 8 Q RAmdeg 0.6 Q DEmdeg 1.0 Q pmRA 0.5
Q pmDE 1.1 BTmag 9.431 E BTmag 0.018 VTmag 8.906
E VTmag 0.014 Prox 999 TYC T HIP 58648
CCDM AE RAdeg 180.38790500 DEdeg 43.04169917 EpRA 1990 1.75
EpDE 1990 1.75 E RAdeg 7.2 E DEdeg 8.3 Posflg P
Corr -0.1
Hipparcos
Catalog H HIP 58648 Proxy H RAhms 12 01 33.09
DEdms +43 02 30.1 Vmag 8.85 VarFlag 2 R Vmag G
RAdeg 180.388 DEdeg 43.0417 AstroRef A Plx 6.68
CCDM 65.86 N CCDM I Nsys 4 Ncomp 2
MultFlag C Source Qual B M HIP AE
Theta 86 Rho 0.626 HD BD BD+43 2177
CD CP Dm number +43 2177 VIred 0.56
SpType F6II R SpType Coord arcsec 2000 120133.09+430230.1
Hipparcos 2
HIP 58648 Sn 15 So 3 Nc 2
RArad 3.1483626177 DErad 0.7512194265 Plx 6.94 PmRA 66
PmDE -20.6 E RArad 0.94 E DErad 0.59 E Plx 1.26
E pmRA 1.06 E pmDE 0.88 Hpmag E Hpmag 0.0097
SHp 0.077 VA 1 BV 0.485 E BV 0.009
VI 0.56


12021+4303 Db


Coord arcsec 2000 120133.16+430230.0 Mag 12.32 Delta magnitude 7.08 Coordinate calculated yes


12021+4303 Dc


Coord arcsec 2000 120133.11+430230.3 Delta magnitude 5.24 Coordinate calculated yes
