00028+8017 STF 3051 (HD 74014)



00h 02m 46.53s +80° 16' 56.2" P.A. 24.00 sep 17.0 mag 7.74,9.47 Sp F2V dist. 33.82 pc (110.32 l.y.)


Coord 2000 00028+8017 Discov num STF3051 Comp Coord arcsec 2000 00 02 46.53 +80 16 56.2
Date first 1832 Date last 2020 Obs 40
Pa first 24 Pa last 23.7 P.A. Now (θ) 23.7°
Sep first 16.5 Sep last 16.984 Sep. Now (ρ) 16.984"
Mag pri 7.74 Mag sec 9.47 delta mag (ΔM) 1.73 Spectral class F2V (yellow-white)
Pri motion ra +048 Sec motion ra +048
Pri motion dec +017 Sec motion dec +014
Notes Z (Parallax indicates components are physical)
rPM=0.059 (< 0.3, Physical double)
This double is physical.


OTHER CATALOGS AND DESIGNATIONS


Name HD 74014 Constellation Cepheus SAO 2 HIP 42634
Tycho2 4500-00783-1 Gaia DR2 565057240473317888 HD 74014 GC 4
BD BD+79 799 Distance 33.82 Distance ly 110.32


ORBITAL ELEMENTS SOLUTION #1


Period (P)30.71y Periastron (T)2019.3y Semi-major axis (a)81.3m
Eccentricity (e)0.26 Inclination (i)82° Longitude of periastron (ω)292.1°
Node (Ω)75.7° Notes ReferenceSAO2021
Equinox Last observation2020 Grade4(1=Definitive, 9=Indet.)
label theta rho
2000 124.9 0.018
2001 171.2 0.014
2002 211.5 0.020
2003 228.8 0.030
2004 237.1 0.041
2005 242.0 0.052
2006 245.2 0.062
2007 247.6 0.070
2008 249.5 0.077
2009 251.1 0.083
2010 252.5 0.086
2011 253.9 0.087
2012 255.3 0.085
2013 256.9 0.080
2014 258.7 0.072
2015 261.1 0.060
2016 264.9 0.045
2017 273.5 0.027
2018 316.9 0.010
2019 49.7 0.018
2020 65.1 0.037
2021 70.4 0.052
2022 73.5 0.063
2023 75.9 0.069
2024 78.0 0.071
2025 80.1 0.069
2026 82.5 0.063
2027 85.4 0.055
2028 89.5 0.046
2029 95.9 0.035
2030 107.9 0.025
2031 135.6 0.016
2032 185.9 0.015
2033 218.1 0.023
2034 231.8 0.034
2035 238.8 0.044
2036 243.0 0.055
2037 245.9 0.064
2038 248.2 0.073
2039 250.0 0.079
2040 251.5 0.084
2041 252.9 0.087
2042 254.3 0.087
2043 255.8 0.084
2044 257.3 0.078
2045 259.3 0.069
2046 262.0 0.056
2047 266.6 0.040
2048 278.8 0.021
2049 355.7 0.009
2050 56.6 0.024

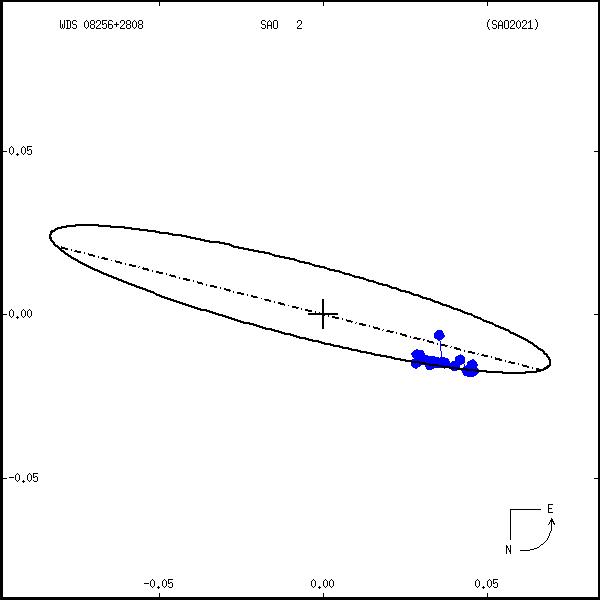

 grafico orbita
Note: Theta is PA, Rho is Sep. For yearly orbits, data refer to Jan 1st.






wds08256%2B2808a.png orbit plot
Measures: green=micrometric, blue=interferometric, purple=photographic


ORBITAL ELEMENTS SOLUTION #2


Period (P)6936.3d (18.99y)± 134.7 Periastron (T)53431.9d (2005.167y)± 5.2 Semi-major axis (a)64m± 32.9
Eccentricity (e)0.532± 0.006 Inclination (i)171.1°± 6.8 Longitude of periastron (ω)325.3°± 0.6
Node (Ω)248.7°± 22 Notes ReferenceSaJ2011
Equinox Last observation Grade9(1=Definitive, 9=Indet.)
label theta rho
2000 70.2 0.083
2001 59.7 0.074
2002 46.2 0.064
2003 26.8 0.052
2004 354.3 0.039
2005 295.2 0.030
2006 228.9 0.035
2007 189.4 0.047
2008 166.6 0.060
2009 151.2 0.070
2010 139.6 0.079
2011 130.2 0.086
2012 122.0 0.092
2013 114.6 0.095
2014 107.6 0.097
2015 100.8 0.098
2016 93.9 0.096
2017 86.7 0.094
2018 78.9 0.089
2019 70.1 0.083
2020 59.6 0.074
2021 46.1 0.064
2022 26.6 0.052
2023 353.9 0.038
2024 294.6 0.030
2025 228.5 0.035
2026 189.2 0.047
2027 166.4 0.060
2028 151.1 0.071
2029 139.5 0.079
2030 130.1 0.086
2031 121.9 0.092
2032 114.5 0.095
2033 107.5 0.097
2034 100.7 0.098
2035 93.8 0.096
2036 86.6 0.094
2037 78.9 0.089
2038 70.1 0.083
2039 59.5 0.074
2040 45.9 0.064
2041 26.4 0.052
2042 353.5 0.038
2043 293.9 0.030
2044 228.0 0.035
2045 188.9 0.048
2046 166.2 0.060
2047 151.0 0.071
2048 139.5 0.079
2049 130.0 0.086
2050 121.9 0.092



 grafico orbita
Note: Theta is PA, Rho is Sep. For yearly orbits, data refer to Jan 1st.






wds08413-0449o.png orbit plot
Measures: green=micrometric, blue=interferometric, purple=photographic


ORBITAL ELEMENTS SOLUTION #3


Period (P)403d± 20 Periastron (T)48596d (1991.927y)± 155 Semi-major axis (a)7.9m± 5.9
Eccentricity (e)0.31± 0.36 Inclination (i)85°± 14 Longitude of periastron (ω)101°± 68
Node (Ω)134°± 94 Notes ReferenceGln2007
Equinox Last observation1991 Grade9(1=Definitive, 9=Indet.)
label theta rho
2000-01-01 323.3 0.004
2001-01-01 317.7 0.007
2002-01-01 314.0 0.007
2003-01-01 307.2 0.003
2004-01-01 142.9 0.003
2005-01-01 135.0 0.007
2006-01-01 132.1 0.008
2007-01-01 129.0 0.007
2008-01-01 123.2 0.004
2009-01-01 92.8 0.001
2010-01-01 333.8 0.002
2011-01-01 320.9 0.005
2012-01-01 316.5 0.007
2013-01-01 312.7 0.006
2014-01-01 295.4 0.001
2015-01-01 138.5 0.005
2016-01-01 133.9 0.008
2017-01-01 131.1 0.008
2018-01-01 127.6 0.006
2019-01-01 119.2 0.003
2020-01-01 38.5 0.001
2021-01-01 327.2 0.003
2022-01-01 319.2 0.006
2023-01-01 315.3 0.007
2024-01-01 310.8 0.005
2025-01-01 168.2 0.001
2026-01-01 136.5 0.006
2027-01-01 133.0 0.008
2028-01-01 130.2 0.007
2029-01-01 125.8 0.005
2030-01-01 112.0 0.002
2031-01-01 350.3 0.001
2032-01-01 323.5 0.004
2033-01-01 317.8 0.007
2034-01-01 314.1 0.007
2035-01-01 307.5 0.003
2036-01-01 143.3 0.003
2037-01-01 135.1 0.007
2038-01-01 132.1 0.008
2039-01-01 129.0 0.007
2040-01-01 123.4 0.004
2041-01-01 94.6 0.001
2042-01-01 334.3 0.002
2043-01-01 321.1 0.005
2044-01-01 316.5 0.007
2045-01-01 312.8 0.006
2046-01-01 297.0 0.002
2047-01-01 138.7 0.004
2048-01-01 134.0 0.008
2049-01-01 131.2 0.008
2050-01-01 127.7 0.006



 grafico orbita
Note: Theta is PA, Rho is Sep. For yearly orbits, data refer to Jan 1st.






wds08425-4731r.png orbit plot
Measures: green=micrometric, blue=interferometric, purple=photographic


ORBITAL ELEMENTS SOLUTION #4


Period (P)455d± 16 Periastron (T)48473d (1991.59y)± 163 Semi-major axis (a)5.2m± 3.1
Eccentricity (e)0.27± 0.34 Inclination (i)133°± 16 Longitude of periastron (ω)92°± 59
Node (Ω)122°± 82 Notes ReferenceGln2007
Equinox Last observation1991 Grade9(1=Definitive, 9=Indet.)
label theta rho
2000-01-01 141.4 0.005
2001-01-01 192.5 0.005
2002-01-01 252.3 0.005
2003-01-01 302.3 0.005
2004-01-01 63.2 0.003
2005-01-01 138.2 0.005
2006-01-01 188.4 0.005
2007-01-01 248.5 0.005
2008-01-01 298.5 0.005
2009-01-01 51.8 0.003
2010-01-01 135.0 0.005
2011-01-01 184.4 0.005
2012-01-01 244.6 0.005
2013-01-01 295.0 0.005
2014-01-01 39.4 0.003
2015-01-01 131.7 0.005
2016-01-01 180.5 0.005
2017-01-01 240.7 0.005
2018-01-01 291.5 0.005
2019-01-01 26.4 0.003
2020-01-01 128.3 0.005
2021-01-01 176.7 0.005
2022-01-01 236.7 0.005
2023-01-01 288.1 0.005
2024-01-01 13.7 0.003
2025-01-01 124.8 0.005
2026-01-01 173.0 0.005
2027-01-01 232.6 0.005
2028-01-01 284.7 0.005
2029-01-01 2.1 0.003
2030-01-01 121.2 0.005
2031-01-01 169.4 0.005
2032-01-01 228.4 0.005
2033-01-01 281.4 0.005
2034-01-01 351.7 0.003
2035-01-01 117.4 0.005
2036-01-01 165.8 0.005
2037-01-01 224.2 0.005
2038-01-01 278.1 0.005
2039-01-01 342.8 0.003
2040-01-01 113.3 0.005
2041-01-01 162.4 0.005
2042-01-01 219.9 0.005
2043-01-01 274.8 0.005
2044-01-01 335.1 0.003
2045-01-01 108.8 0.004
2046-01-01 159.0 0.005
2047-01-01 215.6 0.005
2048-01-01 271.5 0.005
2049-01-01 328.4 0.004
2050-01-01 104.0 0.004



 grafico orbita
Note: Theta is PA, Rho is Sep. For yearly orbits, data refer to Jan 1st.






wds08456-7705r.png orbit plot
Measures: green=micrometric, blue=interferometric, purple=photographic
