00423+0445 SKF 1513 (HD 3971)



00h 42m 19.69s +04° 44' 46.1" P.A. 30.00 sep 83.0 mag 9.39,10.12 Sp G3/5+G5


Coord 2000 00423+0445 Discov num SKF1513 Comp Coord arcsec 2000 00 42 19.69 +04 44 46.1
Date first 1908 Date last 2015 Obs 10
Pa first 30 Pa last 29.5 P.A. Now (θ) 29.5°
Sep first 82.7 Sep last 83.033 Sep. Now (ρ) 83.033"
Mag pri 9.39 Mag sec 10.12 delta mag (ΔM) 0.73 Spectral class G3/5+G5 (yellow/yellow)
Pri motion ra -017 Sec motion ra -018
Pri motion dec -066 Sec motion dec -063
Notes V (Proper motion indicates physical)
rPM=0.046 (< 0.3, Physical double)
This double is physical.


OTHER CATALOGS AND DESIGNATIONS


Name HD 3971 Constellation Pisces SAO 109389 Tycho2 0014-00514-1
Gaia DR2 2554279486871537920 HD 3971 DM BD+03 92


WDS 00423+0445 SKF 1513 (HD 3971) : NOTES


No records found.



DISCOVERER


discov author
SKF Skiff, B.A.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
00423+0445 SKF1513 2010 5 30 83.0 9.30 10.10 G3/5+G5 V 004219.70+044446.1
00423+0445 SKF1513 2015 7 30 83.0 9.39 10.12 G3/5+G5 VW 004219.69+044446.1

If you need more information about this double, apply for a data request form to the WDS.



WDS 00423+0445 SKF 1513 (HD 3971) : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 00423+0445 SKF 1513 (HD 3971) : MEASURES


No records found.

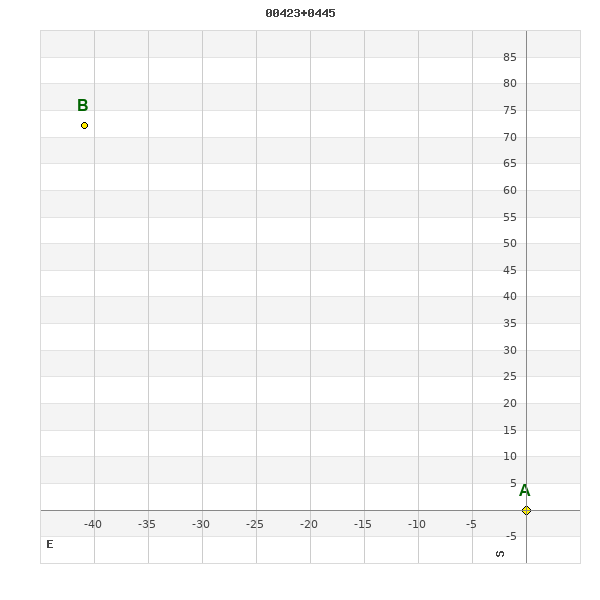

WDS 00423+0445 (HD 3971) : VIRTUAL EYEPIECE



00423+0445 SKF1513A mag 9.39 Sp G3/5 00423+0445 SKF1513B sep 83.0 P.A. 29.50 mag 10.12 Sp G5 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 00423+0445 (HD 3971) : ALADIN DSS IMAGE @ 00h 42m 19.69s +04° 44' 46.1"

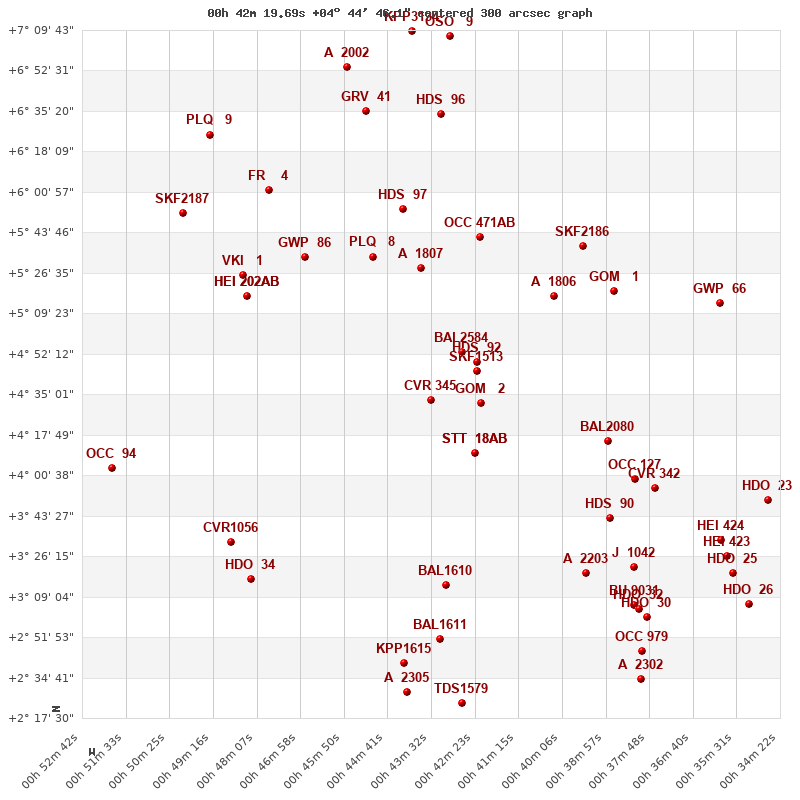

WDS 00423+0445 SKF 1513 (HD 3971) : NEIGHBORHOODS


FoV:
Limit:
Primaries only

00423+0445 SKF1513 distance=0' 00423+0449 HDS 92 distance=4' 00428+0453 BAL2584 distance=11' 00422+0431 GOM 2 distance=14' 00436+0433 CVR 345 distance=23' 00424+0410 STT 18AB distance=35' 00424+0410 A 3107AC distance=35' 00403+0517 A 1806 distance=44' 00438+0529 A 1807 distance=50' 00423+0542 OCC 471AB distance=57' 00389+0415 BAL2080 distance=60' 00451+0533 PLQ 8 distance=64' 00387+0519 GOM 1 distance=64' 00396+0538 SKF2186 distance=68' 00443+0554 HDS 97 distance=75' 00382+0359 OCC 127 distance=77' 00389+0342 HDS 90 distance=82' 00469+0533 GWP 86 distance=84' 00377+0355 CVR 342 distance=86' 00432+0314 BAL1610 distance=92' 00395+0319 A 2203 distance=96' 00484+0517 HEI 202AB distance=96' 00484+0517 BUP 10AC distance=96' 00360+0514 GWP 66 distance=100' 00485+0525 VKI 1 distance=101' 00382+0322 J 1042 distance=104' 00433+0634 HDS 96 distance=111' 00478+0602 FR 4 distance=113' 00433+0251 BAL1611 distance=115' 00382+0305 BU 9031 distance=117' 00452+0635 GRV 41 distance=119' 00382+0304 HDO 32 distance=120' 00359+0333 HEI 424 distance=120' 00488+0332 CVR1056 distance=121' 00379+0300 HDO 30 distance=124' 00483+0317 HDO 34 distance=126' 00358+0326 HEI 423 distance=126' 00347+0350 HDO 23 distance=127' 00443+0241 KPP1615 distance=128' 00356+0319 HDO 25 distance=132' 00501+0552 SKF2187 distance=134' 00380+0246 OCC 979 distance=136' 00457+0654 A 2002 distance=139' 00442+0229 A 2305 distance=139' 00427+0224 TDS1579 distance=141' 00431+0707 OSO 9 distance=143' 00494+0626 PLQ 9 distance=146' 00351+0306 HDO 26 distance=146' 00380+0234 A 2302 distance=146' 00440+0709 KPP3134 distance=147' 00519+0404 OCC 94 distance=150' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 00423+0445 SKF1513 30 83.0 0
Show 00423+0449 HDS 92 167 0.2 4
Show 00428+0453 BAL2584 21 8.6 11
Show 00422+0431 GOM 2 80 9.1 14
Show 00436+0433 CVR 345 54 12.5 23
Show 00424+0410 STT 18 AB 213 2.1 35
Show 00424+0410 A 3107 AC 275 46.9 35
Show 00403+0517 A 1806 18 3.1 44
Show 00438+0529 A 1807 153 2.6 50
Show 00423+0542 OCC 471 AB -1 0.1 57
Show 00389+0415 BAL2080 345 19.3 60
Show 00451+0533 PLQ 8 336 8.6 64
Show 00387+0519 GOM 1 44 549.5 64
Show 00396+0538 SKF2186 27 63.1 68
Show 00443+0554 HDS 97 321 1.5 75
Show 00382+0359 OCC 127 -1 0.1 77
Show 00389+0342 HDS 90 321 0.8 82
Show 00469+0533 GWP 86 352 7.9 84
Show 00377+0355 CVR 342 294 14.4 86
Show 00432+0314 BAL1610 46 6.1 92
Show 00395+0319 A 2203 118 2.5 96
Show 00484+0517 HEI 202 AB 353 2.7 96
Show 00484+0517 BUP 10 AC 240 158.5 96
Show 00360+0514 GWP 66 51 41.0 100
Show 00485+0525 VKI 1 337 3.7 101
Show 00382+0322 J 1042 291 3.3 104
Show 00433+0634 HDS 96 324 0.2 111
Show 00478+0602 FR 4 331 0.3 113
Show 00433+0251 BAL1611 176 19.9 115
Show 00382+0305 BU 9031 155 24.0 117
Show 00452+0635 GRV 41 51 18.2 119
Show 00382+0304 HDO 32 61 9.9 120
Show 00359+0333 HEI 424 273 1.7 120
Show 00488+0332 CVR1056 11 3.8 121
Show 00379+0300 HDO 30 42 6.5 124
Show 00483+0317 HDO 34 280 2.6 126
Show 00358+0326 HEI 423 336 1.4 126
Show 00347+0350 HDO 23 128 29.6 127
Show 00443+0241 KPP1615 7 12.3 128
Show 00356+0319 HDO 25 340 22.8 132
Show 00501+0552 SKF2187 156 8.7 134
Show 00380+0246 OCC 979 -1 0.2 136
Show 00457+0654 A 2002 101 0.1 139
Show 00442+0229 A 2305 2 1.3 139
Show 00427+0224 TDS1579 218 0.6 141
Show 00431+0707 OSO 9 334 23.3 143
Show 00494+0626 PLQ 9 275 20.7 146
Show 00351+0306 HDO 26 112 20.7 146
Show 00380+0234 A 2302 154 0.7 146
Show 00440+0709 KPP3134 166 1.3 147
Show 00519+0404 OCC 94 -1 0.1 150



WDS 00423+0445 : COMPONENTS


  A
B pa=29.5°
sep=83.03"


00423+0445 A


Name HD 3971 Coord arcsec 2000 004219.69+044446.1 Mag 9.39 Spectral class G3/5 (yellow)
PmRA -17.00 PmDE -66.0 SAO 109391 Tycho2 0014-00514-1
DM BD+03 92
Tycho2
Tycho2 0014-00514-1 Pflag RAmdeg 10.58205834 DEmdeg 4.74612019
PmRA -18.2 PmDE -67.0 E RAmdeg 16 E DEmdeg 21
E pmRA 1.4 E pmDE 1.4 EpRAm 1988.28 EpDEm 1987.31
Num 8 Q RAmdeg 0.9 Q DEmdeg 0.5 Q pmRA 0.9
Q pmDE 0.5 BTmag 10.075 E BTmag 0.037 VTmag 9.393
E VTmag 0.029 Prox 830 TYC T HIP
CCDM RAdeg 10.58210111 DEdeg 4.74627889 EpRA 1990 1.62
EpDE 1990 1.49 E RAdeg 17.6 E DEdeg 22.5 Posflg
Corr -0.2
SAO
SAO 109391 DelFlag RA1950 PmRA1950 -0.0014
DE1950 PmDE1950 -0.071 Vmag 9.4 SpType G5
Double code Source 30 CatNum 163 DM BD+03 92
DMcomp BDsup HD M HD
GC RA1950rad 0.17364454 DE1950rad 0.07841779 PmRA2000 -0.0012
PmDE2000 -0.076


00423+0445 B


Coord arcsec 2000 004222.43+044558.4 Mag 10.12 Spectral class G5 (yellow) PmRA -18.00
PmDE -63.0 SAO 109390 Tycho2 0014-00556-1 DM BD+04 98
Delta magnitude 0.73 Coordinate calculated yes
Tycho2
Tycho2 0014-00556-1 Pflag RAmdeg 10.59347849 DEmdeg 4.76617988
PmRA -19.1 PmDE -63.2 E RAmdeg 25 E DEmdeg 31
E pmRA 1.5 E pmDE 1.5 EpRAm 1984.25 EpDEm 1981.51
Num 7 Q RAmdeg 0.9 Q DEmdeg 1.1 Q pmRA 0.9
Q pmDE 1.1 BTmag 10.864 E BTmag 0.065 VTmag 10.122
E VTmag 0.048 Prox 830 TYC T HIP
CCDM RAdeg 10.59352000 DEdeg 4.76633000 EpRA 1990 1.63
EpDE 1990 1.59 E RAdeg 31.3 E DEdeg 39.8 Posflg
Corr -0.1
SAO
SAO 109390 DelFlag RA1950 PmRA1950 -0.003
DE1950 PmDE1950 -0.06 Vmag 9.1 SpType G
Double code Source 30 CatNum 162 DM BD+04 98
DMcomp BDsup HD M HD
GC RA1950rad 0.17345679 DE1950rad 0.07918018 PmRA2000 -0.0028
PmDE2000 -0.065
