22280+5742 KR 60 AB (DO Cep)



22h 27m 59.20s +57° 41' 43.8" P.A. 183.00 sep 2.5 mag 9.93,11.41 Sp M3.5+M4.5 dist. 4 pc (13.05 l.y.)


Coord 2000 22280+5742 Discov num KR   60 Comp AB Coord arcsec 2000 22 27 59.20 +57 41 43.8
Date first 1890 Date last 2023 Obs 321
Pa first 179 Pa last 183.4 P.A. Now (θ) 169.8° (calc)
Sep first 2.3 Sep last 2.48 Sep. Now (ρ) 2.759" (calc)
Mag pri 9.93 Mag sec 11.41 delta mag (ΔM) 1.48 Spectral class M3.5+M4.5 (red/red)
Pri motion ra -806 Sec motion ra -713
Pri motion dec -399 Sec motion dec -321
Notes N O (See Notes, Orbital solution)
rPM=0.135 (< 0.3, Physical double)
This double is physical.


22280+5742 SYSTEM COMPONENTS


Show name SAO coord wds_name last obs pa sep mag1 mag2 d_mag orb current
Show DO Cep 22 27 59 +57 41 44 KR 60 AB 2023 321 183 2.5 9.93 11.41 1.48 Y <===
Show 22 27 59 +57 41 44 KR 60 AC 2016 83 62 139.8 9.93 10.53 0.60
Show 22 27 59 +57 41 44 KR 60 AD 2016 10 56 119.3 9.93 14.30 4.37
Show 22 27 59 +57 41 44 KR 60 AE 2016 17 77 163.0 9.93 13.33 3.40
Show 22 27 59 +57 41 44 KR 60 AF 2016 16 46 71.9 9.93 14.43 4.50
Show 165098 22 27 59 +57 41 44 KR 60 AG 2016 6 114 68.4 9.93 15.14 5.21
Show 165098 22 27 59 +57 41 44 KR 60 AH 2016 8 267 50.2 9.93 13.02 3.09
Show 22 27 59 +57 41 44 KR 60 AI 2016 18 119 238.2 9.93 8.31 1.62
Show 22 27 59 +57 41 44 HEL 4 AJ 2016 10 113 32.5 9.93 15.70 5.77
Show 22 27 59 +57 41 44 HZE 5 AK 2006 1 0 7.2 4.78 16.00 11.22
Show 22 27 59 +57 41 44 FYM 118 AL 2016 5 13 107.0 9.93 15.44 5.51
Show 22 27 59 +57 41 44 FYM 118 AM 2016 5 356 78.4 9.93 15.60 5.67
Show 22 27 59 +57 41 44 FYM 118 AO 2016 5 135 83.0 9.93 15.17 5.24
Show 22 27 59 +57 41 44 FYM 118 AR 2016 5 113 113.7 9.93 15.20 5.27
Show 22 27 59 +57 41 44 FYM 118 AS 2016 5 264 13.2 9.93 15.70 5.77
Show 22 27 59 +57 41 44 FYM 118 AU 2016 5 103 137.6 9.93 15.20 5.27
Show 22 27 60 +57 41 44 KR 60 BC 2016 60 62 141.2 11.41 10.53 0.88
Show 22 27 60 +57 41 44 HEL 4 BJ 2016 7 112 33.9 11.41 15.70 4.29
Show 22 28 13 +57 42 44 FYM 118 CD 2016 9 272 24.5 10.53 14.30 3.77
Show 22 28 13 +57 42 44 KR 60 CE 2016 20 130 45.9 10.53 13.33 2.80 Y
Show 107941 22 28 13 +57 42 44 FYM 118 CN 2016 10 52 42.1 10.53 14.92 4.39
Show 22 28 13 +57 42 44 FYM 118 CP 2016 10 320 46.5 10.53 14.79 4.26
Show 90526 22 28 18 +57 42 15 FYM 118 EQ 2016 9 206 14.2 13.33 15.70 2.37
20-fold system
20 estimated visually detectable stars in this system


OTHER CATALOGS AND DESIGNATIONS


Var name DO Cep Constellation Cepheus HIP 110893 Tycho2 3991-00092-1
HD 239960 ADS 15972 BD BD+56 2783 Distance 4
Distance ly 13.05


ORBITAL ELEMENTS


Period (P)44.5814y± 0.0345 Periastron (T)1970.2342y± 0.0389 Semi-major axis (a)2.40113a± 0.01042
Eccentricity (e)0.40847± 0.00223 Inclination (i)165.701°± 1.277 Longitude of periastron (ω)207.481°± 5.577
Node (Ω)150.665°± 5.42 Notesn ReferenceIzm2019
Equinox Last observation2013 Grade1(1=Definitive, 9=Indet.)
label theta rho
2000 94.6 3.039
2001 90.0 2.954
2002 85.2 2.861
2003 79.9 2.758
2004 74.3 2.647
2005 68.2 2.528
2006 61.4 2.402
2007 53.8 2.269
2008 45.3 2.132
2009 35.6 1.994
2010 24.5 1.856
2011 11.6 1.725
2012 356.7 1.605
2013 339.6 1.506
2014 320.5 1.437
2015 300.1 1.409
2016 279.6 1.431
2017 260.3 1.500
2018 243.2 1.611
2019 228.5 1.748
2020 216.1 1.900
2021 205.6 2.057
2022 196.5 2.213
2023 188.7 2.364
2024 181.7 2.505
2025 175.5 2.638
2026 169.8 2.759
2027 164.6 2.869
2028 159.8 2.968
2029 155.3 3.056
2030 151.0 3.132
2031 146.9 3.198
2032 142.9 3.252
2033 139.1 3.295
2034 135.3 3.327
2035 131.6 3.349
2036 127.9 3.360
2037 124.3 3.360
2038 120.6 3.351
2039 117.0 3.331
2040 113.2 3.301
2041 109.4 3.262
2042 105.5 3.212
2043 101.4 3.152
2044 97.2 3.083
2045 92.7 3.004
2046 88.0 2.916
2047 83.0 2.819
2048 77.6 2.713
2049 71.8 2.598
2050 65.4 2.476

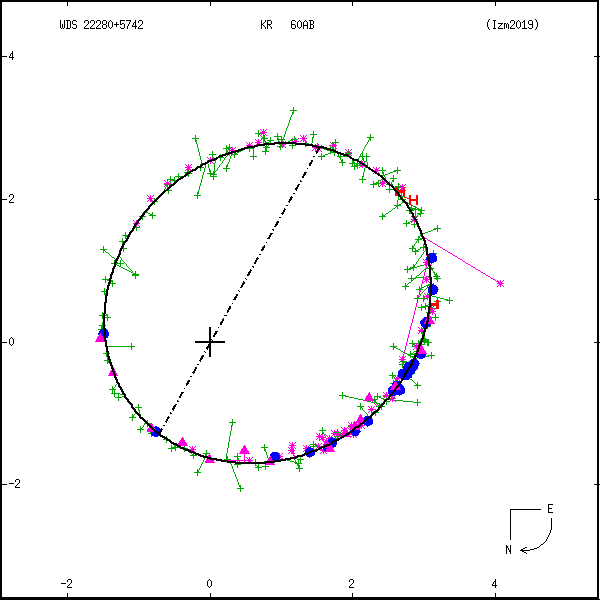

 grafico orbita
Note: Theta is PA, Rho is Sep. For yearly orbits, data refer to Jan 1st.
wds22280%2B5742d.png orbit plot
Measures: green=micrometric, blue=interferometric, purple=photographic


WDS 22280+5742 KR 60 AB (DO Cep) : NOTES


discov_num notes refcode
KR 60 B is the flare star DO Cep, which is fairly active with flares of small
to moderate amplitudes.
See Baize & Petit (1989) catalog of doubles with variable component. Baz1989d
AC, AE, AF, and AI: Optical pair, based on study of relative motion of
the components using the method of apparent motion parameters. Kiy2008
AB: Malkov et al. (2012) derive dynamical, photometric, and
spectroscopic masses 0.43 +/- 0.06, 0.42, and 0.56 Msun, respectively. Mlk2012
HZE 5 Heinze et al. (2010) determine the K component is a background object. Hze2010
FYM 118 The EQ pair was initially listed incorrectly as CQ. The CD pair was
initially listed incorrectly as a new CT pair. FyM2014b
KR 60 AD, AG: Rectilinear solutions by Mason & Hartkopf (2016). Msn2016a
AF: Rectilinear solution by Hurowitz et al. (2014). USN2014b
HEL 4 AJ: Rectilinear solution by Mason & Hartkopf (2016). Msn2016a
FYM 118 AM, AO, AS: Rectilinear solutions by Mason & Hartkopf (2016). Msn2016a
CE: Despite having an orbit, an optical pair based on parallax. Mlk2022


REFERENCES


refcode metd author reference
Baz1989d - Baize, P. & Petit, M. 1989A&AS...77..497B
Baz1989d A&AS 77, 497, 1989
FyM2014b C - Fay, M. .
FyM2014b private communication
Hze2010 A j Heinze, A.N., Hinz, P.M., Sivanandam, S., Kenworthy, M., Meyer, M., & Miller, D. 2010ApJ...714.1551H
Hze2010 ApJ 714, 1551, 2010
Izm2019 orb u Izmailov, I.S. 2019AstL...45...30I
Izm2019 Ast. Lett. 45, 30, 2019
Izm2019
Izm2019
Kiy2008 - Kiyaeva, O.V., Kiselev, A.A. & Izmailov, I.S. 2008SvAL...32..405K
Kiy2008 SvAL 34, 405, 2008
Mlk2012 not - Malkov, O.Yu., Tamazian, V.S., Docobo, J.A., & Chulkov, D.A. 2012A&A...546A..69M
Mlk2012 A&A 546, A69, 2012
Mlk2022 not - Chulkov, D. & Malkov, O. 2022MNRAS.517.2925C
Mlk2022 MNRAS 517, 2925, 2022
Msn2016a lin - Mason, B.D. & Hartkopf, W.I. 2016IAUDS.189....1M
Msn2016a Inf. Circ. 189, 1, 2016
USN2014b lin - Hurowitz, J.L., Hartkopf, W.I., & Mason, B.D. 2014IAUDS.183....1H
USN2014b Inf. Circ. 183, 1, 2014


DISCOVERER


discov author
BAZ Baize, P.
HEL Helminiak, K.G., Kuzuhara, M., Mede, K., Brandt, T.D., Kandori, R., Suenaga, T.,
HEL Kusakabe, N., Narita, N., Carson, J., Currie, T., Kudo, T., Hashimoto, J., et al.
IZM Izmailov, I.S., Khovricheva, M.L., Khovrichev, M. Yu., Kiyaeva, O.V., Khrutskaya,
IZM E.V., Romanenko, L.G., Grosheva, E.A., Maslennikov, K.L. & Kalinichenko, O.A.
KIY Kiyaeva, O.V., Zhuchkov, R.Ya., Malogolovets, E.V., Orlov, V.V., Glukhova, A.V.,
KIY Balega, Yu., Yu. & Bikmaev, I.F.
MSN Mason, B.D., Gies, D.R., Hartkopf, W.I., Bagnuolo, Jr., W.G.,
MSN ten Brummelaar, T.A., & McAlister, H.A.
MSN Mason, B.D., Martin, C., Hartkopf, W.I., Barry, D.J., Germain, M.E.,
MSN Douglass, G.G., Worley, C.E., ten Brummelaar, T.A., et al.
MSN Mason, B.D., Hartkopf, W.I., Raghavan, D., Subasavage, J.P., Roberts, L.C., Jr.,
MSN Turner, N.H., & ten Brummelaar, T.A.
USN Franz, O.G., Gossner, J.L., Josties, F.J., Lindenblad, I.W., Mikesell, A.H.,
USN Pub. USNO 18, Pt.1, 1963
USN Kallarakal, V.V., Lindenblad, I.W., Josties, F.J., Riddle, R.K., Miranian, M.,
USN Mintz, B.F., & Klugh, A.P.
USN Harrington, R.S., Dahn, C.C., Behall, A.L., Priser, J.B., Christy, J.W., Riepe,
USN B.Y., Ables, H.D., Guetter, H.H., et al.
USN Dahn, C.C., Harrington, R., Riepe, B.Y., Christy, J.W., Guetter, H.H.,
USN Behall, A.L., Walker, R.L., Hewitt, A.V., & Ables, H.D.
USN Dahn, C.C., Harrington, R.S., Riepe, B.Y., Christy, J.W., Guetter, H.H.,
USN Kallarakal, V.V., Miranian, M., Walker, R.L., et al.
USN Harrington, R.S., Kallarakal, V.V., Christy, J.W., Dahn, C.C., Riepe, B.Y.,
USN Guetter, H.H., Ables, H.D., Hewitt, A.V., et al.
USN Dahn, C.C., Harrington, R.S., Kallarakal, V.V., Guetter, H.H., Luginbuhl, C.B.,
USN Riepe, B.Y., Walker, R.L., Pier, J.R., et al.
USN Harrington, R.S., Dahn, C.C., Kallarakal, V.V., Guetter, H.H., Riepe, B.Y.,
USN Walker, R.L., Pier, J.R., Vrba, F.J., et al.
USN Monet, D., Bird A., Canzian B., Dahn C., Guetter H., Harris H., Henden A.,
USN Levine S., Luginbuhl C., Monet A.K.B., Rhodes A., Riepe B., et al.
USN Harris, H.C., Dahn, C.C., Dupuy, T.J., Canzian, B., Guetter, H.H., Hartkopf, W.I.,
USN Ireland, M.J., Leggett, S.K., Levine, S.E., Liu, M.C., Luginbuhl, C.B.,
USN Monet, A.K.B., Stone, R.C., Subasavage, J.P., Tilleman, T., & Walker, R.L.
USN Dahn, C.C., Harris, H.C., Subasavage, J.P., Ables, H.D., Canzian, B.J., Guetter,
USN H.H., Harris, F.H., Henden, A.H., Leggett, S.K., Levine, S.E., Luginbuhl, C.B.,
USN Monet, A.B., Monet, D.G., Munn, J.A., Pier, J.R., Stone, R.C., Vrba, F.J., Walker,
USN R.L. & Tillerman, T.M.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
22280+5742 KR 60 AB 2007 268 48 2.2 9.93 11.41 M3.5+M4.5 +56 2783 NOD 222800.42+574149.3
22280+5742 KR 60 AB 2008 270 42 2.1 9.93 11.41 M3.5+M4.5 +56 2783 NOD 222800.42+574149.3
22280+5742 KR 60 AB 2009 276 29 1.8 9.93 11.41 M3.5+M4.5 +56 2783 NOD 222800.42+574149.3
22280+5742 KR 60 AB 2010 283 17 1.6 9.93 11.41 M3.5+M4.5 +56 2783 NOD 222800.42+574149.3
22280+5742 KR 60 AB 2013 286 329 1.5 9.93 11.41 M3.5 M4.5 +56 2783 NOD 222759.20+574143.8
22280+5742 KR 60 AB 2015 289 288 1.4 9.93 11.41 M3.5+M4.5 +56 2783 NO 222759.20+574143.8
22280+5742 KR 60 AB 2016 291 266 1.5 9.93 11.41 M3.5+M4.5 +56 2783 NO 222759.20+574143.8
22280+5742 KR 60 AB 2020 295 206 2.1 9.93 11.41 M3.5+M4.5 +56 2783 NO 222759.20+574143.8
22280+5742 KR 60 AB 2023 320 183 2.5 9.93 11.41 M3.5+M4.5 +56 2783 NO 222759.20+574143.8

If you need more information about this double, apply for a data request form to the WDS.



WDS 22280+5742 KR 60 AB (DO Cep) : VISUAL OBSERVATIONS REPORTS


Show date username difficulty separation pa_estim interest notes
Show 20/10/25 Adam Long difficut separated 235 interesting but to observe in better conditions Seeing not great, transparency good. A dark background and lower mag/ bigger exit pupil are useful tools for this pair.



WDS 22280+5742 KR 60 AB (DO Cep) : MEASURES


No records found.



WDS 22280+5742 (DO Cep) : VIRTUAL EYEPIECE



22280+5742 KR 60A mag 9.93 Sp M3.5 22280+5742 KR 60B sep 6.2 P.A. 84.40 mag 11.41 Sp M4.5 22280+5742 FYM 118C sep 129.1 P.A. 62.20 mag 10.53 Sp M3 22280+5742 KR 60D sep 119.3 P.A. 56.20 mag 14.3 Sp M2 22280+5742 FYM 118E sep 152.9 P.A. 78.20 mag 13.33 Sp M2 22280+5742 KR 60F sep 71.9 P.A. 46.40 mag 14.43 22280+5742 KR 60G sep 68.4 P.A. 113.50 mag 15.14 Sp K9 22280+5742 KR 60H sep 50.1 P.A. 266.90 mag 13.02 Sp M1 22280+5742 KR 60I sep 238.3 P.A. 119.10 mag 8.31 Sp K1 22280+5742 HEL 4J sep 32.5 P.A. 113.20 mag 15.7 22280+5742 HZE 5K sep 7.2 P.A. 0.20 mag 16 22280+5742 FYM 118L sep 107.0 P.A. 13.40 mag 15.44 Sp K9 22280+5742 FYM 118M sep 78.4 P.A. 356.10 mag 15.6 Sp M1 22280+5742 FYM 118N sep 170.7 P.A. 59.80 mag 14.92 Sp K3 22280+5742 FYM 118O sep 83.0 P.A. 134.90 mag 15.17 Sp K7 22280+5742 FYM 118P sep 127.2 P.A. 41.30 mag 14.79 Sp K7 22280+5742 FYM 118Q sep 144.7 P.A. 82.70 mag 15.7 Sp K9 22280+5742 FYM 118R sep 113.7 P.A. 113.30 mag 15.2 Sp M2 22280+5742 FYM 118S sep 13.2 P.A. 264.00 mag 15.7 Sp K9 22280+5742 FYM 118U sep 137.6 P.A. 102.80 mag 15.2 Sp K7 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 22280+5742 (DO Cep) : ALADIN DSS IMAGE @ 22h 27m 59.20s +57° 41' 43.8"




WDS 22280+5742 KR 60 AB (DO Cep) : NEIGHBORHOODS


FoV:
Limit:
Primaries only

22280+5742 KR 60AB distance=0' 22280+5742 KR 60BC distance=1' 22280+5742 HEL 4BJ distance=1' 22281+5743 KPP 28 distance=2' 22280+5742 FYM 118CD distance=3' 22280+5742 KR 60CE distance=3' 22280+5742 FYM 118CN distance=3' 22280+5742 FYM 118CP distance=3' 22280+5742 FYM 118EQ distance=3' 22279+5738 STI2788AB distance=5' 22279+5738 BKO 909AC distance=5' 22285+5739 BKO 911 distance=5' 22284+5737 BKO 910 distance=6' 22272+5742 BKO 908 distance=7' 22271+5742 BKO 907 distance=8' 22268+5740 STI2780 distance=10' 22291+5744 STI2798 distance=10' 22272+5750 DOB9003 distance=10' 22292+5743 STI2799 distance=11' 22295+5743 BKO 912 distance=12' 22293+5746 BAR 60AB distance=13' 22293+5746 BAR 60AC distance=13' 22293+5746 BAR 60CD distance=13' 22265+5743 BAR 59AB distance=13' 22265+5743 BAR 59AC distance=13' 22265+5743 BAR 59AD distance=13' 22265+5743 BAR 59DE distance=13' 22276+5730 HJ 1771 distance=13' 22298+5745 BKO 914 distance=15' 22298+5744 BKO 915 distance=15' 22298+5748 BKO 913 distance=16' 22300+5751 KPP 513 distance=19' 22303+5752 STI2803 distance=21' 22287+5720 STI2793 distance=23' 22274+5719 TOB 228AB distance=24' 22274+5719 TOB 228AC distance=24' 22281+5805 STI2792 distance=24' 22310+5750 STI2806 distance=26' 22249+5738 STI2762 distance=26' 22249+5750 BAR 16 distance=26' 22250+5754 STI2763 distance=28' 22247+5753 STI2760 distance=30' 22269+5712 BU 173 distance=31' 22264+5714 STI2778 distance=32' 22240+5740 STI2752 distance=32' 22240+5741 SMH 1 distance=33' 22239+5739 STI2749 distance=33' 22313+5802 STI2807 distance=34' 22303+5714 STT 473 distance=34' 22292+5707 STI2797 distance=37' 22331+5739 STI2817 distance=42' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 22280+5742 KR 60 AB 183 2.5 0
Show 22280+5742 KR 60 AF 46 71.9 0
Show 22280+5742 KR 60 AG 114 68.4 0
Show 22280+5742 KR 60 AH 267 50.2 0
Show 22280+5742 KR 60 AI 119 238.2 0
Show 22280+5742 KR 60 AC 62 139.8 0
Show 22280+5742 KR 60 AE 77 163.0 0
Show 22280+5742 HZE 5 AK 0 7.2 0
Show 22280+5742 HEL 4 AJ 113 32.5 0
Show 22280+5742 FYM 118 AL 13 107.0 0
Show 22280+5742 FYM 118 AM 356 78.4 0
Show 22280+5742 FYM 118 AO 135 83.0 0
Show 22280+5742 FYM 118 AR 113 113.7 0
Show 22280+5742 FYM 118 AS 264 13.2 0
Show 22280+5742 FYM 118 AU 103 137.6 0
Show 22280+5742 KR 60 AD 56 119.3 0
Show 22280+5742 KR 60 BC 62 141.2 1
Show 22280+5742 HEL 4 BJ 112 33.9 1
Show 22281+5743 KPP 28 195 44.4 2
Show 22280+5742 FYM 118 CD 272 24.5 3
Show 22280+5742 KR 60 CE 130 45.9 3
Show 22280+5742 FYM 118 CN 52 42.1 3
Show 22280+5742 FYM 118 CP 320 46.5 3
Show 22280+5742 FYM 118 EQ 206 14.2 3
Show 22279+5738 STI2788 AB 252 10.9 5
Show 22279+5738 BKO 909 AC 63 4.2 5
Show 22285+5739 BKO 911 287 6.1 5
Show 22284+5737 BKO 910 80 9.1 6
Show 22272+5742 BKO 908 9 5.5 7
Show 22271+5742 BKO 907 159 6.3 8
Show 22268+5740 STI2780 146 13.0 10
Show 22291+5744 STI2798 42 12.8 10
Show 22272+5750 DOB9003 224 45.0 10
Show 22292+5743 STI2799 337 14.1 11
Show 22295+5743 BKO 912 221 7.8 12
Show 22293+5746 BAR 60 AB 225 5.5 13
Show 22293+5746 BAR 60 AC 157 41.3 13
Show 22293+5746 BAR 60 CD 201 127.1 13
Show 22265+5743 BAR 59 AB 262 1.4 13
Show 22265+5743 BAR 59 AC 340 88.0 13
Show 22265+5743 BAR 59 AD 8 187.9 13
Show 22265+5743 BAR 59 DE 75 1.5 13
Show 22276+5730 HJ 1771 210 14.2 13
Show 22298+5745 BKO 914 348 5.3 15
Show 22298+5744 BKO 915 244 6.1 15
Show 22298+5748 BKO 913 39 5.5 16
Show 22300+5751 KPP 513 312 4.8 19
Show 22303+5752 STI2803 117 10.1 21
Show 22287+5720 STI2793 135 11.1 23
Show 22274+5719 TOB 228 AB 345 20.2 24
Show 22274+5719 TOB 228 AC 109 12.5 24



WDS 22280+5742 : COMPONENTS


  A B C D E F G H I J K L M N O P Q R S
B pa=84.4°
sep=6.20"

C pa=62.2°
sep=129.08"
pa=61.1°
sep=123.36"

D pa=56.2°
sep=119.30"
pa=54.7°
sep=113.88"
pa=292.1°
sep=16.18"

E pa=78.2°
sep=152.86"
pa=78.0°
sep=146.70"
pa=129.3°
sep=45.90"
pa=124.9°
sep=61.54"

F pa=46.4°
sep=71.93"
pa=43.1°
sep=67.16"
pa=260.2°
sep=62.94"
pa=250.4°
sep=49.94"
pa=280.7°
sep=99.26"

G pa=113.5°
sep=68.42"
pa=116.2°
sep=63.07"
pa=210.4°
sep=101.55"
pa=201.2°
sep=100.49"
pa=236.1°
sep=104.77"
pa=172.1°
sep=77.62"

H pa=266.9°
sep=50.15"
pa=266.6°
sep=56.35"
pa=249.0°
sep=175.87"
pa=245.1°
sep=164.42"
pa=260.4°
sep=202.58"
pa=242.9°
sep=114.78"
pa=282.3°
sep=115.47"

I pa=119.1°
sep=238.31"
pa=120.0°
sep=233.23"
pa=151.9°
sep=199.68"
pa=149.1°
sep=212.36"
pa=158.3°
sep=158.27"
pa=136.7°
sep=227.48"
pa=121.3°
sep=170.34"
pa=113.7°
sep=282.04"

J pa=113.2°
sep=32.48"
pa=119.5°
sep=27.20"
pa=229.1°
sep=111.57"
pa=221.2°
sep=105.21"
pa=249.8°
sep=127.63"
pa=199.6°
sep=66.25"
pa=293.8°
sep=35.94"
pa=97.2°
sep=80.57"
pa=300.0°
sep=206.03"

K pa=0.2°
sep=7.24"
pa=317.2°
sep=9.05"
pa=245.1°
sep=125.83"
pa=239.2°
sep=115.40"
pa=260.9°
sep=151.52"
pa=230.9°
sep=67.12"
pa=298.8°
sep=71.59"
pa=78.8°
sep=51.08"
pa=300.6°
sep=241.89"
pa=303.9°
sep=35.93"

L pa=13.4°
sep=106.98"
pa=10.2°
sep=105.13"
pa=296.1°
sep=99.45"
pa=296.9°
sep=83.32"
pa=300.3°
sep=144.52"
pa=333.4°
sep=60.91"
pa=343.9°
sep=136.71"
pa=35.0°
sep=130.40"
pa=320.2°
sep=286.35"
pa=357.5°
sep=116.97"
pa=14.3°
sep=99.94"

M pa=356.1°
sep=78.37"
pa=351.6°
sep=78.44"
pa=278.5°
sep=120.75"
pa=276.5°
sep=105.09"
pa=286.9°
sep=161.90"
pa=296.5°
sep=64.12"
pa=327.2°
sep=125.52"
pa=28.9°
sep=92.44"
pa=312.2°
sep=288.52"
pa=338.9°
sep=97.54"
pa=355.7°
sep=71.15"
pa=229.3°
sep=39.70"

N pa=59.8°
sep=170.72"
pa=58.9°
sep=165.10"
pa=52.4°
sep=42.10"
pa=67.9°
sep=52.17"
pa=357.8°
sep=54.83"
pa=69.1°
sep=102.08"
pa=36.8°
sep=141.48"
pa=65.8°
sep=216.54"
pa=343.3°
sep=210.76"
pa=50.0°
sep=153.62"
pa=61.9°
sep=167.16"
pa=98.4°
sep=123.97"
pa=87.1°
sep=152.96"

O pa=134.9°
sep=83.04"
pa=138.4°
sep=79.23"
pa=204.9°
sep=131.15"
pa=197.9°
sep=131.34"
pa=225.3°
sep=127.75"
pa=176.4°
sep=108.43"
pa=187.1°
sep=31.58"
pa=117.2°
sep=122.42"
pa=291.0°
sep=160.03"
pa=147.7°
sep=54.21"
pa=138.2°
sep=88.28"
pa=168.2°
sep=166.20"
pa=154.9°
sep=151.09"
pa=211.5°
sep=169.64"

P pa=41.3°
sep=127.25"
pa=39.3°
sep=122.80"
pa=319.5°
sep=46.51"
pa=332.6°
sep=33.00"
pa=314.4°
sep=92.04"
pa=34.6°
sep=55.98"
pa=9.8°
sep=124.76"
pa=53.7°
sep=166.21"
pa=329.6°
sep=245.31"
pa=26.5°
sep=121.19"
pa=43.5°
sep=121.88"
pa=98.1°
sep=59.69"
pa=78.9°
sep=90.90"
pa=278.7°
sep=64.28"
pa=9.3°
sep=156.31"

Q pa=82.7°
sep=144.72"
pa=82.6°
sep=138.52"
pa=145.0°
sep=51.19"
pa=137.2°
sep=65.37"
pa=205.5°
sep=14.19"
pa=108.9°
sep=96.62"
pa=60.5°
sep=92.83"
pa=83.8°
sep=194.77"
pa=334.3°
sep=149.00"
pa=74.7°
sep=117.90"
pa=85.6°
sep=143.95"
pa=125.8°
sep=146.39"
pa=111.9°
sep=160.39"
pa=183.4°
sep=67.72"
pa=47.8°
sep=114.51"
pa=142.4°
sep=97.58"

R pa=113.3°
sep=113.74"
pa=114.9°
sep=108.35"
pa=185.3°
sep=105.73"
pa=177.3°
sep=111.49"
pa=210.7°
sep=88.59"
pa=151.0°
sep=108.12"
pa=113.0°
sep=45.33"
pa=105.3°
sep=160.23"
pa=304.3°
sep=125.66"
pa=113.3°
sep=81.27"
pa=116.6°
sep=116.77"
pa=151.9°
sep=168.99"
pa=138.3°
sep=164.99"
pa=198.2°
sep=137.87"
pa=73.4°
sep=47.65"
pa=171.7°
sep=142.14"
pa=211.7°
sep=74.47"

S pa=264.0°
sep=13.24"
pa=264.1°
sep=19.44"
pa=244.1°
sep=141.45"
pa=238.9°
sep=131.16"
pa=258.7°
sep=166.04"
pa=232.0°
sep=82.82"
pa=288.8°
sep=80.21"
pa=87.9°
sep=36.93"
pa=297.3°
sep=249.27"
pa=284.9°
sep=44.51"
pa=236.8°
sep=15.76"
pa=199.8°
sep=112.07"
pa=185.6°
sep=79.96"
pa=241.5°
sep=182.87"
pa=308.5°
sep=91.97"
pa=225.0°
sep=137.26"
pa=262.8°
sep=157.96"
pa=290.3°
sep=125.46"

U pa=102.8°
sep=137.64"
pa=103.6°
sep=131.77"
pa=167.5°
sep=92.98"
pa=160.1°
sep=103.01"
pa=194.1°
sep=63.60"
pa=134.3°
sep=114.71"
pa=92.6°
sep=71.56"
pa=98.6°
sep=186.39"
pa=319.1°
sep=112.97"
pa=99.6°
sep=105.87"
pa=105.7°
sep=139.40"
pa=140.9°
sep=173.41"
pa=127.9°
sep=176.85"
pa=186.5°
sep=117.24"
pa=69.6°
sep=80.49"
pa=158.3°
sep=135.80"
pa=190.8°
sep=49.77"
pa=64.0°
sep=33.11"
pa=101.2°
sep=150.24"


22280+5742 A


Name DO Cep Coord arcsec 2000 222759.20+574143.8 Mag 9.93 Spectral class M3.5 (red)
PmRA -806.00 PmDE -399.0


22280+5742 B


Var name DO Cep Coord arcsec 2000 222759.97+574144.4 Coord calc 222759.97+574144.4 Mag 11.41
Spectral class M4.5 (red) PmRA -713.00 PmDE -321.0 Delta magnitude 1.48


22280+5742 C


Coord arcsec 2000 222813.44+574244.1 Coord calc 222813.44+574244.1 Mag 10.53 Spectral class M3 (red)
PmRA 0.00 PmDE -1.0 Tycho2 3991-00030-1 Delta magnitude 0.6
Tycho2
Tycho2 3991-00030-1 Pflag RAmdeg 337.05599121 DEmdeg 57.71225510
PmRA 1.0 PmDE -0.8 E RAmdeg 31 E DEmdeg 38
E pmRA 3.0 E pmDE 3.2 EpRAm 1986.74 EpDEm 1987.82
Num 5 Q RAmdeg 0.5 Q DEmdeg 0.6 Q pmRA 0.6
Q pmDE 0.5 BTmag 12.874 E BTmag 0.288 VTmag 10.534
E VTmag 0.048 Prox 999 TYC T HIP
CCDM RAdeg 337.05599694 DEdeg 57.71225972 EpRA 1990 1.64
EpDE 1990 1.65 E RAdeg 44.0 E DEdeg 45.1 Posflg
Corr 0.0


22280+5742 D


Coord arcsec 2000 222811.57+574250.2 Mag 14.3 Spectral class M2 (red) PmRA -8.00
PmDE -9.0 Delta magnitude 4.37 Coordinate calculated yes


22280+5742 E


Coord arcsec 2000 222817.87+574215.0 Coord calc 222817.87+574215.0 Mag 13.33 Spectral class M2 (red)
PmRA 2.00 PmDE -2.0 Delta magnitude 3.4


22280+5742 F


Coord arcsec 2000 222805.70+574233.4 Mag 14.43 PmRA 0.00 PmDE -2.0
Delta magnitude 4.5 Coordinate calculated yes


22280+5742 G


Coord arcsec 2000 222807.03+574116.5 Mag 15.14 Spectral class K9 (yellow-orange) PmRA -9.00
PmDE -20.0 SAO 165098 Delta magnitude 5.21 Coordinate calculated yes
SAO
SAO 165098 DelFlag RA1950 PmRA1950 0.0016
DE1950 PmDE1950 0.012 Vmag 8.5 SpType F5
Double code Source 20 CatNum 7927 DM BD-12 6274
DMcomp BDsup HD 212948 M HD 0
GC RA1950rad 5.87077318 DE1950rad -0.21199116 PmRA2000 0.0018
PmDE2000 0.009


22280+5742 H


Coord arcsec 2000 222752.95+574141.1 Mag 13.02 Spectral class M1 (red) PmRA 4.00
PmDE 3.0 SAO 165098 Delta magnitude 3.09 Coordinate calculated yes
SAO
SAO 165098 DelFlag RA1950 PmRA1950 0.0016
DE1950 PmDE1950 0.012 Vmag 8.5 SpType F5
Double code Source 20 CatNum 7927 DM BD-12 6274
DMcomp BDsup HD 212948 M HD 0
GC RA1950rad 5.87077318 DE1950rad -0.21199116 PmRA2000 0.0018
PmDE2000 0.009


22280+5742 I


Coord arcsec 2000 222825.17+573947.9 Mag 8.31 Spectral class K1 (yellow-orange) PmRA -7.00
PmDE -7.0 Tycho2 3991-00906-1 Delta magnitude 1.62 Coordinate calculated yes
Tycho2
Tycho2 3991-00906-1 Pflag RAmdeg 337.09993007 DEmdeg 57.66183125
PmRA -7.5 PmDE -7.5 E RAmdeg 6 E DEmdeg 6
E pmRA 1.6 E pmDE 1.6 EpRAm 1991.30 EpDEm 1991.31
Num 9 Q RAmdeg 1.3 Q DEmdeg 0.3 Q pmRA 1.4
Q pmDE 0.3 BTmag 8.577 E BTmag 0.017 VTmag 8.306
E VTmag 0.012 Prox 999 TYC T HIP 110923
CCDM RAdeg 337.09996333 DEdeg 57.66184889 EpRA 1990 1.65
EpDE 1990 1.66 E RAdeg 6.2 E DEdeg 6.2 Posflg
Corr 0.0


22280+5742 J


Coord arcsec 2000 222802.92+574131.0 Mag 15.7 PmRA -1.00 PmDE 1.0
Delta magnitude 5.77 Coordinate calculated yes


22280+5742 K


Coord arcsec 2000 222759.20+574151.0 Mag 16 Delta magnitude 6.07 Coordinate calculated yes


22280+5742 L


Coord arcsec 2000 222802.29+574327.9 Mag 15.44 Spectral class K9 (yellow-orange) PmRA 2.00
PmDE -3.0 Delta magnitude 5.51 Coordinate calculated yes


22280+5742 M


Coord arcsec 2000 222758.54+574302.0 Mag 15.6 Spectral class M1 (red) PmRA -2.00
PmDE 5.0 Delta magnitude 5.67 Coordinate calculated yes


22280+5742 N


Coord arcsec 2000 222817.60+574309.8 Mag 14.92 Spectral class K3 (yellow-orange) PmRA -3.00
PmDE -3.0 SAO 107941 HIP 110909 BD BD+16 4746
Delta magnitude 4.99 Coordinate calculated yes
SAO
SAO 107941 DelFlag RA1950 PmRA1950 0.0015
DE1950 PmDE1950 -0.011 Vmag 7.5 SpType K0
Double code Source 70 CatNum 31388 DM BD+16 4746
DMcomp BDsup HD 213014 M HD 0
GC 31388 RA1950rad 5.87199992 DE1950rad 0.29684299 PmRA2000 0.0015
PmDE2000 -0.015
Hipparcos
Catalog H HIP 110909 Proxy H RAhms 22 28 11.53
DEdms +17 15 48.0 Vmag 7.45 VarFlag R Vmag H
RAdeg 337.048 DEdeg 17.2633 AstroRef A Plx 2.27
CCDM 23.86 N CCDM I Nsys 1 Ncomp 2
MultFlag C Source Qual A M HIP AB
Theta 114 Rho 9.079 HD BD BD+16 4746
CD CP Dm number +16 4746 VIred 0.94
SpType G9III comp R SpType Coord arcsec 2000 222811.53+171548.0
Hipparcos 2
HIP 110909 Sn 15 So 3 Nc 2
RArad 5.8825981675 DErad 0.3013021396 Plx 2.16 PmRA 24.32
PmDE -18.85 E RArad 0.74 E DErad 0.56 E Plx 0.94
E pmRA 0.9 E pmDE 0.74 Hpmag E Hpmag 0.0021
SHp 0.017 VA 0 BV 0.887 E BV 0.012
VI 0.89


22280+5742 O


Coord arcsec 2000 222806.54+574045.2 Mag 15.17 Spectral class K7 (yellow-orange) PmRA -20.00
PmDE -45.0 Delta magnitude 5.24 Coordinate calculated yes


22280+5742 P


Coord arcsec 2000 222809.67+574319.5 Mag 14.79 Spectral class K7 (yellow-orange) PmRA -4.00
PmDE -3.0 Delta magnitude 4.86 Coordinate calculated yes


22280+5742 Q


Coord arcsec 2000 222817.11+574202.2 Mag 15.7 Spectral class K9 (yellow-orange) PmRA -11.00
PmDE -11.0 SAO 90526 HIP 110911 BD BD+22 4645
Delta magnitude 5.77 Coordinate calculated yes
SAO
SAO 90526 DelFlag RA1950 PmRA1950 0.0046
DE1950 PmDE1950 -0.03 Vmag 9 SpType K0
Double code Source 70 CatNum 31389 DM BD+22 4645
DMcomp BDsup HD 213013 M HD 0
GC 31389 RA1950rad 5.87236334 DE1950rad 0.40626673 PmRA2000 0.0046
PmDE2000 -0.035
Hipparcos
Catalog H HIP 110911 Proxy H RAhms 22 28 13.23
DEdms +23 31 57.6 Vmag 8.5 VarFlag R Vmag H
RAdeg 337.055 DEdeg 23.5327 AstroRef A Plx 21.59
CCDM 38.52 N CCDM I Nsys 1 Ncomp 2
MultFlag C Source Qual A M HIP AB
Theta 334 Rho 5.508 HD BD BD+22 4645
CD CP Dm number +22 4645 VIred 0.88
SpType K0IV R SpType Coord arcsec 2000 222813.23+233157.6
Hipparcos 2
HIP 110911 Sn 15 So 3 Nc 2
RArad 5.8827214389 DErad 0.4107225928 Plx 19.34 PmRA 39.32
PmDE -40.79 E RArad 1.16 E DErad 0.96 E Plx 1.33
E pmRA 1.44 E pmDE 1.67 Hpmag E Hpmag 0.0021
SHp 0.013 VA 0 BV 0.851 E BV 0.027
VI 0.87


22280+5742 R


Coord arcsec 2000 222812.23+574058.8 Mag 15.2 Spectral class M2 (red) PmRA -2.00
PmDE 15.0 Delta magnitude 5.27 Coordinate calculated yes


22280+5742 S


Coord arcsec 2000 222757.56+574142.4 Mag 15.7 Spectral class K9 (yellow-orange) PmRA -3.00
PmDE 2.0 Delta magnitude 5.77 Coordinate calculated yes


22280+5742 U


Coord arcsec 2000 222815.94+574113.3 Mag 15.2 Spectral class K7 (yellow-orange) PmRA -6.00
PmDE -10.0 Delta magnitude 5.27 Coordinate calculated yes
