22103+4041 TDT 3384



22h 10m 15.62s +40° 41' 21.2" P.A. 139.00 sep 1.8 mag 11.00,17.40


Coord 2000 22103+4041 Discov num TDT3384 Comp Coord arcsec 2000 22 10 15.62 +40 41 21.2
Date first 2016 Date last 2016 Obs 1
Pa first 139 Pa last 138.8 P.A. Now (θ) 138.8°
Sep first 1.8 Sep last 1.777 Sep. Now (ρ) 1.777"
Mag pri 11.00 Mag sec 17.40 delta mag (ΔM) 6.4 Spectral class
Pri motion ra +003 Sec motion ra
Pri motion dec +003 Sec motion dec
Notes
Nature of this double is uncertain.


OTHER CATALOGS AND DESIGNATIONS


Constellation Lacerta Tycho2 3203-01728-1 Gaia DR2 1956524252359241728


WDS 22103+4041 TDT 3384 : NOTES


No records found.



DISCOVERER




WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
22103+4041 TDT3384 1991 1 180 3.0 11.57 12.80 221015.62+404121.2
22103+4041 TDT3384 2016 1 139 1.8 11.00 17.40 221015.62+404121.2

If you need more information about this double, apply for a data request form to the WDS.



WDS 22103+4041 TDT 3384 : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 22103+4041 TDT 3384 : MEASURES


No records found.



WDS 22103+4041 : VIRTUAL EYEPIECE



22103+4041 TDT3384A mag 11 22103+4041 TDT3384B sep 1.8 P.A. 138.80 mag 17.4 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only

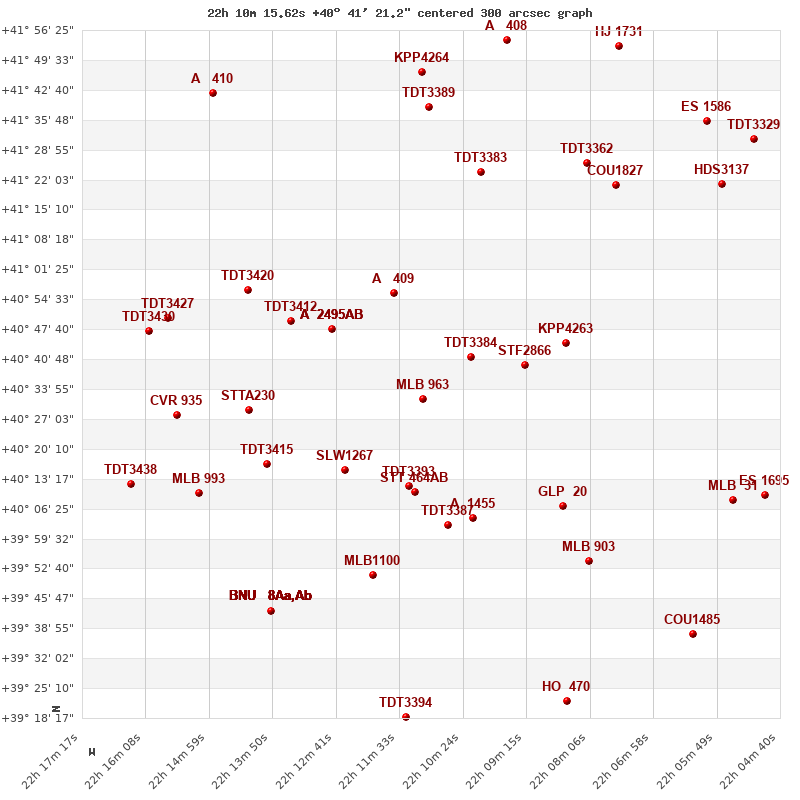

WDS 22103+4041 : ALADIN DSS IMAGE @ 22h 10m 15.62s +40° 41' 21.2"




WDS 22103+4041 TDT 3384 : NEIGHBORHOODS


FoV:
Limit:
Primaries only

22103+4041 TDT3384 distance=0' 22093+4039 STF2866 distance=12' 22111+4032 MLB 963 distance=14' 22085+4044 KPP4263 distance=20' 22116+4056 A 409 distance=22' 22128+4048 A 2495AB distance=30' 22128+4048 HO 471AC distance=30' 22128+4048 HO 471AD distance=30' 22114+4012 TDT3393 distance=33' 22113+4010 STT 464AB distance=34' 22125+4015 SLW1267 distance=37' 22102+4004 A 1455 distance=38' 22135+4050 TDT3412 distance=38' 22107+4003 TDT3387 distance=40' 22086+4007 GLP 20 distance=40' 22101+4124 TDT3383 distance=43' 22143+4029 STTA230 distance=48' 22143+4057 TDT3420 distance=49' 22139+4017 TDT3415 distance=49' 22076+4121 COU1827 distance=50' 22082+4126 TDT3362 distance=51' 22081+3954 MLB 903 distance=53' 22123+3952 MLB1100 distance=55' 22110+4139 TDT3389 distance=58' 22156+4028 CVR 935 distance=63' 22157+4050 TDT3427 distance=63' 22055+4007 MLB 31 distance=64' 22152+4010 MLB 993 distance=65' 22057+4121 HDS3137 distance=65' 22111+4147 KPP4264 distance=67' 22161+4047 TDT3430 distance=67' 22050+4010 ES 1695 distance=69' 22139+3943 BNU 8Aa,Ab distance=72' 22139+3943 MCA 70Aa,Ac distance=72' 22139+3943 HJ 1746AB distance=72' 22139+3943 HJ 1746AC distance=72' 22139+3943 WAL 141AD distance=72' 22139+3943 FYM 122AE distance=72' 22139+3943 FYM 122AF distance=72' 22139+3943 FYM 122AG distance=72' 22139+3943 FYM 122AH distance=72' 22139+3943 FYM 122AI distance=72' 22059+4135 ES 1586 distance=73' 22096+4154 A 408 distance=74' 22164+4012 TDT3438 distance=76' 22052+4131 TDT3329 distance=77' 22075+4152 HJ 1731 distance=78' 22063+3938 COU1485 distance=79' 22149+4142 A 410 distance=81' 22085+3922 HO 470 distance=82' 22114+3918 TDT3394 distance=84' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 22103+4041 TDT3384 139 1.8 0
Show 22093+4039 STF2866 55 9.2 12
Show 22111+4032 MLB 963 9 6.7 14
Show 22085+4044 KPP4263 213 1.3 20
Show 22116+4056 A 409 5 0.5 22
Show 22128+4048 A 2495 AB 252 0.7 30
Show 22128+4048 HO 471 AC 298 11.2 30
Show 22128+4048 HO 471 AD 41 12.1 30
Show 22114+4012 TDT3393 250 2.4 33
Show 22113+4010 STT 464 AB 190 0.4 34
Show 22125+4015 SLW1267 113 37.2 37
Show 22102+4004 A 1455 118 1.1 38
Show 22135+4050 TDT3412 205 2.3 38
Show 22107+4003 TDT3387 262 2.3 40
Show 22086+4007 GLP 20 1 30.5 40
Show 22101+4124 TDT3383 55 0.5 43
Show 22143+4029 STTA230 162 47.6 48
Show 22143+4057 TDT3420 81 0.7 49
Show 22139+4017 TDT3415 353 0.6 49
Show 22076+4121 COU1827 311 0.7 50
Show 22082+4126 TDT3362 176 0.7 51
Show 22081+3954 MLB 903 197 5.0 53
Show 22123+3952 MLB1100 302 8.8 55
Show 22110+4139 TDT3389 290 0.6 58
Show 22156+4028 CVR 935 332 26.7 63
Show 22157+4050 TDT3427 42 0.5 63
Show 22055+4007 MLB 31 305 10.0 64
Show 22152+4010 MLB 993 189 6.6 65
Show 22057+4121 HDS3137 279 0.6 65
Show 22111+4147 KPP4264 29 3.8 67
Show 22161+4047 TDT3430 252 0.4 67
Show 22050+4010 ES 1695 37 1.2 69
Show 22139+3943 BNU 8 Aa,Ab 170 0.2 72
Show 22139+3943 MCA 70 Aa,Ac 43 0.2 72
Show 22139+3943 HJ 1746 AB 190 30.5 72
Show 22139+3943 HJ 1746 AC 192 72.5 72
Show 22139+3943 WAL 141 AD 71 194.6 72
Show 22139+3943 FYM 122 AE 321 37.7 72
Show 22139+3943 FYM 122 AF 247 36.8 72
Show 22139+3943 FYM 122 AG 213 81.8 72
Show 22139+3943 FYM 122 AH 224 68.2 72
Show 22139+3943 FYM 122 AI 303 46.5 72
Show 22059+4135 ES 1586 41 4.5 73
Show 22096+4154 A 408 183 1.4 74
Show 22164+4012 TDT3438 113 1.9 76
Show 22052+4131 TDT3329 50 0.3 77
Show 22075+4152 HJ 1731 208 14.1 78
Show 22063+3938 COU1485 63 0.5 79
Show 22149+4142 A 410 352 0.9 81
Show 22085+3922 HO 470 341 13.7 82
Show 22114+3918 TDT3394 99 2.5 84



WDS 22103+4041 : COMPONENTS


  A
B pa=138.8°
sep=1.78"


22103+4041 A


Coord arcsec 2000 221015.62+404121.2 Mag 11 PmRA 3.00 PmDE 3.0


22103+4041 B


Coord arcsec 2000 221015.72+404119.9 Mag 17.4 Delta magnitude 6.4 Coordinate calculated yes
