21149+3407 J 3129 AB



21h 14m 48.07s +34° 05' 35.8" P.A. 323.00 sep 4.7 mag 13.00,14.40


Coord 2000 21149+3407 Discov num J  3129 Comp AB Coord arcsec 2000 21 14 48.07 +34 05 35.8
Date first 1944 Date last 2016 Obs 6
Pa first 335 Pa last 323.1 P.A. Now (θ) 323.1°
Sep first 3.0 Sep last 4.73 Sep. Now (ρ) 4.73"
Mag pri 13.00 Mag sec 14.40 delta mag (ΔM) 1.4 Spectral class
Pri motion ra +002 Sec motion ra -024
Pri motion dec +003 Sec motion dec +013
Notes
rPM=1.021
This double is not physical.


21149+3407 SYSTEM COMPONENTS


Show name SAO coord wds_name last obs pa sep mag1 mag2 d_mag orb current
Show 21 14 48 +34 05 36 J 3129 AB 2016 6 323 4.7 13.00 14.40 1.40 <===
Show 21 14 48 +34 05 36 J 3129 AC 2015 4 149 11.5 13.00 15.00 2.00
Triple system
3 estimated visually detectable stars in this system


OTHER CATALOGS AND DESIGNATIONS


Constellation Cygnus Gaia DR2 1866935770055280768


WDS 21149+3407 J 3129 AB : NOTES


No records found.



DISCOVERER


discov author
J Jonckheere, R.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
21149+3407 J 3129 AB 1944 2 335 3.0 12.50 13.00
21149+3407 J 3129 AB 2000 3 327 4.7 12.50 13.00 211448.07+340535.8
21149+3407 J 3129 AB 2002 4 325 4.7 12.50 13.00 211448.07+340535.8
21149+3407 J 3129 AB 2015 4 323 4.7 13.00 14.40 211448.07+340535.8
21149+3407 J 3129 AB 2016 6 323 4.7 13.00 14.40 211448.07+340535.8

If you need more information about this double, apply for a data request form to the WDS.



WDS 21149+3407 J 3129 AB : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 21149+3407 J 3129 AB : MEASURES


No records found.

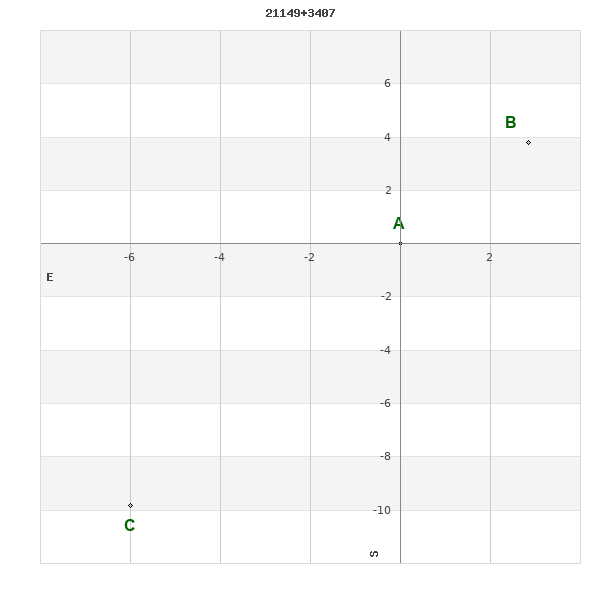

WDS 21149+3407 : VIRTUAL EYEPIECE



21149+3407 J 3129A mag 13 21149+3407 J 3129B sep 4.7 P.A. 323.10 mag 14.4 21149+3407 J 3129C sep 11.5 P.A. 148.60 mag 15 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 21149+3407 : ALADIN DSS IMAGE @ 21h 14m 48.07s +34° 05' 35.8"

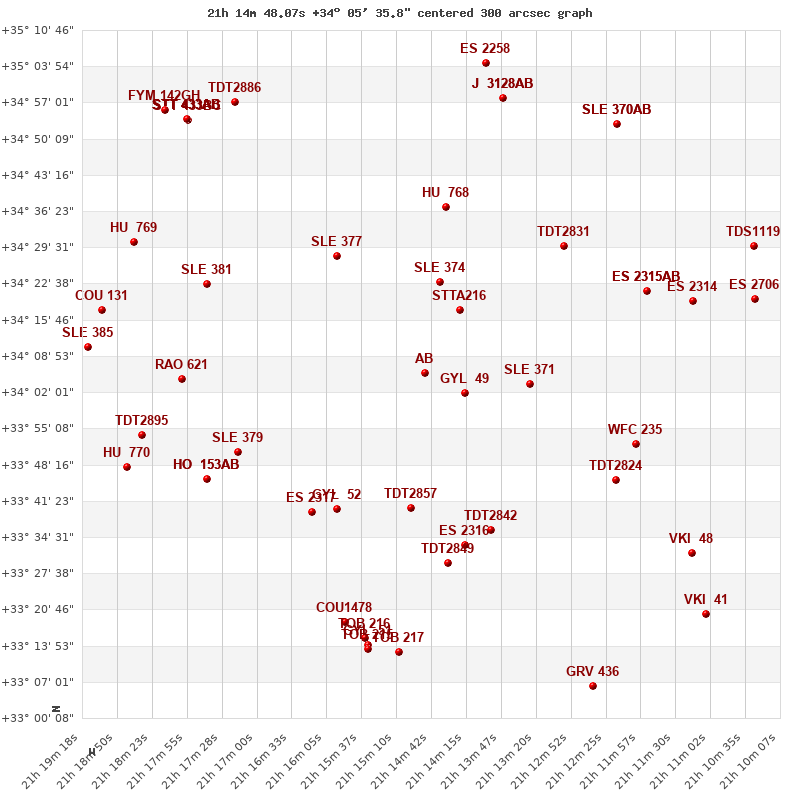

WDS 21149+3407 J 3129 AB : NEIGHBORHOODS


FoV:
Limit:
Primaries only

21149+3407 J 3129AB distance=0' 21143+3402 GYL 49 distance=8' 21143+3418 STTA216 distance=14' 21134+3404 SLE 371 distance=18' 21146+3423 SLE 374 distance=18' 21150+3340 TDT2857 distance=26' 21159+3428 SLE 377 distance=27' 21159+3340 GYL 52 distance=30' 21139+3336 TDT2842 distance=32' 21145+3437 HU 768 distance=32' 21163+3339 ES 2317 distance=33' 21130+3430 TDT2831 distance=34' 21143+3332 ES 2316 distance=34' 21172+3351 SLE 379 distance=34' 21145+3330 TDT2849 distance=37' 21120+3352 WFC 235 distance=37' 21123+3345 TDT2824 distance=38' 21177+3423 SLE 381 distance=40' 21116+3419 ES 2315AB distance=40' 21116+3419 ES 2315AC distance=40' 21180+3405 RAO 621 distance=40' 21177+3345 HO 153AB distance=41' 21177+3345 HO 153Aa,Ab distance=41' 21113+3419 ES 2314 distance=46' 21185+3354 TDT2895 distance=48' 21159+3319 COU1478 distance=50' 21156+3315 TOB 216 distance=52' 21187+3348 HU 770 distance=52' 21156+3314 GYL 51 distance=53' 21155+3313 TOB 215 distance=54' 21151+3313 TOB 217 distance=54' 21186+3430 HU 769 distance=54' 21190+3418 COU 131 distance=54' 21138+3500 J 3128AB distance=54' 21138+3500 J 3128AC distance=54' 21192+3411 SLE 385 distance=56' 21112+3332 VKI 48 distance=56' 21105+3418 ES 2706 distance=56' 21123+3453 SLE 370AB distance=57' 21123+3453 SLE 370AC distance=57' 21105+3430 TDS1119 distance=59' 21140+3504 ES 2258 distance=60' 21173+3457 TDT2886 distance=61' 21179+3454 STT 433BC distance=62' 21179+3454 STT 433AB distance=62' 21179+3454 SLE 382AD distance=62' 21179+3454 STT 433AC distance=62' 21179+3454 BU 9011AE distance=62' 21110+3320 VKI 41 distance=65' 21125+3306 GRV 436 distance=66' 21183+3456 FYM 142GH distance=66' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 21149+3407 J 3129 AB 323 4.7 0
Show 21149+3407 J 3129 AC 149 11.5 0
Show 21143+3402 GYL 49 148 16.7 8
Show 21143+3418 STTA216 48 102.8 14
Show 21134+3404 SLE 371 270 12.6 18
Show 21146+3423 SLE 374 2 5.2 18
Show 21150+3340 TDT2857 288 0.5 26
Show 21159+3428 SLE 377 50 8.7 27
Show 21159+3340 GYL 52 62 29.0 30
Show 21139+3336 TDT2842 185 1.8 32
Show 21145+3437 HU 768 120 1.5 32
Show 21163+3339 ES 2317 310 10.7 33
Show 21130+3430 TDT2831 37 0.8 34
Show 21143+3332 ES 2316 0 5.0 34
Show 21172+3351 SLE 379 289 8.9 34
Show 21145+3330 TDT2849 204 2.2 37
Show 21120+3352 WFC 235 14 4.7 37
Show 21123+3345 TDT2824 26 0.5 38
Show 21177+3423 SLE 381 279 9.6 40
Show 21116+3419 ES 2315 AB 35 4.1 40
Show 21116+3419 ES 2315 AC 58 11.1 40
Show 21180+3405 RAO 621 293 1.1 40
Show 21177+3345 HO 153 AB 128 1.0 41
Show 21177+3345 HO 153 Aa,Ab 43 0.3 41
Show 21113+3419 ES 2314 186 4.3 46
Show 21185+3354 TDT2895 143 0.9 48
Show 21159+3319 COU1478 175 1.4 50
Show 21156+3315 TOB 216 135 14.2 52
Show 21187+3348 HU 770 314 0.9 52
Show 21156+3314 GYL 51 102 43.1 53
Show 21155+3313 TOB 215 232 16.2 54
Show 21151+3313 TOB 217 268 16.4 54
Show 21186+3430 HU 769 178 0.9 54
Show 21190+3418 COU 131 195 3.9 54
Show 21138+3500 J 3128 AB 51 5.0 54
Show 21138+3500 J 3128 AC 93 15.0 54
Show 21192+3411 SLE 385 175 12.8 56
Show 21112+3332 VKI 48 310 1.6 56
Show 21105+3418 ES 2706 33 13.7 56
Show 21123+3453 SLE 370 AB 266 9.8 57
Show 21123+3453 SLE 370 AC 199 16.2 57
Show 21105+3430 TDS1119 297 0.9 59
Show 21140+3504 ES 2258 178 3.0 60
Show 21173+3457 TDT2886 82 0.5 61
Show 21179+3454 STT 433 BC 141 13.2 62
Show 21179+3454 STT 433 AB 219 15.2 62
Show 21179+3454 SLE 382 AD 307 57.1 62
Show 21179+3454 STT 433 AC 184 22.1 62
Show 21179+3454 BU 9011 AE 67 34.4 62
Show 21110+3320 VKI 41 309 1.2 65
Show 21125+3306 GRV 436 182 54.7 66



WDS 21149+3407 : COMPONENTS


  A B
B pa=323.1°
sep=4.73"

C pa=148.6°
sep=11.52"
pa=147.0°
sep=16.23"


21149+3407 A


Coord arcsec 2000 211448.07+340535.8 Mag 13 PmRA 2.00 PmDE 3.0


21149+3407 B


Coord arcsec 2000 211447.84+340539.6 Mag 14.4 PmRA -24.00 PmDE 13.0
Delta magnitude 1.4 Coordinate calculated yes


21149+3407 C


Coord arcsec 2000 211448.55+340526.0 Mag 15 Delta magnitude 2 Coordinate calculated yes
