21031+2929 OSO 139 AB



21h 03m 06.12s +29° 28' 56.2" P.A. 82.00 sep 15.8 mag 10.19,18.00


Coord 2000 21031+2929 Discov num OSO 139 Comp AB Coord arcsec 2000 21 03 06.12 +29 28 56.2
Date first 1994 Date last 1998 Obs 3
Pa first 85 Pa last 81.6 P.A. Now (θ) 81.6°
Sep first 14.8 Sep last 15.83 Sep. Now (ρ) 15.83"
Mag pri 10.19 Mag sec 18.00 delta mag (ΔM) 7.81 Spectral class
Pri motion ra -261 Sec motion ra
Pri motion dec -169 Sec motion dec
Notes N (See Notes)
Nature of this double is uncertain.


21031+2929 SYSTEM COMPONENTS


Show name SAO coord wds_name last obs pa sep mag1 mag2 d_mag orb current
Show 21 03 06 +29 28 56 OSO 139 AB 1998 3 82 15.8 10.19 18.00 7.81 <===
Show 21 03 06 +29 28 56 OSO 139 AC 1998 3 308 18.8 10.19 16.50 6.31
Show 21 03 06 +29 28 56 OSO 139 AD 2002 4 110 26.3 10.15 14.08 3.93
Quadruple system
4 estimated visually detectable stars in this system


OTHER CATALOGS AND DESIGNATIONS


Constellation Cygnus Gaia DR2 1852390296368162816


WDS 21031+2929 OSO 139 AB : NOTES


discov_num notes refcode
OSO 139 G187-018. AC and AD are not common proper motion pairs, based on
comparison with POSS2 red plates Oso2004


REFERENCES


refcode metd author reference
Oso2004 C j Zapatero Osorio, M.R. & Martin, E.L. 2004A&A...419..167Z
Oso2004 +Pa A&A 419, 167, 2004


DISCOVERER


discov author
OSO Zapatero Osorio, M.R. & Martin, E.L.
OSO Zapatero Osorio, M.R., Martin, E.L., Lane, B.F., Pavlenko, Ya., Bouy, H.,
OSO Baraffe, I., & Basri, G.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
21031+2929 OSO 139 AB 1998 3 82 15.8 10.19 18.00 +28 3971 N D 210306.12+292856.2

If you need more information about this double, apply for a data request form to the WDS.



WDS 21031+2929 OSO 139 AB : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 21031+2929 OSO 139 AB : MEASURES


No records found.



WDS 21031+2929 : VIRTUAL EYEPIECE



21031+2929 OSO 139A mag 10.19 21031+2929 OSO 139B sep 15.8 P.A. 81.60 mag 18 21031+2929 OSO 139C sep 18.8 P.A. 308.30 mag 16.5 21031+2929 OSO 139D sep 26.3 P.A. 109.90 mag 14.08 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 21031+2929 : ALADIN DSS IMAGE @ 21h 03m 06.12s +29° 28' 56.2"

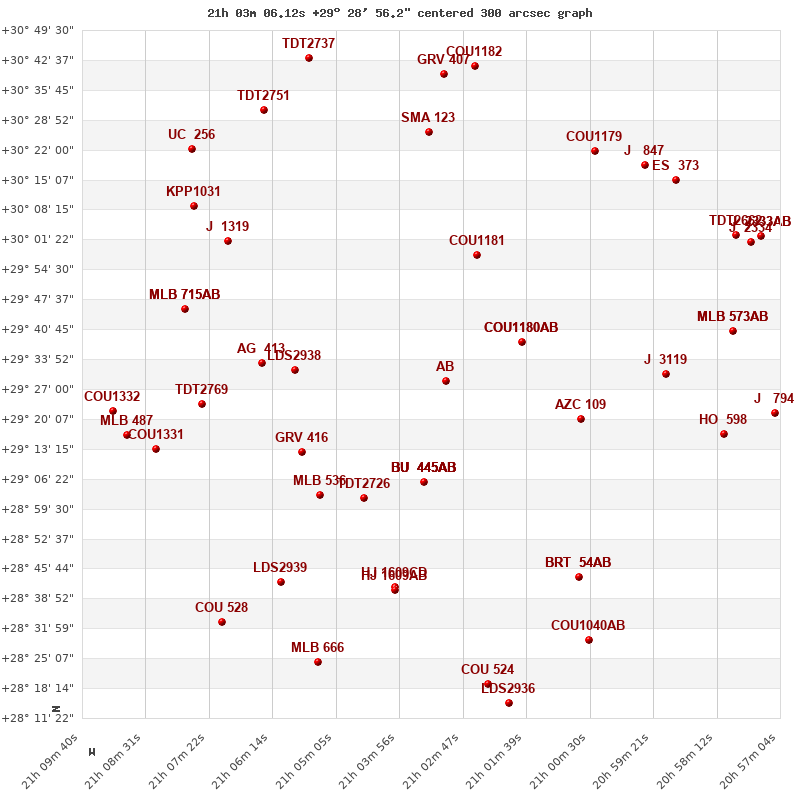

WDS 21031+2929 OSO 139 AB : NEIGHBORHOODS


FoV:
Limit:
Primaries only

21031+2929 OSO 139AB distance=0' 21017+2938 COU1180AB distance=21' 21017+2938 RBR 51Aa,Ab distance=21' 21035+2906 BU 445AB distance=24' 21035+2906 BU 445AC distance=24' 21035+2906 BU 445AD distance=24' 21035+2906 BU 445AE distance=24' 21035+2906 ARN 21AF distance=24' 21025+2958 COU1181 distance=30' 21007+2920 AZC 109 distance=33' 21046+2902 TDT2726 distance=34' 21058+2931 LDS2938 distance=36' 21057+2912 GRV 416 distance=38' 21055+2901 MLB 536 distance=40' 21065+2933 AG 413 distance=44' 21040+2841 HJ 1609CD distance=49' 21040+2841 HJ 1609AB distance=50' 20590+2929 J 3119 distance=52' 21007+2844 BRT 54AB distance=55' 21007+2844 BRT 54AC distance=55' 21034+3025 SMA 123 distance=58' 21075+2924 TDT2769 distance=58' 21061+2843 LDS2939 distance=61' 21070+3001 J 1319 distance=61' 21004+3022 COU1179 distance=64' 21078+2945 MLB 715AB distance=64' 21078+2945 MLB 715AC distance=64' 20581+2917 HO 598 distance=67' 20595+3019 J 847 distance=69' 21006+2829 COU1040AB distance=69' 20579+2940 MLB 573AB distance=69' 20579+2940 MLB 573AC distance=69' 21083+2913 COU1331 distance=71' 21031+3039 GRV 407 distance=71' 21023+2819 COU 524 distance=71' 20589+3015 ES 373 distance=72' 21054+2824 MLB 666 distance=72' 21077+3009 KPP1031 distance=72' 21026+3041 COU1182 distance=73' 21064+3031 TDT2751 distance=76' 21020+2815 LDS2936 distance=76' 20579+3002 TDT2662 distance=76' 21088+2916 MLB 487 distance=77' 21072+2833 COU 528 distance=77' 20572+2921 J 794 distance=78' 20578+3002 J 2334 distance=79' 21091+2922 COU1332 distance=79' 21077+3022 UC 256 distance=80' 21056+3043 TDT2737 distance=81' 20576+3003 J 2333AB distance=82' 20576+3003 DAM 669AC distance=82' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 21031+2929 OSO 139 AB 82 15.8 0
Show 21031+2929 OSO 139 AC 308 18.8 0
Show 21031+2929 OSO 139 AD 110 26.3 0
Show 21017+2938 COU1180 AB 204 3.7 21
Show 21017+2938 RBR 51 Aa,Ab 181 0.6 21
Show 21035+2906 BU 445 AB 109 4.7 24
Show 21035+2906 BU 445 AC 19 50.7 24
Show 21035+2906 BU 445 AD 317 87.3 24
Show 21035+2906 BU 445 AE 218 103.5 24
Show 21035+2906 ARN 21 AF 233 219.9 24
Show 21025+2958 COU1181 214 0.7 30
Show 21007+2920 AZC 109 324 34.8 33
Show 21046+2902 TDT2726 311 0.6 34
Show 21058+2931 LDS2938 247 23.5 36
Show 21057+2912 GRV 416 137 38.2 38
Show 21055+2901 MLB 536 236 5.4 40
Show 21065+2933 AG 413 107 2.7 44
Show 21040+2841 HJ 1609 CD 193 6.1 49
Show 21040+2841 HJ 1609 AB 36 8.1 50
Show 20590+2929 J 3119 140 8.5 52
Show 21007+2844 BRT 54 AB 359 6.9 55
Show 21007+2844 BRT 54 AC 296 26.6 55
Show 21034+3025 SMA 123 145 7.2 58
Show 21075+2924 TDT2769 154 0.6 58
Show 21061+2843 LDS2939 320 5.9 61
Show 21070+3001 J 1319 206 1.6 61
Show 21004+3022 COU1179 358 0.9 64
Show 21078+2945 MLB 715 AB 40 5.5 64
Show 21078+2945 MLB 715 AC 336 25.3 64
Show 20581+2917 HO 598 125 16.2 67
Show 20595+3019 J 847 129 2.2 69
Show 21006+2829 COU1040 AB 347 1.5 69
Show 20579+2940 MLB 573 AB 57 5.7 69
Show 20579+2940 MLB 573 AC 232 23.7 69
Show 21083+2913 COU1331 37 0.3 71
Show 21031+3039 GRV 407 221 59.2 71
Show 21023+2819 COU 524 258 1.3 71
Show 20589+3015 ES 373 137 2.8 72
Show 21054+2824 MLB 666 352 1.4 72
Show 21077+3009 KPP1031 334 8.3 72
Show 21026+3041 COU1182 180 1.0 73
Show 21064+3031 TDT2751 148 2.4 76
Show 21020+2815 LDS2936 237 4.4 76
Show 20579+3002 TDT2662 100 1.5 76
Show 21088+2916 MLB 487 142 4.3 77
Show 21072+2833 COU 528 70 1.2 77
Show 20572+2921 J 794 134 3.2 78
Show 20578+3002 J 2334 16 5.0 79
Show 21091+2922 COU1332 20 0.2 79
Show 21077+3022 UC 256 67 48.1 80
Show 21056+3043 TDT2737 322 6.3 81



WDS 21031+2929 : COMPONENTS


  A B C
B pa=81.6°
sep=15.83"

C pa=308.3°
sep=18.79"
pa=287.1°
sep=31.81"

D pa=109.9°
sep=26.28"
pa=141.2°
sep=14.45"
pa=117.6°
sep=44.51"


21031+2929 A


Coord arcsec 2000 210306.12+292856.2 Mag 10.19 PmRA -261.00 PmDE -169.0


21031+2929 B


Coord arcsec 2000 210307.32+292858.5 Mag 18 Delta magnitude 7.81 Coordinate calculated yes


21031+2929 C


Coord arcsec 2000 210304.99+292907.8 Mag 16.5 Delta magnitude 6.31 Coordinate calculated yes


21031+2929 D


Coord arcsec 2000 210308.01+292847.3 Mag 14.08 PmRA 2.00 PmDE 0.0
Delta magnitude 3.89 Coordinate calculated yes
