21020+2815 LDS 2936



21h 01m 57.42s +28° 14' 48.9" P.A. 237.00 sep 4.4 mag 17.90,19.50


Coord 2000 21020+2815 Discov num LDS2936 Comp Coord arcsec 2000 21 01 57.42 +28 14 48.9
Date first 1953 Date last 2016 Obs 5
Pa first 231 Pa last 237.1 P.A. Now (θ) 237.1°
Sep first 5.0 Sep last 4.438 Sep. Now (ρ) 4.438"
Mag pri 17.90 Mag sec 19.50 delta mag (ΔM) 1.6 Spectral class
Pri motion ra +066 Sec motion ra
Pri motion dec -010 Sec motion dec
Notes W
Nature of this double is uncertain.


OTHER CATALOGS AND DESIGNATIONS


Constellation Vulpecula Gaia DR2 1846073224108950144


WDS 21020+2815 LDS 2936 : NOTES


No records found.



DISCOVERER


discov author
LDS Luyten p.m. catalog (from additional DD list)


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
21020+2815 LDS2936 1998 2 237 4.4 17.90 19.50 D 210157.42+281448.9
21020+2815 LDS2936 2015 3 237 4.4 17.90 19.50 210157.42+281448.9
21020+2815 LDS2936 2016 5 237 4.4 17.90 19.50 210157.42+281448.9

If you need more information about this double, apply for a data request form to the WDS.



WDS 21020+2815 LDS 2936 : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 21020+2815 LDS 2936 : MEASURES


No records found.

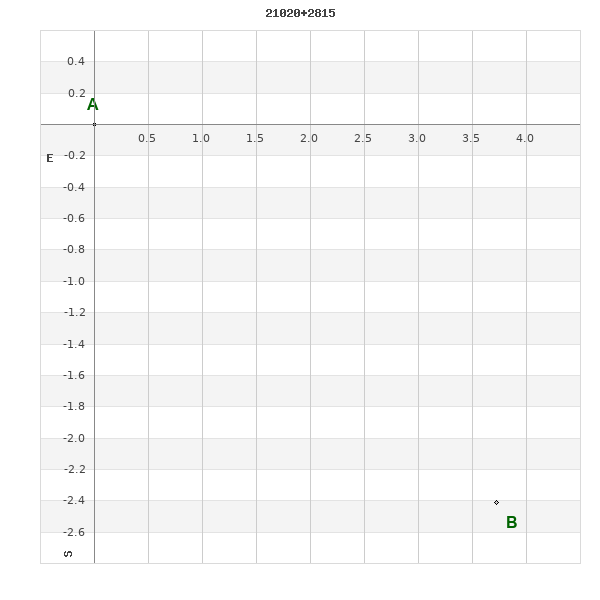

WDS 21020+2815 : VIRTUAL EYEPIECE



21020+2815 LDS2936A mag 17.9 21020+2815 LDS2936B sep 4.4 P.A. 237.10 mag 19.5 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 21020+2815 : ALADIN DSS IMAGE @ 21h 01m 57.42s +28° 14' 48.9"




WDS 21020+2815 LDS 2936 : NEIGHBORHOODS


FoV:
Limit:
Primaries only

21020+2815 LDS2936 distance=0' 21023+2819 COU 524 distance=7' 21014+2808 MLB 619 distance=11' 21017+2803 TDT2702 distance=13' 21006+2829 COU1040AB distance=24' 21024+2748 TOK 345 distance=28' 21001+2801 MLB 617 distance=29' 20599+2813 J 3122AB distance=30' 20599+2813 DAM 225AB,C distance=30' 20599+2813 DAM 225AB,D distance=30' 21001+2757 MLB 618 distance=31' 21007+2844 BRT 54AB distance=34' 21007+2844 BRT 54AC distance=34' 21045+2807 MLB 665 distance=35' 21040+2841 HJ 1609AB distance=38' 21040+2841 HJ 1609CD distance=39' 21053+2807 HDS3006 distance=46' 21054+2824 MLB 666 distance=47' 20596+2740 MLB 616 distance=48' 21035+2906 BU 445AB distance=55' 21035+2906 BU 445AC distance=55' 21035+2906 BU 445AD distance=55' 21035+2906 BU 445AE distance=55' 21035+2906 ARN 21AF distance=55' 21061+2801 COU 525 distance=57' 21045+2730 J 1180 distance=57' 21046+2902 TDT2726 distance=59' 20576+2802 HJ 1599 distance=60' 21061+2843 LDS2939 distance=62' 21029+2711 J 1223AB distance=65' 21029+2711 J 1223AC distance=65' 21055+2901 MLB 536 distance=66' 21070+2816 HJ 1611 distance=67' 21007+2920 AZC 109 distance=68' 21072+2833 COU 528 distance=72' 21031+2929 OSO 139AB distance=76' 21031+2929 OSO 139AC distance=76' 21031+2929 OSO 139AD distance=76' 21057+2912 GRV 416 distance=76' 20562+2826 GRV 397 distance=77' 20562+2816 MLB 615 distance=77' 20581+2917 HO 598 distance=81' 20559+2804 MLB 614 distance=82' 21017+2938 COU1180AB distance=84' 21017+2938 RBR 51Aa,Ab distance=84' 20590+2929 J 3119 distance=85' 20556+2845 BRT 53 distance=88' 20560+2735 HO 460AB distance=89' 20560+2735 HO 460AC distance=89' 20565+2910 MLB 485AB distance=91' 20551+2808 COU 831 distance=92' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 21020+2815 LDS2936 237 4.4 0
Show 21023+2819 COU 524 258 1.3 7
Show 21014+2808 MLB 619 218 5.4 11
Show 21017+2803 TDT2702 101 0.5 13
Show 21006+2829 COU1040 AB 347 1.5 24
Show 21024+2748 TOK 345 119 80.2 28
Show 21001+2801 MLB 617 331 8.6 29
Show 20599+2813 J 3122 AB 89 1.7 30
Show 20599+2813 DAM 225 AB,C 323 10.2 30
Show 20599+2813 DAM 225 AB,D 305 9.3 30
Show 21001+2757 MLB 618 339 7.3 31
Show 21007+2844 BRT 54 AB 359 6.9 34
Show 21007+2844 BRT 54 AC 296 26.6 34
Show 21045+2807 MLB 665 326 8.4 35
Show 21040+2841 HJ 1609 AB 36 8.1 38
Show 21040+2841 HJ 1609 CD 193 6.1 39
Show 21053+2807 HDS3006 12 0.7 46
Show 21054+2824 MLB 666 352 1.4 47
Show 20596+2740 MLB 616 233 4.1 48
Show 21035+2906 BU 445 AB 109 4.7 55
Show 21035+2906 BU 445 AC 19 50.7 55
Show 21035+2906 BU 445 AD 317 87.3 55
Show 21035+2906 BU 445 AE 218 103.5 55
Show 21035+2906 ARN 21 AF 233 219.9 55
Show 21061+2801 COU 525 168 1.1 57
Show 21045+2730 J 1180 276 4.0 57
Show 21046+2902 TDT2726 311 0.6 59
Show 20576+2802 HJ 1599 225 13.5 60
Show 21061+2843 LDS2939 320 5.9 62
Show 21029+2711 J 1223 AB 296 4.8 65
Show 21029+2711 J 1223 AC 134 22.1 65
Show 21055+2901 MLB 536 236 5.4 66
Show 21070+2816 HJ 1611 279 10.7 67
Show 21007+2920 AZC 109 324 34.8 68
Show 21072+2833 COU 528 70 1.2 72
Show 21031+2929 OSO 139 AB 82 15.8 76
Show 21031+2929 OSO 139 AC 308 18.8 76
Show 21031+2929 OSO 139 AD 110 26.3 76
Show 21057+2912 GRV 416 137 38.2 76
Show 20562+2826 GRV 397 339 58.2 77
Show 20562+2816 MLB 615 201 3.6 77
Show 20581+2917 HO 598 125 16.2 81
Show 20559+2804 MLB 614 75 8.7 82
Show 21017+2938 COU1180 AB 204 3.7 84
Show 21017+2938 RBR 51 Aa,Ab 181 0.6 84
Show 20590+2929 J 3119 140 8.5 85
Show 20556+2845 BRT 53 25 2.6 88
Show 20560+2735 HO 460 AB 112 13.3 89
Show 20560+2735 HO 460 AC 257 37.7 89
Show 20565+2910 MLB 485 AB 154 4.5 91
Show 20551+2808 COU 831 289 1.3 92



WDS 21020+2815 : COMPONENTS


  A
B pa=237.1°
sep=4.44"


21020+2815 A


Coord arcsec 2000 210157.42+281448.9 Mag 17.9 PmRA 66.00 PmDE -10.0


21020+2815 B


Coord arcsec 2000 210157.14+281446.5 Mag 19.5 Delta magnitude 1.6 Coordinate calculated yes
