20138+2945 TOB 179



20h 13m 49.93s +29° 44' 46.5" P.A. 91.00 sep 23.6 mag 10.74,12.98 Sp B2


Coord 2000 20138+2945 Discov num TOB 179 Comp Coord arcsec 2000 20 13 49.93 +29 44 46.5
Date first 1984 Date last 2015 Obs 9
Pa first 92 Pa last 90.6 P.A. Now (θ) 90.6°
Sep first 22.7 Sep last 23.638 Sep. Now (ρ) 23.638"
Mag pri 10.74 Mag sec 12.98 delta mag (ΔM) 2.24 Spectral class B2 (blue-white)
Pri motion ra -004 Sec motion ra +011
Pri motion dec -021 Sec motion dec -017
Notes
rPM=0.726
Nature of this double is uncertain.


OTHER CATALOGS AND DESIGNATIONS


Constellation Cygnus Tycho2 2166-00241-1 Gaia DR2 2029611264174648576


WDS 20138+2945 TOB 179 : NOTES


No records found.



DISCOVERER


discov author
TOB Tobal, T.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
20138+2945 TOB 179 1999 2 91 23.5 10.60 12.40 D 201349.93+294446.5
20138+2945 TOB 179 2002 3 91 23.5 10.60 12.40 D 201349.93+294446.5
20138+2945 TOB 179 2010 4 91 23.3 10.74 12.98 B2 201349.93+294446.5
20138+2945 TOB 179 2015 5 91 23.6 10.74 12.98 B2 201349.93+294446.5

If you need more information about this double, apply for a data request form to the WDS.



WDS 20138+2945 TOB 179 : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 20138+2945 TOB 179 : MEASURES


No records found.

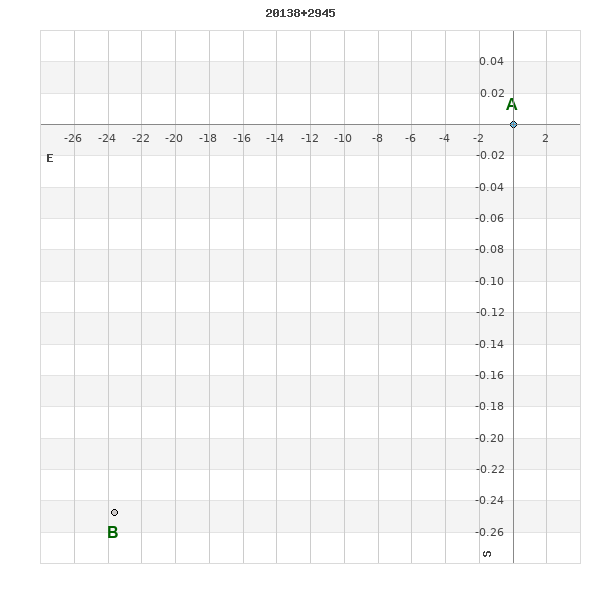

WDS 20138+2945 : VIRTUAL EYEPIECE



20138+2945 TOB 179A mag 10.74 Sp B2 20138+2945 TOB 179B sep 23.6 P.A. 90.60 mag 12.98 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 20138+2945 : ALADIN DSS IMAGE @ 20h 13m 49.93s +29° 44' 46.5"

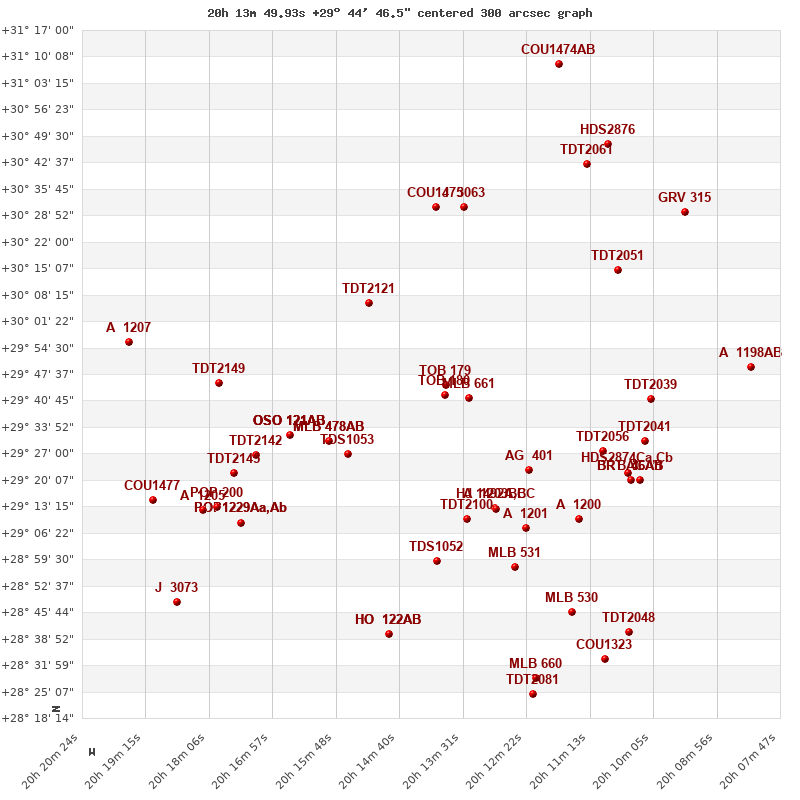

WDS 20138+2945 TOB 179 : NEIGHBORHOODS


FoV:
Limit:
Primaries only

20138+2945 TOB 179 distance=0' 20139+2942 TOB 180 distance=3' 20134+2941 MLB 661 distance=7' 20152+3006 TDT2121 distance=28' 20156+2927 TDS1053 distance=30' 20124+2923 AG 401 distance=30' 20160+2929 MLB 478AB distance=32' 20160+2929 MLB 478AC distance=32' 20129+2913 A 1203BC distance=35' 20129+2913 HJ 1492A,BC distance=35' 20134+2910 TDT2100 distance=36' 20167+2932 OSO 121AB distance=39' 20167+2932 OSO 121AC distance=39' 20167+2932 OSO 121AD distance=39' 20167+2932 OSO 121AE distance=39' 20110+2928 TDT2056 distance=41' 20124+2908 A 1201 distance=42' 20140+2859 TDS1052 distance=46' 20140+3031 COU1475 distance=47' 20135+3031 J 3063 distance=47' 20114+2910 A 1200 distance=47' 20173+2926 TDT2142 distance=49' 20101+2941 TDT2039 distance=49' 20105+2920 HDS2874Ca,Cb distance=49' 20102+2930 TDT2041 distance=50' 20124+2856 MLB 531 distance=51' 20107+3015 TDT2051 distance=51' 20105+2920 BRT 46AB distance=51' 20105+2920 MLB 477AC distance=51' 20103+2920 BAC 1 distance=52' 20179+2945 TDT2149 distance=54' 20177+2922 TDT2145 distance=55' 20175+2909 POP1229Aa,Ab distance=61' 20175+2909 BU 441AB distance=61' 20180+2913 POP 200 distance=63' 20182+2912 A 1205 distance=66' 20115+2846 MLB 530 distance=67' 20149+2840 HO 122AB distance=67' 20149+2840 HO 122AC distance=67' 20113+3042 TDT2061 distance=67' 20095+3029 GRV 315 distance=72' 20083+2950 A 1198AB distance=72' 20109+3047 HDS2876 distance=74' 20191+2915 COU1477 distance=76' 20196+2956 A 1207 distance=76' 20105+2841 TDT2048 distance=78' 20122+2829 MLB 660 distance=80' 20110+2834 COU1323 distance=81' 20123+2824 TDT2081 distance=84' 20188+2849 J 3073 distance=85' 20118+3108 COU1474AB distance=88' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 20138+2945 TOB 179 91 23.6 0
Show 20139+2942 TOB 180 299 23.4 3
Show 20134+2941 MLB 661 167 3.9 7
Show 20152+3006 TDT2121 11 2.0 28
Show 20156+2927 TDS1053 302 1.0 30
Show 20124+2923 AG 401 306 4.0 30
Show 20160+2929 MLB 478 AB 13 6.3 32
Show 20160+2929 MLB 478 AC 76 153.6 32
Show 20129+2913 A 1203 BC 167 0.3 35
Show 20129+2913 HJ 1492 A,BC 54 18.7 35
Show 20134+2910 TDT2100 98 0.7 36
Show 20167+2932 OSO 121 AB 165 13.2 39
Show 20167+2932 OSO 121 AC 283 15.2 39
Show 20167+2932 OSO 121 AD 190 18.9 39
Show 20167+2932 OSO 121 AE 259 25.2 39
Show 20110+2928 TDT2056 358 1.5 41
Show 20124+2908 A 1201 158 0.3 42
Show 20140+2859 TDS1052 164 1.6 46
Show 20140+3031 COU1475 87 0.2 47
Show 20135+3031 J 3063 76 4.7 47
Show 20114+2910 A 1200 197 5.4 47
Show 20173+2926 TDT2142 316 1.0 49
Show 20101+2941 TDT2039 177 0.4 49
Show 20105+2920 HDS2874 Ca,Cb 269 0.4 49
Show 20102+2930 TDT2041 189 1.2 50
Show 20124+2856 MLB 531 196 1.7 51
Show 20107+3015 TDT2051 242 2.0 51
Show 20105+2920 BRT 46 AB 79 5.3 51
Show 20105+2920 MLB 477 AC 24 113.7 51
Show 20103+2920 BAC 1 45 16.5 52
Show 20179+2945 TDT2149 316 0.8 54
Show 20177+2922 TDT2145 186 0.7 55
Show 20175+2909 POP1229 Aa,Ab 217 0.4 61
Show 20175+2909 BU 441 AB 66 6.4 61
Show 20180+2913 POP 200 205 6.4 63
Show 20182+2912 A 1205 96 1.3 66
Show 20115+2846 MLB 530 32 7.9 67
Show 20149+2840 HO 122 AB 72 1.4 67
Show 20149+2840 HO 122 AC 152 19.9 67
Show 20113+3042 TDT2061 353 0.4 67
Show 20095+3029 GRV 315 244 22.3 72
Show 20083+2950 A 1198 AB 229 1.5 72
Show 20109+3047 HDS2876 67 0.3 74
Show 20191+2915 COU1477 100 0.6 76
Show 20196+2956 A 1207 353 0.6 76
Show 20105+2841 TDT2048 136 0.6 78
Show 20122+2829 MLB 660 290 6.2 80
Show 20110+2834 COU1323 334 0.8 81
Show 20123+2824 TDT2081 157 0.5 84
Show 20188+2849 J 3073 16 4.5 85
Show 20118+3108 COU1474 AB 59 2.9 88



WDS 20138+2945 : COMPONENTS


  A
B pa=90.6°
sep=23.64"


20138+2945 A


Coord arcsec 2000 201349.93+294446.5 Mag 10.74 Spectral class B2 (blue-white) PmRA -4.00
PmDE -21.0 Tycho2 2166-00241-1
Tycho2
Tycho2 2166-00241-1 Pflag RAmdeg 303.45804496 DEmdeg 29.74629294
PmRA -7.7 PmDE -22.0 E RAmdeg 26 E DEmdeg 27
E pmRA 2.1 E pmDE 2.2 EpRAm 1987.27 EpDEm 1989.35
Num 4 Q RAmdeg 0.3 Q DEmdeg 0.9 Q pmRA 0.3
Q pmDE 0.9 BTmag 11.392 E BTmag 0.051 VTmag 10.760
E VTmag 0.046 Prox 689 TYC T HIP
CCDM RAdeg 303.45806444 DEdeg 29.74634556 EpRA 1990 1.54
EpDE 1990 1.60 E RAdeg 31.7 E DEdeg 28.3 Posflg
Corr 0.2


20138+2945 B


Coord arcsec 2000 201351.74+294446.3 Mag 12.98 PmRA 11.00 PmDE -17.0
Delta magnitude 2.24 Coordinate calculated yes
