19433+3754 SEI 668



19h 43m 18.46s +37° 54' 42.5" P.A. 338.00 sep 24.7 mag 11.15,12.18


Coord 2000 19433+3754 Discov num SEI 668 Comp Coord arcsec 2000 19 43 18.46 +37 54 42.5
Date first 1896 Date last 2015 Obs 13
Pa first 342 Pa last 338.3 P.A. Now (θ) 338.3°
Sep first 24.4 Sep last 24.694 Sep. Now (ρ) 24.694"
Mag pri 11.15 Mag sec 12.18 delta mag (ΔM) 1.03 Spectral class
Pri motion ra +000 Sec motion ra -006
Pri motion dec -004 Sec motion dec -008
Notes
rPM=0.721
Nature of this double is uncertain.


OTHER CATALOGS AND DESIGNATIONS


Constellation Cygnus Tycho2 3136-00028-1 Gaia DR2 2049046162985378048


WDS 19433+3754 SEI 668 : NOTES


No records found.



DISCOVERER


discov author
SEI Scheiner, J.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
19433+3754 SEI 668 1998 6 339 24.6 11.15 12.19 D 194318.46+375442.5
19433+3754 SEI 668 2002 7 339 24.7 11.15 12.19 D 194318.46+375442.5
19433+3754 SEI 668 2010 8 339 24.6 11.15 12.18 194318.46+375442.5
19433+3754 SEI 668 2015 9 338 24.7 11.15 12.18 194318.46+375442.5

If you need more information about this double, apply for a data request form to the WDS.



WDS 19433+3754 SEI 668 : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 19433+3754 SEI 668 : MEASURES


No records found.



WDS 19433+3754 : VIRTUAL EYEPIECE



19433+3754 SEI 668A mag 11.15 19433+3754 SEI 668B sep 24.7 P.A. 338.30 mag 12.18 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 19433+3754 : ALADIN DSS IMAGE @ 19h 43m 18.46s +37° 54' 42.5"

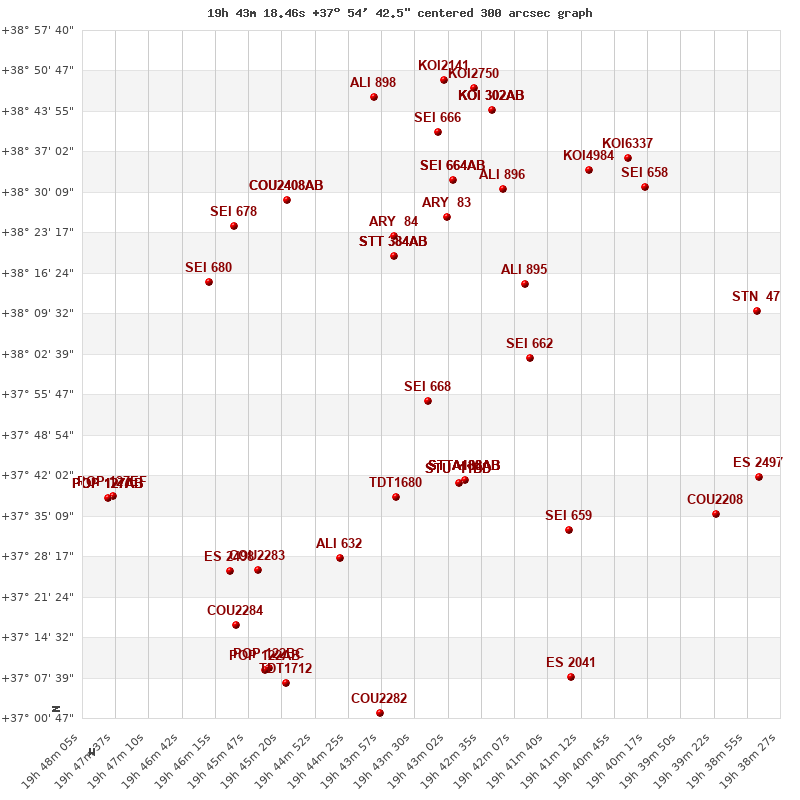

WDS 19433+3754 SEI 668 : NEIGHBORHOODS


FoV:
Limit:
Primaries only

19433+3754 SEI 668 distance=0' 19428+3741 STTA188AB distance=15' 19428+3741 STU 11AC distance=15' 19428+3741 STU 11AE distance=15' 19428+3741 STU 11AF distance=15' 19428+3741 STTA188AG distance=15' 19428+3741 STU 11BD distance=15' 19428+3741 STTA188BG distance=15' 19438+3738 TDT1680 distance=18' 19420+3802 SEI 662 distance=19' 19419+3814 ALI 895 distance=26' 19438+3819 STT 384AB distance=26' 19438+3819 STT 384AC distance=26' 19438+3819 STT 384AD distance=26' 19437+3823 ARY 84 distance=29' 19445+3728 ALI 632 distance=31' 19430+3826 ARY 83 distance=32' 19414+3733 SEI 659 distance=32' 19429+3832 SEI 664AB distance=38' 19429+3832 WSI 46AC distance=38' 19423+3830 ALI 896 distance=38' 19457+3726 COU2283 distance=41' 19463+3815 SEI 680 distance=42' 19452+3829 COU2408AB distance=42' 19452+3829 GII 24AB,C distance=42' 19460+3825 SEI 678 distance=44' 19463+3726 ES 2498 distance=44' 19432+3840 SEI 666 distance=46' 19411+3834 KOI4984 distance=48' 19460+3717 COU2284 distance=50' 19424+3844 KOI 302AB distance=51' 19424+3844 KOI 302AC distance=51' 19424+3844 KOI 302AD distance=51' 19403+3831 SEI 658 distance=51' 19394+3736 COU2208 distance=51' 19441+3846 ALI 898 distance=53' 19406+3836 KOI6337 distance=53' 19455+3709 POP 122BC distance=53' 19413+3708 ES 2041 distance=53' 19455+3709 POP 122AB distance=54' 19453+3707 TDT1712 distance=54' 19427+3848 KOI2750 distance=54' 19440+3702 COU2282 distance=54' 19477+3739 POP 127EF distance=55' 19431+3849 KOI2141 distance=55' 19477+3739 POP 127AB distance=56' 19477+3739 POP 127AC distance=56' 19477+3739 POP 127AD distance=56' 19477+3739 POP 127AE distance=56' 19388+3742 ES 2497 distance=56' 19385+3812 STN 47 distance=56' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 19433+3754 SEI 668 338 24.7 0
Show 19428+3741 STTA188 AB 121 61.1 15
Show 19428+3741 STU 11 AC 228 146.0 15
Show 19428+3741 STU 11 AE 196 101.4 15
Show 19428+3741 STU 11 AF 191 46.2 15
Show 19428+3741 STTA188 AG 120 29.8 15
Show 19428+3741 STU 11 BD 173 60.4 15
Show 19428+3741 STTA188 BG 302 30.8 15
Show 19438+3738 TDT1680 273 2.0 18
Show 19420+3802 SEI 662 282 27.9 19
Show 19419+3814 ALI 895 152 11.8 26
Show 19438+3819 STT 384 AB 196 1.1 26
Show 19438+3819 STT 384 AC 297 59.4 26
Show 19438+3819 STT 384 AD 294 116.0 26
Show 19437+3823 ARY 84 260 69.6 29
Show 19445+3728 ALI 632 133 15.6 31
Show 19430+3826 ARY 83 115 87.1 32
Show 19414+3733 SEI 659 259 14.8 32
Show 19429+3832 SEI 664 AB 33 20.3 38
Show 19429+3832 WSI 46 AC 325 8.0 38
Show 19423+3830 ALI 896 162 17.3 38
Show 19457+3726 COU2283 139 0.2 41
Show 19463+3815 SEI 680 182 28.6 42
Show 19452+3829 COU2408 AB 146 1.1 42
Show 19452+3829 GII 24 AB,C 141 3.7 42
Show 19460+3825 SEI 678 140 11.1 44
Show 19463+3726 ES 2498 181 5.3 44
Show 19432+3840 SEI 666 318 21.5 46
Show 19411+3834 KOI4984 171 2.7 48
Show 19460+3717 COU2284 331 0.6 50
Show 19424+3844 KOI 302 AB 190 3.1 51
Show 19424+3844 KOI 302 AC 185 4.5 51
Show 19424+3844 KOI 302 AD 46 5.8 51
Show 19403+3831 SEI 658 137 14.2 51
Show 19394+3736 COU2208 128 1.1 51
Show 19441+3846 ALI 898 232 14.4 53
Show 19406+3836 KOI6337 251 2.0 53
Show 19455+3709 POP 122 BC 83 2.7 53
Show 19413+3708 ES 2041 339 7.1 53
Show 19455+3709 POP 122 AB 284 48.5 54
Show 19453+3707 TDT1712 237 1.7 54
Show 19427+3848 KOI2750 6 3.6 54
Show 19440+3702 COU2282 239 0.5 54
Show 19477+3739 POP 127 EF 5 3.0 55
Show 19431+3849 KOI2141 308 3.4 55
Show 19477+3739 POP 127 AB 155 33.0 56
Show 19477+3739 POP 127 AC 285 44.0 56
Show 19477+3739 POP 127 AD 297 41.5 56
Show 19477+3739 POP 127 AE 296 56.8 56
Show 19388+3742 ES 2497 257 4.7 56
Show 19385+3812 STN 47 215 3.9 56



WDS 19433+3754 : COMPONENTS


  A
B pa=338.3°
sep=24.69"


19433+3754 A


Coord arcsec 2000 194318.46+375442.5 Mag 11.15 PmRA 0.00 PmDE -4.0


19433+3754 B


Coord arcsec 2000 194317.69+375505.4 Mag 12.18 PmRA -6.00 PmDE -8.0
Delta magnitude 1.03 Coordinate calculated yes
