18268+0659 SLE 342 AB



18h 26m 46.81s +06° 58' 32.1" P.A. 293.00 sep 12.6 mag 10.59,11.35 Sp A3


Coord 2000 18268+0659 Discov num SLE 342 Comp AB Coord arcsec 2000 18 26 46.81 +06 58 32.1
Date first 1906 Date last 2015 Obs 13
Pa first 293 Pa last 292.5 P.A. Now (θ) 292.5°
Sep first 12.7 Sep last 12.62 Sep. Now (ρ) 12.62"
Mag pri 10.59 Mag sec 11.35 delta mag (ΔM) 0.76 Spectral class A3 (white)
Pri motion ra -001 Sec motion ra -001
Pri motion dec -004 Sec motion dec -004
Notes U (Proper motion indicates non-physical)
This double is not physical.


18268+0659 SYSTEM COMPONENTS


Show name SAO coord wds_name last obs pa sep mag1 mag2 d_mag orb current
Show 18 26 47 +06 58 32 SLE 342 AB 2015 13 293 12.6 10.59 11.35 0.76 <===
Show 18 26 47 +06 58 32 SLE 342 AC 2015 11 319 26.0 10.59 12.35 1.76
Triple system
3 estimated visually detectable stars in this system


OTHER CATALOGS AND DESIGNATIONS


Constellation Ophiuchus Tycho2 0445-00305-1 Gaia DR2 4477459326846507264


WDS 18268+0659 SLE 342 AB : NOTES


No records found.



DISCOVERER


discov author
SLE Soulie, G.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
18268+0659 SLE 342 AB 2002 6 299 12.5 10.59 11.35 D 182646.81+065832.1
18268+0659 SLE 342 AB 2015 8 293 12.6 10.59 11.35 A3 182646.81+065832.1

If you need more information about this double, apply for a data request form to the WDS.



WDS 18268+0659 SLE 342 AB : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 18268+0659 SLE 342 AB : MEASURES


No records found.

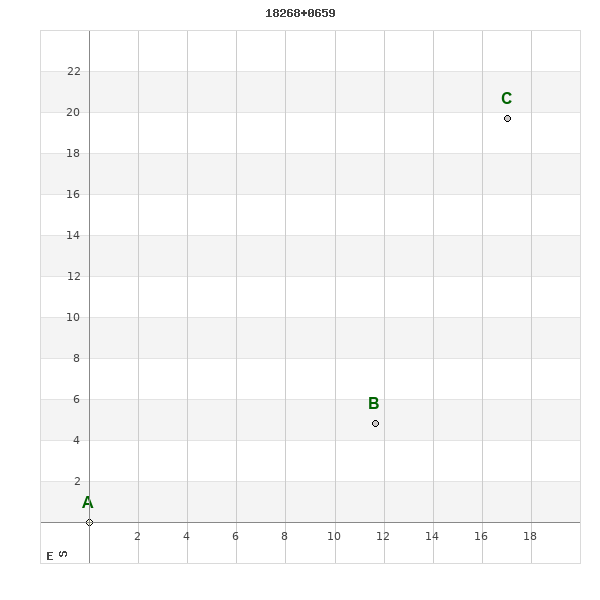

WDS 18268+0659 : VIRTUAL EYEPIECE



18268+0659 SLE 342A mag 10.59 Sp A3 18268+0659 SLE 342B sep 12.6 P.A. 292.50 mag 11.35 18268+0659 SLE 342C sep 26.0 P.A. 319.20 mag 12.35 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 18268+0659 : ALADIN DSS IMAGE @ 18h 26m 46.81s +06° 58' 32.1"

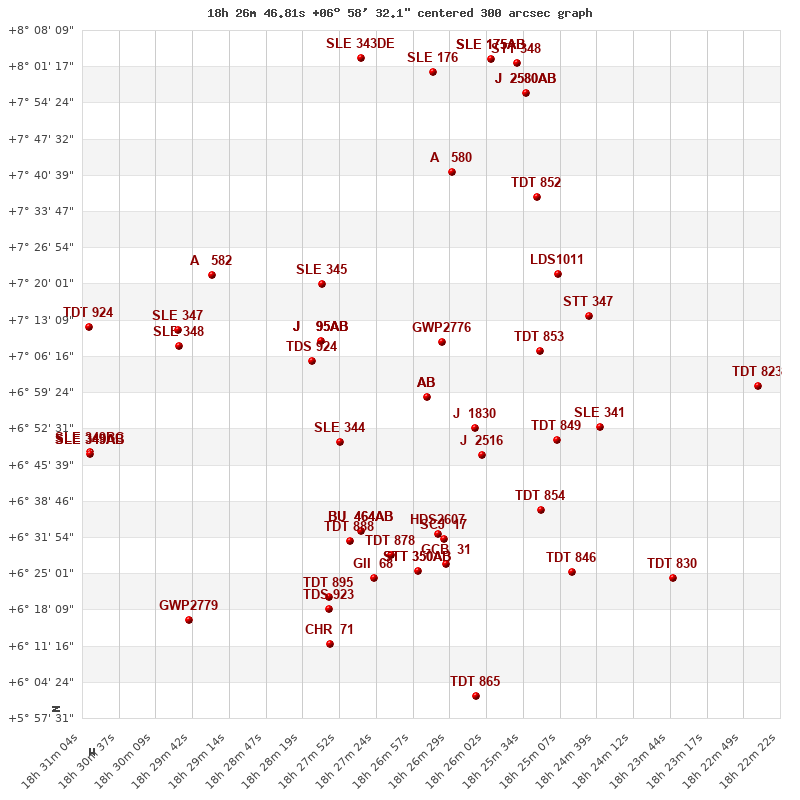

WDS 18268+0659 SLE 342 AB : NEIGHBORHOODS


FoV:
Limit:
Primaries only

18268+0659 SLE 342AB distance=1' 18268+0659 SLE 342AC distance=1' 18266+0709 GWP2776 distance=11' 18262+0653 J 1830 distance=11' 18260+0648 J 2516 distance=16' 18279+0650 SLE 344 distance=19' 18281+0709 J 95AB distance=23' 18281+0709 J 95AC distance=23' 18281+0709 SLE 346AD distance=23' 18282+0705 TDS 924 distance=23' 18254+0707 TDT 853 distance=23' 18252+0650 TDT 849 distance=26' 18266+0633 HDS2607 distance=27' 18266+0632 SCJ 17 distance=28' 18276+0633 BU 464AB distance=29' 18276+0633 BU 464AC distance=29' 18281+0720 SLE 345 distance=29' 18254+0637 TDT 854 distance=31' 18272+0629 TDT 878 distance=31' 18277+0631 TDT 888 distance=31' 18266+0627 GCB 31 distance=32' 18246+0653 SLE 341 distance=33' 18269+0625 STT 350AB distance=34' 18269+0625 CAT 3AC distance=34' 18252+0720 LDS1011 distance=34' 18248+0714 STT 347 distance=34' 18274+0624 GII 68 distance=36' 18280+0620 TDT 895 distance=43' 18265+0741 A 580 distance=43' 18250+0625 TDT 846 distance=43' 18254+0736 TDT 852 distance=44' 18280+0618 TDS 923 distance=45' 18295+0722 A 582 distance=47' 18299+0708 SLE 348 distance=47' 18299+0711 SLE 347 distance=48' 18280+0612 CHR 71 distance=51' 18237+0624 TDT 830 distance=58' 18262+0602 TDT 865 distance=58' 18255+0756 J 2580AB distance=61' 18255+0756 J 2580AC distance=61' 18297+0616 GWP2779 distance=62' 18226+0701 TDT 823 distance=62' 18267+0800 SLE 176 distance=62' 18310+0648 SLE 349BC distance=64' 18310+0648 SLE 349AB distance=64' 18310+0648 SLE 349AC distance=64' 18310+0712 TDT 924 distance=65' 18260+0803 SLE 175AB distance=66' 18260+0803 SLE 175AC distance=66' 18276+0804 SLE 343DE distance=66' 18256+0802 STT 348 distance=66' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 18268+0659 SLE 342 AB 293 12.6 1
Show 18268+0659 SLE 342 AC 319 26.0 1
Show 18266+0709 GWP2776 287 20.0 11
Show 18262+0653 J 1830 270 7.4 11
Show 18260+0648 J 2516 159 1.7 16
Show 18279+0650 SLE 344 133 11.7 19
Show 18281+0709 J 95 AB 123 2.2 23
Show 18281+0709 J 95 AC 32 32.0 23
Show 18281+0709 SLE 346 AD 185 70.8 23
Show 18282+0705 TDS 924 163 2.3 23
Show 18254+0707 TDT 853 70 0.4 23
Show 18252+0650 TDT 849 36 5.4 26
Show 18266+0633 HDS2607 243 0.2 27
Show 18266+0632 SCJ 17 351 51.0 28
Show 18276+0633 BU 464 AB 105 1.1 29
Show 18276+0633 BU 464 AC 86 25.9 29
Show 18281+0720 SLE 345 38 11.1 29
Show 18254+0637 TDT 854 17 2.8 31
Show 18272+0629 TDT 878 126 2.6 31
Show 18277+0631 TDT 888 86 0.7 31
Show 18266+0627 GCB 31 75 4.5 32
Show 18246+0653 SLE 341 98 23.7 33
Show 18269+0625 STT 350 AB 166 1.9 34
Show 18269+0625 CAT 3 AC 133 1.4 34
Show 18252+0720 LDS1011 101 100.7 34
Show 18248+0714 STT 347 346 3.2 34
Show 18274+0624 GII 68 27 2.3 36
Show 18280+0620 TDT 895 226 1.8 43
Show 18265+0741 A 580 322 4.6 43
Show 18250+0625 TDT 846 297 0.6 43
Show 18254+0736 TDT 852 217 1.1 44
Show 18280+0618 TDS 923 7 1.7 45
Show 18295+0722 A 582 29 2.9 47
Show 18299+0708 SLE 348 185 15.1 47
Show 18299+0711 SLE 347 191 15.7 48
Show 18280+0612 CHR 71 341 0.1 51
Show 18237+0624 TDT 830 33 3.1 58
Show 18262+0602 TDT 865 1 2.1 58
Show 18255+0756 J 2580 AB 348 6.5 61
Show 18255+0756 J 2580 AC 180 37.9 61
Show 18297+0616 GWP2779 88 36.9 62
Show 18226+0701 TDT 823 141 0.5 62
Show 18267+0800 SLE 176 164 13.6 62
Show 18310+0648 SLE 349 BC 103 6.5 64
Show 18310+0648 SLE 349 AB 355 20.8 64
Show 18310+0648 SLE 349 AC 12 20.2 64
Show 18310+0712 TDT 924 138 0.6 65
Show 18260+0803 SLE 175 AB 105 15.5 66
Show 18260+0803 SLE 175 AC 47 19.7 66
Show 18276+0804 SLE 343 DE 149 11.3 66
Show 18256+0802 STT 348 -1 -1.0 66



WDS 18268+0659 : COMPONENTS


  A B
B pa=292.5°
sep=12.62"

C pa=319.2°
sep=26.04"
pa=340.2°
sep=15.82"


18268+0659 A


Coord arcsec 2000 182646.81+065832.1 Mag 10.59 Spectral class A3 (white) PmRA -1.00
PmDE -4.0 Tycho2 0445-00305-1
Tycho2
Tycho2 0445-00305-1 Pflag P RAmdeg 276.69503412 DEmdeg 6.97559093
PmRA -2.2 PmDE -5.2 E RAmdeg 26 E DEmdeg 29
E pmRA 2.6 E pmDE 2.4 EpRAm 1990.59 EpDEm 1990.09
Num 3 Q RAmdeg 0.8 Q DEmdeg 0.3 Q pmRA 0.8
Q pmDE 0.3 BTmag 11.067 E BTmag 0.044 VTmag 10.587
E VTmag 0.042 Prox 12 TYC T HIP
CCDM RAdeg 276.69509278 DEdeg 6.97560389 EpRA 1990 1.84
EpDE 1990 1.85 E RAdeg 25.7 E DEdeg 28.8 Posflg D
Corr -0.3


18268+0659 B


Coord arcsec 2000 182646.03+065836.9 Mag 11.35 PmRA -1.00 PmDE -4.0
Tycho2 0445-00137-1 Delta magnitude 0.76 Coordinate calculated yes
Tycho2
Tycho2 0445-00137-1 Pflag RAmdeg 276.69178846 DEmdeg 6.97697773
PmRA 0.1 PmDE -3.7 E RAmdeg 51 E DEmdeg 57
E pmRA 2.7 E pmDE 2.5 EpRAm 1986.85 EpDEm 1984.69
Num 3 Q RAmdeg 0.5 Q DEmdeg 0.1 Q pmRA 0.5
Q pmDE 0.1 BTmag 12.271 E BTmag 0.137 VTmag 11.354
E VTmag 0.082 Prox 117 TYC HIP
CCDM RAdeg 276.69178806 DEdeg 6.97698611 EpRA 1990 1.85
EpDE 1990 1.87 E RAdeg 52.7 E DEdeg 60.1 Posflg
Corr -0.3


18268+0659 C


Coord arcsec 2000 182645.67+065851.8 Mag 12.35 PmRA -6.00 PmDE 1.0
Tycho2 0445-00305-2 Delta magnitude 1.76 Coordinate calculated yes
Tycho2
Tycho2 0445-00305-2 Pflag P RAmdeg 276.69503412 DEmdeg 6.97559093
PmRA -2.2 PmDE -5.2 E RAmdeg 26 E DEmdeg 29
E pmRA 2.6 E pmDE 2.4 EpRAm 1990.59 EpDEm 1990.09
Num 3 Q RAmdeg 0.8 Q DEmdeg 0.3 Q pmRA 0.8
Q pmDE 0.3 BTmag 12.320 E BTmag 0.148 VTmag 11.979
E VTmag 0.158 Prox 12 TYC HIP
CCDM RAdeg 276.69475611 DEdeg 6.97559639 EpRA 1990 1.84
EpDE 1990 1.86 E RAdeg 69.4 E DEdeg 77.6 Posflg D
Corr -0.3
