17422-1544 HU 184 (HD 160745)



17h 42m 13.76s -15° 43' 32.0" P.A. 274.00 sep 4.4 mag 9.24,10.02 Sp A0IV/V


Coord 2000 17422-1544 Discov num HU  184 Comp Coord arcsec 2000 17 42 13.76 -15 43 32.0
Date first 1895 Date last 2018 Obs 22
Pa first 274 Pa last 273.6 P.A. Now (θ) 273.6°
Sep first 4.1 Sep last 4.447 Sep. Now (ρ) 4.447"
Mag pri 9.24 Mag sec 10.02 delta mag (ΔM) 0.78 Spectral class A0IV/V (white)
Pri motion ra +051 Sec motion ra +001
Pri motion dec -006 Sec motion dec -004
Notes
rPM=0.974
This double is not physical.


OTHER CATALOGS AND DESIGNATIONS


Name HD 160745 Constellation Serpens Tycho2 6248-00367-1 Gaia DR2 4124924077552959872
HD 160745


WDS 17422-1544 HU 184 (HD 160745) : NOTES


No records found.



DISCOVERER


discov author
HU Hussey, W.F.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
17422-1544 HU 184 2000 18 274 4.4 9.24 10.02 A0IV/V -15 4651 D 174213.76-154332.0
17422-1544 HU 184 2010 19 274 4.4 9.24 10.02 A0IV/V -15 4651 D 174213.76-154332.0
17422-1544 HU 184 2017 21 274 4.4 9.24 10.02 A0IV/V -15 4651 174213.76-154332.0
17422-1544 HU 184 2018 22 274 4.4 9.24 10.02 A0IV/V -15 4651 174213.76-154332.0

If you need more information about this double, apply for a data request form to the WDS.



WDS 17422-1544 HU 184 (HD 160745) : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 17422-1544 HU 184 (HD 160745) : MEASURES


No records found.

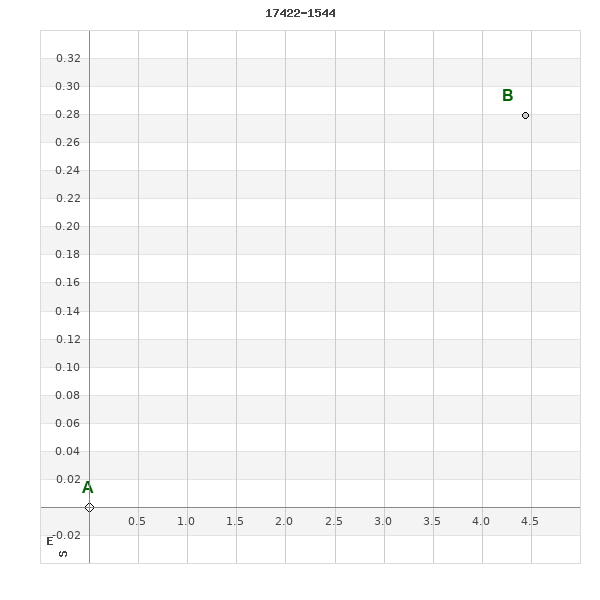

WDS 17422-1544 (HD 160745) : VIRTUAL EYEPIECE



17422-1544 HU 184A mag 9.24 Sp A0IV/V 17422-1544 HU 184B sep 4.5 P.A. 273.60 mag 10.02 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 17422-1544 (HD 160745) : ALADIN DSS IMAGE @ 17h 42m 13.76s -15° 43' 32.0"

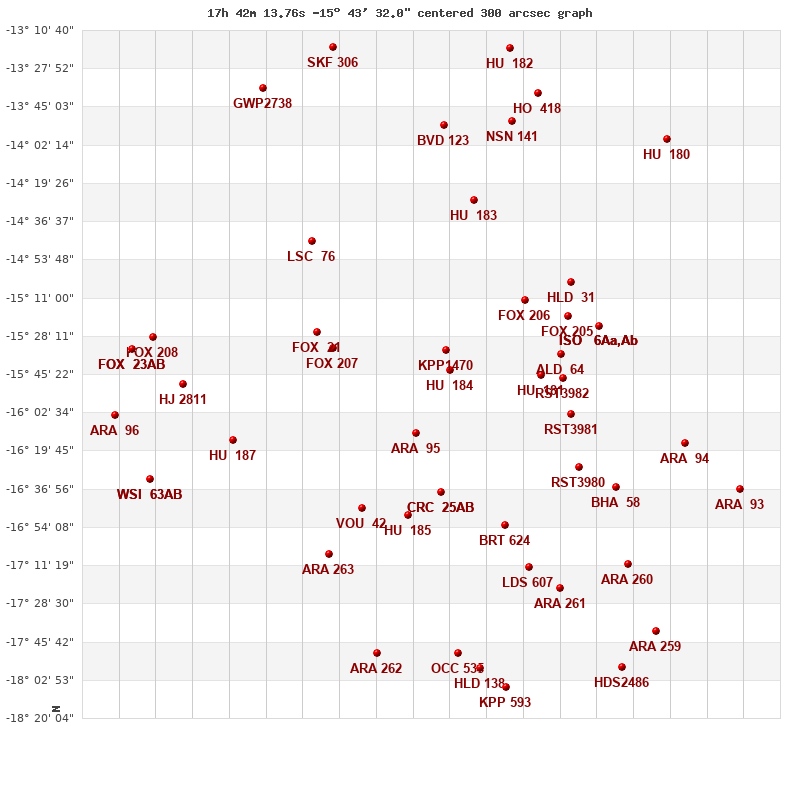

WDS 17422-1544 HU 184 (HD 160745) : NEIGHBORHOODS


FoV:
Limit:
Primaries only

17422-1544 HU 184 distance=1' 17424-1535 KPP1470 distance=10' 17434-1612 ARA 95 distance=33' 17394-1546 HU 181 distance=41' 17399-1511 FOX 206 distance=46' 17388-1536 ALD 64 distance=51' 17387-1547 RST3982 distance=51' 17458-1533 FOX 207 distance=54' 17425-1638 CRC 25AB distance=56' 17425-1638 CRC 25AC distance=56' 17385-1604 RST3981 distance=58' 17385-1518 FOX 205 distance=59' 17464-1526 FOX 21 distance=63' 17384-1504 HLD 31 distance=68' 17435-1649 HU 185 distance=69' 17376-1524 ISO 6Aa,Ab distance=70' 17376-1524 RST5090AB distance=70' 17376-1524 DRS 61AC distance=70' 17382-1628 RST3980 distance=73' 17450-1646 VOU 42 distance=74' 17406-1653 BRT 624 distance=75' 17415-1427 HU 183 distance=78' 17466-1445 LSC 76 distance=86' 17371-1636 BHA 58 distance=92' 17397-1712 LDS 607 distance=96' 17460-1706 ARA 263 distance=100' 17490-1615 HU 187 distance=103' 17388-1722 ARA 261 distance=110' 17424-1353 BVD 123 distance=111' 17350-1616 ARA 94 distance=111' 17403-1352 NSN 141 distance=116' 17367-1711 ARA 260 distance=119' 17506-1550 HJ 2811 distance=121' 17420-1751 OCC 535 distance=128' 17395-1339 HO 418 distance=131' 17445-1751 ARA 262 distance=132' 17413-1757 HLD 138 distance=135' 17515-1529 FOX 208 distance=135' 17332-1637 ARA 93 distance=141' 17355-1400 HU 180 distance=143' 17516-1633 WSI 63AB distance=144' 17516-1633 WSI 63AC distance=144' 17521-1534 FOX 23AB distance=144' 17521-1534 FOX 23AC distance=144' 17405-1806 KPP 593 distance=145' 17404-1319 HU 182 distance=148' 17358-1741 ARA 259 distance=150' 17527-1603 ARA 96 distance=153' 17481-1337 GWP2738 distance=153' 17369-1757 HDS2486 distance=155' 17459-1318 SKF 306 distance=155' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 17422-1544 HU 184 274 4.4 1
Show 17424-1535 KPP1470 152 11.1 10
Show 17434-1612 ARA 95 123 10.3 33
Show 17394-1546 HU 181 43 1.0 41
Show 17399-1511 FOX 206 7 7.2 46
Show 17388-1536 ALD 64 194 1.9 51
Show 17387-1547 RST3982 156 1.7 51
Show 17458-1533 FOX 207 67 16.0 54
Show 17425-1638 CRC 25 AB 123 8.9 56
Show 17425-1638 CRC 25 AC 276 3.2 56
Show 17385-1604 RST3981 193 4.9 58
Show 17385-1518 FOX 205 193 14.1 59
Show 17464-1526 FOX 21 318 3.5 63
Show 17384-1504 HLD 31 330 1.7 68
Show 17435-1649 HU 185 278 2.7 69
Show 17376-1524 ISO 6 Aa,Ab 132 0.3 70
Show 17376-1524 RST5090 AB 78 24.5 70
Show 17376-1524 DRS 61 AC 58 999.9 70
Show 17382-1628 RST3980 90 0.3 73
Show 17450-1646 VOU 42 311 0.2 74
Show 17406-1653 BRT 624 279 3.2 75
Show 17415-1427 HU 183 294 1.2 78
Show 17466-1445 LSC 76 269 0.4 86
Show 17371-1636 BHA 58 140 23.9 92
Show 17397-1712 LDS 607 49 14.5 96
Show 17460-1706 ARA 263 42 12.2 100
Show 17490-1615 HU 187 84 4.2 103
Show 17388-1722 ARA 261 79 12.5 110
Show 17424-1353 BVD 123 270 18.5 111
Show 17350-1616 ARA 94 98 8.0 111
Show 17403-1352 NSN 141 2 1.1 116
Show 17367-1711 ARA 260 21 14.6 119
Show 17506-1550 HJ 2811 117 14.4 121
Show 17420-1751 OCC 535 -1 0.1 128
Show 17395-1339 HO 418 281 18.5 131
Show 17445-1751 ARA 262 70 9.9 132
Show 17413-1757 HLD 138 272 2.2 135
Show 17515-1529 FOX 208 147 24.9 135
Show 17332-1637 ARA 93 64 12.9 141
Show 17355-1400 HU 180 198 0.4 143
Show 17516-1633 WSI 63 AB 51 5.1 144
Show 17516-1633 WSI 63 AC 8 3.0 144
Show 17521-1534 FOX 23 AB 155 2.6 144
Show 17521-1534 FOX 23 AC 337 2.6 144
Show 17405-1806 KPP 593 281 5.5 145
Show 17404-1319 HU 182 357 1.1 148
Show 17358-1741 ARA 259 196 8.5 150
Show 17527-1603 ARA 96 108 13.6 153
Show 17481-1337 GWP2738 154 30.3 153
Show 17369-1757 HDS2486 125 0.2 155
Show 17459-1318 SKF 306 33 32.3 155



WDS 17422-1544 : COMPONENTS


  A
B pa=273.6°
sep=4.45"


17422-1544 A


Name HD 160745 Coord arcsec 2000 174213.76-154332.0 Mag 9.24 Spectral class A0IV/V (white)
PmRA 51.00 PmDE -6.0 Tycho2 6248-00367-1
Tycho2
Tycho2 6248-00367-1 Pflag RAmdeg 265.55733776 DEmdeg -15.72555667
PmRA 13.9 PmDE 0.7 E RAmdeg 12 E DEmdeg 15
E pmRA 1.5 E pmDE 1.4 EpRAm 1990.98 EpDEm 1990.27
Num 4 Q RAmdeg 2.2 Q DEmdeg 2.7 Q pmRA 2.1
Q pmDE 2.7 BTmag 9.261 E BTmag 0.023 VTmag 9.237
E VTmag 0.025 Prox 44 TYC T HIP
CCDM RAdeg 265.55730472 DEdeg -15.72555833 EpRA 1990 1.75
EpDE 1990 1.60 E RAdeg 11.7 E DEdeg 15.3 Posflg
Corr 0.0
CCDM
Ccdm 17422-1544 RComp Comp A Note1
Note2 Discov num DRAs 2.63 DDEs -3.8
R dRAs 80 Year Theta Rho
Obs 2 Vmag 9.3 Sp A0 PmNote
PmRA PmDE Dm number -15 4651 Cat1 BD
Name2 Cat2 HD 160745 M HD
ADS BDS A10720 M ADS BDS N IDS IDS 17365S1541A
HIC


17422-1544 B


Coord arcsec 2000 174213.45-154331.7 Mag 10.02 PmRA 1.00 PmDE -4.0
Tycho2 6248-01373-1 Delta magnitude 0.78 Coordinate calculated yes
Tycho2
Tycho2 6248-01373-1 Pflag RAmdeg 265.55604828 DEmdeg -15.72549898
PmRA -0.3 PmDE -5.8 E RAmdeg 34 E DEmdeg 40
E pmRA 2.4 E pmDE 2.5 EpRAm 1989.41 EpDEm 1988.56
Num 2 Q RAmdeg Q DEmdeg Q pmRA
Q pmDE BTmag 10.242 E BTmag 0.054 VTmag 10.015
E VTmag 0.064 Prox 44 TYC HIP
CCDM RAdeg 265.55604917 DEdeg -15.72548556 EpRA 1990 1.68
EpDE 1990 1.62 E RAdeg 34.2 E DEdeg 41.1 Posflg
Corr -0.5
CCDM
Ccdm 17422-1544 RComp Comp B Note1
Note2 Discov num HU 184 DRAs DDEs
R dRAs Year 1897 Theta 275 Rho 4.4
Obs 7 Vmag 9.8 Sp PmNote
PmRA PmDE Dm number Cat1
Name2 Cat2 HD M HD
ADS BDS A10720 M ADS BDS N IDS IDS 17365S1541B
HIC
