16225-0415 BU 1453 AC



16h 22m 32.71s -04° 14' 57.2" P.A. 349.00 sep 83.6 mag 7.41,12.68 Sp G0 dist. 27.57 pc (89.93 l.y.)


Coord 2000 16225-0415 Discov num BU 1453 Comp AC Coord arcsec 2000 16 22 32.71 -04 14 57.2
Date first 1910 Date last 2017 Obs 11
Pa first 340 Pa last 348.8 P.A. Now (θ) 348.8°
Sep first 68.2 Sep last 83.6 Sep. Now (ρ) 83.6"
Mag pri 7.41 Mag sec 12.68 delta mag (ΔM) 5.27 Spectral class G0 (yellow)
Pri motion ra -080 Sec motion ra -011
Pri motion dec -176 Sec motion dec +003
Notes N (See Notes)
rPM=0.992
This double is not physical.


16225-0415 SYSTEM COMPONENTS


Show name SAO coord wds_name last obs pa sep mag1 mag2 d_mag orb current
Show HD 147512 141126 16 22 33 -04 14 57 BU 1453 AB 2017 24 22 120.6 7.41 8.53 1.12
Show 141126 16 22 33 -04 14 57 BU 1453 AC 2017 11 349 83.6 7.41 12.68 5.27 <===
Show 141127 16 22 36 -04 13 08 BU 1453 BC 2017 10 244 68.7 8.53 12.68 4.15
Triple system
3 estimated visually detectable stars in this system


OTHER CATALOGS AND DESIGNATIONS


Constellation Ophiuchus SAO 141126 HIP 80218 Tycho2 5043-00109-1
Gaia DR2 4356054757585316992 HD 147512 BD BD-03 3929 Distance 27.57
Distance ly 89.93


WDS 16225-0415 BU 1453 AC : NOTES


discov_num notes refcode
BU 1453 B is BD-03@3930. Measured in connection with STF 3103rej.


DISCOVERER


discov author
BU Burnham, S.W. (BU 1 - 81)


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
16225-0415 BU 1453 AC 1911 2 340 68.5 7.41 11.60 G0 N 162232.71-041457.2
16225-0415 BU 1453 AC 2011 3 349 83.0 7.41 11.60 G0 N 162232.71-041457.2
16225-0415 BU 1453 AC 2017 6 349 83.6 7.41 12.68 G0 N 162232.71-041457.2

If you need more information about this double, apply for a data request form to the WDS.



WDS 16225-0415 BU 1453 AC : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 16225-0415 BU 1453 AC : MEASURES


No records found.

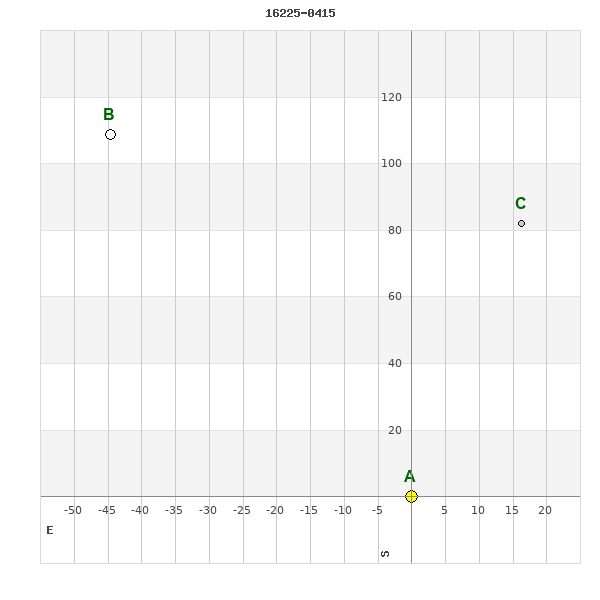

WDS 16225-0415 : VIRTUAL EYEPIECE



16225-0415 BU 1453A mag 7.41 Sp G0 16225-0415 BU 1453B sep 117.6 P.A. 22.30 mag 8.53 Sp A0 16225-0415 BU 1453C sep 83.6 P.A. 348.80 mag 12.68 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 16225-0415 : ALADIN DSS IMAGE @ 16h 22m 32.71s -04° 14' 57.2"




WDS 16225-0415 BU 1453 AC : NEIGHBORHOODS


FoV:
Limit:
Primaries only

16225-0415 BU 1453AC distance=0' 16225-0415 BU 1453BC distance=2' 16204-0416 WIL 3 distance=32' 16207-0356 STF3103 distance=34' 16227-0341 KPP 370 distance=35' 16242-0506 UC 3163 distance=57' 16250-0510 CVR 186 distance=66' 16183-0442 BU 1452 (Yed Posterior) distance=69' 16268-0347 RST4560 distance=70' 16238-0258 TOK 901 distance=79' 16278-0413 CVR 823 distance=80' 16282-0415 GKM9357Aa,Ab distance=85' 16276-0334 VYS 7 distance=87' 16164-0435 UC 3146 distance=95' 16167-0323 LDS4659 distance=102' 16293-0501 RST4561 distance=111' 16307-0359 NSN 154 distance=124' 16252-0218 UC 3165 distance=124' 16245-0214 WIS 302 distance=125' 16210-0617 YMG 78 distance=125' 16143-0342 BUP 164AB (Yed Prior) distance=128' 16143-0342 BUP 164AC (Yed Prior) distance=128' 16241-0627 BRT 465 distance=134' 16182-0216 STF2033 distance=136' 16275-0609 CVR 822 distance=137' 16137-0510 GWP2609 distance=143' 16179-0631 BRT 464 distance=153' 16226-0137 RST5052 distance=159' 16337-0444 PST 1 distance=169' 16308-0218 RST5059 distance=171' 16261-0657 JKS 10 distance=171' 16141-0220 BAL 240 distance=171' 16183-0133 GWP2620 distance=174' 16246-0121 BAL 565 distance=177' 16110-0450 LDS4647 distance=177' 16160-0644 GWP2611 distance=178' 16344-0401 FMR 154 distance=178' 16241-0116 GWP2631 distance=180' 16281-0135 RST5057 distance=181' 16132-0219 LDS4650 distance=182' 16163-0139 STF2031AB distance=182' 16163-0139 STF2031AC distance=182' 16348-0412 GIC 144AB distance=182' 16348-0412 LMP 14AC distance=182' 16348-0412 DSG 20Aa,Ab distance=182' 16318-0216 A 693 distance=183' 16163-0139 SKF 1CD distance=183' 16302-0149 GWP2638 distance=186' 16228-0722 A 24 distance=188' 16165-0659 RST3939 distance=188' 16348-0412 LMP 14BD distance=195' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 16225-0415 BU 1453 AB 22 120.6 0
Show 16225-0415 BU 1453 AC 349 83.6 0
Show 16225-0415 BU 1453 BC 244 68.7 2
Show 16204-0416 WIL 3 145 35.9 32
Show 16207-0356 STF3103 304 24.4 34
Show 16227-0341 KPP 370 316 3.8 35
Show 16242-0506 UC 3163 226 8.0 57
Show 16250-0510 CVR 186 196 44.9 66
Show Yed Posterior 16183-0442 BU 1452 246 120.2 69
Show 16268-0347 RST4560 140 2.7 70
Show 16238-0258 TOK 901 53 0.2 79
Show 16278-0413 CVR 823 171 17.5 80
Show 16282-0415 GKM9357 Aa,Ab 252 0.2 85
Show 16276-0334 VYS 7 81 3.3 87
Show 16164-0435 UC 3146 96 13.6 95
Show 16167-0323 LDS4659 287 11.3 102
Show 16293-0501 RST4561 33 0.4 111
Show 16307-0359 NSN 154 316 6.2 124
Show 16252-0218 UC 3165 67 11.4 124
Show 16245-0214 WIS 302 48 325.8 125
Show 16210-0617 YMG 78 25 0.0 125
Show Yed Prior 16143-0342 BUP 164 AB 308 68.4 128
Show Yed Prior 16143-0342 BUP 164 AC 123 259.2 128
Show 16241-0627 BRT 465 292 4.6 134
Show 16182-0216 STF2033 174 10.6 136
Show 16275-0609 CVR 822 339 14.6 137
Show 16137-0510 GWP2609 113 14.4 143
Show 16179-0631 BRT 464 82 3.8 153
Show 16226-0137 RST5052 37 0.9 159
Show 16337-0444 PST 1 335 3.4 169
Show 16308-0218 RST5059 171 1.4 171
Show 16261-0657 JKS 10 151 26.5 171
Show 16141-0220 BAL 240 352 8.2 171
Show 16183-0133 GWP2620 215 144.3 174
Show 16246-0121 BAL 565 68 11.1 177
Show 16110-0450 LDS4647 229 4.1 177
Show 16160-0644 GWP2611 179 8.7 178
Show 16344-0401 FMR 154 107 1.0 178
Show 16241-0116 GWP2631 298 94.9 180
Show 16281-0135 RST5057 36 3.3 181
Show 16132-0219 LDS4650 75 43.2 182
Show 16163-0139 STF2031 AB 229 20.9 182
Show 16163-0139 STF2031 AC 26 92.9 182
Show 16348-0412 GIC 144 AB 36 999.9 182
Show 16348-0412 LMP 14 AC 326 100.6 182
Show 16348-0412 DSG 20 Aa,Ab 207 0.0 182
Show 16318-0216 A 693 81 0.2 183
Show 16163-0139 SKF 1 CD 166 18.8 183
Show 16302-0149 GWP2638 226 72.1 186
Show 16228-0722 A 24 336 1.4 188
Show 16165-0659 RST3939 89 2.3 188



WDS 16225-0415 : COMPONENTS


  A B
B pa=22.3°
sep=117.58"

C pa=348.8°
sep=83.60"
pa=246.2°
sep=66.46"


16225-0415 A


Name HD 147512 Coord arcsec 2000 162232.71-041457.2 Mag 7.41 Spectral class G0 (yellow)
PmRA -80.00 PmDE -176.0 SAO 141126 HIP 80218
Tycho2 5043-00109-1 HD 147512 BD BD-03 3929
Tycho2
Tycho2 5043-00109-1 Pflag RAmdeg 245.63634108 DEmdeg -4.24924403
PmRA -79.3 PmDE -175.6 E RAmdeg 5 E DEmdeg 6
E pmRA 1.3 E pmDE 1.5 EpRAm 1991.16 EpDEm 1991.12
Num 11 Q RAmdeg 0.4 Q DEmdeg 0.8 Q pmRA 0.5
Q pmDE 0.8 BTmag 8.228 E BTmag 0.017 VTmag 7.411
E VTmag 0.011 Prox 999 TYC T HIP 80218
CCDM RAdeg 245.63652528 DEdeg -4.24882528 EpRA 1990 1.65
EpDE 1990 1.42 E RAdeg 5.2 E DEdeg 5.9 Posflg
Corr 0.1
SAO
SAO 141126 DelFlag RA1950 PmRA1950 -0.0056
DE1950 PmDE1950 -0.163 Vmag 8 SpType G0
Double code Source 27 CatNum 5647 DM BD-03 3929
DMcomp BDsup HD 147512 M HD 0
GC RA1950rad 4.27567535 DE1950rad -0.07208927 PmRA2000 -0.0054
PmDE2000 -0.161
Hipparcos
Catalog H HIP 80218 Proxy RAhms 16 22 32.77
DEdms -04 14 55.7 Vmag 7.34 VarFlag R Vmag H
RAdeg 245.637 DEdeg -4.24882 AstroRef Plx 36.22
CCDM -79.68 - N CCDM I Nsys 1 Ncomp 1
MultFlag Source Qual M HIP
Theta Rho HD BD BD-03 3929
CD CP Dm number -03 3929 VIred 0.77
SpType G0 R SpType Coord arcsec 2000 162232.77-041455.7
Hipparcos 2
HIP 80218 Sn 5 So 0 Nc 1
RArad 4.287166287 DErad -0.0741558625 Plx 36.27 PmRA -79.8
PmDE -175.92 E RArad 0.61 E DErad 0.38 E Plx 0.65
E pmRA 0.52 E pmDE 0.45 Hpmag E Hpmag 0.0013
SHp 0.01 VA 0 BV 0.718 E BV 0.012
VI 0.77


16225-0415 B


Coord arcsec 2000 162235.69-041308.4 Coord calc 162235.69-041308.4 Mag 8.53 Spectral class A0 (white)
PmRA -5.00 PmDE -16.0 SAO 141127 Tycho2 5043-00037-1
HD 147532 DM BD-03 3930 Delta magnitude 1.12
Tycho2
Tycho2 5043-00037-1 Pflag RAmdeg 245.64876326 DEmdeg -4.21902316
PmRA -3.9 PmDE -14.2 E RAmdeg 7 E DEmdeg 9
E pmRA 1.2 E pmDE 1.2 EpRAm 1990.70 EpDEm 1989.94
Num 10 Q RAmdeg 0.6 Q DEmdeg 1.2 Q pmRA 0.6
Q pmDE 1.3 BTmag 8.776 E BTmag 0.020 VTmag 8.527
E VTmag 0.015 Prox 999 TYC T HIP
CCDM RAdeg 245.64877194 DEdeg -4.21899083 EpRA 1990 1.67
EpDE 1990 1.45 E RAdeg 7.4 E DEdeg 8.9 Posflg
Corr 0.0
SAO
SAO 141127 DelFlag RA1950 PmRA1950 0.0009
DE1950 PmDE1950 -0.01 Vmag 8.9 SpType A0
Double code Source 27 CatNum 5648 DM BD-03 3930
DMcomp BDsup HD 147532 M HD 0
GC RA1950rad 4.2758777 DE1950rad -0.07160278 PmRA2000 0.0011
PmDE2000 -0.008


16225-0415 C


Coord arcsec 2000 162231.62-041335.2 Mag 12.68 PmRA -11.00 PmDE 3.0
Delta magnitude 5.27 Coordinate calculated yes
