10294+0615 A 2766



10h 29m 21.11s +06° 15' 23.2" P.A. 172.00 sep 1.3 mag 7.67,12.80 Sp K2


Coord 2000 10294+0615 Discov num A  2766 Comp Coord arcsec 2000 10 29 21.11 +06 15 23.2
Date first 1914 Date last 2003 Obs 4
Pa first 318 Pa last 172.3 P.A. Now (θ) 172.3°
Sep first 1.0 Sep last 1.29 Sep. Now (ρ) 1.29"
Mag pri 7.67 Mag sec 12.80 delta mag (ΔM) 5.13 Spectral class K2 (yellow-orange)
Pri motion ra -019 Sec motion ra
Pri motion dec -008 Sec motion dec
Notes
Nature of this double is uncertain.


OTHER CATALOGS AND DESIGNATIONS


Constellation Sextans SAO 118331 Tycho2 0252-00130-1 Gaia DR2 3862278585360843648
HD 90842


WDS 10294+0615 A 2766 : NOTES


No records found.



DISCOVERER


discov author
A Aitken, R.G.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
10294+0615 A 2766 1929 3 319 1.1 7.67 12.80 K2 +06 2311 102921.11+061523.2
10294+0615 A 2766 2003 4 172 1.3 7.67 12.80 K2 +06 2311 102921.11+061523.2

If you need more information about this double, apply for a data request form to the WDS.



WDS 10294+0615 A 2766 : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 10294+0615 A 2766 : MEASURES


No records found.



WDS 10294+0615 : VIRTUAL EYEPIECE



10294+0615 A 2766A mag 7.67 Sp K2 10294+0615 A 2766B sep 1.3 P.A. 172.30 mag 12.8 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 10294+0615 : ALADIN DSS IMAGE @ 10h 29m 21.11s +06° 15' 23.2"

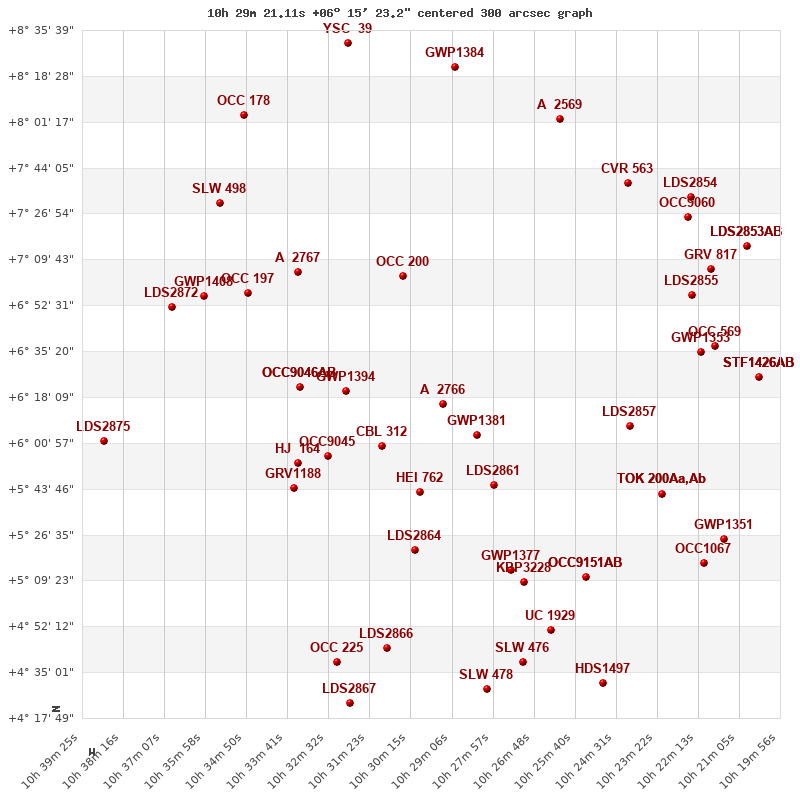

WDS 10294+0615 A 2766 : NEIGHBORHOODS


FoV:
Limit:
Primaries only

10294+0615 A 2766 distance=1' 10284+0604 GWP1381 distance=19' 10311+0600 CBL 312 distance=30' 10300+0543 HEI 762 distance=35' 10278+0545 LDS2861 distance=37' 10321+0620 GWP1394 distance=41' 10305+0704 OCC 200 distance=51' 10326+0556 OCC9045 distance=52' 10301+0520 LDS2864 distance=56' 10333+0622 OCC9046AB distance=60' 10333+0622 OCC9046AC distance=60' 10334+0553 HJ 164 distance=65' 10275+0513 GWP1377 distance=69' 10335+0543 GRV1188 distance=70' 10271+0509 KPP3228 distance=75' 10334+0705 A 2767 distance=78' 10240+0608 LDS2857 distance=79' 10254+0511 OCC9151AB distance=89' 10254+0511 OCC9151AC distance=89' 10348+0657 OCC 197 distance=92' 10309+0443 LDS2866 distance=95' 10263+0451 UC 1929 distance=96' 10232+0542 TOK 200Aa,Ab distance=98' 10232+0542 SHJ 115AB distance=98' 10271+0439 SLW 476 distance=103' 10323+0439 OCC 225 distance=107' 10360+0656 GWP1408 distance=108' 10281+0429 SLW 478 distance=109' 10221+0635 GWP1353 distance=110' 10224+0657 LDS2855 distance=112' 10242+0738 CVR 563 distance=114' 10218+0637 OCC 569 distance=116' 10261+0802 A 2569 distance=118' 10319+0424 LDS2867 distance=119' 10369+0652 LDS2872 distance=119' 10356+0731 SLW 498 distance=120' 10218+0705 GRV 817 distance=123' 10225+0726 OCC9060 distance=124' 10249+0431 HDS1497 distance=124' 10221+0516 OCC1067 distance=124' 10290+0822 GWP1384 distance=127' 10215+0525 GWP1351 distance=128' 10225+0733 LDS2854 distance=130' 10205+0626 STF1426AB distance=132' 10205+0626 STF1426AB,C distance=132' 10205+0626 STF1426AB,D distance=132' 10349+0804 OCC 178 distance=137' 10208+0715 LDS2853AB distance=140' 10208+0715 LDS2853AC distance=140' 10320+0831 YSC 39 distance=141' 10388+0603 LDS2875 distance=142' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 10294+0615 A 2766 172 1.3 1
Show 10284+0604 GWP1381 78 19.0 19
Show 10311+0600 CBL 312 32 28.3 30
Show 10300+0543 HEI 762 145 2.6 35
Show 10278+0545 LDS2861 104 153.6 37
Show 10321+0620 GWP1394 76 12.5 41
Show 10305+0704 OCC 200 -1 0.1 51
Show 10326+0556 OCC9045 -1 0.0 52
Show 10301+0520 LDS2864 157 70.4 56
Show 10333+0622 OCC9046 AB -1 0.0 60
Show 10333+0622 OCC9046 AC -1 0.0 60
Show 10334+0553 HJ 164 189 32.3 65
Show 10275+0513 GWP1377 324 63.0 69
Show 10335+0543 GRV1188 236 19.3 70
Show 10271+0509 KPP3228 180 1.8 75
Show 10334+0705 A 2767 53 5.4 78
Show 10240+0608 LDS2857 224 24.2 79
Show 10254+0511 OCC9151 AB -1 0.1 89
Show 10254+0511 OCC9151 AC -1 0.5 89
Show 10348+0657 OCC 197 -1 0.1 92
Show 10309+0443 LDS2866 207 5.3 95
Show 10263+0451 UC 1929 227 18.4 96
Show 10232+0542 TOK 200 Aa,Ab 336 1.0 98
Show 10232+0542 SHJ 115 AB 13 63.7 98
Show 10271+0439 SLW 476 154 125.8 103
Show 10323+0439 OCC 225 -1 0.1 107
Show 10360+0656 GWP1408 346 104.1 108
Show 10281+0429 SLW 478 63 42.2 109
Show 10221+0635 GWP1353 208 46.4 110
Show 10224+0657 LDS2855 18 22.7 112
Show 10242+0738 CVR 563 146 22.4 114
Show 10218+0637 OCC 569 -1 0.0 116
Show 10261+0802 A 2569 305 2.0 118
Show 10319+0424 LDS2867 189 4.4 119
Show 10369+0652 LDS2872 194 3.4 119
Show 10356+0731 SLW 498 79 179.1 120
Show 10218+0705 GRV 817 123 43.7 123
Show 10225+0726 OCC9060 90 4.1 124
Show 10249+0431 HDS1497 74 0.5 124
Show 10221+0516 OCC1067 -1 0.0 124
Show 10290+0822 GWP1384 356 102.2 127
Show 10215+0525 GWP1351 200 9.7 128
Show 10225+0733 LDS2854 348 54.6 130
Show 10205+0626 STF1426 AB 317 0.9 132
Show 10205+0626 STF1426 AB,C 11 7.7 132
Show 10205+0626 STF1426 AB,D 41 39.1 132
Show 10349+0804 OCC 178 -1 0.1 137
Show 10208+0715 LDS2853 AB 312 24.6 140
Show 10208+0715 LDS2853 AC 355 26.3 140
Show 10320+0831 YSC 39 22 0.8 141
Show 10388+0603 LDS2875 40 46.2 142



WDS 10294+0615 : COMPONENTS


  A
B pa=172.3°
sep=1.29"


10294+0615 A


Coord arcsec 2000 102921.11+061523.2 Mag 7.67 Spectral class K2 (yellow-orange) PmRA -19.00
PmDE -8.0 Tycho2 0252-00130-1 HD 90842
Tycho2
Tycho2 0252-00130-1 Pflag RAmdeg 157.33798634 DEmdeg 6.25645379
PmRA -13.1 PmDE -6.3 E RAmdeg 5 E DEmdeg 6
E pmRA 1.4 E pmDE 1.4 EpRAm 1991.62 EpDEm 1991.43
Num 11 Q RAmdeg 1.0 Q DEmdeg 0.7 Q pmRA 1.0
Q pmDE 0.6 BTmag 9.405 E BTmag 0.018 VTmag 7.671
E VTmag 0.011 Prox 999 TYC T HIP
CCDM RAdeg 157.33801583 DEdeg 6.25646833 EpRA 1990 1.95
EpDE 1990 1.86 E RAdeg 4.6 E DEdeg 6.0 Posflg
Corr 0.2
CCDM
Ccdm 10294+0615 RComp Comp A Note1
Note2 Discov num DRAs -2.94 DDEs 22.6
R dRAs 10 Year Theta Rho
Obs 2 Vmag 7.8 Sp K2 PmNote *
PmRA -18 PmDE -15 Dm number +06 2311 Cat1 BD
Name2 +06 1322 Cat2 AGK2/3 HD 90842 M HD
ADS BDS A 7794 M ADS BDS N IDS IDS 10241N0646A
HIC


10294+0615 B


Coord arcsec 2000 102921.12+061521.9 Mag 12.8 Delta magnitude 5.13 Coordinate calculated yes
CCDM
Ccdm 10294+0615 RComp Comp B Note1
Note2 Discov num A 2766 DRAs DDEs
R dRAs Year 1914 Theta 319 Rho 1.1
Obs 3 Vmag 12.9 Sp PmNote
PmRA PmDE Dm number Cat1
Name2 Cat2 HD M HD
ADS BDS A 7794 M ADS BDS N IDS IDS 10241N0646B
HIC
