07178+3328 HJ 415 AC



07h 17m 49.06s +33° 27' 51.5" P.A. 303.00 sep 40.5 mag 10.69,13.32


Coord 2000 07178+3328 Discov num HJ  415 Comp AC Coord arcsec 2000 07 17 49.06 +33 27 51.5
Date first 1827 Date last 2017 Obs 9
Pa first 295 Pa last 302.5 P.A. Now (θ) 302.5°
Sep first 27.5 Sep last 40.5 Sep. Now (ρ) 40.5"
Mag pri 10.69 Mag sec 13.32 delta mag (ΔM) 2.63 Spectral class
Pri motion ra +001 Sec motion ra +011
Pri motion dec -005 Sec motion dec -005
Notes
rPM=0.828
This double is not physical.


07178+3328 SYSTEM COMPONENTS


Show name SAO coord wds_name last obs pa sep mag1 mag2 d_mag orb current
Show 07 17 49 +33 27 52 HJ 415 AB 2017 11 291 14.5 10.69 11.70 1.01
Show 07 17 49 +33 27 52 HJ 415 AC 2017 9 303 40.5 10.69 13.32 2.63 <===
Triple system
3 estimated visually detectable stars in this system


OTHER CATALOGS AND DESIGNATIONS


Constellation Gemini Tycho2 2455-00159-1 Gaia DR2 896300064825890816


WDS 07178+3328 HJ 415 AC : NOTES


No records found.



DISCOVERER


discov author
HJ Herschel, J.F.W.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
07178+3328 HJ 415 AC 2006 3 309 26.4 10.69 12.70 071749.06+332751.5
07178+3328 HJ 415 AC 2017 6 303 40.5 10.69 13.32 071749.06+332751.5

If you need more information about this double, apply for a data request form to the WDS.



WDS 07178+3328 HJ 415 AC : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 07178+3328 HJ 415 AC : MEASURES


No records found.



WDS 07178+3328 : VIRTUAL EYEPIECE



07178+3328 HJ 415A mag 10.69 Sp K5 07178+3328 HJ 415B sep 14.5 P.A. 291.20 mag 11.7 07178+3328 HJ 415C sep 40.5 P.A. 302.50 mag 13.32 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 07178+3328 : ALADIN DSS IMAGE @ 07h 17m 49.06s +33° 27' 51.5"

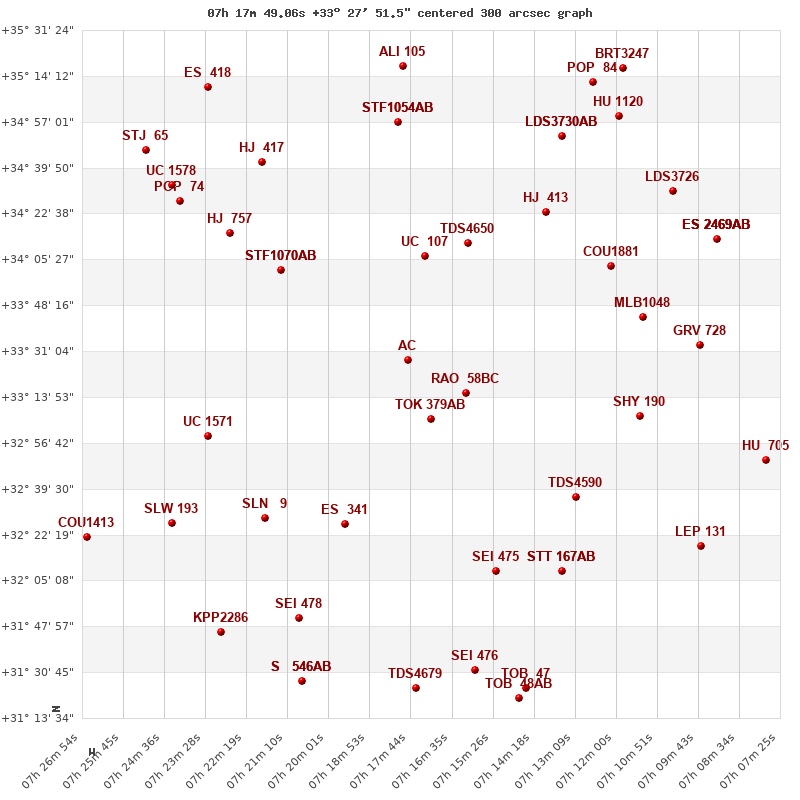

WDS 07178+3328 HJ 415 AC : NEIGHBORHOODS


FoV:
Limit:
Primaries only

07178+3328 HJ 415AC distance=0' 07172+3306 TOK 379AB distance=24' 07172+3306 RAO 58BC distance=24' 07162+3315 RAO 563 distance=24' 07173+3407 UC 107 distance=40' 07161+3412 TDS4650 distance=49' 07214+3402 STF1070AB distance=56' 07214+3402 STF1070AC distance=56' 07195+3226 ES 341 distance=66' 07139+3423 HJ 413 distance=74' 07234+3259 UC 1571 distance=76' 07218+3228 SLN 9 distance=78' 07229+3413 HJ 757 distance=79' 07131+3237 TDS4590 distance=79' 07121+3403 COU1881 distance=80' 07113+3344 MLB1048 distance=84' 07113+3307 SHY 190 distance=85' 07154+3209 SEI 475 distance=86' 07181+3457 STF1054AB distance=90' 07181+3457 STF1054AC distance=90' 07219+3442 HJ 417 distance=90' 07135+3209 STT 167AB distance=96' 07135+3209 WAL 50AC distance=96' 07240+3427 POP 74 distance=99' 07135+3452 LDS3730AB distance=100' 07135+3452 LDS3730Aa,Ab distance=100' 07096+3333 GRV 728 distance=103' 07244+3227 SLW 193 distance=103' 07208+3151 SEI 478 distance=105' 07244+3434 UC 1578 distance=105' 07179+3518 ALI 105 distance=111' 07104+3431 LDS3726 distance=112' 07092+3414 ES 2469AB distance=117' 07092+3414 ES 2469AC distance=117' 07092+3414 ABH 62AD distance=117' 07092+3414 ABH 62AE distance=117' 07119+3459 HU 1120 distance=118' 07159+3132 SEI 476 distance=119' 07251+3446 STJ 65 distance=120' 07230+3146 KPP2286 distance=122' 07126+3512 POP 84 distance=122' 07176+3125 TDS4679 distance=124' 07234+3510 ES 418 distance=124' 07096+3218 LEP 131 distance=125' 07208+3128 S 546AB distance=126' 07208+3128 S 546AC distance=126' 07145+3124 TOB 47 distance=130' 07268+3221 COU1413 distance=131' 07078+3250 HU 705 distance=132' 07118+3517 BRT3247 distance=133' 07147+3121 TOB 48AB distance=133' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 07178+3328 HJ 415 AB 291 14.5 0
Show 07178+3328 HJ 415 AC 303 40.5 0
Show 07172+3306 TOK 379 AB 309 929.0 24
Show 07172+3306 RAO 58 BC 127 17.5 24
Show 07162+3315 RAO 563 53 1.8 24
Show 07173+3407 UC 107 215 27.7 40
Show 07161+3412 TDS4650 279 3.4 49
Show 07214+3402 STF1070 AB 324 1.7 56
Show 07214+3402 STF1070 AC 122 87.5 56
Show 07195+3226 ES 341 252 3.9 66
Show 07139+3423 HJ 413 221 13.6 74
Show 07234+3259 UC 1571 287 8.0 76
Show 07218+3228 SLN 9 232 2.8 78
Show 07229+3413 HJ 757 108 5.4 79
Show 07131+3237 TDS4590 155 2.7 79
Show 07121+3403 COU1881 2 1.4 80
Show 07113+3344 MLB1048 42 6.5 84
Show 07113+3307 SHY 190 182 999.9 85
Show 07154+3209 SEI 475 287 16.7 86
Show 07181+3457 STF1054 AB 292 18.5 90
Show 07181+3457 STF1054 AC 274 96.8 90
Show 07219+3442 HJ 417 70 18.2 90
Show 07135+3209 STT 167 AB 163 5.1 96
Show 07135+3209 WAL 50 AC 306 57.4 96
Show 07240+3427 POP 74 148 9.8 99
Show 07135+3452 LDS3730 AB 288 99.6 100
Show 07135+3452 LDS3730 Aa,Ab 274 3.9 100
Show 07096+3333 GRV 728 232 21.0 103
Show 07244+3227 SLW 193 29 127.2 103
Show 07208+3151 SEI 478 17 4.2 105
Show 07244+3434 UC 1578 251 24.3 105
Show 07179+3518 ALI 105 186 6.8 111
Show 07104+3431 LDS3726 274 34.1 112
Show 07092+3414 ES 2469 AB 318 11.9 117
Show 07092+3414 ES 2469 AC 225 12.8 117
Show 07092+3414 ABH 62 AD 305 51.0 117
Show 07092+3414 ABH 62 AE 214 70.4 117
Show 07119+3459 HU 1120 227 4.2 118
Show 07159+3132 SEI 476 48 16.2 119
Show 07251+3446 STJ 65 196 1.2 120
Show 07230+3146 KPP2286 247 19.3 122
Show 07126+3512 POP 84 7 2.0 122
Show 07176+3125 TDS4679 100 0.5 124
Show 07234+3510 ES 418 23 13.9 124
Show 07096+3218 LEP 131 19 16.7 125
Show 07208+3128 S 546 AB 357 88.6 126
Show 07208+3128 S 546 AC 66 143.4 126
Show 07145+3124 TOB 47 356 15.7 130
Show 07268+3221 COU1413 131 0.4 131
Show 07078+3250 HU 705 221 0.6 132
Show 07118+3517 BRT3247 183 4.2 133



WDS 07178+3328 : COMPONENTS


  A B
B pa=291.2°
sep=14.51"

C pa=302.5°
sep=40.50"
pa=308.7°
sep=26.42"


07178+3328 A


Coord arcsec 2000 071749.06+332751.5 Mag 10.69 Spectral class K5 (yellow-orange) PmRA 1.00
PmDE -5.0 Tycho2 2455-00159-1
Tycho2
Tycho2 2455-00159-1 Pflag RAmdeg 109.45444497 DEmdeg 33.46432129
PmRA 1.9 PmDE -6.8 E RAmdeg 52 E DEmdeg 59
E pmRA 2.5 E pmDE 2.4 EpRAm 1984.71 EpDEm 1982.19
Num 5 Q RAmdeg 0.6 Q DEmdeg 0.7 Q pmRA 0.6
Q pmDE 0.7 BTmag 12.679 E BTmag 0.301 VTmag 10.686
E VTmag 0.070 Prox 999 TYC T HIP
CCDM RAdeg 109.45444139 DEdeg 33.46433667 EpRA 1990 1.72
EpDE 1990 1.77 E RAdeg 54.6 E DEdeg 64.2 Posflg
Corr 0.1
CCDM
Ccdm 07178+3328 RComp Comp A Note1
Note2 Discov num DRAs 1.07 DDEs -9.4
R dRAs 10 Year Theta Rho
Obs 3 Vmag 11.1 Sp PmNote *
PmRA -1 PmDE -23 Dm number +33 1500 Cat1 BD
Name2 +33 750 Cat2 AGK2/3 HD M HD
ADS BDS B 3942 M ADS BDS N IDS IDS 07113N3338A
HIC


07178+3328 B


Coord arcsec 2000 071747.98+332756.7 Mag 11.7 PmRA 1.00 PmDE -10.0
Delta magnitude 1.01 Coordinate calculated yes
CCDM
Ccdm 07178+3328 RComp Comp B Note1
Note2 Discov num HJ 415 DRAs DDEs
R dRAs Year 1820 Theta 285 Rho 12.0
Obs 1 Vmag 12.1 Sp PmNote
PmRA PmDE Dm number Cat1
Name2 Cat2 HD M HD
ADS BDS B 3942 M ADS BDS N IDS IDS 07113N3338B
HIC


07178+3328 C


Coord arcsec 2000 071746.33+332813.3 Mag 13.32 PmRA 11.00 PmDE -5.0
Delta magnitude 2.63 Coordinate calculated yes
CCDM
Ccdm 07178+3328 RComp Comp C Note1
Note2 Discov num HJ 415 DRAs DDEs
R dRAs Year 1820 Theta 295 Rho 25.0
Obs 1 Vmag 12.9 Sp PmNote
PmRA PmDE Dm number Cat1
Name2 Cat2 HD M HD
ADS BDS B 3942 M ADS BDS N IDS IDS 07113N3338C
HIC
