05353+0504 TDS 3245 (HD 245237)



05h 35m 17.87s +05° 03' 39.7" P.A. 287.00 sep 0.6 mag 11.04,11.13


Coord 2000 05353+0504 Discov num TDS3245 Comp Coord arcsec 2000 05 35 17.87 +05 03 39.7
Date first 1991 Date last 1991 Obs 1
Pa first 287 Pa last 286.6 P.A. Now (θ) 286.6°
Sep first 0.6 Sep last 0.58 Sep. Now (ρ) 0.58"
Mag pri 11.04 Mag sec 11.13 delta mag (ΔM) 0.09 Spectral class
Pri motion ra -006 Sec motion ra -006
Pri motion dec -003 Sec motion dec -003
Notes X (Dubious double)
Nature of this double is uncertain.


OTHER CATALOGS AND DESIGNATIONS


Name HD 245237 Constellation Orion Tycho2 0122-00313-1 Gaia DR2 3236659355375057280
HD 245237 DM BD+04 978


WDS 05353+0504 TDS 3245 (HD 245237) : NOTES


No records found.



DISCOVERER


discov author
TDS Tycho Double Star (from additional DD list)


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
05353+0504 TDS3245 1991 1 287 0.6 11.04 11.13 053517.87+050339.7

If you need more information about this double, apply for a data request form to the WDS.



WDS 05353+0504 TDS 3245 (HD 245237) : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 05353+0504 TDS 3245 (HD 245237) : MEASURES


No records found.

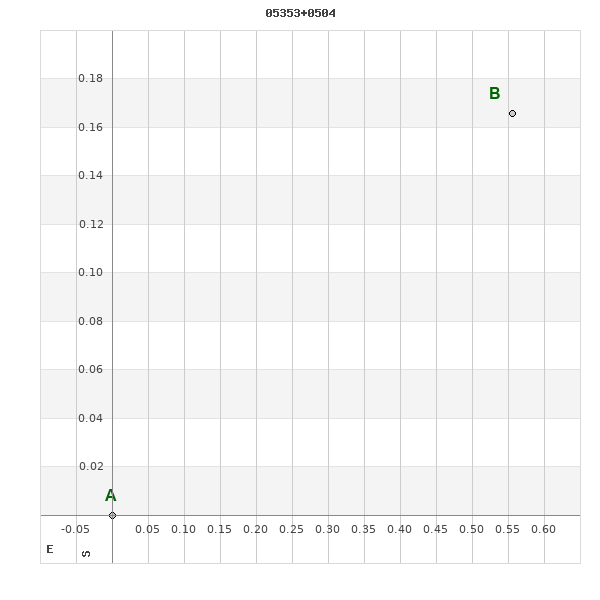

WDS 05353+0504 (HD 245237) : VIRTUAL EYEPIECE



05353+0504 TDS3245A mag 11.04 05353+0504 TDS3245B sep 0.6 P.A. 286.60 mag 11.13 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 05353+0504 (HD 245237) : ALADIN DSS IMAGE @ 05h 35m 17.87s +05° 03' 39.7"

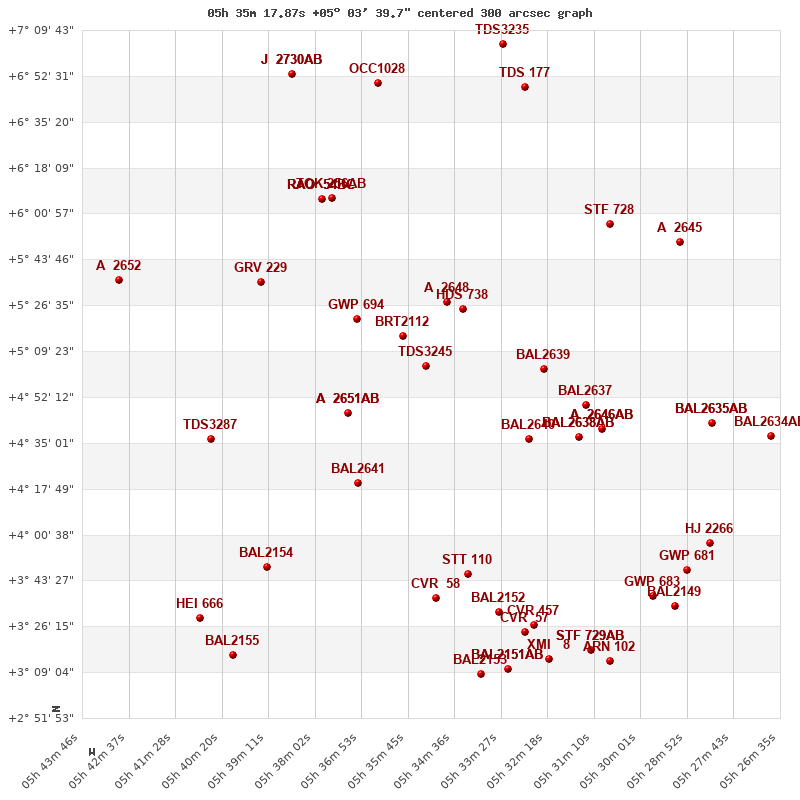

WDS 05353+0504 TDS 3245 (HD 245237) : NEIGHBORHOODS


FoV:
Limit:
Primaries only

05353+0504 TDS3245 distance=1' 05359+0515 BRT2112 distance=15' 05348+0528 A 2648 distance=26' 05344+0525 HDS 738 distance=26' 05370+0521 GWP 694 distance=32' 05372+0446 A 2651AB distance=34' 05372+0446 A 2651AB,C distance=34' 05324+0502 BAL2639 distance=44' 05328+0436 BAL2640 distance=47' 05370+0420 BAL2641 distance=51' 05314+0450 BAL2637 distance=61' 05315+0438 BAL2638AB distance=63' 05315+0438 BKO 18AC distance=63' 05393+0535 GRV 229 distance=69' 05310+0440 A 2646AB distance=69' 05310+0440 A 2646AB,C distance=69' 05376+0607 TOK 256AB distance=72' 05376+0607 RAO 54BC distance=74' 05376+0607 RAO 54BD distance=74' 05376+0607 GKM9136Ba,Bb distance=74' 05343+0346 STT 110 distance=80' 05406+0436 TDS3287 distance=84' 05308+0557 STF 728 distance=86' 05351+0337 CVR 58 distance=87' 05393+0348 BAL2154 distance=96' 05335+0331 BAL2152 distance=96' 05290+0550 A 2645 distance=105' 05326+0327 CVR 457 distance=105' 05329+0324 CVR 57 distance=106' 05282+0442 BAL2635AB distance=108' 05282+0442 BKO 16AC distance=108' 05365+0650 OCC1028 distance=108' 05329+0648 TDS 177 distance=111' 05339+0308 BAL2153 distance=117' 05332+0310 BAL2151AB distance=118' 05332+0310 BKO 19AC distance=118' 05429+0536 A 2652 distance=118' 05323+0314 XMI 8 distance=119' 05297+0338 GWP 683 distance=120' 05386+0654 J 2730AB distance=121' 05386+0654 BKO 21AC distance=121' 05312+0318 STF 729AB distance=123' 05312+0318 STF 729AC distance=123' 05289+0347 GWP 681 distance=123' 05283+0358 HJ 2266 distance=124' 05334+0704 TDS3235 distance=124' 05408+0329 HEI 666 distance=127' 05292+0334 BAL2149 distance=129' 05400+0315 BAL2155 distance=130' 05308+0313 ARN 102 distance=130' 05268+0437 BAL2634AB distance=130' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 05353+0504 TDS3245 287 0.6 1
Show 05359+0515 BRT2112 144 3.0 15
Show 05348+0528 A 2648 80 2.9 26
Show 05344+0525 HDS 738 3 7.9 26
Show 05370+0521 GWP 694 216 67.8 32
Show 05372+0446 A 2651 AB 185 0.6 34
Show 05372+0446 A 2651 AB,C 327 8.0 34
Show 05324+0502 BAL2639 73 6.6 44
Show 05328+0436 BAL2640 60 9.7 47
Show 05370+0420 BAL2641 305 12.4 51
Show 05314+0450 BAL2637 293 14.6 61
Show 05315+0438 BAL2638 AB 112 18.1 63
Show 05315+0438 BKO 18 AC 84 17.7 63
Show 05393+0535 GRV 229 331 11.1 69
Show 05310+0440 A 2646 AB 109 0.1 69
Show 05310+0440 A 2646 AB,C 180 9.5 69
Show 05376+0607 TOK 256 AB 96 228.9 72
Show 05376+0607 RAO 54 BC 35 4.5 74
Show 05376+0607 RAO 54 BD 157 4.4 74
Show 05376+0607 GKM9136 Ba,Bb 258 0.3 74
Show 05343+0346 STT 110 210 0.4 80
Show 05406+0436 TDS3287 332 0.8 84
Show 05308+0557 STF 728 44 1.3 86
Show 05351+0337 CVR 58 69 118.9 87
Show 05393+0348 BAL2154 2 6.2 96
Show 05335+0331 BAL2152 353 3.0 96
Show 05290+0550 A 2645 149 1.2 105
Show 05326+0327 CVR 457 329 9.1 105
Show 05329+0324 CVR 57 234 58.9 106
Show 05282+0442 BAL2635 AB 211 5.9 108
Show 05282+0442 BKO 16 AC 276 29.7 108
Show 05365+0650 OCC1028 64 0.0 108
Show 05329+0648 TDS 177 173 1.5 111
Show 05339+0308 BAL2153 279 3.6 117
Show 05332+0310 BAL2151 AB 124 13.7 118
Show 05332+0310 BKO 19 AC 254 39.9 118
Show 05429+0536 A 2652 118 0.4 118
Show 05323+0314 XMI 8 91 20.6 119
Show 05297+0338 GWP 683 178 94.3 120
Show 05386+0654 J 2730 AB 212 5.2 121
Show 05386+0654 BKO 21 AC 86 22.8 121
Show 05312+0318 STF 729 AB 26 1.9 123
Show 05312+0318 STF 729 AC 52 94.1 123
Show 05289+0347 GWP 681 209 18.1 123
Show 05283+0358 HJ 2266 38 7.3 124
Show 05334+0704 TDS3235 223 0.6 124
Show 05408+0329 HEI 666 247 2.5 127
Show 05292+0334 BAL2149 168 19.9 129
Show 05400+0315 BAL2155 332 4.8 130
Show 05308+0313 ARN 102 97 23.5 130
Show 05268+0437 BAL2634 AB 202 17.0 130



WDS 05353+0504 : COMPONENTS


  A
B pa=286.6°
sep=0.58"


05353+0504 A


Name HD 245237 Coord arcsec 2000 053517.87+050339.7 Mag 11.04 PmRA -6.00
PmDE -3.0 Tycho2 0122-00313-1
Tycho2
Tycho2 0122-00313-1 Pflag RAmdeg 83.82440350 DEmdeg 5.06104532
PmRA -6.3 PmDE -2.7 E RAmdeg 18 E DEmdeg 27
E pmRA 1.6 E pmDE 1.6 EpRAm 1990.33 EpDEm 1987.56
Num 4 Q RAmdeg 0.9 Q DEmdeg 1.3 Q pmRA 0.9
Q pmDE 1.2 BTmag 10.659 E BTmag 0.037 VTmag 10.432
E VTmag 0.040 Prox 999 TYC T HIP
CCDM RAdeg 83.82441778 DEdeg 5.06105194 EpRA 1990 1.84
EpDE 1990 1.32 E RAdeg 18.2 E DEdeg 27.6 Posflg P
Corr 0.1


05353+0504 B


Coord arcsec 2000 053517.83+050339.9 Mag 11.13 PmRA -6.00 PmDE -3.0
Delta magnitude 0.09 Coordinate calculated yes
