14175-0721 GWP 2343 BC



14h 17m 32.02s -07° 18' 57.9" P.A. 76.00 sep 8.7 mag 16.76,14.91 Sp MS MS


Coord 2000 14175-0721 Discov num GWP2343 Comp BC Coord arcsec 2000 14 17 32.02 -07 18 57.9
Date first 1957 Date last 2016 Obs 7
Pa first 76 Pa last 76.3 P.A. Now (θ) 76.3°
Sep first 8.9 Sep last 8.744 Sep. Now (ρ) 8.744"
Mag pri 16.76 Mag sec 14.91 delta mag (ΔM) 1.85 Spectral class MS MS (red/red)
Pri motion ra -075 Sec motion ra -075
Pri motion dec +003 Sec motion dec +003
Notes V (Proper motion indicates physical)
This double is physical.


14175-0721 SYSTEM COMPONENTS


Show name SAO coord wds_name last obs pa sep mag1 mag2 d_mag orb current
Show 182415 14 17 33 -07 20 36 GWP 2342 AB 2015 7 355 97.8 14.53 17.00 2.47
Show 14 17 33 -07 20 36 GWP 2343 AC 2015 8 0 99.4 14.53 15.43 0.90
Show 182415 14 17 32 -07 18 58 GWP 2343 BC 2016 7 76 8.7 16.76 14.91 1.85 <===

0 estimated visually detectable stars in this system


OTHER CATALOGS AND DESIGNATIONS


Constellation Virgo SAO 182419 Tycho2 6151-01742-1 HD 125063
DM BD-20 3996


WDS 14175-0721 GWP 2343 BC : NOTES


No records found.



DISCOVERER


discov author
GWP Garraf Wide Pairs: CPM wide pairs (>50mas/y) discovered in the Garraf Astronomical


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
14175-0721 GWP2343 BC 2016 5 76 8.7 16.76 14.91 MS MS V 141732.02-071857.9

If you need more information about this double, apply for a data request form to the WDS.



WDS 14175-0721 GWP 2343 BC : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 14175-0721 GWP 2343 BC : MEASURES


No records found.

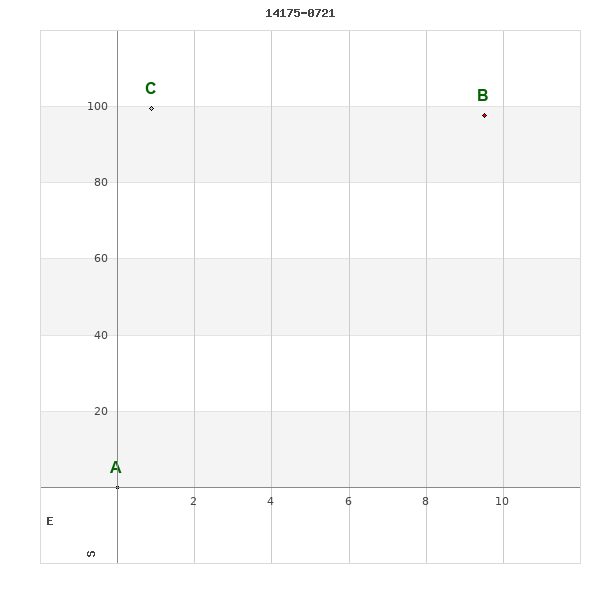

WDS 14175-0721 : VIRTUAL EYEPIECE



14175-0721 GWP2342A mag 14.53 14175-0721 GWP2343B sep 98.1 P.A. 354.40 mag 16.76 Sp MS 14175-0721 GWP2343C sep 99.4 P.A. 359.50 mag 15.43 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 14175-0721 : ALADIN DSS IMAGE @ 14h 17m 32.02s -07° 18' 57.9"




WDS 14175-0721 GWP 2343 BC : NEIGHBORHOODS


FoV:
Limit:
Primaries only

14175-0721 GWP2343BC distance=0' 14175-0721 GWP2342AB distance=2' 14175-0721 GWP2343AC distance=2' 14180-0733 BUP 157 distance=16' 14185-0703 GWP2350 distance=22' 14190-0713 J 2903 distance=23' 14172-0653 UC 2723 distance=27' 14179-0746 GWP2346 distance=28' 14160-0704 HU 138 distance=28' 14157-0706 GWP2320 distance=30' 14200-0710 GWP2366 distance=39' 14190-0636 HDS2016AB distance=48' 14190-0636 SHY 71AC distance=48' 14189-0634 GWP2358 distance=49' 14188-0627 GWP2356AB distance=56' 14188-0627 GKM9313Aa,Ab distance=56' 14140-0648 GWP2304 distance=62' 14178-0831 GWP2345 distance=73' 14126-0739 GWP2292 distance=76' 14123-0733 GWP2289 distance=79' 14226-0746 STF1833AB distance=81' 14226-0746 STF1833BC distance=81' 14220-0805 HO 384 distance=82' 14141-0615 J 2584 distance=82' 14121-0657 LDS4440 distance=85' 14142-0831 BU 939AB distance=88' 14142-0831 BU 939AB,C distance=88' 14133-0827 CHR 221 distance=93' 14237-0657 BRT 453 distance=95' 14168-0853 OCC 16 distance=95' 14144-0557 TOK 673 distance=95' 14232-0807 SKF 436 distance=97' 14294-0557 FYM 653 distance=100' 14239-0626 GWP2374 distance=109' 14118-0834 RST3865 distance=114' 14181-0523 LDS4454 distance=117' 14135-0900 UC 2706BC distance=118' 14135-0900 STF1811AB distance=118' 14246-0814 GWP2377 distance=120' 14121-0846 J 1611AB distance=120' 14121-0846 NYS 6AC distance=120' 14120-0552 GWP2284AB distance=120' 14120-0552 GWP2285AC distance=120' 14153-0523 GWP2317 distance=121' 14160-0923 GWP2325 distance=126' 14110-0558 GWP2265AB distance=127' 14110-0558 GWP2266AC distance=127' 14230-0857 HDS2026 distance=128' 14112-0549 GWP2275 distance=131' 14141-0920 GWP2307 distance=132' 14150-0511 FAR 39 distance=134' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 14175-0721 GWP2343 BC 76 8.7 0
Show 14175-0721 GWP2342 AB 355 97.8 2
Show 14175-0721 GWP2343 AC 0 99.4 2
Show 14180-0733 BUP 157 339 73.7 16
Show 14185-0703 GWP2350 37 11.3 22
Show 14190-0713 J 2903 36 3.8 23
Show 14172-0653 UC 2723 51 34.8 27
Show 14179-0746 GWP2346 18 45.0 28
Show 14160-0704 HU 138 220 0.6 28
Show 14157-0706 GWP2320 7 222.8 30
Show 14200-0710 GWP2366 341 22.1 39
Show 14190-0636 HDS2016 AB 161 0.1 48
Show 14190-0636 SHY 71 AC 309 999.9 48
Show 14189-0634 GWP2358 196 51.6 49
Show 14188-0627 GWP2356 AB 23 9.7 56
Show 14188-0627 GKM9313 Aa,Ab 46 1.4 56
Show 14140-0648 GWP2304 123 202.0 62
Show 14178-0831 GWP2345 319 33.0 73
Show 14126-0739 GWP2292 98 43.2 76
Show 14123-0733 GWP2289 138 793.6 79
Show 14226-0746 STF1833 AB 176 6.0 81
Show 14226-0746 STF1833 BC 200 90.7 81
Show 14220-0805 HO 384 53 35.3 82
Show 14141-0615 J 2584 152 7.0 82
Show 14121-0657 LDS4440 85 73.1 85
Show 14142-0831 BU 939 AB 27 0.5 88
Show 14142-0831 BU 939 AB,C 283 88.9 88
Show 14133-0827 CHR 221 89 0.0 93
Show 14237-0657 BRT 453 139 2.7 95
Show 14168-0853 OCC 16 -1 0.1 95
Show 14144-0557 TOK 673 210 21.0 95
Show 14232-0807 SKF 436 310 9.1 97
Show 14294-0557 FYM 653 149 16.0 100
Show 14239-0626 GWP2374 242 17.0 109
Show 14118-0834 RST3865 15 2.6 114
Show 14181-0523 LDS4454 54 1.6 117
Show 14135-0900 UC 2706 BC 218 13.3 118
Show 14135-0900 STF1811 AB 332 43.0 118
Show 14246-0814 GWP2377 345 7.1 120
Show 14121-0846 J 1611 AB 337 6.6 120
Show 14121-0846 NYS 6 AC 232 38.9 120
Show 14120-0552 GWP2284 AB 114 18.9 120
Show 14120-0552 GWP2285 AC 27 188.4 120
Show 14153-0523 GWP2317 120 27.5 121
Show 14160-0923 GWP2325 153 537.0 126
Show 14110-0558 GWP2265 AB 147 48.3 127
Show 14110-0558 GWP2266 AC 311 355.1 127
Show 14230-0857 HDS2026 279 7.8 128
Show 14112-0549 GWP2275 74 218.5 131
Show 14141-0920 GWP2307 70 14.0 132
Show 14150-0511 FAR 39 255 3.5 134



WDS 14175-0721 : COMPONENTS


  A B
B pa=354.4°
sep=98.06"

C pa=359.5°
sep=99.40"
pa=78.3°
sep=8.84"


14175-0721 A


Coord arcsec 2000 141732.66-072035.5 Mag 14.53 PmRA -84.00 PmDE 17.0


14175-0721 B


Coord arcsec 2000 141732.02-071857.9 Coord calc 141732.02-071857.9 Mag 16.76 Spectral class MS (red)
PmRA -75.00 PmDE 3.0 Delta magnitude 2.23


14175-0721 C


Coord arcsec 2000 141732.60-071856.1 Mag 15.43 PmRA -74.00 PmDE 4.0
SAO 182419 Tycho2 6151-01742-1 HD 125063 Delta magnitude 0.9
Coordinate calculated yes
Tycho2
Tycho2 6151-01742-1 Pflag RAmdeg 214.40799968 DEmdeg -20.75806922
PmRA -22.3 PmDE 1.1 E RAmdeg 11 E DEmdeg 16
E pmRA 2.1 E pmDE 2.2 EpRAm 1991.46 EpDEm 1990.93
Num 4 Q RAmdeg 2.3 Q DEmdeg 0.1 Q pmRA 2.3
Q pmDE 0.1 BTmag 10.262 E BTmag 0.035 VTmag 8.947
E VTmag 0.018 Prox 192 TYC T HIP 69842
CCDM A RAdeg 214.40805389 DEdeg -20.75807167 EpRA 1990 1.83
EpDE 1990 1.69 E RAdeg 11.3 E DEdeg 15.6 Posflg
Corr 0.1
SAO
SAO 182419 DelFlag RA1950 PmRA1950 -0.001
DE1950 PmDE1950 0.027 Vmag 8.6 SpType F5
Double code Source 23 CatNum 5980 DM BD-20 3996
DMcomp BDsup HD 125063 M HD 0
GC RA1950rad 3.7299217 DE1950rad -0.35826726 PmRA2000 -0.0009
PmDE2000 0.032
