03225+1744 TOK 875



03h 22m 32.58s +17° 43' 31.3" P.A. 239.00 sep 1.7 mag 8.60,16.10 Sp K0


Coord 2000 03225+1744 Discov num TOK 875 Comp Coord arcsec 2000 03 22 32.58 +17 43 31.3
Date first 2018 Date last 2018 Obs 2
Pa first 239 Pa last 238.6 P.A. Now (θ) 238.6°
Sep first 1.7 Sep last 1.671 Sep. Now (ρ) 1.671"
Mag pri 8.60 Mag sec 16.10 delta mag (ΔM) 7.5 Spectral class K0 (yellow-orange)
Pri motion ra +041 Sec motion ra
Pri motion dec -029 Sec motion dec
Notes R (Red magnitudes)
Nature of this double is uncertain.


OTHER CATALOGS AND DESIGNATIONS


Constellation Aries SAO 93405 Tycho2 1237-00248-1


WDS 03225+1744 TOK 875 : NOTES


No records found.



DISCOVERER


discov author
TOK Tokovinin, A.A.
TOK Tokovinin, A., Cantarutti, R., Tighe, R., Schurter, P., van der Bliek, N.,
TOK Martinez, M., & Mondaca, E.
TOK Tokovinin, A., Corbett, H., Fors, O., Howard, W., Law, N.M., Moe, M.,
TOK Tokovinin, A. & Briceno, C.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
03225+1744 TOK 875 2018 2 239 1.7 8.60 16.10 K0 +17 541 R 032232.58+174331.3

If you need more information about this double, apply for a data request form to the WDS.



WDS 03225+1744 TOK 875 : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 03225+1744 TOK 875 : MEASURES


No records found.

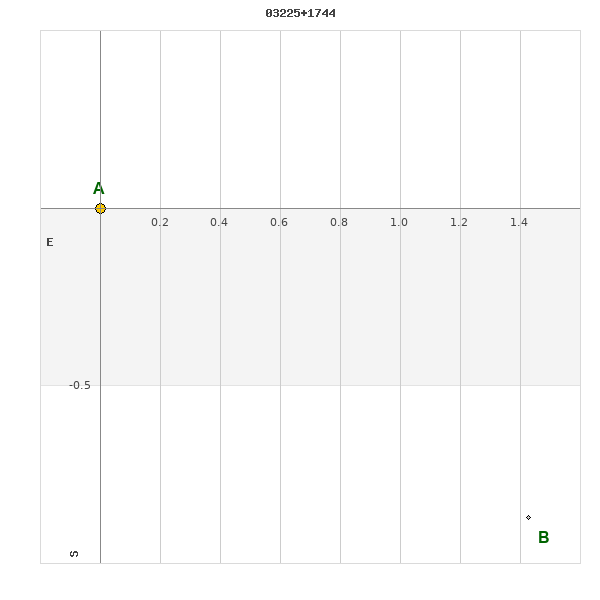

WDS 03225+1744 : VIRTUAL EYEPIECE



03225+1744 TOK 875A mag 8.6 Sp K0 03225+1744 TOK 875B sep 1.7 P.A. 238.60 mag 16.1 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 03225+1744 : ALADIN DSS IMAGE @ 03h 22m 32.58s +17° 43' 31.3"




WDS 03225+1744 TOK 875 : NEIGHBORHOODS


FoV:
Limit:
Primaries only

03225+1744 TOK 875 distance=0' 03211+1741 XMI 6 distance=21' 03207+1736 HJ 3246CR distance=24' 03207+1736 HJ 3246AB distance=26' 03207+1736 HJ 3246AD distance=26' 03207+1736 HJ 3246AC distance=26' 03244+1748 LDS3488 distance=26' 03207+1736 HJ 3245BE distance=27' 03207+1736 HJ 3246BC distance=27' 03242+1733 STF 383 distance=27' 03227+1717 BPM 72 distance=27' 03220+1715 LDS3483 distance=31' 03254+1745 OCC 430 distance=41' 03219+1831 J 930 distance=49' 03261+1733 GRV 176 distance=53' 03263+1709 JNN 256 distance=65' 03183+1810 OCC 910 distance=66' 03233+1634 A 2343 distance=71' 03196+1841 COU 36AB distance=71' 03196+1841 TOK 476AC distance=71' 03196+1841 TOK 476CD distance=71' 03203+1625 SLE 42AB distance=85' 03203+1625 SLE 42Aa,Ab distance=85' 03169+1715 COU 361 distance=86' 03282+1710 DOO 29 distance=87' 03271+1646 CVR 441 distance=88' 03271+1845 CHR 10AB distance=90' 03271+1845 RBR 35AC distance=90' 03198+1905 OCC 362 distance=90' 03183+1637 SLE 39 distance=91' 03206+1911 STF 377AB distance=92' 03206+1911 STF 377AC distance=92' 03271+1633 SLW 153 distance=97' 03216+1920 GWP 455 distance=97' 03160+1720 SLE 35 distance=98' 03170+1647 GWP 444 distance=98' 03183+1623 SLE 40 distance=101' 03299+1704 HJ 3247 distance=112' 03275+1911 A 2345AB distance=113' 03151+1704 TDS2499 distance=114' 03269+1609 BPM 76 distance=114' 03305+1751 GRV 177 distance=115' 03249+1552 BPM 73 distance=117' 03161+1900 UC 972 distance=119' 03298+1844 WZ 7 distance=120' 03164+1910 HJ 2181 distance=123' 03143+1821 COU 359 distance=124' 03203+1944 STF 376 distance=125' 03310+1659 SLW 155 distance=129' 03167+1923 COU 360AB distance=130' 03167+1923 COU 360AC distance=130' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 03225+1744 TOK 875 239 1.7 0
Show 03211+1741 XMI 6 254 29.6 21
Show 03207+1736 HJ 3246 CR 158 15.6 24
Show 03207+1736 HJ 3246 AB 194 159.8 26
Show 03207+1736 HJ 3246 AD 226 9.3 26
Show 03207+1736 HJ 3246 AC 138 172.5 26
Show 03244+1748 LDS3488 112 149.9 26
Show 03207+1736 HJ 3245 BE 103 10.8 27
Show 03207+1736 HJ 3246 BC 80 154.1 27
Show 03242+1733 STF 383 120 5.5 27
Show 03227+1717 BPM 72 99 89.9 27
Show 03220+1715 LDS3483 330 26.0 31
Show 03254+1745 OCC 430 -1 0.2 41
Show 03219+1831 J 930 121 3.8 49
Show 03261+1733 GRV 176 252 17.5 53
Show 03263+1709 JNN 256 224 1.0 65
Show 03183+1810 OCC 910 142 0.4 66
Show 03233+1634 A 2343 16 5.3 71
Show 03196+1841 COU 36 AB 143 1.0 71
Show 03196+1841 TOK 476 AC 227 999.9 71
Show 03196+1841 TOK 476 CD 235 416.2 71
Show 03203+1625 SLE 42 AB 164 20.5 85
Show 03203+1625 SLE 42 Aa,Ab 230 0.0 85
Show 03169+1715 COU 361 16 1.8 86
Show 03282+1710 DOO 29 211 20.3 87
Show 03271+1646 CVR 441 149 10.2 88
Show 03271+1845 CHR 10 AB 29 0.0 90
Show 03271+1845 RBR 35 AC 81 0.9 90
Show 03198+1905 OCC 362 -1 0.1 90
Show 03183+1637 SLE 39 99 9.5 91
Show 03206+1911 STF 377 AB 102 1.2 92
Show 03206+1911 STF 377 AC 223 24.3 92
Show 03271+1633 SLW 153 351 17.3 97
Show 03216+1920 GWP 455 208 13.9 97
Show 03160+1720 SLE 35 171 13.7 98
Show 03170+1647 GWP 444 294 22.2 98
Show 03183+1623 SLE 40 320 12.3 101
Show 03299+1704 HJ 3247 201 6.9 112
Show 03275+1911 A 2345 AB 179 0.9 113
Show 03151+1704 TDS2499 196 0.4 114
Show 03269+1609 BPM 76 248 72.1 114
Show 03305+1751 GRV 177 106 26.0 115
Show 03249+1552 BPM 73 154 95.4 117
Show 03161+1900 UC 972 62 24.0 119
Show 03298+1844 WZ 7 263 7.5 120
Show 03164+1910 HJ 2181 277 26.3 123
Show 03143+1821 COU 359 174 0.2 124
Show 03203+1944 STF 376 251 7.2 125
Show 03310+1659 SLW 155 229 52.2 129
Show 03167+1923 COU 360 AB 257 2.0 130
Show 03167+1923 COU 360 AC 139 29.9 130



WDS 03225+1744 : COMPONENTS


  A
B pa=238.6°
sep=1.67"


03225+1744 A


Coord arcsec 2000 032232.58+174331.3 Mag 8.6 Spectral class K0 (yellow-orange) PmRA 41.00
PmDE -29.0 Tycho2 1237-00248-1
Tycho2
Tycho2 1237-00248-1 Pflag RAmdeg 50.63574640 DEmdeg 17.72535118
PmRA 42.0 PmDE -30.0 E RAmdeg 12 E DEmdeg 15
E pmRA 1.1 E pmDE 1.1 EpRAm 1989.58 EpDEm 1988.18
Num 10 Q RAmdeg 0.5 Q DEmdeg 0.6 Q pmRA 0.5
Q pmDE 0.6 BTmag 9.956 E BTmag 0.032 VTmag 8.942
E VTmag 0.020 Prox 999 TYC T HIP 15724
CCDM RAdeg 50.63564556 DEdeg 17.72542000 EpRA 1990 1.78
EpDE 1990 1.63 E RAdeg 12.7 E DEdeg 16.3 Posflg
Corr -0.3


03225+1744 B


Coord arcsec 2000 032232.48+174330.4 Mag 16.1 Delta magnitude 7.5 Coordinate calculated yes
