02519-0602 KPP 3506 (VZ Hor)



02h 51m 54.76s -06° 02' 12.5" P.A. 329.00 sep 1.5 mag 14.20,14.70 dist. 41.75 pc (136.19 l.y.)


Coord 2000 02519-0602 Discov num KPP3506 Comp Coord arcsec 2000 02 51 54.76 -06 02 12.5
Date first 2015 Date last 2016 Obs 2
Pa first 329 Pa last 329.1 P.A. Now (θ) 329.1°
Sep first 1.5 Sep last 1.457 Sep. Now (ρ) 1.457"
Mag pri 14.20 Mag sec 14.70 delta mag (ΔM) 0.5 Spectral class
Pri motion ra +005 Sec motion ra +007
Pri motion dec +003 Sec motion dec +003
Notes T (Parallax indicates physical)
rPM=0.263 (< 0.3, Physical double)
This double is physical.


OTHER CATALOGS AND DESIGNATIONS


Var name VZ Hor Constellation Eridanus SAO 248669 HIP 13359
Tycho2 8859-00718-1 HD 18134 CP CP-62 238 Distance 41.75
Distance ly 136.19


WDS 02519-0602 KPP 3506 (VZ Hor) : NOTES


No records found.



DISCOVERER


discov author
KPP Knapp, W.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
02519-0602 KPP3506 2015 1 329 1.5 14.20 14.70 T 025154.76-060212.5
02519-0602 KPP3506 2016 2 329 1.5 14.20 14.70 T 025154.76-060212.5

If you need more information about this double, apply for a data request form to the WDS.



WDS 02519-0602 KPP 3506 (VZ Hor) : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 02519-0602 KPP 3506 (VZ Hor) : MEASURES


No records found.

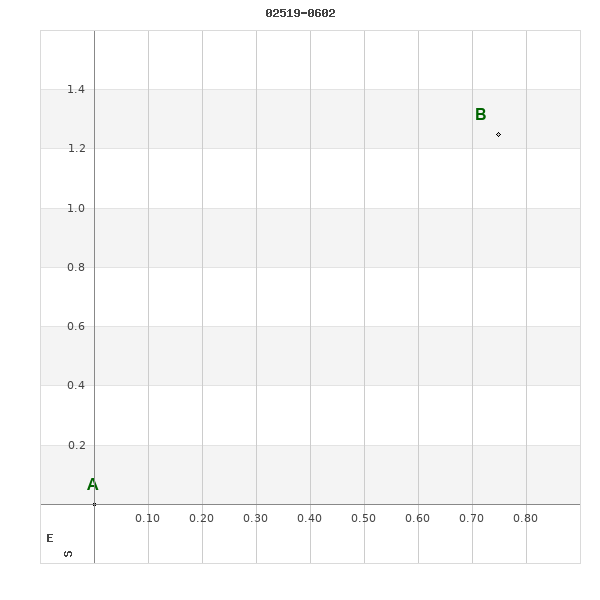

WDS 02519-0602 (VZ Hor) : VIRTUAL EYEPIECE



02519-0602 KPP3506A mag 14.2 02519-0602 KPP3506B sep 1.5 P.A. 329.10 mag 14.7 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 02519-0602 (VZ Hor) : ALADIN DSS IMAGE @ 02h 51m 54.76s -06° 02' 12.5"




WDS 02519-0602 KPP 3506 (VZ Hor) : NEIGHBORHOODS


FoV:
Limit:
Primaries only

02519-0602 KPP3506 distance=1' 02522-0622 GKM9055Aa,Ab distance=21' 02527-0619 TDS2377 distance=22' 02516-0540 BRT2284 distance=23' 02522-0536 BRT 532 distance=26' 02501-0616 J 1453AB distance=31' 02501-0616 J 1453AC distance=31' 02484-0614 HDS 365 distance=54' 02548-0640 GWP 393 distance=58' 02487-0526 UC 819 distance=60' 02475-0601 J 1245 distance=66' 02504-0459 BU 10AB distance=68' 02479-0529 GWP 371 distance=69' 02474-0640 RST4213 distance=78' 02549-0709 JNN 21 distance=81' 02462-0619 GWP 365 distance=88' 02462-0637 LAS 20 distance=93' 02457-0630 CVR1112 distance=97' 02453-0529 A 453 distance=105' 02536-0745 GWP 386 distance=106' 02556-0733 LDS5403 distance=108' 02460-0457 BU 83AB distance=110' 02460-0457 BU 83Ba,Bb distance=110' 02505-0414 GWP 379 distance=110' 02593-0615 A 454 distance=111' 02524-0755 RST4215 distance=114' 02581-0711 SLW 139 distance=116' 02541-0411 HJ 659 distance=117' 02440-0601 TOK 75AB distance=118' 02440-0601 TOK 75Ba,Bb distance=118' 02446-0517 NSC 15 distance=119' 02593-0516 BVD 29 distance=120' 02559-0751 SKF1942 distance=124' 02552-0800 EGN 2 distance=128' 02478-0411 GWP 370 distance=128' 02569-0749 BRT 360 distance=130' 02517-0816 SKF 249 distance=134' 02429-0629 A 452 distance=138' 02426-0559 KPP3500 distance=140' 02498-0346 GWP 375 distance=141' 02553-0348 GWP 396 distance=144' 03013-0636 GWP 409 distance=145' 02558-0815 BRT 359 distance=145' 02535-0330 BVD 28 distance=155' 02590-0746 GRV 996 distance=156' 03022-0630 YSC 126 distance=156' 02419-0711 CVR1111 distance=164' 03026-0700 TOK 471 distance=170' 02535-0851 RST4216 distance=171' 02550-0841 GRV 995 distance=171' 02548-0853 NSC 17 distance=177' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 02519-0602 KPP3506 329 1.5 1
Show 02522-0622 GKM9055 Aa,Ab 117 0.1 21
Show 02527-0619 TDS2377 228 2.3 22
Show 02516-0540 BRT2284 202 2.5 23
Show 02522-0536 BRT 532 84 4.3 26
Show 02501-0616 J 1453 AB 200 9.2 31
Show 02501-0616 J 1453 AC 68 38.4 31
Show 02484-0614 HDS 365 244 0.4 54
Show 02548-0640 GWP 393 350 28.8 58
Show 02487-0526 UC 819 106 20.2 60
Show 02475-0601 J 1245 12 2.3 66
Show 02504-0459 BU 10 AB 100 2.9 68
Show 02479-0529 GWP 371 288 28.8 69
Show 02474-0640 RST4213 260 0.7 78
Show 02549-0709 JNN 21 285 4.1 81
Show 02462-0619 GWP 365 38 60.0 88
Show 02462-0637 LAS 20 131 6.7 93
Show 02457-0630 CVR1112 301 3.9 97
Show 02453-0529 A 453 97 0.9 105
Show 02536-0745 GWP 386 68 36.4 106
Show 02556-0733 LDS5403 308 48.1 108
Show 02460-0457 BU 83 AB 10 1.0 110
Show 02460-0457 BU 83 Ba,Bb 273 0.2 110
Show 02505-0414 GWP 379 200 26.7 110
Show 02593-0615 A 454 131 3.9 111
Show 02524-0755 RST4215 205 0.3 114
Show 02581-0711 SLW 139 299 48.8 116
Show 02541-0411 HJ 659 324 27.8 117
Show 02440-0601 TOK 75 AB 272 5.6 118
Show 02440-0601 TOK 75 Ba,Bb 237 0.0 118
Show 02446-0517 NSC 15 266 3.9 119
Show 02593-0516 BVD 29 1 51.7 120
Show 02559-0751 SKF1942 354 11.4 124
Show 02552-0800 EGN 2 84 8.2 128
Show 02478-0411 GWP 370 164 5.9 128
Show 02569-0749 BRT 360 348 4.1 130
Show 02517-0816 SKF 249 21 157.5 134
Show 02429-0629 A 452 115 1.9 138
Show 02426-0559 KPP3500 207 58.8 140
Show 02498-0346 GWP 375 112 105.8 141
Show 02553-0348 GWP 396 1 16.7 144
Show 03013-0636 GWP 409 226 59.1 145
Show 02558-0815 BRT 359 346 4.9 145
Show 02535-0330 BVD 28 339 104.6 155
Show 02590-0746 GRV 996 336 27.8 156
Show 03022-0630 YSC 126 157 0.0 156
Show 02419-0711 CVR1111 265 3.3 164
Show 03026-0700 TOK 471 122 910.2 170
Show 02535-0851 RST4216 316 7.1 171
Show 02550-0841 GRV 995 153 25.7 171
Show 02548-0853 NSC 17 15 6.1 177



WDS 02519-0602 : COMPONENTS


  A
B pa=329.1°
sep=1.46"


02519-0602 A


Name VZ Hor Coord arcsec 2000 025154.76-060212.5 Mag 14.2 PmRA 5.00
PmDE 3.0 SAO 248669 HIP 13359 HD 18134
CP CP-62 238
SAO
SAO 248669 DelFlag RA1950 PmRA1950 0.0204
DE1950 PmDE1950 0.117 Vmag 8.8 SpType K0
Double code Source 43 CatNum 585 DM CP-62 238
DMcomp BDsup HD 18134 M HD 0
GC RA1950rad 0.74487021 DE1950rad -1.07903378 PmRA2000 0.0202
PmDE2000 0.112
Hipparcos
Catalog H HIP 13359 Proxy RAhms 02 51 52.79
DEdms -61 37 05.7 Vmag 8.86 VarFlag 2 R Vmag G
RAdeg 42.97 DEdeg -61.6183 AstroRef Plx 23.36
CCDM 146.09 N CCDM Nsys Ncomp 1
MultFlag Source Qual M HIP
Theta Rho HD 18134 BD
CD CP CP-62 238 Dm number -62 238 VIred 0.87
SpType K1V(p) R SpType Coord arcsec 2000 025152.79-613705.7
Hipparcos 2
HIP 13359 Sn 5 So 0 Nc 1
RArad 0.7499675935 DErad -1.0754415448 Plx 23.95 PmRA 145.64
PmDE 131.94 E RArad 0.63 E DErad 0.62 E Plx 0.73
E pmRA 0.81 E pmDE 0.88 Hpmag E Hpmag 0.0055
SHp 0.039 VA 2 BV 0.851 E BV 0.003
VI 0.89


02519-0602 B


Coord arcsec 2000 025154.71-060211.2 Mag 14.7 PmRA 7.00 PmDE 3.0
Delta magnitude 0.5 Coordinate calculated yes
