12215-2413 HWE 26 BC



12h 21m 32.88s -24° 13' 18.1" P.A. 230.00 sep 11.3 mag 10.18,13.90


Coord 2000 12215-2413 Discov num HWE  26 Comp BC Coord arcsec 2000 12 21 32.88 -24 13 18.1
Date first 1926 Date last 2015 Obs 5
Pa first 235 Pa last 229.8 P.A. Now (θ) 229.8°
Sep first 12.1 Sep last 11.325 Sep. Now (ρ) 11.325"
Mag pri 10.18 Mag sec 13.90 delta mag (ΔM) 3.72 Spectral class
Pri motion ra -035 Sec motion ra -082
Pri motion dec -001 Sec motion dec -088
Notes N (See Notes)
rPM=0.822
This double is not physical.


12215-2413 SYSTEM COMPONENTS


Show name SAO coord wds_name last obs pa sep mag1 mag2 d_mag orb current
Show HD 107501 157234 12 21 33 -24 13 14 HWE 26 AB 2020 22 150 4.5 10.02 10.18 0.16
Show 12 21 33 -24 13 14 HWE 26 AC 2015 5 207 13.2 10.02 13.90 3.88
Show 157234 12 21 33 -24 13 18 HWE 26 BC 2015 5 230 11.3 10.18 13.90 3.72 <===
Triple system
3 estimated visually detectable stars in this system


OTHER CATALOGS AND DESIGNATIONS


Constellation Corvus SAO 157234 Tycho2 6681-00477-2 Gaia DR2 3512833277290250112
DM BD-12 3616


WDS 12215-2413 HWE 26 BC : NOTES


discov_num notes refcode
HWE 26 HDO 133


DISCOVERER


discov author
HWE Howe, H.A.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
12215-2413 HWE 26 BC 1998 3 208 13.2 10.30 14.00 N D 122132.70-241313.7
12215-2413 HWE 26 BC 2000 5 208 13.2 10.18 13.90 N D 122132.70-241313.7
12215-2413 HWE 26 BC 2015 5 230 11.3 10.18 13.90 N 122132.88-241318.1

If you need more information about this double, apply for a data request form to the WDS.



WDS 12215-2413 HWE 26 BC : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 12215-2413 HWE 26 BC : MEASURES


No records found.

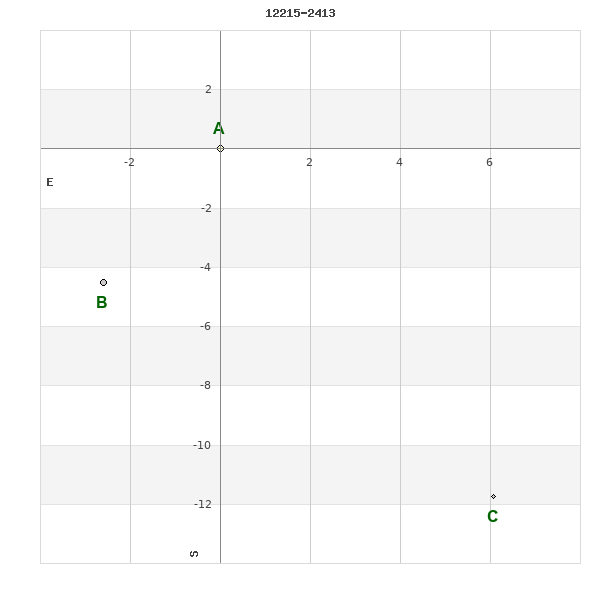

WDS 12215-2413 : VIRTUAL EYEPIECE



12215-2413 HWE 26A mag 10.02 Sp A7/8V 12215-2413 HWE 26B sep 5.2 P.A. 150.00 mag 10.18 12215-2413 HWE 26C sep 13.2 P.A. 207.30 mag 13.9 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 12215-2413 : ALADIN DSS IMAGE @ 12h 21m 32.88s -24° 13' 18.1"




WDS 12215-2413 HWE 26 BC : NEIGHBORHOODS


FoV:
Limit:
Primaries only

12215-2413 HWE 26BC distance=0' 12215-2413 HWE 26AB distance=1' 12215-2413 HWE 26AC distance=1' 12224-2414 B 2294 distance=13' 12235-2433 LDS 409 distance=32' 12179-2401 BU 921A,BC distance=52' 12179-2401 DON 521BC distance=52' 12229-2315 COO 285 distance=61' 12254-2330 TDS8374 distance=69' 12235-2310 VVO 9 distance=69' 12201-2534 B 225 distance=83' 12258-2314 TDS8378 distance=84' 12190-2253 RSS 285 distance=88' 12158-2321 BU 920 distance=95' 12147-2447 B 222 distance=100' 12279-2311 DON 529 distance=107' 12216-2220 DON1098 distance=114' 12137-2457 HU 735 distance=115' 12206-2213 BU 1245AB distance=122' 12206-2213 BU 1245A,CD distance=122' 12169-2228 LDS 399 distance=123' 12206-2213 BU 605CD distance=125' 12259-2221 KPP 272 distance=127' 12167-2605 DON 518 distance=130' 12122-2343 DON 515 distance=133' 12311-2346 TOI 749 distance=135' 12117-2358 HJ 4506 distance=136' 12163-2612 TDS8295 distance=139' 12209-2152 DON 523 distance=142' 12165-2204 ARA1480 distance=147' 12246-2150 DON 525 distance=150' 12199-2644 B 2292 distance=153' 12219-2140 DON 524 distance=154' 12318-2314 ARA1793 distance=154' 12268-2630 UC 2340 distance=155' 12101-2401 DON 514 distance=159' 12186-2139 UC 2312 distance=160' 12333-2410 ARA2180 distance=161' 12122-2231 HU 133AB distance=164' 12122-2231 HU 133Ba,Bb distance=164' 12295-2618 UC 2348 distance=165' 12189-2130 LDS 403 distance=167' 12093-2403 ARA2177 distance=169' 12116-2233 UC 2291 distance=170' 12333-2516 YSC 212 distance=173' 12095-2324 WHC 10 distance=173' 12338-2331 TOK 559 distance=174' 12342-2447 TDS8438 distance=176' 12335-2300 DON 535 distance=180' 12340-2312 DON 537A,BC distance=183' 12340-2312 DON 537BC distance=183' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 12215-2413 HWE 26 BC 230 11.3 0
Show 12215-2413 HWE 26 AB 150 4.5 1
Show 12215-2413 HWE 26 AC 207 13.2 1
Show 12224-2414 B 2294 140 10.4 13
Show 12235-2433 LDS 409 287 53.4 32
Show 12179-2401 BU 921 A,BC 221 3.4 52
Show 12179-2401 DON 521 BC 50 0.2 52
Show 12229-2315 COO 285 21 7.6 61
Show 12254-2330 TDS8374 75 0.7 69
Show 12235-2310 VVO 9 276 10.8 69
Show 12201-2534 B 225 73 0.5 83
Show 12258-2314 TDS8378 120 1.5 84
Show 12190-2253 RSS 285 311 18.1 88
Show 12158-2321 BU 920 307 1.9 95
Show 12147-2447 B 222 107 4.3 100
Show 12279-2311 DON 529 196 1.9 107
Show 12216-2220 DON1098 105 5.0 114
Show 12137-2457 HU 735 164 0.7 115
Show 12206-2213 BU 1245 AB 74 17.8 122
Show 12206-2213 BU 1245 A,CD 295 347.8 122
Show 12169-2228 LDS 399 235 10.7 123
Show 12206-2213 BU 605 CD 272 0.5 125
Show 12259-2221 KPP 272 253 3.8 127
Show 12167-2605 DON 518 119 0.7 130
Show 12122-2343 DON 515 40 1.3 133
Show 12311-2346 TOI 749 71 1.3 135
Show 12117-2358 HJ 4506 312 7.1 136
Show 12163-2612 TDS8295 254 0.4 139
Show 12209-2152 DON 523 109 0.5 142
Show 12165-2204 ARA1480 129 13.3 147
Show 12246-2150 DON 525 80 4.5 150
Show 12199-2644 B 2292 338 12.7 153
Show 12219-2140 DON 524 242 1.8 154
Show 12318-2314 ARA1793 38 5.9 154
Show 12268-2630 UC 2340 297 10.4 155
Show 12101-2401 DON 514 149 1.6 159
Show 12186-2139 UC 2312 69 33.4 160
Show 12333-2410 ARA2180 276 6.3 161
Show 12122-2231 HU 133 AB 316 1.5 164
Show 12122-2231 HU 133 Ba,Bb 147 0.1 164
Show 12295-2618 UC 2348 72 13.7 165
Show 12189-2130 LDS 403 164 6.9 167
Show 12093-2403 ARA2177 157 13.1 169
Show 12116-2233 UC 2291 173 29.9 170
Show 12333-2516 YSC 212 20 0.1 173
Show 12095-2324 WHC 10 22 12.6 173
Show 12338-2331 TOK 559 166 999.9 174
Show 12342-2447 TDS8438 11 0.6 176
Show 12335-2300 DON 535 222 0.4 180
Show 12340-2312 DON 537 A,BC 77 15.2 183
Show 12340-2312 DON 537 BC 239 0.7 183



WDS 12215-2413 : COMPONENTS


  A B
B pa=150.0°
sep=5.20"

C pa=207.3°
sep=13.21"
pa=230.1°
sep=11.28"


12215-2413 A


Name HD 107501 Coord arcsec 2000 122132.69-241313.6 Mag 10.02 Spectral class A7/8V (white)
PmRA -34.00 PmDE -7.0 Tycho2 6681-00477-1 HD 107501
Tycho2
Tycho2 6681-00477-1 Pflag RAmdeg 185.38623199 DEmdeg -24.22045016
PmRA -33.1 PmDE 0.5 E RAmdeg 19 E DEmdeg 26
E pmRA 2.2 E pmDE 2.1 EpRAm 1990.73 EpDEm 1989.56
Num 4 Q RAmdeg 0.6 Q DEmdeg 0.8 Q pmRA 0.6
Q pmDE 0.9 BTmag 10.436 E BTmag 0.038 VTmag 10.019
E VTmag 0.037 Prox 52 TYC T HIP
CCDM RAdeg 185.38631500 DEdeg -24.22045139 EpRA 1990 1.78
EpDE 1990 1.65 E RAdeg 19.4 E DEdeg 26.2 Posflg P
Corr 0.0
CCDM
Ccdm 12215-2413 RComp Comp A Note1
Note2 Discov num DRAs 2.82 DDEs -17.4
R dRAs 66 Year Theta Rho
Obs 3 Vmag 10.2 Sp A3 PmNote
PmRA PmDE Dm number -2310505 Cat1 CD
Name2 Cat2 HD 107501 M HD
ADS BDS A 8524 M ADS BDS N IDS IDS 12163S2340A
HIC


12215-2413 B


Coord arcsec 2000 122132.88-241318.1 Coord calc 122132.88-241318.1 Mag 10.18 PmRA -35.00
PmDE -1.0 SAO 157234 Tycho2 6681-00477-2 DM BD-12 3616
Delta magnitude 0.16
Tycho2
Tycho2 6681-00477-2 Pflag RAmdeg 185.38703737 DEmdeg -24.22172045
PmRA -26.9 PmDE -9.3 E RAmdeg 23 E DEmdeg 31
E pmRA 2.7 E pmDE 2.8 EpRAm 1990.75 EpDEm 1989.79
Num 3 Q RAmdeg 2.4 Q DEmdeg 1.0 Q pmRA 2.5
Q pmDE 1.0 BTmag 10.582 E BTmag 0.044 VTmag 10.183
E VTmag 0.043 Prox 52 TYC T HIP
CCDM RAdeg 185.38710500 DEdeg -24.22169889 EpRA 1990 1.77
EpDE 1990 1.60 E RAdeg 22.7 E DEdeg 31.1 Posflg D
Corr 0.0
SAO
SAO 157234 DelFlag RA1950 PmRA1950 -0.006
DE1950 PmDE1950 0.013 Vmag 8.1 SpType G0
Double code Source 20 CatNum 4504 DM BD-12 3616
DMcomp BDsup HD 107520 M HD 0
GC RA1950rad 3.22446252 DE1950rad -0.23394419 PmRA2000 -0.0057
PmDE2000 0.019
CCDM
Ccdm 12215-2413 RComp Comp B Note1
Note2 Discov num HWE 26 DRAs DDEs
R dRAs Year 1877 Theta 150 Rho 5.2
Obs 6 Vmag 10.3 Sp PmNote
PmRA PmDE Dm number Cat1
Name2 Cat2 HD M HD
ADS BDS A 8524 M ADS BDS N IDS IDS 12163S2340B
HIC


12215-2413 C


Coord arcsec 2000 122132.25-241325.3 Mag 13.9 PmRA -82.00 PmDE -88.0
Delta magnitude 3.88 Coordinate calculated yes
CCDM
Ccdm 12215-2413 RComp B Comp C Note1
Note2 Discov num HWE 26 DRAs DDEs
R dRAs Year 1926 Theta 235 Rho 12.1
Obs 1 Vmag 14.0 Sp PmNote
PmRA PmDE Dm number Cat1
Name2 Cat2 HD M HD
ADS BDS A 8524 M ADS BDS N IDS IDS 12163S2340C
HIC
