19332+4200 KOI 4657 AB



19h 33m 10.27s +41° 59' 51.3" P.A. 233.00 sep 2.1 mag 13.50,16.80


Coord 2000 19332+4200 Discov num KOI4657 Comp AB Coord arcsec 2000 19 33 10.27 +41 59 51.3
Date first 2010 Date last 2016 Obs 5
Pa first 234 Pa last 233.2 P.A. Now (θ) 233.2°
Sep first 2.1 Sep last 2.131 Sep. Now (ρ) 2.131"
Mag pri 13.50 Mag sec 16.80 delta mag (ΔM) 3.3 Spectral class
Pri motion ra -012 Sec motion ra
Pri motion dec -017 Sec motion dec
Notes
Nature of this double is uncertain.


19332+4200 SYSTEM COMPONENTS


Show name SAO coord wds_name last obs pa sep mag1 mag2 d_mag orb current
Show 19 33 10 +41 59 51 KOI 4657 AB 2016 5 233 2.1 13.50 16.80 3.30 <===
Show 19 33 10 +41 59 51 KOI 4657 AC 2014 1 311 3.1 11.40 19.80 8.40
Show 19 33 10 +41 59 51 KOI 4657 AD 2014 1 199 5.3 11.40 18.40 7.00
Quadruple system
4 estimated visually detectable stars in this system


OTHER CATALOGS AND DESIGNATIONS


Constellation Cygnus Gaia DR2 2077628341397525120


WDS 19332+4200 KOI 4657 AB : NOTES


No records found.



DISCOVERER


discov author
KOI "Kepler Object of Interest" (transiting exoplanet candidate of Kepler mission.
KOI Hirsch, L.A., Ciardi, D.R., Howard, A.W., Everett, M.E., Furlan, E., Saylors, M.,
KOI Horch, E.P., Howell, S.B., Teske, J., & Marcy, G.W.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
19332+4200 KOI4657 AB 2014 2 234 2.1 13.50 16.80 193310.27+415951.3
19332+4200 KOI4657 AB 2015 4 233 2.1 13.50 16.80 193310.27+415951.3
19332+4200 KOI4657 AB 2016 5 233 2.1 13.50 16.80 193310.27+415951.3

If you need more information about this double, apply for a data request form to the WDS.



WDS 19332+4200 KOI 4657 AB : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 19332+4200 KOI 4657 AB : MEASURES


No records found.



WDS 19332+4200 : VIRTUAL EYEPIECE



19332+4200 KOI4657A mag 13.5 19332+4200 KOI4657B sep 2.1 P.A. 233.20 mag 16.8 19332+4200 KOI4657C sep 3.0 P.A. 310.60 mag 19.8 19332+4200 KOI4657D sep 5.3 P.A. 199.00 mag 18.4 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 19332+4200 : ALADIN DSS IMAGE @ 19h 33m 10.27s +41° 59' 51.3"

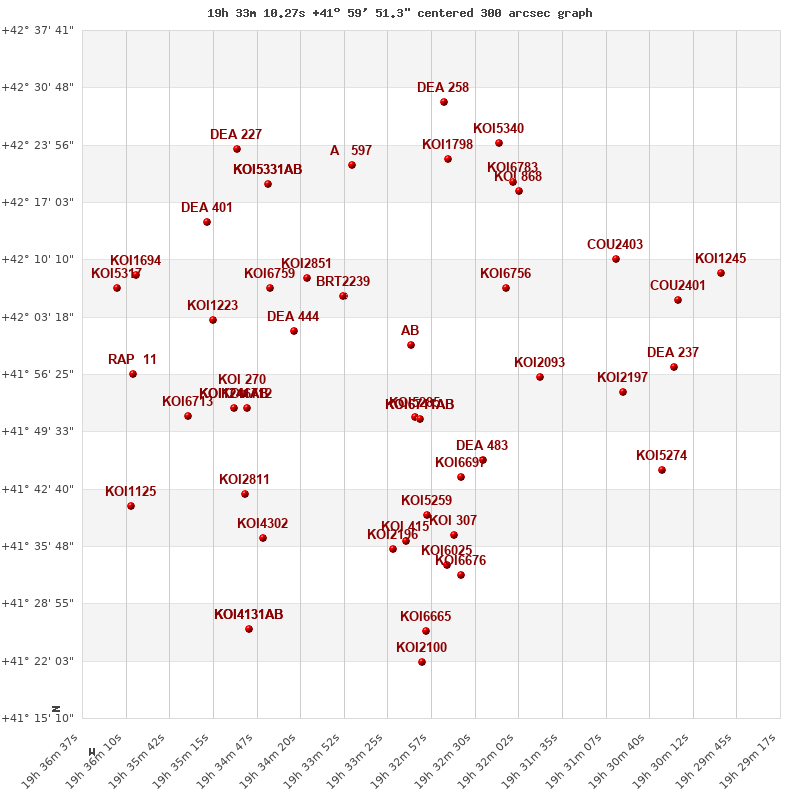

WDS 19332+4200 KOI 4657 AB : NEIGHBORHOODS


FoV:
Limit:
Primaries only

19332+4200 KOI4657AB distance=0' 19331+4152 KOI5285 distance=9' 19331+4151 KOI6711AB distance=9' 19331+4151 KOI6711AC distance=9' 19339+4206 BRT2239 distance=10' 19339+4205 KOI5304 distance=10' 19322+4207 KOI6756 distance=14' 19343+4201 DEA 444 distance=14' 19343+4208 KOI2851 distance=15' 19318+4156 KOI2093 distance=16' 19324+4146 DEA 483 distance=17' 19326+4144 KOI6697 distance=17' 19347+4207 KOI6759 distance=18' 19330+4140 KOI5259 distance=21' 19349+4154 KOI 270 distance=21' 19349+4152 KOI6712 distance=21' 19350+4152 KOI1241AB distance=23' 19350+4152 KOI1241AC distance=23' 19320+4218 KOI 868 distance=23' 19338+4222 A 597 distance=23' 19328+4222 KOI1798 distance=23' 19321+4220 KOI6783 distance=23' 19327+4137 KOI 307 distance=24' 19353+4203 KOI1223 distance=24' 19332+4136 KOI 415 distance=24' 19334+4135 KOI2196 distance=25' 19309+4154 KOI2197 distance=26' 19347+4219 KOI5331AB distance=26' 19347+4219 KOI5331AC distance=26' 19310+4210 COU2403 distance=27' 19349+4142 KOI2811 distance=27' 19322+4224 KOI5340 distance=27' 19328+4133 KOI6025 distance=27' 19355+4151 KOI6713 distance=28' 19353+4214 DEA 401 distance=29' 19326+4132 KOI6676 distance=29' 19347+4137 KOI4302 distance=29' 19328+4229 DEA 258 distance=30' 19304+4157 DEA 237 distance=31' 19350+4223 DEA 227 distance=32' 19303+4204 COU2401 distance=32' 19361+4156 RAP 11 distance=33' 19305+4145 KOI5274 distance=34' 19361+4208 KOI1694 distance=34' 19330+4126 KOI6665 distance=35' 19363+4207 KOI5317 distance=36' 19299+4209 KOI1245 distance=38' 19330+4122 KOI2100 distance=38' 19361+4141 KOI1125 distance=39' 19349+4126 KOI4131AB distance=39' 19349+4126 KOI4131AC distance=39' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 19332+4200 KOI4657 AB 233 2.1 0
Show 19332+4200 KOI4657 AC 311 3.1 0
Show 19332+4200 KOI4657 AD 199 5.3 0
Show 19331+4152 KOI5285 295 2.9 9
Show 19331+4151 KOI6711 AB 111 2.5 9
Show 19331+4151 KOI6711 AC 287 2.7 9
Show 19339+4206 BRT2239 130 3.2 10
Show 19339+4205 KOI5304 310 3.2 10
Show 19322+4207 KOI6756 147 4.0 14
Show 19343+4201 DEA 444 80 28.1 14
Show 19343+4208 KOI2851 223 0.4 15
Show 19318+4156 KOI2093 352 2.1 16
Show 19324+4146 DEA 483 196 68.0 17
Show 19326+4144 KOI6697 313 3.9 17
Show 19347+4207 KOI6759 48 2.4 18
Show 19330+4140 KOI5259 333 2.4 21
Show 19349+4154 KOI 270 66 0.2 21
Show 19349+4152 KOI6712 7 2.1 21
Show 19350+4152 KOI1241 AB 105 3.4 23
Show 19350+4152 KOI1241 AC 186 7.2 23
Show 19320+4218 KOI 868 341 4.4 23
Show 19338+4222 A 597 82 1.6 23
Show 19328+4222 KOI1798 186 3.8 23
Show 19321+4220 KOI6783 178 3.3 23
Show 19327+4137 KOI 307 242 0.1 24
Show 19353+4203 KOI1223 205 3.0 24
Show 19332+4136 KOI 415 208 3.4 24
Show 19334+4135 KOI2196 178 2.8 25
Show 19309+4154 KOI2197 52 4.0 26
Show 19347+4219 KOI5331 AB 261 3.0 26
Show 19347+4219 KOI5331 AC 350 3.6 26
Show 19310+4210 COU2403 37 0.4 27
Show 19349+4142 KOI2811 282 1.4 27
Show 19322+4224 KOI5340 217 1.2 27
Show 19328+4133 KOI6025 149 3.3 27
Show 19355+4151 KOI6713 87 3.5 28
Show 19353+4214 DEA 401 214 20.4 29
Show 19326+4132 KOI6676 33 0.9 29
Show 19347+4137 KOI4302 118 3.4 29
Show 19328+4229 DEA 258 252 11.0 30
Show 19304+4157 DEA 237 231 10.3 31
Show 19350+4223 DEA 227 315 10.1 32
Show 19303+4204 COU2401 194 0.9 32
Show 19361+4156 RAP 11 350 4.4 33
Show 19305+4145 KOI5274 272 4.0 34
Show 19361+4208 KOI1694 180 2.8 34
Show 19330+4126 KOI6665 326 3.7 35
Show 19363+4207 KOI5317 132 3.0 36
Show 19299+4209 KOI1245 101 3.7 38
Show 19330+4122 KOI2100 318 3.0 38
Show 19361+4141 KOI1125 31 3.5 39



WDS 19332+4200 : COMPONENTS


  A B C
B pa=233.2°
sep=2.13"

C pa=310.6°
sep=3.05"
pa=349.4°
sep=3.32"

D pa=199.0°
sep=5.30"
pa=180.3°
sep=3.73"
pa=175.1°
sep=7.02"


19332+4200 A


Coord arcsec 2000 193310.27+415951.3 Mag 13.5 PmRA -12.00 PmDE -17.0


19332+4200 B


Coord arcsec 2000 193310.12+415950.0 Mag 16.8 Delta magnitude 3.3 Coordinate calculated yes


19332+4200 C


Coord arcsec 2000 193310.06+415953.3 Mag 19.8 Delta magnitude 6.3 Coordinate calculated yes


19332+4200 D


Coord arcsec 2000 193310.12+415946.3 Mag 18.4 Delta magnitude 4.9 Coordinate calculated yes
