17197-0204 GWP 2702 (V647 Her)

17^h 19^m 41.33^s -02° 04' 20.6" P.A. 106.00 sep 5.3 mag 15.80,15.90 dist. 11.59 pc (37.81 l.y.)

Coord 2000	17197-0204	Discov num	GWP2702	Comp		Coord arcsec 2000	17 19 41.33 -02 04 20.6
Date first	1954	Date last	2016	Obs	11
Pa first	107	Pa last	106	P.A. Now (θ)	106°
Sep first	5.1	Sep last	5.324	Sep. Now (ρ)	5.324"
Mag pri	15.80	Mag sec	15.90	delta mag (ΔM)	0.1	Spectral class
Pri motion ra	-122	Sec motion ra
Pri motion dec	-032	Sec motion dec
Notes	V R (Proper motion indicates physical, Red magnitudes)

This double is physical.

OTHER CATALOGS AND DESIGNATIONS

Var name	V647 Her		Constellation	Ophiuchus		HIP	84794		Gaia DR2	4367248026476676352
Distance	11.59		Distance ly	37.81

WDS 17197-0204 GWP 2702 (V647 Her) : NOTES

No records found.

DISCOVERER

discov	author
GWP	Garraf Wide Pairs: CPM wide pairs (>50mas/y) discovered in the Garraf Astronomical

WDS HISTORIC DATA

coord_2000	discov_num	comp	epoch	obs	pa	sep	mag_pri	mag_sec	spectr	dm_number	notes	coord_arcsec_2000
17197-0204	GWP2702		1999	3	106	5.3	15.70	15.70			V	171941.52-020416.7
17197-0204	GWP2702		2000	4	106	5.4	15.80	15.90			V R	171941.33-020420.6
17197-0204	GWP2702		2010	5	105	5.4	15.80	15.90			V R	171941.33-020420.6
17197-0204	GWP2702		2015	6	106	5.3	15.80	15.90			V R	171941.33-020420.6
17197-0204	GWP2702		2016	11	106	5.3	15.80	15.90			V R	171941.33-020420.6

If you need more information about this double, apply for a data request form to the WDS.

WDS 17197-0204 GWP 2702 (V647 Her) : VISUAL OBSERVATIONS REPORTS

No records found.

WDS 17197-0204 GWP 2702 (V647 Her) : MEASURES

No records found.

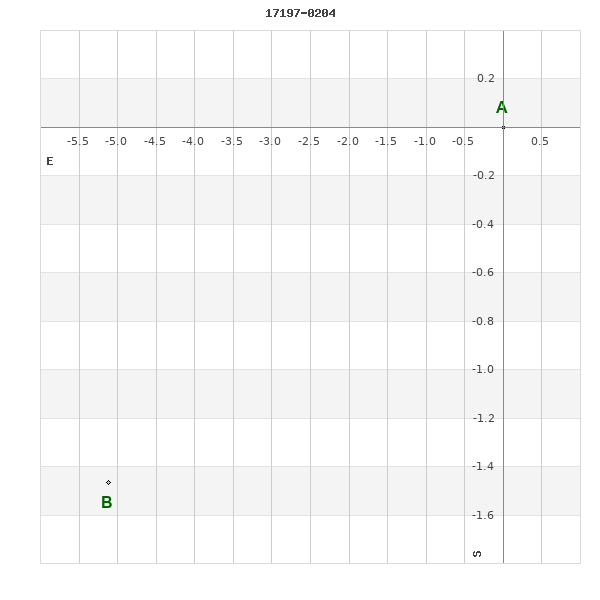

WDS 17197-0204 (V647 Her) : VIRTUAL EYEPIECE

Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.

WDS 17197-0204 (V647 Her) : ALADIN DSS IMAGE @ 17^h 19^m 41.33^s -02° 04' 20.6"

DSS color DSS blue 2MASS AllWISE GALEX SDSS9 XMM PanSTARRS

WDS 17197-0204 GWP 2702 (V647 Her) : NEIGHBORHOODS

Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.

Show	name	coord_2000	discov#	comp	pa	sep	dist(')
Show		17197-0204	GWP2702		106	5.3	0
Show		17193-0221	RST4569	AB	94	0.1	18
Show		17193-0221	LMP 17	AB,C	249	62.1	18
Show		17184-0147	BAG 51		310	0.5	27
Show		17200-0232	A 2684		46	0.3	29
Show		17164-0206	CVR 198		149	102.4	51
Show		17229-0223	RAG 9	AB	147	48.5	52
Show		17229-0223	RAO 19	BC	101	0.6	52
Show		17181-0117	SKF 441		165	9.3	54
Show		17233-0149	GWP2707		10	224.2	56
Show		17163-0106	KPP2779		228	6.4	78
Show		17145-0202	BAL 573		59	5.4	78
Show		17242-0124	RST5080		25	3.1	80
Show		17256-0154	RST5081		293	0.7	89
Show		17256-0146	KPP1849		250	14.3	91
Show		17260-0206	TDT 347		232	0.6	95
Show		17260-0139	TOK 180		301	6.0	98
Show		17222-0337	J 3266		86	6.3	100
Show		17260-0245	OSO 78	AB	200	9.5	103
Show		17260-0245	OSO 78	AC	23	12.5	103
Show		17129-0216	RST4568		318	1.7	104
Show		17228-0344	HDS2453		281	0.4	110
Show		17119-0151	LPM 629		10	0.6	118
Show		17268-0104	RST5082		284	1.5	123
Show		17116-0214	UC 3302		124	33.7	123
Show		17282-0144	TSN 182		23	0.1	129
Show		17284-0201	RST4571	AB	106	1.9	131
Show		17284-0201	GII 248	Aa,Ab	68	0.2	131
Show		17210-0014	RST5079	AB	63	1.3	140
Show		17210-0014	GII 245	Aa,Ab	119	0.1	140
Show		17229-0009	SHN 219		-1	0.1	142
Show		17287-0302	UC 3349		331	64.8	148
Show		17292-0129	RST5083		349	1.0	148
Show		17292-0300	BRT 468		90	3.5	154
Show		17128-0403	STF2132		114	1.9	158
Show		17166-0027	A 2984		27	0.7	158
Show		17211+0034	CVR 860		78	26.9	160
Show		17299-0118	STF2172		171	11.4	161
Show		17307-0204	UC 3359		296	44.4	165
Show		17166-0443	GWP2701		46	22.3	165
Show		17262-0010	A 1150		124	2.7	167
Show		17214+0042	RST5429		305	1.6	168
Show		17241-0033	KPP1164		202	9.1	172
Show		17304-0104	STF2173	AB	10	0.3	172
Show		17304-0104	CSN 9	AC	241	13.7	172
Show		17304-0104	CSN 9	AD	317	16.9	172
Show		17255+0030	RST5432		171	0.2	178
Show		17124+0019	UC 3303		188	10.4	181
Show		17082-0105	A 1145		336	0.7	182
Show		17142-0038	YMG 87		171	0.5	183
Show		17240-0050	STF2156		36	3.8	186

WDS 17197-0204 : COMPONENTS

	A
B	pa=106.0° sep=5.32"

17197-0204 A

Name	V647 Her		Coord arcsec 2000	171941.33-020420.6		Mag	15.8		PmRA	-122.00
PmDE	-32.0		HIP	84794

Hipparcos

Catalog	H	HIP	84794	Proxy		RAhms	17 19 54.35
DEdms	+26 30 00.0	Vmag	11.26	VarFlag	2	R Vmag	H
RAdeg	259.976	DEdeg	26.5	AstroRef		Plx	83.01
CCDM	-221.17	N CCDM		Nsys		Ncomp	1
MultFlag	X	Source		Qual	S	M HIP
Theta		Rho		HD		BD
CD		CP		Dm number		VIred	2.67
SpType	M4	R SpType		Coord arcsec 2000	171954.35+263000.0

Hipparcos 2

HIP	84794	Sn	1	So	2	Nc	1
RArad	4.5374450468	DErad	0.4625122517	Plx	86.27	PmRA	-221.25
PmDE	355.25	E RArad	2.23	E DErad	2.87	E Plx	4.1
E pmRA	2.71	E pmDE	3.87	Hpmag		E Hpmag	0.006
SHp	0.071	VA	2	BV	1.628	E BV	0.082
VI	2.67

17197-0204 B

Coord arcsec 2000

171941.67-020422.1

Mag

15.9

Delta magnitude

0.1

Coordinate calculated

yes
