15388+1934 CVR 798



15h 38m 46.31s +19° 34' 19.0" P.A. 154.00 sep 10.3 mag 14.90,17.30 Sp M3+M4


Coord 2000 15388+1934 Discov num CVR 798 Comp Coord arcsec 2000 15 38 46.31 +19 34 19.0
Date first 1950 Date last 2015 Obs 10
Pa first 153 Pa last 154.3 P.A. Now (θ) 154.3°
Sep first 10.1 Sep last 10.317 Sep. Now (ρ) 10.317"
Mag pri 14.90 Mag sec 17.30 delta mag (ΔM) 2.4 Spectral class M3+M4 (red/red)
Pri motion ra -057 Sec motion ra -057
Pri motion dec -017 Sec motion dec -019
Notes V R (Proper motion indicates physical, Red magnitudes)
rPM=0.033 (< 0.3, Physical double)
This double is physical.


OTHER CATALOGS AND DESIGNATIONS


Constellation Serpens Gaia DR2 1210112537502522240


WDS 15388+1934 CVR 798 : NOTES


No records found.



DISCOVERER


discov author
CVR Chivers, J.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
15388+1934 CVR 798 2004 1 154 10.3 14.90 17.30 M3+M4 V R 153846.63+193409.7
15388+1934 CVR 798 2015 3 154 10.3 14.90 17.30 M3+M4 V R 153846.31+193419.0

If you need more information about this double, apply for a data request form to the WDS.



WDS 15388+1934 CVR 798 : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 15388+1934 CVR 798 : MEASURES


No records found.

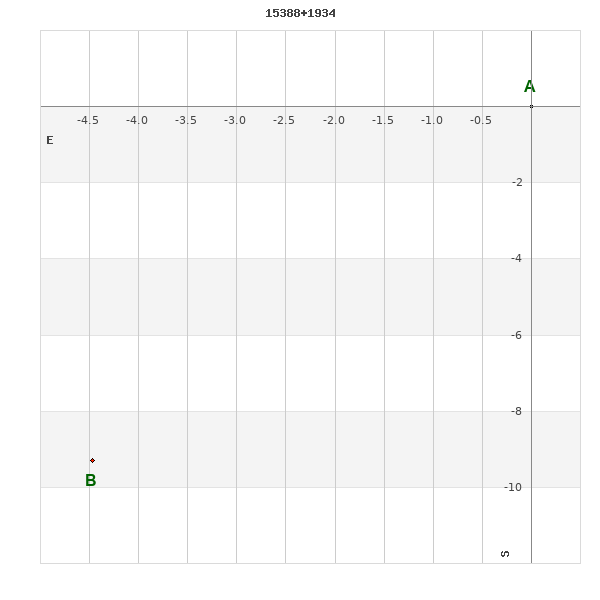

WDS 15388+1934 : VIRTUAL EYEPIECE



15388+1934 CVR 798A mag 14.9 Sp M3 15388+1934 CVR 798B sep 10.3 P.A. 154.30 mag 17.3 Sp M4 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 15388+1934 : ALADIN DSS IMAGE @ 15h 38m 46.31s +19° 34' 19.0"




WDS 15388+1934 CVR 798 : NEIGHBORHOODS


FoV:
Limit:
Primaries only

15388+1934 CVR 798 distance=0' 15378+1939 GWP2538 distance=15' 15416+1940 HU 580AB distance=40' 15416+1940 BU 1451AB,C distance=40' 15416+1940 BU 1451AB,D distance=40' 15405+1840 A 2076 distance=60' 15433+1954 HJ 2790 distance=66' 15424+1852 GWP2546 distance=67' 15428+1859 GWP2547 distance=67' 15384+2048 SLW1121 distance=74' 15432+1846 LDS4587 distance=79' 15368+1820 LDS4571 distance=80' 15419+1828 DRS 17AB distance=81' 15419+1828 TOK 302AC distance=81' 15350+2035 CBL 491 distance=82' 15328+1945 HU 577 distance=85' 15450+1933 CBL 495 distance=89' 15326+1903 SLW1104 distance=93' 15410+2105 GRV 910 distance=97' 15376+2110 HU 578 distance=98' 15382+2111 KPP3962 distance=98' 15456+1859 SLW1135 distance=103' 15398+2117 AG 197 distance=104' 15315+1914 GRV 908 distance=104' 15340+2057 LDS 976 distance=108' 15314+1900 JNN 104 distance=110' 15404+2123 HU 579 distance=111' 15465+1957 COU 66 distance=113' 15440+1810 SHN 33 distance=113' 15372+1740 SLW1114 distance=117' 15468+1905 A 2077 distance=118' 15359+2125 KPP3293 distance=118' 15354+1743 LDS 977 distance=122' 15374+1731 BPM 633 distance=126' 15445+1756 NSN 670 distance=128' 15474+1851 COU 192AB distance=131' 15474+1851 GII 223Aa,Ab distance=131' 15482+1925 COU 193 distance=134' 15377+1719 SLW1118 distance=137' 15315+2113 BRT2420 distance=141' 15358+1720 BRT2421 distance=141' 15485+2015 DBR 320 distance=143' 15326+1733 LEP 147 distance=150' 15406+2205 WIS 291 distance=153' 15288+2038 HU 150 distance=155' 15318+2135 COU 191AB distance=156' 15318+2135 COU 191AC distance=156' 15275+1952 KPP1056 distance=161' 15447+1716 CHR 49AB distance=163' 15399+1646 COU2510 distance=169' 15506+1909 SLW1142 distance=170' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 15388+1934 CVR 798 154 10.3 0
Show 15378+1939 GWP2538 350 74.1 15
Show 15416+1940 HU 580 AB 64 0.2 40
Show 15416+1940 BU 1451 AB,C 353 145.0 40
Show 15416+1940 BU 1451 AB,D 109 152.8 40
Show 15405+1840 A 2076 186 0.8 60
Show 15433+1954 HJ 2790 164 11.9 66
Show 15424+1852 GWP2546 232 899.3 67
Show 15428+1859 GWP2547 235 83.7 67
Show 15384+2048 SLW1121 144 46.7 74
Show 15432+1846 LDS4587 217 8.5 79
Show 15368+1820 LDS4571 102 34.6 80
Show 15419+1828 DRS 17 AB 88 2.4 81
Show 15419+1828 TOK 302 AC 274 249.2 81
Show 15350+2035 CBL 491 110 7.4 82
Show 15328+1945 HU 577 25 0.3 85
Show 15450+1933 CBL 495 164 15.2 89
Show 15326+1903 SLW1104 278 27.9 93
Show 15410+2105 GRV 910 250 7.5 97
Show 15376+2110 HU 578 136 1.2 98
Show 15382+2111 KPP3962 32 14.6 98
Show 15456+1859 SLW1135 288 11.6 103
Show 15398+2117 AG 197 126 3.1 104
Show 15315+1914 GRV 908 52 70.6 104
Show 15340+2057 LDS 976 185 52.8 108
Show 15314+1900 JNN 104 283 0.5 110
Show 15404+2123 HU 579 136 0.7 111
Show 15465+1957 COU 66 47 0.4 113
Show 15440+1810 SHN 33 335 0.2 113
Show 15372+1740 SLW1114 200 10.5 117
Show 15468+1905 A 2077 223 0.6 118
Show 15359+2125 KPP3293 244 37.3 118
Show 15354+1743 LDS 977 351 17.6 122
Show 15374+1731 BPM 633 248 118.5 126
Show 15445+1756 NSN 670 176 0.8 128
Show 15474+1851 COU 192 AB 189 1.2 131
Show 15474+1851 GII 223 Aa,Ab 164 0.1 131
Show 15482+1925 COU 193 285 0.6 134
Show 15377+1719 SLW1118 63 47.5 137
Show 15315+2113 BRT2420 311 11.8 141
Show 15358+1720 BRT2421 52 4.0 141
Show 15485+2015 DBR 320 232 2.1 143
Show 15326+1733 LEP 147 29 4.4 150
Show 15406+2205 WIS 291 342 28.7 153
Show 15288+2038 HU 150 26 4.5 155
Show 15318+2135 COU 191 AB 20 5.4 156
Show 15318+2135 COU 191 AC 85 11.0 156
Show 15275+1952 KPP1056 49 8.4 161
Show 15447+1716 CHR 49 AB 98 0.1 163
Show 15399+1646 COU2510 35 0.2 169
Show 15506+1909 SLW1142 236 26.4 170



WDS 15388+1934 : COMPONENTS


  A
B pa=154.3°
sep=10.32"


15388+1934 A


Coord arcsec 2000 153846.31+193419.0 Mag 14.9 Spectral class M3 (red) PmRA -57.00
PmDE -17.0


15388+1934 B


Coord arcsec 2000 153846.63+193409.7 Mag 17.3 Spectral class M4 (red) PmRA -57.00
PmDE -19.0 Delta magnitude 2.4 Coordinate calculated yes
