14564+0548 CVR 768



14h 56m 20.85s +05° 48' 41.1" P.A. 161.00 sep 17.1 mag 17.80,20.20 Sp M3+M3


Coord 2000 14564+0548 Discov num CVR 768 Comp Coord arcsec 2000 14 56 20.85 +05 48 41.1
Date first 1950 Date last 2015 Obs 5
Pa first 163 Pa last 161.3 P.A. Now (θ) 161.3°
Sep first 17.8 Sep last 17.112 Sep. Now (ρ) 17.112"
Mag pri 17.80 Mag sec 20.20 delta mag (ΔM) 2.4 Spectral class M3+M3 (red/red)
Pri motion ra -011 Sec motion ra -008
Pri motion dec -042 Sec motion dec -040
Notes V R (Proper motion indicates physical, Red magnitudes)
rPM=0.083 (< 0.3, Physical double)
This double is physical.


OTHER CATALOGS AND DESIGNATIONS


Constellation Virgo SAO 120747 Gaia DR2 1160031535203336064


WDS 14564+0548 CVR 768 : NOTES


No records found.



DISCOVERER


discov author
CVR Chivers, J.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
14564+0548 CVR 768 2003 1 162 17.3 17.80 20.20 M3+M3 V R 145621.21+054824.7
14564+0548 CVR 768 2010 2 162 17.3 17.80 20.20 M3+M3 V R 145620.85+054841.1
14564+0548 CVR 768 2015 3 161 17.1 17.80 20.20 M3+M3 V R 145620.85+054841.1

If you need more information about this double, apply for a data request form to the WDS.



WDS 14564+0548 CVR 768 : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 14564+0548 CVR 768 : MEASURES


No records found.

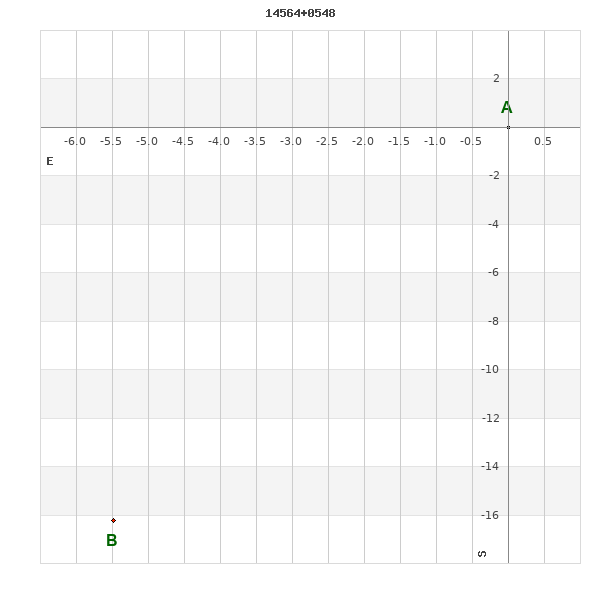

WDS 14564+0548 : VIRTUAL EYEPIECE



14564+0548 CVR 768A mag 17.8 Sp M3 14564+0548 CVR 768B sep 17.1 P.A. 161.30 mag 20.2 Sp M3 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 14564+0548 : ALADIN DSS IMAGE @ 14h 56m 20.85s +05° 48' 41.1"




WDS 14564+0548 CVR 768 : NEIGHBORHOODS


FoV:
Limit:
Primaries only

14564+0548 CVR 768 distance=1' 14574+0555 KPP3287 distance=18' 14539+0557 SLW1042 distance=37' 14590+0529 GWP2482 distance=45' 14554+0647 HJ 1259 distance=61' 14589+0636 WSI 81 distance=62' 14522+0546 CVR1606 distance=62' 14576+0649 UC 2882 distance=64' 14550+0655 BRT2605 distance=69' 14530+0500 GWP2470 distance=70' 14592+0649 FOX 188AB distance=74' 14592+0649 HJ 1263AC distance=74' 14592+0649 ABH 83AD distance=74' 14592+0649 ABH 83AE distance=74' 14565+0705 UC 2876 distance=77' 14512+0548 CBL 469 distance=77' 15003+0500 LDS5831 distance=77' 15010+0619 HJ 1265 distance=78' 14511+0557 WSP 40AB distance=80' 14511+0557 WSP 40AC distance=80' 14511+0557 WSP 40AD distance=80' 15018+0538 HJ 2760 distance=82' 14586+0432 J 1026 distance=84' 14597+0442 BRT2159AB distance=84' 14597+0442 FYM 243AC distance=84' 15008+0441 WIS 278 distance=95' 14552+0725 UC 2872AB distance=98' 14537+0721 CVR 160 distance=102' 15012+0710 RAO 326 distance=109' 15004+0417 KPP 332 distance=110' 14489+0557 STF1883 distance=112' 15041+0530 STF1904 distance=118' 15011+0415 HJ 1266 distance=118' 14586+0355 UC 198 distance=119' 15003+0739 TOK 900 distance=126' 14528+0354 CBL 472 distance=127' 14522+0356 HEI 890 distance=129' 14486+0451 HEI 889 distance=129' 14527+0746 HLD 120AB distance=130' 14527+0746 FOX 186AC distance=130' 14576+0801 UC 2881 distance=134' 15031+0421 BAL2866AB distance=134' 15031+0421 FYM 242BC distance=135' 15052+0617 TOK 166 distance=136' 14491+0720 UC 2847 distance=142' 14518+0343 SKF2720 distance=143' 15036+0723 SLW1056 distance=144' 15025+0354 UC 2906 distance=147' 14578+0816 HJ 2756 distance=149' 15032+0740 HJ 1267 distance=151' 15066+0547 HJ 1268 distance=154' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 14564+0548 CVR 768 161 17.1 1
Show 14574+0555 KPP3287 350 10.9 18
Show 14539+0557 SLW1042 102 117.1 37
Show 14590+0529 GWP2482 82 15.6 45
Show 14554+0647 HJ 1259 79 33.0 61
Show 14589+0636 WSI 81 324 0.1 62
Show 14522+0546 CVR1606 160 3.4 62
Show 14576+0649 UC 2882 92 13.5 64
Show 14550+0655 BRT2605 305 4.1 69
Show 14530+0500 GWP2470 30 8.2 70
Show 14592+0649 FOX 188 AB 21 19.5 74
Show 14592+0649 HJ 1263 AC 104 17.2 74
Show 14592+0649 ABH 83 AD 249 35.6 74
Show 14592+0649 ABH 83 AE 79 72.7 74
Show 14565+0705 UC 2876 275 43.2 77
Show 14512+0548 CBL 469 13 25.6 77
Show 15003+0500 LDS5831 231 9.0 77
Show 15010+0619 HJ 1265 271 9.9 78
Show 14511+0557 WSP 40 AB 25 0.7 80
Show 14511+0557 WSP 40 AC 190 11.3 80
Show 14511+0557 WSP 40 AD 70 10.4 80
Show 15018+0538 HJ 2760 21 17.9 82
Show 14586+0432 J 1026 100 3.5 84
Show 14597+0442 BRT2159 AB 73 5.3 84
Show 14597+0442 FYM 243 AC 180 18.9 84
Show 15008+0441 WIS 278 265 641.5 95
Show 14552+0725 UC 2872 AB 158 43.4 98
Show 14537+0721 CVR 160 180 24.0 102
Show 15012+0710 RAO 326 202 0.1 109
Show 15004+0417 KPP 332 184 3.7 110
Show 14489+0557 STF1883 277 1.1 112
Show 15041+0530 STF1904 348 10.1 118
Show 15011+0415 HJ 1266 25 13.2 118
Show 14586+0355 UC 198 66 38.8 119
Show 15003+0739 TOK 900 172 0.2 126
Show 14528+0354 CBL 472 174 21.5 127
Show 14522+0356 HEI 890 196 1.7 129
Show 14486+0451 HEI 889 341 1.8 129
Show 14527+0746 HLD 120 AB 226 15.6 130
Show 14527+0746 FOX 186 AC 42 98.7 130
Show 14576+0801 UC 2881 92 17.4 134
Show 15031+0421 BAL2866 AB 126 10.5 134
Show 15031+0421 FYM 242 BC 100 20.4 135
Show 15052+0617 TOK 166 328 12.6 136
Show 14491+0720 UC 2847 42 28.5 142
Show 14518+0343 SKF2720 56 1.3 143
Show 15036+0723 SLW1056 96 26.1 144
Show 15025+0354 UC 2906 217 23.9 147
Show 14578+0816 HJ 2756 90 24.1 149
Show 15032+0740 HJ 1267 8 13.6 151
Show 15066+0547 HJ 1268 104 34.0 154



WDS 14564+0548 : COMPONENTS


  A
B pa=161.3°
sep=17.11"


14564+0548 A


Coord arcsec 2000 145620.85+054841.1 Mag 17.8 Spectral class M3 (red) PmRA -11.00
PmDE -42.0 SAO 120747
SAO
SAO 120747 DelFlag RA1950 PmRA1950 0.0008
DE1950 PmDE1950 0.011 Vmag 8 SpType K0
Double code Source 30 CatNum 5096 DM BD+03 2957
DMcomp BDsup HD 131954 M HD 0
GC RA1950rad 3.90077801 DE1950rad 0.0544607 PmRA2000 0.001
PmDE2000 0.014


14564+0548 B


Coord arcsec 2000 145621.22+054824.9 Mag 20.2 Spectral class M3 (red) PmRA -8.00
PmDE -40.0 Delta magnitude 2.4 Coordinate calculated yes
