21124+3810 GUR 9 AD



21h 12m 20.79s +38° 10' 02.6" P.A. 64.00 sep 9.8 mag 9.92,14.90


Coord 2000 21124+3810 Discov num GUR   9 Comp AD Coord arcsec 2000 21 12 20.79 +38 10 02.6
Date first 1998 Date last 2015 Obs 7
Pa first 64 Pa last 64.3 P.A. Now (θ) 64.3°
Sep first 10.4 Sep last 9.794 Sep. Now (ρ) 9.794"
Mag pri 9.92 Mag sec 14.90 delta mag (ΔM) 4.98 Spectral class
Pri motion ra -001 Sec motion ra
Pri motion dec -004 Sec motion dec
Notes
Nature of this double is uncertain.


21124+3810 SYSTEM COMPONENTS


Show name SAO coord wds_name last obs pa sep mag1 mag2 d_mag orb current
Show 21 12 21 +38 10 03 COU 1971 AB 2014 4 283 0.6 10.00 13.00 3.00
Show 21 12 21 +38 10 03 GUR 9 AC 2015 7 112 16.9 9.92 13.20 3.28
Show 21 12 21 +38 10 03 GUR 9 AD 2015 7 64 9.8 9.92 14.90 4.98 <===
Show 21 12 21 +38 10 03 GUR 9 AE 2015 7 75 18.4 9.92 15.40 5.48
Quintuple system
5 estimated visually detectable stars in this system


OTHER CATALOGS AND DESIGNATIONS


Constellation Cygnus Gaia DR2 1868920938302347648


WDS 21124+3810 GUR 9 AD : NOTES


No records found.



DISCOVERER


discov author
COU Couteau, P.
GUR Guerrero, C.A., Rosales-Ortega, F.F., Escobedo, G., Martinez, J., Castillo, E.,
GUR MNRAS 495, 806, 2020
GUR Guerrero, C.A., Zepeda, C.E., Souza, T.B., Najera, M.R., Borges Fernandes, M.,
GUR Hernandez-Aguila, J.B., Carvajal, J.C., Castro-Chacon, J.H., Hernandez-Valencia, B.,
GUR AJ 161, 253, 2021


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
21124+3810 GUR 9 AD 2012 3 65 9.8 9.92 14.90 211220.79+381002.6
21124+3810 GUR 9 AD 2015 4 64 9.8 9.92 14.90 211220.79+381002.6

If you need more information about this double, apply for a data request form to the WDS.



WDS 21124+3810 GUR 9 AD : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 21124+3810 GUR 9 AD : MEASURES


No records found.

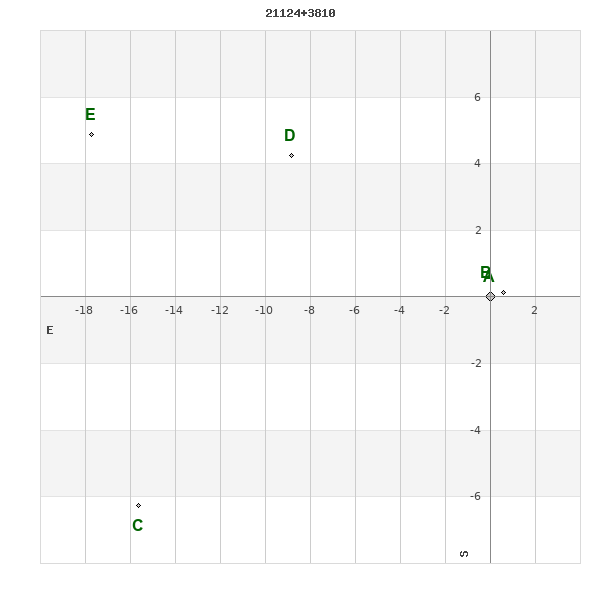

WDS 21124+3810 : VIRTUAL EYEPIECE



21124+3810 COU1971A mag 10 21124+3810 COU1971B sep 0.6 P.A. 283.10 mag 13 21124+3810 GUR 9C sep 16.9 P.A. 111.80 mag 13.2 21124+3810 GUR 9D sep 9.8 P.A. 64.30 mag 14.9 21124+3810 GUR 9E sep 18.4 P.A. 74.60 mag 15.4 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 21124+3810 : ALADIN DSS IMAGE @ 21h 12m 20.79s +38° 10' 02.6"




WDS 21124+3810 GUR 9 AD : NEIGHBORHOODS


FoV:
Limit:
Primaries only

21124+3810 GUR 9AD distance=0' 21123+3808 TDT2822 distance=3' 21127+3807 GUR 12 distance=6' 21127+3806 GUR 11 distance=6' 21129+3815 GUR 14 distance=9' 21117+3818 SMA 136 distance=10' 21126+3819 GUR 10 distance=10' 21133+3803 TOB 214 distance=13' 21137+3815 GUR 17 distance=17' 21111+3821 ES 207 distance=18' 21138+3812 SMA 144 distance=18' 21122+3828 SMA 137 distance=19' 21140+3809 SEI1456 distance=19' 21108+3814 TDT2806 distance=19' 21140+3808 GUR 20 distance=20' 21108+3818 ALI 682 distance=20' 21110+3757 CRB 139 distance=21' 21138+3800 KPP 786 distance=21' 21125+3834 SEI1445 distance=25' 21140+3755 SEI1457 distance=25' 21111+3831 GUR 6 distance=26' 21144+3803 SEI1461AB distance=26' 21144+3803 GUR 21AC distance=26' 21137+3830 GUR 18 distance=26' 21103+3803 GUR 3 distance=26' 21109+3830 ES 254 distance=27' 21146+3813 GUR 23 distance=27' 21139+3830 COU1817 distance=28' 21133+3835 SMA 140 distance=29' 21148+3803 AGC 13AB distance=30' 21148+3803 AGC 13AC distance=30' 21148+3803 AGC 13AE distance=30' 21148+3803 AGC 13AF distance=30' 21148+3803 DAL 38AG distance=30' 21148+3803 LEP 100AI distance=30' 21148+3803 AGC 13AB,D distance=30' 21148+3803 FYM 110AK distance=30' 21148+3803 FYM 110AJ distance=30' 21148+3803 FYM 110AL distance=30' 21148+3803 JOD 20Fa,Fb distance=31' 21149+3806 GUR 28 distance=31' 21144+3753 SEI1460 distance=31' 21133+3744 SMA 141 distance=32' 21133+3743 SMA 142 distance=32' 21148+3803 DAL 38GH distance=32' 21114+3840 GUR 8 distance=33' 21139+3838 GUR 19 distance=34' 21113+3841 GUR 7AB distance=34' 21113+3841 GUR 7AC distance=34' 21146+3832 SEI1464AB distance=35' 21146+3832 GUR 24AC distance=35' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 21124+3810 COU1971 AB 283 0.6 0
Show 21124+3810 GUR 9 AC 112 16.9 0
Show 21124+3810 GUR 9 AD 64 9.8 0
Show 21124+3810 GUR 9 AE 75 18.4 0
Show 21123+3808 TDT2822 185 0.6 3
Show 21127+3807 GUR 12 323 2.6 6
Show 21127+3806 GUR 11 39 0.4 6
Show 21129+3815 GUR 14 204 7.8 9
Show 21117+3818 SMA 136 122 3.8 10
Show 21126+3819 GUR 10 294 5.3 10
Show 21133+3803 TOB 214 211 22.8 13
Show 21137+3815 GUR 17 105 9.6 17
Show 21111+3821 ES 207 244 2.4 18
Show 21138+3812 SMA 144 327 15.3 18
Show 21122+3828 SMA 137 121 9.6 19
Show 21140+3809 SEI1456 357 21.0 19
Show 21108+3814 TDT2806 259 0.4 19
Show 21140+3808 GUR 20 17 1.6 20
Show 21108+3818 ALI 682 129 8.9 20
Show 21110+3757 CRB 139 94 15.2 21
Show 21138+3800 KPP 786 20 6.7 21
Show 21125+3834 SEI1445 23 27.9 25
Show 21140+3755 SEI1457 28 10.6 25
Show 21111+3831 GUR 6 348 3.6 26
Show 21144+3803 SEI1461 AB 136 10.7 26
Show 21144+3803 GUR 21 AC 183 24.0 26
Show 21137+3830 GUR 18 301 14.1 26
Show 21103+3803 GUR 3 344 1.8 26
Show 21109+3830 ES 254 326 2.2 27
Show 21146+3813 GUR 23 60 10.4 27
Show 21139+3830 COU1817 110 0.6 28
Show 21133+3835 SMA 140 127 17.2 29
Show 21148+3803 AGC 13 AB 170 0.9 30
Show 21148+3803 AGC 13 AC 211 73.0 30
Show 21148+3803 AGC 13 AE 257 86.9 30
Show 21148+3803 AGC 13 AF 184 89.5 30
Show 21148+3803 DAL 38 AG 109 120.9 30
Show 21148+3803 LEP 100 AI 77 534.5 30
Show 21148+3803 AGC 13 AB,D 208 205.4 30
Show 21148+3803 FYM 110 AK 316 99.0 30
Show 21148+3803 FYM 110 AJ 127 49.7 30
Show 21148+3803 FYM 110 AL 290 32.8 30
Show 21148+3803 JOD 20 Fa,Fb 349 0.9 31
Show 21149+3806 GUR 28 115 0.3 31
Show 21144+3753 SEI1460 258 7.0 31
Show 21133+3744 SMA 141 149 7.3 32
Show 21133+3743 SMA 142 176 12.4 32
Show 21148+3803 DAL 38 GH 108 8.6 32
Show 21114+3840 GUR 8 8 10.4 33
Show 21139+3838 GUR 19 123 9.0 34
Show 21113+3841 GUR 7 AB 77 10.3 34



WDS 21124+3810 : COMPONENTS


  A B C D
B pa=283.1°
sep=0.60"

C pa=111.8°
sep=16.87"
pa=111.5°
sep=17.47"

D pa=64.3°
sep=9.79"
pa=66.4°
sep=10.27"
pa=327.0°
sep=12.54"

E pa=74.6°
sep=18.38"
pa=75.5°
sep=18.92"
pa=10.5°
sep=11.34"
pa=85.9°
sep=8.92"


21124+3810 A


Coord arcsec 2000 211220.79+381002.6 Mag 10 PmRA -1.00 PmDE -4.0


21124+3810 B


Coord arcsec 2000 211220.74+381002.7 Mag 13 Delta magnitude 3 Coordinate calculated yes


21124+3810 C


Coord arcsec 2000 211222.12+380956.3 Mag 13.2 Delta magnitude 3.2 Coordinate calculated yes


21124+3810 D


Coord arcsec 2000 211221.54+381006.8 Mag 14.9 Delta magnitude 4.9 Coordinate calculated yes


21124+3810 E


Coord arcsec 2000 211222.29+381007.5 Mag 15.4 Delta magnitude 5.4 Coordinate calculated yes
