16522+4205 UC 3244

16^h 52^m 14.46^s +42° 05' 28.6" P.A. 154.00 sep 50.2 mag 10.90,15.50

Coord 2000	16522+4205	Discov num	UC 3244	Comp		Coord arcsec 2000	16 52 14.46 +42 05 28.6
Date first	1998	Date last	2016	Obs	10
Pa first	154	Pa last	153.7	P.A. Now (θ)	153.7°
Sep first	50.2	Sep last	50.229	Sep. Now (ρ)	50.229"
Mag pri	10.90	Mag sec	15.50	delta mag (ΔM)	4.6	Spectral class
Pri motion ra	+060	Sec motion ra	+057
Pri motion dec	-083	Sec motion dec	-080
Notes	V R (Proper motion indicates physical, Red magnitudes)

rPM=0.041 (< 0.3, Physical double)

This double is physical.

OTHER CATALOGS AND DESIGNATIONS

Constellation

Hercules

Gaia DR2

1357854086725678976

WDS 16522+4205 UC 3244 : NOTES

No records found.

DISCOVERER

discov	author
UC	USNO CCD Astrographic Catalog (UCAC1, UCAC2, UCAC3, UCAC4)
UC	Zacharias, N., Finch, C.T., Girard, T.M., Henden, A., Bartlett, J.L., Monet, D.G.,
UC	& Zacharias, M.I. (UCAC4 Catalog)
UC	Zacharias, N., Finch, C.T., Subasavage, J.P., Bredthauer, G., Crockett, C.,
UC	DiVittorio, M., Ferguson, E., Harris, F., Harris, H.C., Hendon, A., Kilian, C.,
UC	Munn, J., Rafferty, T., Rhodes, A., Schultheis, M., Tilleman, T., & Wieder, G.

WDS HISTORIC DATA

coord_2000	discov_num	comp	epoch	obs	pa	sep	mag_pri	mag_sec	spectr	dm_number	notes	coord_arcsec_2000
16522+4205	UC 3244		2000	2	154	50.2	10.90	15.50			V	165214.46+420528.6
16522+4205	UC 3244		2002	2	154	50.2	10.90	15.50			V	165214.46+420528.6
16522+4205	UC 3244		2010	3	154	50.3	10.90	15.50			V R	165214.46+420528.6
16522+4205	UC 3244		2015	4	154	50.2	10.90	15.50			V R	165214.46+420528.6
16522+4205	UC 3244		2016	10	154	50.2	10.90	15.50			V R	165214.46+420528.6

If you need more information about this double, apply for a data request form to the WDS.

WDS 16522+4205 UC 3244 : VISUAL OBSERVATIONS REPORTS

No records found.

WDS 16522+4205 UC 3244 : MEASURES

No records found.

WDS 16522+4205 : VIRTUAL EYEPIECE

Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.

WDS 16522+4205 : ALADIN DSS IMAGE @ 16^h 52^m 14.46^s +42° 05' 28.6"

DSS color DSS blue 2MASS AllWISE GALEX SDSS9 XMM PanSTARRS

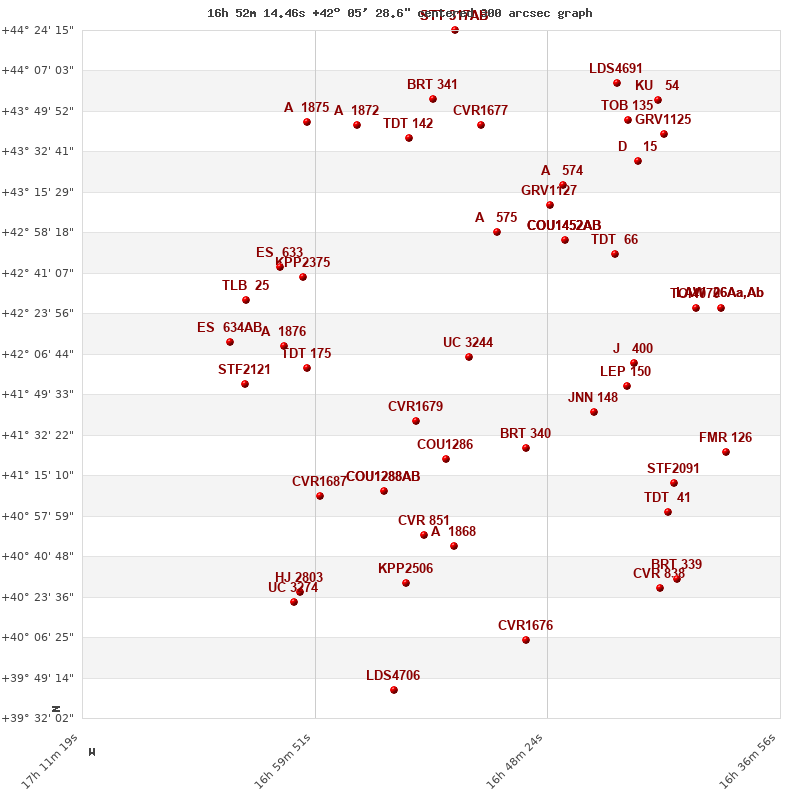

WDS 16522+4205 UC 3244 : NEIGHBORHOODS

Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.

Show	name	coord_2000	discov#	comp	pa	sep	dist(')
Show		16522+4205	UC 3244		154	50.2	0
Show		16549+4138	CVR1679		198	4.5	40
Show		16533+4122	COU1286		316	0.9	46
Show		16494+4127	BRT 340		198	3.5	50
Show		16509+4259	A 575		150	0.7	56
Show		16476+4255	COU1452	AB	104	0.3	72
Show		16476+4255	GII 3	AC	52	1.8	72
Show		16476+4255	GII 3	AD	58	1.9	72
Show		16461+4142	JNN 148		337	5.3	73
Show		16565+4108	COU1288	AB	2	1.5	74
Show		16565+4108	GII 239	Aa,Ab	128	0.2	74
Show		16480+4309	GRV1127		250	10.2	78
Show		16545+4050	CVR 851		182	7.3	80
Show		16530+4045	A 1868		303	2.2	82
Show		16445+4153	LEP 150		39	7.2	88
Show		16476+4319	A 574		331	4.7	90
Show		17002+4201	TDT 175		51	0.7	90
Show		16441+4203	J 400		174	5.9	91
Show		16451+4249	TDT 66		74	0.6	91
Show		17004+4239	KPP2375		141	20.5	97
Show		16552+4338	TDT 142		337	0.6	99
Show		16517+4344	CVR1677		125	3.1	99
Show		16596+4106	CVR1687		271	3.5	102
Show		17014+4210	A 1876		352	3.7	102
Show		16554+4029	KPP2506		266	22.5	103
Show		17016+4244	ES 633		260	6.8	111
Show		16541+4354	BRT 341		255	4.2	112
Show		16578+4344	A 1872		119	1.1	116
Show		16439+4329	D 15		313	0.6	124
Show		17033+4154	STF2121		151	2.6	124
Show		16495+4005	CVR1676		309	3.5	125
Show		17033+4229	TLB 25		230	33.9	125
Show		16422+4112	STF2091		337	0.3	126
Show		16411+4226	TOI4070		28	3.7	126
Show		16425+4100	TDT 41		329	0.5	129
Show		17040+4212	ES 634	AB	93	2.1	132
Show		16444+4346	TOB 135		255	20.8	133
Show		17002+4345	A 1875		190	2.6	133
Show		17007+4025	HJ 2803		269	18.9	138
Show		16530+4424	STT 317	AB	200	25.1	139
Show		16530+4424	STT 317	AC	316	131.3	139
Show		16398+4226	LAW 26	Aa,Ab	227	0.6	140
Show		16398+4226	LAW 26	AB	84	29.8	140
Show		16450+4402	LDS4691		358	165.1	141
Show		16420+4340	GRV1125		340	24.6	142
Show		17009+4021	UC 3274		237	53.7	143
Show		16429+4028	CVR 838		56	22.9	145
Show		16396+4125	FMR 126		262	83.4	148
Show		16559+3944	LDS4706		274	24.3	148
Show		16420+4031	BRT 339		280	4.8	150
Show		16430+4355	KU 54		99	9.7	150

WDS 16522+4205 : COMPONENTS

	A
B	pa=153.7° sep=50.23"

16522+4205 A

Coord arcsec 2000

165214.46+420528.6

Mag

10.9

PmRA

60.00

PmDE

-83.0

16522+4205 B

Coord arcsec 2000	165216.46+420443.6		Mag	15.5		PmRA	57.00		PmDE	-80.0
Delta magnitude	4.6		Coordinate calculated	yes
