16242-0506 UC 3163

16^h 24^m 13.31^s -05° 05' 39.7" P.A. 226.00 sep 8.0 mag 15.30,16.00

Coord 2000	16242-0506	Discov num	UC 3163	Comp		Coord arcsec 2000	16 24 13.31 -05 05 39.7
Date first	1954	Date last	2016	Obs	7
Pa first	224	Pa last	226.1	P.A. Now (θ)	226.1°
Sep first	6.5	Sep last	7.966	Sep. Now (ρ)	7.966"
Mag pri	15.30	Mag sec	16.00	delta mag (ΔM)	0.7	Spectral class
Pri motion ra	-044	Sec motion ra	-056
Pri motion dec	-030	Sec motion dec	-038
Notes	V (Proper motion indicates physical)

rPM=0.213 (< 0.3, Physical double)

This double is physical.

OTHER CATALOGS AND DESIGNATIONS

Constellation

Ophiuchus

Gaia DR2

4355669722359365888

WDS 16242-0506 UC 3163 : NOTES

No records found.

DISCOVERER

discov	author
UC	USNO CCD Astrographic Catalog (UCAC1, UCAC2, UCAC3, UCAC4)
UC	Zacharias, N., Finch, C.T., Girard, T.M., Henden, A., Bartlett, J.L., Monet, D.G.,
UC	& Zacharias, M.I. (UCAC4 Catalog)
UC	Zacharias, N., Finch, C.T., Subasavage, J.P., Bredthauer, G., Crockett, C.,
UC	DiVittorio, M., Ferguson, E., Harris, F., Harris, H.C., Hendon, A., Kilian, C.,
UC	Munn, J., Rafferty, T., Rhodes, A., Schultheis, M., Tilleman, T., & Wieder, G.

WDS HISTORIC DATA

coord_2000	discov_num	comp	epoch	obs	pa	sep	mag_pri	mag_sec	spectr	dm_number	notes	coord_arcsec_2000
16242-0506	UC 3163		2000	2	227	7.9	15.30	16.00			V	162413.31-050539.7
16242-0506	UC 3163		2015	4	226	8.0	15.30	16.00			V	162413.31-050539.7
16242-0506	UC 3163		2016	6	226	8.0	15.30	16.00			V	162413.31-050539.7

If you need more information about this double, apply for a data request form to the WDS.

WDS 16242-0506 UC 3163 : VISUAL OBSERVATIONS REPORTS

No records found.

WDS 16242-0506 UC 3163 : MEASURES

No records found.

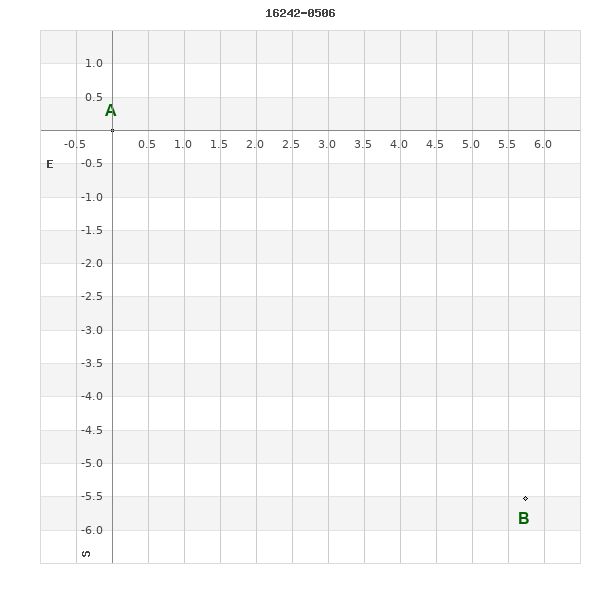

WDS 16242-0506 : VIRTUAL EYEPIECE

Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.

WDS 16242-0506 : ALADIN DSS IMAGE @ 16^h 24^m 13.31^s -05° 05' 39.7"

DSS color DSS blue 2MASS AllWISE GALEX SDSS9 XMM PanSTARRS

WDS 16242-0506 UC 3163 : NEIGHBORHOODS

Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.

Show	name	coord_2000	discov#	comp	pa	sep	dist(')
Show		16242-0506	UC 3163		226	8.0	0
Show		16250-0510	CVR 186		196	44.9	13
Show		16225-0415	BU 1453	AB	22	120.6	57
Show		16225-0415	BU 1453	AC	349	83.6	57
Show		16225-0415	BU 1453	BC	244	68.7	58
Show		16204-0416	WIL 3		145	35.9	76
Show		16293-0501	RST4561		33	0.4	76
Show		16278-0413	CVR 823		171	17.5	76
Show		16282-0415	GKM9357	Aa,Ab	252	0.2	79
Show		16275-0609	CVR 822		339	14.6	81
Show		16241-0627	BRT 465		292	4.6	82
Show		16210-0617	YMG 78		25	0.0	87
Show		16207-0356	STF3103		304	24.4	88
Show		16268-0347	RST4560		140	2.7	88
Show		16227-0341	KPP 370		316	3.8	89
Show	Yed Posterior	16183-0442	BU 1452		246	120.2	92
Show		16276-0334	VYS 7		81	3.3	105
Show		16261-0657	JKS 10		151	26.5	115
Show		16307-0359	NSN 154		316	6.2	118
Show		16164-0435	UC 3146		96	13.6	122
Show		16179-0631	BRT 464		82	3.8	128
Show		16238-0258	TOK 901		53	0.2	128
Show		16228-0722	A 24		336	1.4	138
Show		16337-0444	PST 1		335	3.4	144
Show		16167-0323	LDS4659		287	11.3	152
Show		16160-0644	GWP2611		179	8.7	157
Show		16137-0510	GWP2609		113	14.4	157
Show		16328-0636	RST4562		138	0.2	158
Show		16333-0635	HJ 4864	AB	86	8.5	162
Show		16333-0635	HJ 4864	AC	147	13.0	162
Show		16333-0635	BU 9014	AD	235	74.3	162
Show		16165-0659	RST3939		89	2.3	162
Show		16318-0701	STF3105		180	0.6	162
Show		16348-0412	GIC 144	AB	36	999.9	166
Show		16348-0412	LMP 14	AC	326	100.6	166
Show		16348-0412	DSG 20	Aa,Ab	207	0.0	166
Show		16344-0401	FMR 154		107	1.0	166
Show		16179-0724	A 23		72	2.0	168
Show		16252-0218	UC 3165		67	11.4	168
Show	Yed Prior	16143-0342	BUP 164	AB	308	68.4	170
Show	Yed Prior	16143-0342	BUP 164	AC	123	259.2	170
Show		16245-0214	WIS 302		48	325.8	172
Show		16348-0412	LMP 14	BD	347	55.4	182
Show		16348-0412	LMP 14	BE	232	11.6	182
Show		16152-0709	RST3938		210	1.2	183
Show		16147-0703	BRT 463		223	3.3	184
Show		16357-0617	RST4563		23	6.5	186
Show		16368-0510	BU 819		241	1.5	188
Show		16369-0525	GWP2649		245	26.1	191
Show		16182-0216	STF2033		174	10.6	193
Show		16308-0218	RST5059		171	1.4	195

WDS 16242-0506 : COMPONENTS

	A
B	pa=226.1° sep=7.97"

16242-0506 A

Coord arcsec 2000

162413.31-050539.7

Mag

15.3

PmRA

-44.00

PmDE

-30.0

16242-0506 B

Coord arcsec 2000	162412.93-050545.2		Mag	16		PmRA	-56.00		PmDE	-38.0
Delta magnitude	0.7		Coordinate calculated	yes
