00511+2231 AZC 7



00h 51m 05.21s +22° 30' 34.9" P.A. 112.00 sep 13.8 mag 16.70,17.80 Sp M2+M3


Coord 2000 00511+2231 Discov num AZC   7 Comp Coord arcsec 2000 00 51 05.21 +22 30 34.9
Date first 1960 Date last 2016 Obs 7
Pa first 113 Pa last 112.3 P.A. Now (θ) 112.3°
Sep first 14.0 Sep last 13.761 Sep. Now (ρ) 13.761"
Mag pri 16.70 Mag sec 17.80 delta mag (ΔM) 1.1 Spectral class M2+M3 (red/red)
Pri motion ra +057 Sec motion ra +053
Pri motion dec -070 Sec motion dec -065
Notes N V (See Notes, Proper motion indicates physical)
rPM=0.071 (< 0.3, Physical double)
This double is physical.


OTHER CATALOGS AND DESIGNATIONS


Constellation Andromeda Gaia DR2 2802253576939441920


WDS 00511+2231 AZC 7 : NOTES


discov_num notes refcode
AZC 7 BC measure of 00511+2236LDS3204 now with this pair and decoupled with
the former LDS3204AB.


DISCOVERER


discov author
AZC Azcona, A.A.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
00511+2231 AZC 7 1997 1 112 13.7 16.70 17.80 V 005105.21+223034.9
00511+2231 AZC 7 2009 2 112 13.8 16.70 17.80 M2+M3 V 005105.21+223034.9
00511+2231 AZC 7 2010 4 112 13.7 16.70 17.80 M2+M3 NV 005105.21+223034.9
00511+2231 AZC 7 2015 5 113 13.8 16.70 17.80 M2+M3 NV 005105.21+223034.9
00511+2231 AZC 7 2016 7 112 13.8 16.70 17.80 M2+M3 NV 005105.21+223034.9

If you need more information about this double, apply for a data request form to the WDS.



WDS 00511+2231 AZC 7 : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 00511+2231 AZC 7 : MEASURES


No records found.

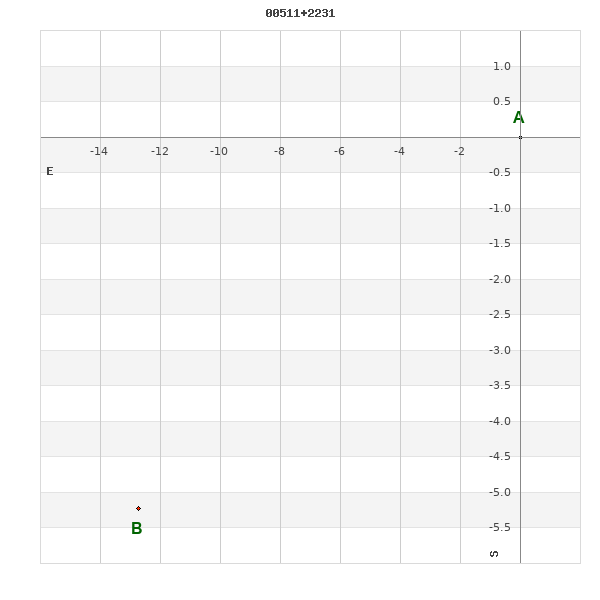

WDS 00511+2231 : VIRTUAL EYEPIECE



00511+2231 AZC 7A mag 16.7 Sp M2 00511+2231 AZC 7B sep 13.8 P.A. 112.30 mag 17.8 Sp M3 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 00511+2231 : ALADIN DSS IMAGE @ 00h 51m 05.21s +22° 30' 34.9"

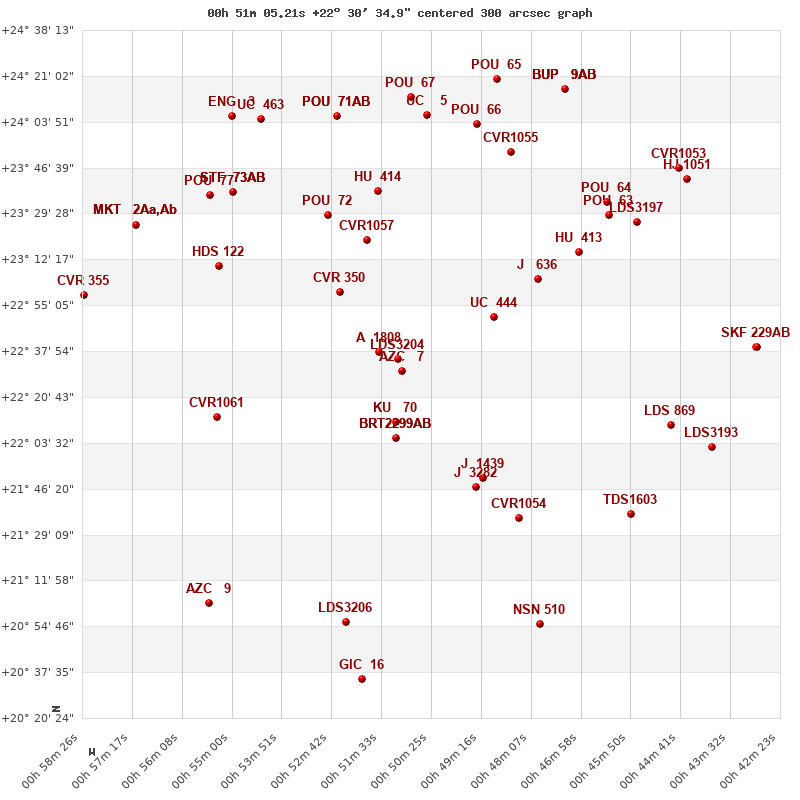

WDS 00511+2231 AZC 7 : NEIGHBORHOODS


FoV:
Limit:
Primaries only

00511+2231 AZC 7 distance=0' 00511+2236 LDS3204 distance=5' 00516+2237 A 1808 distance=11' 00512+2211 KU 70 distance=20' 00513+2206 BRT2299AB distance=26' 00513+2206 BRT2299Aa,Ab distance=26' 00525+2300 CVR 350 distance=36' 00490+2251 UC 444 distance=36' 00492+2150 J 1439 distance=48' 00494+2147 J 3282 distance=50' 00519+2320 CVR1057 distance=51' 00479+2305 J 636 distance=56' 00553+2213 CVR1061 distance=62' 00528+2329 POU 72 distance=63' 00484+2135 CVR1054 distance=67' 00516+2338 HU 414 distance=68' 00553+2310 HDS 122 distance=71' 00470+2315 HU 413 distance=72' 00550+2338 STF 73AB distance=86' 00550+2338 FOX 115AB,C distance=86' 00550+2338 TOK 447AD distance=86' 00463+2329 POU 63 distance=88' 00450+2210 LDS 869 distance=89' 00486+2353 CVR1055 distance=89' 00555+2337 POU 77 distance=90' 00458+2137 TDS1603 distance=91' 00464+2334 POU 64 distance=91' 00457+2327 LDS3197 distance=93' 00493+2403 POU 66 distance=96' 00524+2057 LDS3206 distance=96' 00505+2406 UC 5 distance=97' 00525+2406 POU 71AB distance=98' 00525+2406 POU 71AC distance=98' 00572+2325 MKT 2Aa,Ab distance=101' 00572+2325 FOX 116AB distance=101' 00508+2413 POU 67 distance=103' 00440+2203 LDS3193 distance=103' 00543+2405 UC 463 distance=105' 00479+2056 NSN 510 distance=105' 00584+2259 CVR 355 distance=105' 00555+2103 AZC 9 distance=107' 00550+2406 ENG 3 distance=110' 00429+2240 SKF 229AB distance=114' 00429+2240 SKF 229CD distance=114' 00489+2420 POU 65 distance=114' 00445+2342 HJ 1051 distance=116' 00447+2346 CVR1053 distance=116' 00520+2035 GIC 16 distance=117' 00473+2416 BUP 9AB distance=118' 00473+2416 BUP 9AC distance=118' 00473+2416 BUP 9AD distance=118' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 00511+2231 AZC 7 112 13.8 0
Show 00511+2236 LDS3204 137 312.2 5
Show 00516+2237 A 1808 202 0.2 11
Show 00512+2211 KU 70 125 53.9 20
Show 00513+2206 BRT2299 AB 217 2.4 26
Show 00513+2206 BRT2299 Aa,Ab 296 0.4 26
Show 00525+2300 CVR 350 173 9.2 36
Show 00490+2251 UC 444 291 43.2 36
Show 00492+2150 J 1439 181 6.9 48
Show 00494+2147 J 3282 2 6.3 50
Show 00519+2320 CVR1057 38 4.1 51
Show 00479+2305 J 636 263 1.9 56
Show 00553+2213 CVR1061 233 3.8 62
Show 00528+2329 POU 72 87 13.3 63
Show 00484+2135 CVR1054 183 4.5 67
Show 00516+2338 HU 414 113 1.4 68
Show 00553+2310 HDS 122 110 11.1 71
Show 00470+2315 HU 413 330 0.4 72
Show 00550+2338 STF 73 AB 340 1.2 86
Show 00550+2338 FOX 115 AB,C 223 161.7 86
Show 00550+2338 TOK 447 AD 129 999.9 86
Show 00463+2329 POU 63 108 8.4 88
Show 00450+2210 LDS 869 197 122.5 89
Show 00486+2353 CVR1055 71 3.6 89
Show 00555+2337 POU 77 91 4.2 90
Show 00458+2137 TDS1603 239 0.5 91
Show 00464+2334 POU 64 102 16.9 91
Show 00457+2327 LDS3197 63 3.7 93
Show 00493+2403 POU 66 228 13.1 96
Show 00524+2057 LDS3206 241 24.8 96
Show 00505+2406 UC 5 91 40.2 97
Show 00525+2406 POU 71 AB 156 5.3 98
Show 00525+2406 POU 71 AC 164 3.8 98
Show 00572+2325 MKT 2 Aa,Ab 41 0.0 101
Show 00572+2325 FOX 116 AB 232 129.3 101
Show 00508+2413 POU 67 114 11.9 103
Show 00440+2203 LDS3193 134 297.3 103
Show 00543+2405 UC 463 132 7.8 105
Show 00479+2056 NSN 510 198 30.1 105
Show 00584+2259 CVR 355 236 14.9 105
Show 00555+2103 AZC 9 10 16.3 107
Show 00550+2406 ENG 3 207 37.5 110
Show 00429+2240 SKF 229 AB 335 2.9 114
Show 00429+2240 SKF 229 CD 341 6.1 114
Show 00489+2420 POU 65 76 13.5 114
Show 00445+2342 HJ 1051 283 3.6 116
Show 00447+2346 CVR1053 318 4.8 116
Show 00520+2035 GIC 16 56 999.9 117
Show 00473+2416 BUP 9 AB 9 37.4 118
Show 00473+2416 BUP 9 AC 230 96.8 118
Show 00473+2416 BUP 9 AD 260 155.7 118



WDS 00511+2231 : COMPONENTS


  A
B pa=112.3°
sep=13.76"


00511+2231 A


Coord arcsec 2000 005105.21+223034.9 Mag 16.7 Spectral class M2 (red) PmRA 57.00
PmDE -70.0


00511+2231 B


Coord arcsec 2000 005106.13+223029.7 Mag 17.8 Spectral class M3 (red) PmRA 53.00
PmDE -65.0 Delta magnitude 1.1 Coordinate calculated yes
