03233+1634 A 2343



03h 23m 18.93s +16° 33' 56.9" P.A. 16.00 sep 5.3 mag 7.99,13.20 Sp K0 dist. 390.63 pc (1274.24 l.y.)


Coord 2000 03233+1634 Discov num A  2343 Comp Coord arcsec 2000 03 23 18.93 +16 33 56.9
Date first 1911 Date last 2016 Obs 11
Pa first 17 Pa last 15.6 P.A. Now (θ) 15.6°
Sep first 4.9 Sep last 5.29 Sep. Now (ρ) 5.29"
Mag pri 7.99 Mag sec 13.20 delta mag (ΔM) 5.21 Spectral class K0 (yellow-orange)
Pri motion ra +003 Sec motion ra
Pri motion dec -036 Sec motion dec
Notes
Nature of this double is uncertain.


OTHER CATALOGS AND DESIGNATIONS


Constellation Aries SAO 93408 HIP 15777 Tycho2 1233-00129-1
Gaia DR2 54580620492128000 HD 20955 GC 4037 BD BD+16 433
Distance 390.63 Distance ly 1274.24


WDS 03233+1634 A 2343 : NOTES


No records found.



DISCOVERER


discov author
A Aitken, R.G.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
03233+1634 A 2343 1989 5 17 5.1 8.50 13.20 K0 +16 433 032318.93+163356.9
03233+1634 A 2343 2000 6 14 4.5 8.50 13.20 K0 +16 433 032318.93+163356.9
03233+1634 A 2343 2015 8 16 5.3 7.99 13.20 K0 +16 433 032318.93+163356.9
03233+1634 A 2343 2016 9 16 5.3 7.99 13.20 K0 +16 433 032318.93+163356.9

If you need more information about this double, apply for a data request form to the WDS.



WDS 03233+1634 A 2343 : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 03233+1634 A 2343 : MEASURES


No records found.

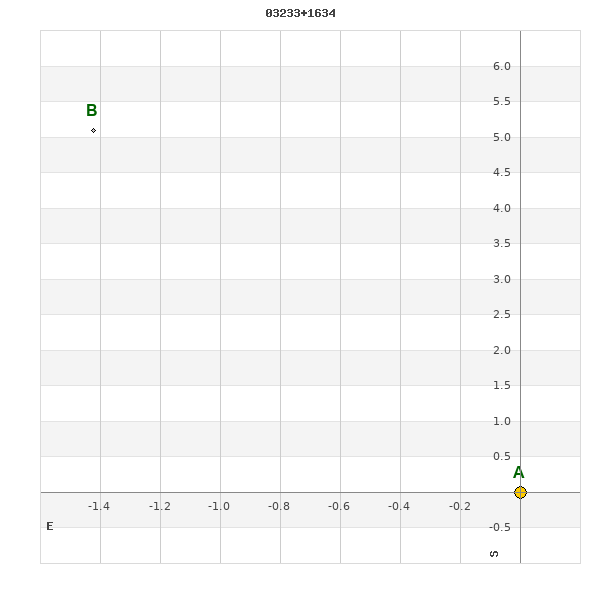

WDS 03233+1634 : VIRTUAL EYEPIECE



03233+1634 A 2343A mag 7.99 Sp K0 03233+1634 A 2343B sep 5.3 P.A. 15.60 mag 13.2 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 03233+1634 : ALADIN DSS IMAGE @ 03h 23m 18.93s +16° 33' 56.9"




WDS 03233+1634 A 2343 : NEIGHBORHOODS


FoV:
Limit:
Primaries only

03233+1634 A 2343 distance=0' 03203+1625 SLE 42AB distance=44' 03203+1625 SLE 42Aa,Ab distance=44' 03227+1717 BPM 72 distance=45' 03220+1715 LDS3483 distance=45' 03249+1552 BPM 73 distance=48' 03271+1633 SLW 153 distance=55' 03271+1646 CVR 441 distance=57' 03263+1709 JNN 256 distance=57' 03269+1609 BPM 76 distance=58' 03242+1733 STF 383 distance=61' 03225+1744 TOK 875 distance=71' 03207+1736 HJ 3246CR distance=72' 03261+1733 GRV 176 distance=73' 03183+1637 SLE 39 distance=73' 03207+1736 HJ 3245BE distance=73' 03207+1736 HJ 3246BC distance=73' 03183+1623 SLE 40 distance=73' 03211+1741 XMI 6 distance=74' 03207+1736 HJ 3246AB distance=75' 03207+1736 HJ 3246AD distance=75' 03207+1736 HJ 3246AC distance=75' 03244+1748 LDS3488 distance=76' 03254+1745 OCC 430 distance=77' 03282+1710 DOO 29 distance=79' 03235+1507 SKF1393Aa,Ab distance=88' 03235+1507 CLZ 21AB distance=88' 03293+1612 OCC 937 distance=90' 03256+1508 LDS3491 distance=92' 03170+1647 GWP 444 distance=92' 03187+1527 LDS9151 distance=96' 03299+1704 HJ 3247 distance=99' 03169+1715 COU 361 distance=101' 03171+1537 SLE 37 distance=107' 03174+1528 SLE 38 distance=108' 03263+1455 KPP 98 distance=109' 03185+1511 LDS9150 distance=109' 03310+1659 SLW 155 distance=113' 03160+1720 SLE 35 distance=115' 03151+1618 HU 1055AB distance=119' 03151+1618 ENG 13AB,C distance=119' 03151+1618 JRN 2AB,E distance=119' 03151+1618 BUP 41AB,D distance=119' 03219+1831 J 930 distance=120' 03151+1618 BUP 41CD distance=120' 03183+1810 OCC 910 distance=120' 03151+1704 TDS2499 distance=122' 03279+1451 NI 6 distance=123' 03311+1544 HDS 443 distance=123' 03167+1511 SLE 36 distance=127' 03305+1751 GRV 177 distance=130' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 03233+1634 A 2343 16 5.3 0
Show 03203+1625 SLE 42 AB 164 20.5 44
Show 03203+1625 SLE 42 Aa,Ab 230 0.0 44
Show 03227+1717 BPM 72 99 89.9 45
Show 03220+1715 LDS3483 330 26.0 45
Show 03249+1552 BPM 73 154 95.4 48
Show 03271+1633 SLW 153 351 17.3 55
Show 03271+1646 CVR 441 149 10.2 57
Show 03263+1709 JNN 256 224 1.0 57
Show 03269+1609 BPM 76 248 72.1 58
Show 03242+1733 STF 383 120 5.5 61
Show 03225+1744 TOK 875 239 1.7 71
Show 03207+1736 HJ 3246 CR 158 15.6 72
Show 03261+1733 GRV 176 252 17.5 73
Show 03183+1637 SLE 39 99 9.5 73
Show 03207+1736 HJ 3245 BE 103 10.8 73
Show 03207+1736 HJ 3246 BC 80 154.1 73
Show 03183+1623 SLE 40 320 12.3 73
Show 03211+1741 XMI 6 254 29.6 74
Show 03207+1736 HJ 3246 AB 194 159.8 75
Show 03207+1736 HJ 3246 AD 226 9.3 75
Show 03207+1736 HJ 3246 AC 138 172.5 75
Show 03244+1748 LDS3488 112 149.9 76
Show 03254+1745 OCC 430 -1 0.2 77
Show 03282+1710 DOO 29 211 20.3 79
Show 03235+1507 SKF1393 Aa,Ab 244 1.5 88
Show 03235+1507 CLZ 21 AB 185 67.7 88
Show 03293+1612 OCC 937 -1 0.1 90
Show 03256+1508 LDS3491 274 2.9 92
Show 03170+1647 GWP 444 294 22.2 92
Show 03187+1527 LDS9151 61 8.8 96
Show 03299+1704 HJ 3247 201 6.9 99
Show 03169+1715 COU 361 16 1.8 101
Show 03171+1537 SLE 37 70 18.1 107
Show 03174+1528 SLE 38 196 14.1 108
Show 03263+1455 KPP 98 44 4.9 109
Show 03185+1511 LDS9150 5 138.5 109
Show 03310+1659 SLW 155 229 52.2 113
Show 03160+1720 SLE 35 171 13.7 115
Show 03151+1618 HU 1055 AB 117 0.6 119
Show 03151+1618 ENG 13 AB,C 186 174.0 119
Show 03151+1618 JRN 2 AB,E 263 251.1 119
Show 03151+1618 BUP 41 AB,D 240 189.7 119
Show 03219+1831 J 930 121 3.8 120
Show 03151+1618 BUP 41 CD 298 163.7 120
Show 03183+1810 OCC 910 142 0.4 120
Show 03151+1704 TDS2499 196 0.4 122
Show 03279+1451 NI 6 301 3.9 123
Show 03311+1544 HDS 443 221 0.4 123
Show 03167+1511 SLE 36 204 14.3 127
Show 03305+1751 GRV 177 106 26.0 130



WDS 03233+1634 : COMPONENTS


  A
B pa=15.6°
sep=5.29"


03233+1634 A


Coord arcsec 2000 032318.93+163356.9 Mag 7.99 Spectral class K0 (yellow-orange) PmRA 3.00
PmDE -36.0 SAO 75906 HIP 15777 Tycho2 1233-00129-1
HD 20955 GC 4037 BD BD+16 433
Tycho2
Tycho2 1233-00129-1 Pflag RAmdeg 50.82887002 DEmdeg 16.56572881
PmRA 0.1 PmDE -34.7 E RAmdeg 9 E DEmdeg 9
E pmRA 0.8 E pmDE 0.8 EpRAm 1989.54 EpDEm 1989.78
Num 16 Q RAmdeg 0.7 Q DEmdeg 1.6 Q pmRA 0.8
Q pmDE 1.6 BTmag 9.364 E BTmag 0.025 VTmag 7.990
E VTmag 0.014 Prox 999 TYC T HIP 15777
CCDM RAdeg 50.82886972 DEdeg 16.56580639 EpRA 1990 1.63
EpDE 1990 1.76 E RAdeg 8.8 E DEdeg 8.9 Posflg
Corr -0.3
SAO
SAO 75906 DelFlag RA1950 PmRA1950 -0.0003
DE1950 PmDE1950 -0.005 Vmag 7.4 SpType G5
Double code Source 70 CatNum 4037 DM BD+20 554
DMcomp BDsup HD 20947 M HD 0
GC 4037 RA1950rad 0.87455519 DE1950rad 0.36291441 PmRA2000 -0.0003
PmDE2000 -0.007
Hipparcos
Catalog H HIP 15777 Proxy RAhms 03 23 18.93
DEdms +16 33 56.9 Vmag 7.86 VarFlag R Vmag G
RAdeg 50.8289 DEdeg 16.5658 AstroRef Plx 4.56
CCDM -0.55 N CCDM I Nsys 1 Ncomp 1
MultFlag Source Qual M HIP
Theta Rho HD BD BD+16 433
CD CP Dm number +16 433 VIred 1.08
SpType K0 R SpType Coord arcsec 2000 032318.93+163356.9
Hipparcos 2
HIP 15777 Sn 5 So 0 Nc 1
RArad 0.8871311737 DErad 0.2891279756 Plx 2.56 PmRA -3.46
PmDE -34.74 E RArad 0.85 E DErad 0.8 E Plx 1.14
E pmRA 1.34 E pmDE 1.26 Hpmag E Hpmag 0.0013
SHp 0.009 VA 0 BV 1.12 E BV 0.015
VI 1.08
CCDM
Ccdm 03233+1634 RComp Comp A Note1
Note2 Discov num DRAs 0.97 DDEs -3.2
R dRAs 10 Year Theta Rho
Obs 2 Vmag 8.5 Sp K0 PmNote *
PmRA 8 PmDE -34 Dm number +16 433 Cat1 BD
Name2 +16 291 Cat2 AGK2/3 HD 20955 M HD
ADS BDS A 2506 M ADS BDS N IDS IDS 03177N1613A
HIC 15777


03233+1634 B


Coord arcsec 2000 032319.03+163402.0 Mag 13.2 Delta magnitude 5.21 Coordinate calculated yes
CCDM
Ccdm 03233+1634 RComp Comp B Note1
Note2 Discov num A 2343 DRAs DDEs
R dRAs Year 1911 Theta 016 Rho 5.0
Obs 3 Vmag 13.2 Sp PmNote
PmRA PmDE Dm number Cat1
Name2 Cat2 HD M HD
ADS BDS A 2506 M ADS BDS N IDS IDS 03177N1613B
HIC 15777
