03233+2058 STF 381 (HD 20947)



03h 23m 19.33s +20° 58' 13.9" P.A. 104.00 sep 1.0 mag 7.56,8.75 Sp G5


Coord 2000 03233+2058 Discov num STF 381 Comp Coord arcsec 2000 03 23 19.33 +20 58 13.9
Date first 1827 Date last 2023 Obs 74
Pa first 94 Pa last 104 P.A. Now (θ) 104°
Sep first 0.8 Sep last 0.991 Sep. Now (ρ) 0.991"
Mag pri 7.56 Mag sec 8.75 delta mag (ΔM) 1.19 Spectral class G5 (yellow)
Pri motion ra -016 Sec motion ra -016
Pri motion dec -008 Sec motion dec -008
Notes
Nature of this double is uncertain.


OTHER CATALOGS AND DESIGNATIONS


Name HD 20947 Constellation Aries SAO 75906 Tycho2 1245-00245-1
Gaia DR2 61230432459246336 HD 20947 GC 4037


WDS 03233+2058 STF 381 (HD 20947) : NOTES


No records found.



DISCOVERER


discov author
STF (F. Struve DD - Appendix list #1)


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
03233+2058 STF 381 2006 69 107 1.1 7.56 8.75 G5 +20 554 032319.33+205813.9
03233+2058 STF 381 2013 67 108 1.1 7.56 8.75 G5 +20 554 032319.33+205813.9
03233+2058 STF 381 2015 69 108 1.0 7.56 8.75 G5 +20 554 032319.33+205813.9
03233+2058 STF 381 2018 72 109 1.1 7.56 8.75 G5 +20 554 032319.33+205813.9

If you need more information about this double, apply for a data request form to the WDS.



WDS 03233+2058 STF 381 (HD 20947) : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 03233+2058 STF 381 (HD 20947) : MEASURES


No records found.

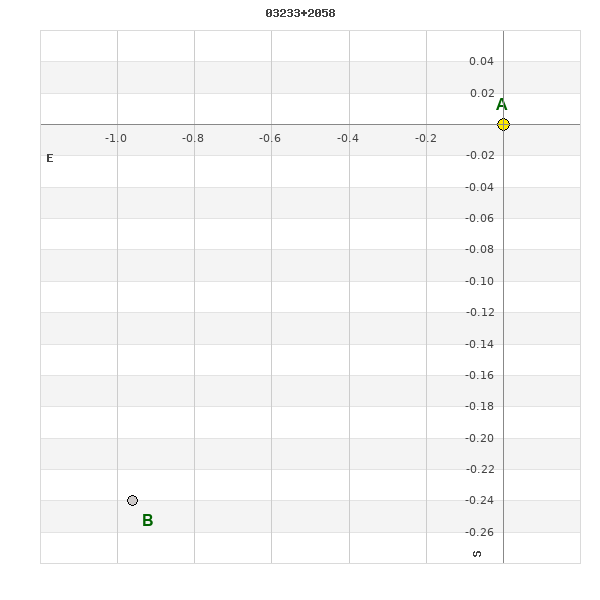

WDS 03233+2058 (HD 20947) : VIRTUAL EYEPIECE



03233+2058 STF 381A mag 7.56 Sp G5 03233+2058 STF 381B sep 1.0 P.A. 104.00 mag 8.75 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 03233+2058 (HD 20947) : ALADIN DSS IMAGE @ 03h 23m 19.33s +20° 58' 13.9"

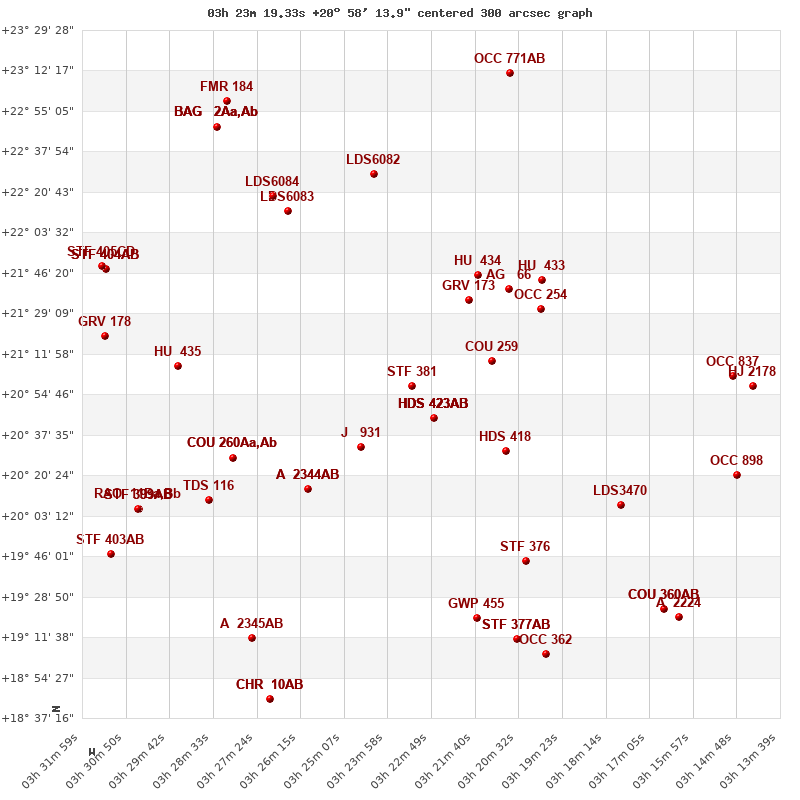

WDS 03233+2058 STF 381 (HD 20947) : NEIGHBORHOODS


FoV:
Limit:
Primaries only

03233+2058 STF 381 distance=0' 03228+2045 HDS 423AB distance=16' 03228+2045 HDS 423AC distance=16' 03228+2045 HDS 423AD distance=16' 03228+2045 HDS 423AE distance=16' 03228+2045 HDS 423AF distance=16' 03212+2109 COU 259 distance=32' 03247+2033 J 931 distance=33' 03218+2134 GRV 173 distance=43' 03209+2031 HDS 418 distance=45' 03216+2145 HU 434 distance=54' 03208+2139 AG 66 distance=55' 03199+2131 OCC 254 distance=58' 03261+2015 A 2344AB distance=59' 03261+2015 CTT 6AC distance=59' 03199+2143 HU 433 distance=66' 03280+2028 COU 260Aa,Ab distance=73' 03280+2028 STF 394AB distance=73' 03203+1944 STF 376 distance=86' 03295+2107 HU 435 distance=87' 03265+2213 LDS6083 distance=88' 03287+2010 TDS 116 distance=90' 03243+2231 LDS6082 distance=92' 03178+2008 LDS3470 distance=93' 03270+2219 LDS6084 distance=96' 03216+1920 GWP 455 distance=102' 03305+2006 STF 399AB distance=114' 03305+2006 STF 399AC distance=114' 03305+2006 RAO 11Ba,Bb distance=114' 03206+1911 STF 377AB distance=115' 03206+1911 STF 377AC distance=115' 03313+2119 GRV 178 distance=115' 03149+2103 OCC 837 distance=118' 03275+1911 A 2345AB distance=123' 03314+2148 STF 404AB distance=123' 03314+2148 STF 404AC distance=123' 03198+1905 OCC 362 distance=125' 03314+2148 STF 405CD distance=125' 03143+2057 HJ 2178 distance=126' 03148+2020 OCC 898 distance=126' 03284+2248 BAG 2Aa,Ab distance=132' 03284+2248 BU 878AB distance=132' 03284+2248 BU 878AC distance=132' 03312+1947 STF 403AB distance=132' 03167+1923 COU 360AB distance=133' 03167+1923 COU 360AC distance=133' 03208+2311 OCC 771AB distance=138' 03282+2259 FMR 184 distance=139' 03163+1920 A 2224 distance=139' 03271+1845 CHR 10AB distance=143' 03271+1845 RBR 35AC distance=143' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 03233+2058 STF 381 104 1.0 0
Show 03228+2045 HDS 423 AB 299 0.2 16
Show 03228+2045 HDS 423 AC 97 2.0 16
Show 03228+2045 HDS 423 AD 86 2.2 16
Show 03228+2045 HDS 423 AE 86 4.3 16
Show 03228+2045 HDS 423 AF 47 4.8 16
Show 03212+2109 COU 259 217 0.9 32
Show 03247+2033 J 931 79 4.8 33
Show 03218+2134 GRV 173 335 57.0 43
Show 03209+2031 HDS 418 342 0.6 45
Show 03216+2145 HU 434 215 0.3 54
Show 03208+2139 AG 66 285 4.0 55
Show 03199+2131 OCC 254 -1 0.1 58
Show 03261+2015 A 2344 AB 189 1.3 59
Show 03261+2015 CTT 6 AC 128 50.9 59
Show 03199+2143 HU 433 259 0.2 66
Show 03280+2028 COU 260 Aa,Ab 83 0.7 73
Show 03280+2028 STF 394 AB 163 6.9 73
Show 03203+1944 STF 376 251 7.2 86
Show 03295+2107 HU 435 344 0.6 87
Show 03265+2213 LDS6083 266 6.6 88
Show 03287+2010 TDS 116 183 1.1 90
Show 03243+2231 LDS6082 210 2.0 92
Show 03178+2008 LDS3470 276 2.5 93
Show 03270+2219 LDS6084 308 24.0 96
Show 03216+1920 GWP 455 208 13.9 102
Show 03305+2006 STF 399 AB 146 19.6 114
Show 03305+2006 STF 399 AC 222 57.6 114
Show 03305+2006 RAO 11 Ba,Bb 249 0.3 114
Show 03206+1911 STF 377 AB 102 1.2 115
Show 03206+1911 STF 377 AC 223 24.3 115
Show 03313+2119 GRV 178 294 13.0 115
Show 03149+2103 OCC 837 136 2.0 118
Show 03275+1911 A 2345 AB 176 1.0 123
Show 03314+2148 STF 404 AB 203 28.7 123
Show 03314+2148 STF 404 AC 50 121.5 123
Show 03198+1905 OCC 362 -1 0.1 125
Show 03314+2148 STF 405 CD 48 26.9 125
Show 03143+2057 HJ 2178 214 17.9 126
Show 03148+2020 OCC 898 -1 0.1 126
Show 03284+2248 BAG 2 Aa,Ab 144 0.1 132
Show 03284+2248 BU 878 AB 61 0.7 132
Show 03284+2248 BU 878 AC 229 144.4 132
Show 03312+1947 STF 403 AB 172 2.3 132
Show 03167+1923 COU 360 AB 257 2.0 133
Show 03167+1923 COU 360 AC 139 29.9 133
Show 03208+2311 OCC 771 AB 158 0.2 138
Show 03282+2259 FMR 184 298 4.0 139
Show 03163+1920 A 2224 331 0.8 139
Show 03271+1845 CHR 10 AB 29 0.0 143
Show 03271+1845 RBR 35 AC 81 0.9 143



WDS 03233+2058 : COMPONENTS


  A
B pa=104.0°
sep=0.99"


03233+2058 A


Name HD 20947 Coord arcsec 2000 032319.33+205813.9 Mag 7.56 Spectral class G5 (yellow)
PmRA -16.00 PmDE -8.0 SAO 75906 Tycho2 1245-00245-1
HD 20947 GC 4037 DM BD+20 554
Tycho2
Tycho2 1245-00245-1 Pflag P RAmdeg 50.83052456 DEmdeg 20.97051743
PmRA -16.4 PmDE -7.8 E RAmdeg 6 E DEmdeg 6
E pmRA 1.3 E pmDE 1.3 EpRAm 1991.36 EpDEm 1991.23
Num 6 Q RAmdeg 0.2 Q DEmdeg 2.0 Q pmRA 0.2
Q pmDE 1.9 BTmag 8.678 E BTmag 0.018 VTmag 7.556
E VTmag 0.012 Prox 10 TYC T HIP
CCDM RAdeg 50.83046806 DEdeg 20.97056056 EpRA 1990 1.64
EpDE 1990 1.54 E RAdeg 5.7 E DEdeg 6.3 Posflg D
Corr -0.2
SAO
SAO 75906 DelFlag RA1950 PmRA1950 -0.0003
DE1950 PmDE1950 -0.005 Vmag 7.4 SpType G5
Double code Source 70 CatNum 4037 DM BD+20 554
DMcomp BDsup HD 20947 M HD 0
GC 4037 RA1950rad 0.87455519 DE1950rad 0.36291441 PmRA2000 -0.0003
PmDE2000 -0.007
CCDM
Ccdm 03233+2058 RComp Comp A Note1
Note2 Discov num DRAs 1.31 DDEs 13.1
R dRAs 10 Year Theta Rho
Obs 2 Vmag 7.6 Sp G5 PmNote *
PmRA -17 PmDE -15 Dm number +20 554 Cat1 BD
Name2 +20 308 Cat2 AGK2/3 HD 20947 M HD
ADS BDS A 2504 M ADS BDS N IDS IDS 03176N2037A
HIC


03233+2058 B


Coord arcsec 2000 032319.40+205813.7 Mag 8.75 PmRA -16.00 PmDE -8.0
Delta magnitude 1.19 Coordinate calculated yes
CCDM
Ccdm 03233+2058 RComp Comp B Note1
Note2 Discov num STF 381 DRAs DDEs
R dRAs Year 1830 Theta 098 Rho 1.0
Obs 27 Vmag 8.3 Sp PmNote
PmRA PmDE Dm number Cat1
Name2 Cat2 HD M HD
ADS BDS A 2504 M ADS BDS N IDS IDS 03176N2037B
HIC
