22330+6955 STF 2924 AB,C



22h 33m 02.70s +69° 54' 48.1" P.A. 197.00 sep 125.1 mag 6.06,12.80 Sp A9III dist. 77.7 pc (253.46 l.y.)


Coord 2000 22330+6955 Discov num STF2924 Comp AB,C Coord arcsec 2000 22 33 02.70 +69 54 48.1
Date first 1910 Date last 2014 Obs 6
Pa first 193 Pa last 197 P.A. Now (θ) 197°
Sep first 114.4 Sep last 125.116 Sep. Now (ρ) 125.116"
Mag pri 6.06 Mag sec 12.80 delta mag (ΔM) 6.74 Spectral class A9III (white)
Pri motion ra +110 Sec motion ra -006
Pri motion dec +064 Sec motion dec -013
Notes N W (See Notes, )
rPM=1.094
This double is not physical.


22330+6955 SYSTEM COMPONENTS


Show name SAO coord wds_name last obs pa sep mag1 mag2 d_mag orb current
Show 20150 22 33 03 +69 54 48 STF 2924 AB 2023 152 246 0.5 7.82 6.28 1.54 Y
Show 20150 22 33 03 +69 54 48 STF 2924 AB,C 2014 6 197 125.1 6.06 12.80 6.74 <===
Show HD 213973 20150 22 33 03 +69 54 48 STF 2924 AB,D 2014 6 197 188.6 6.06 11.90 5.84
Quadruple system
5 estimated visually detectable stars in this system


OTHER CATALOGS AND DESIGNATIONS


Constellation Cepheus SAO 20150 HIP 111314 Tycho2 4480-01545-2
Gaia DR2 2226354954255158912 HD 213973 HR 8595 ADS 16057
BD BD+69 1262 Distance 77.7 Distance ly 253.46


WDS 22330+6955 STF 2924 AB,C : NOTES


discov_num notes refcode
STF2924 Giant (A9 III) classification probably wrong.
AB: Malkov et al. (2012) derive dynamical, photometric, and
spectroscopic masses 4.28 +/- 0.89, 2.72, and 1.79 Msun, respectively. Mlk2012


REFERENCES


refcode metd author reference
Mlk2012 not - Malkov, O.Yu., Tamazian, V.S., Docobo, J.A., & Chulkov, D.A. 2012A&A...546A..69M
Mlk2012 A&A 546, A69, 2012


DISCOVERER


discov author
MLK Malkov, O.Yu., Tamazian, V.S., Docobo, J.A., & Chulkov, D.A.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
22330+6955 STF2924 AB,C 2007 3 197 124.4 6.00 10.50 A9III N D 223302.70+695448.1
22330+6955 STF2924 AB,C 2014 6 197 125.1 6.06 12.80 A9III N 223302.70+695448.1

If you need more information about this double, apply for a data request form to the WDS.



WDS 22330+6955 STF 2924 AB,C : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 22330+6955 STF 2924 AB,C : MEASURES


No records found.

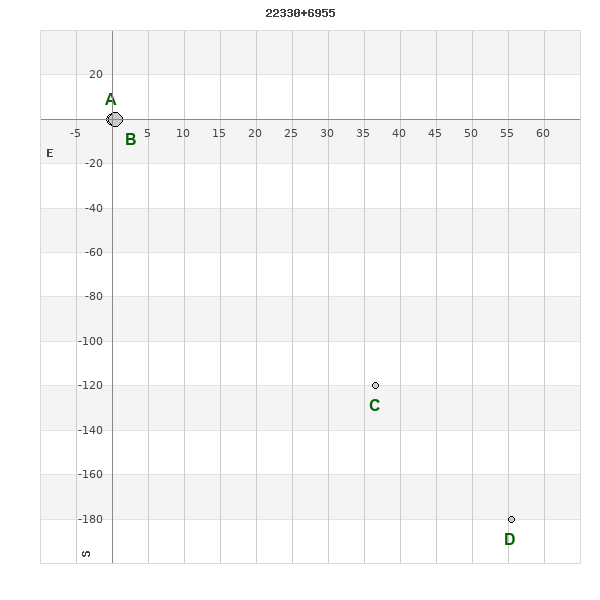

WDS 22330+6955 : VIRTUAL EYEPIECE



22330+6955 STF2924A mag 7.82 Sp A9III 22330+6955 STF2924B sep 0.5 P.A. 246.10 mag 6.28 22330+6955 STF2924C sep 125.1 P.A. 197.00 mag 12.8 22330+6955 STF2924D sep 188.6 P.A. 197.10 mag 11.9 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 22330+6955 : ALADIN DSS IMAGE @ 22h 33m 02.70s +69° 54' 48.1"




WDS 22330+6955 STF 2924 AB,C : NEIGHBORHOODS


FoV:
Limit:
Primaries only

22330+6955 STF2924AB,C distance=0' 22332+7022 STF2923AB distance=28' 22332+7022 STF2923AC distance=28' 22276+6954 LDS1983 distance=29' 22393+6941 LDS1495 distance=35' 22325+7036 MLR 262 distance=41' 22344+6915 LDS4979 distance=41' 22403+6930 TOI1516 distance=46' 22373+6913 CHR 113 distance=48' 22224+7007 SKF1107 distance=56' 22280+6901 CON 43Aa,Ab distance=60' 22280+6901 CON 43AB distance=60' 22197+7000 HJ 3110 distance=69' 22269+7100 FOX 46 distance=73' 22205+6922 KPP4272 distance=74' 22232+7054 A 783 distance=77' 22202+7038 HJ 3112 distance=79' 22374+7110 TDT3621AB distance=79' 22374+7110 TDT3621AC distance=79' 22325+6834 WHC 28 distance=82' 22329+7117 LDS1992 distance=83' 22357+7118 LDS1994 distance=84' 22331+6830 BU 706AB distance=85' 22331+6830 BU 706AC distance=85' 22343+6830 BU 708 distance=85' 22170+7020 WIS 365 distance=86' 22208+7054 LDS1978 distance=86' 22386+7117 TDT3633 distance=88' 22179+6910 OSW 59 distance=92' 22390+6828 CBL 544 distance=93' 22510+6958 MLB 433 distance=93' 22403+6830 BU 845AB distance=93' 22403+6830 BU 845AC distance=93' 22403+6830 FOX 269AD distance=93' 22427+6835 MLB 316AB distance=95' 22427+6835 MLB 316AC distance=95' 22178+7104 LDS1976 distance=103' 22201+6835 MLB 432 distance=103' 22520+6925 HJ 1829 distance=104' 22301+6812 BU 479 distance=104' 22150+6908 WIS 363 distance=106' 22207+6832 DAM 244 distance=107' 22214+6828 OSO 177AB distance=107' 22214+6828 OSO 177AC distance=107' 22214+6828 OSO 177AD distance=107' 22176+7110 DAM 243 distance=108' 22188+7116 LDS1977 distance=108' 22207+6828 MLB 312AB distance=109' 22207+6828 MLB 312AC distance=109' 22326+7145 LDS1991 distance=110' 22442+7138 TDT3679 distance=117' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 22330+6955 STF2924 AB 246 0.5 0
Show 22330+6955 STF2924 AB,C 197 125.1 0
Show 22330+6955 STF2924 AB,D 197 188.6 0
Show 22332+7022 STF2923 AB 47 9.5 28
Show 22332+7022 STF2923 AC 148 96.2 28
Show 22276+6954 LDS1983 229 14.3 29
Show 22393+6941 LDS1495 138 54.3 35
Show 22325+7036 MLR 262 120 0.7 41
Show 22344+6915 LDS4979 100 50.4 41
Show 22403+6930 TOI1516 28 7.1 46
Show 22373+6913 CHR 113 356 0.5 48
Show 22224+7007 SKF1107 101 2.4 56
Show 22280+6901 CON 43 Aa,Ab 10 0.6 60
Show 22280+6901 CON 43 AB 292 7.0 60
Show 22197+7000 HJ 3110 219 21.9 69
Show 22269+7100 FOX 46 131 4.9 73
Show 22205+6922 KPP4272 68 5.9 74
Show 22232+7054 A 783 181 4.5 77
Show 22202+7038 HJ 3112 137 22.4 79
Show 22374+7110 TDT3621 AB 92 0.9 79
Show 22374+7110 TDT3621 AC 225 7.2 79
Show 22325+6834 WHC 28 153 13.5 82
Show 22329+7117 LDS1992 186 7.7 83
Show 22357+7118 LDS1994 85 99.6 84
Show 22331+6830 BU 706 AB 19 2.8 85
Show 22331+6830 BU 706 AC 251 31.2 85
Show 22343+6830 BU 708 312 7.8 85
Show 22170+7020 WIS 365 1 819.2 86
Show 22208+7054 LDS1978 17 48.1 86
Show 22386+7117 TDT3633 127 1.1 88
Show 22179+6910 OSW 59 272 134.0 92
Show 22390+6828 CBL 544 38 72.5 93
Show 22510+6958 MLB 433 208 3.0 93
Show 22403+6830 BU 845 AB 205 7.3 93
Show 22403+6830 BU 845 AC 17 16.4 93
Show 22403+6830 FOX 269 AD 97 44.6 93
Show 22427+6835 MLB 316 AB 122 3.0 95
Show 22427+6835 MLB 316 AC 347 13.3 95
Show 22178+7104 LDS1976 54 1.9 103
Show 22201+6835 MLB 432 203 2.3 103
Show 22520+6925 HJ 1829 354 12.8 104
Show 22301+6812 BU 479 27 2.4 104
Show 22150+6908 WIS 363 200 999.9 106
Show 22207+6832 DAM 244 134 8.0 107
Show 22214+6828 OSO 177 AB 179 15.6 107
Show 22214+6828 OSO 177 AC 336 16.0 107
Show 22214+6828 OSO 177 AD 142 21.6 107
Show 22176+7110 DAM 243 334 7.9 108
Show 22188+7116 LDS1977 147 3.1 108
Show 22207+6828 MLB 312 AB 8 5.2 109
Show 22207+6828 MLB 312 AC 300 39.6 109



WDS 22330+6955 : COMPONENTS


  A B C
B pa=246.1°
sep=0.47"

C pa=197.0°
sep=125.12"
pa=196.8°
sep=124.82"

D pa=197.1°
sep=188.58"
pa=197.0°
sep=188.28"
pa=197.3°
sep=63.46"


22330+6955 A


Coord arcsec 2000 223302.70+695448.1 Mag 7.82 Spectral class A9III (white) PmRA 117.00
PmDE 66.0 HIP 111314 BD BD+69 1262
Hipparcos
Catalog H HIP 111314 Proxy H RAhms 22 33 02.70
DEdms +69 54 48.1 Vmag 6.01 VarFlag R Vmag H
RAdeg 338.261 DEdeg 69.9134 AstroRef A Plx 13.11
CCDM 128.63 N CCDM I Nsys 1 Ncomp 2
MultFlag C Source Qual A M HIP AB
Theta 100 Rho 0.319 HD BD BD+69 1262
CD CP Dm number +69 1262 VIred 0.37
SpType A9III R SpType Coord arcsec 2000 223302.70+695448.1
Hipparcos 2
HIP 111314 Sn 15 So 3 Nc 2
RArad 5.9037722527 DErad 1.220218534 Plx 12.87 PmRA 126.14
PmDE 72.04 E RArad 0.38 E DErad 0.32 E Plx 0.4
E pmRA 0.47 E pmDE 0.36 Hpmag E Hpmag 0.0006
SHp 0.007 VA 0 BV 0.334 E BV 0.005
VI 0.39


22330+6955 B


Coord arcsec 2000 223302.62+695447.9 Mag 6.28 PmRA 117.00 PmDE 66.0
SAO 20150 Tycho2 4480-01545-2 HD 213973 HR 8595
GC 31510 DM BD+69 1262 Delta magnitude 1.54 Coordinate calculated yes
SAO
SAO 20150 DelFlag RA1950 PmRA1950 0.022
DE1950 PmDE1950 0.074 Vmag 6 SpType +++
Double code Source 70 CatNum 31510 DM BD+69 1262
DMcomp BDsup HD 213973 M HD 9
GC 31510 RA1950rad 5.89744755 DE1950rad 1.21569888 PmRA2000 0.0224
PmDE2000 0.068


22330+6955 C


Coord arcsec 2000 223255.60+695248.5 Mag 12.8 PmRA -6.00 PmDE -13.0
Delta magnitude 4.98 Coordinate calculated yes


22330+6955 D


Coord arcsec 2000 223251.94+695147.9 Mag 11.9 PmRA -5.00 PmDE -7.0
Delta magnitude 4.08 Coordinate calculated yes
