00169+4427 ES 1481



00h 16m 52.84s +44° 27' 48.2" P.A. 57.00 sep 7.1 mag 9.60,11.22


Coord 2000 00169+4427 Discov num ES 1481 Comp Coord arcsec 2000 00 16 52.84 +44 27 48.2
Date first 1893 Date last 2016 Obs 27
Pa first 86 Pa last 57.2 P.A. Now (θ) 57.2°
Sep first 8.4 Sep last 7.07 Sep. Now (ρ) 7.07"
Mag pri 9.60 Mag sec 11.22 delta mag (ΔM) 1.62 Spectral class
Pri motion ra +042 Sec motion ra +018
Pri motion dec -020 Sec motion dec +008
Notes L (Linear solution)
rPM=0.793
Nature of this double is uncertain.


OTHER CATALOGS AND DESIGNATIONS


Constellation Andromeda Tycho2 2794-01604-1 Gaia DR2 385909034956175872


WDS 00169+4427 ES 1481 : NOTES


No records found.



DISCOVERER


discov author
ES Espin, T.E.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
00169+4427 ES 1481 2001 10 61 7.2 9.60 11.22 +43 40 LD 001652.84+442748.2
00169+4427 ES 1481 2010 11 59 7.0 9.60 11.22 +43 40 LD 001652.84+442748.2
00169+4427 ES 1481 2011 17 59 7.2 9.60 11.22 +43 40 LD 001652.84+442748.2
00169+4427 ES 1481 2012 19 59 6.9 9.60 11.22 +43 40 L 001652.84+442748.2
00169+4427 ES 1481 2015 19 58 7.2 9.60 11.22 +43 40 L 001652.84+442748.2
00169+4427 ES 1481 2016 27 57 7.1 9.60 11.22 +43 40 L 001652.84+442748.2

If you need more information about this double, apply for a data request form to the WDS.



WDS 00169+4427 ES 1481 : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 00169+4427 ES 1481 : MEASURES


No records found.



WDS 00169+4427 : VIRTUAL EYEPIECE



00169+4427 ES 1481A mag 9.6 00169+4427 ES 1481B sep 7.1 P.A. 57.20 mag 11.22 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 00169+4427 : ALADIN DSS IMAGE @ 00h 16m 52.84s +44° 27' 48.2"

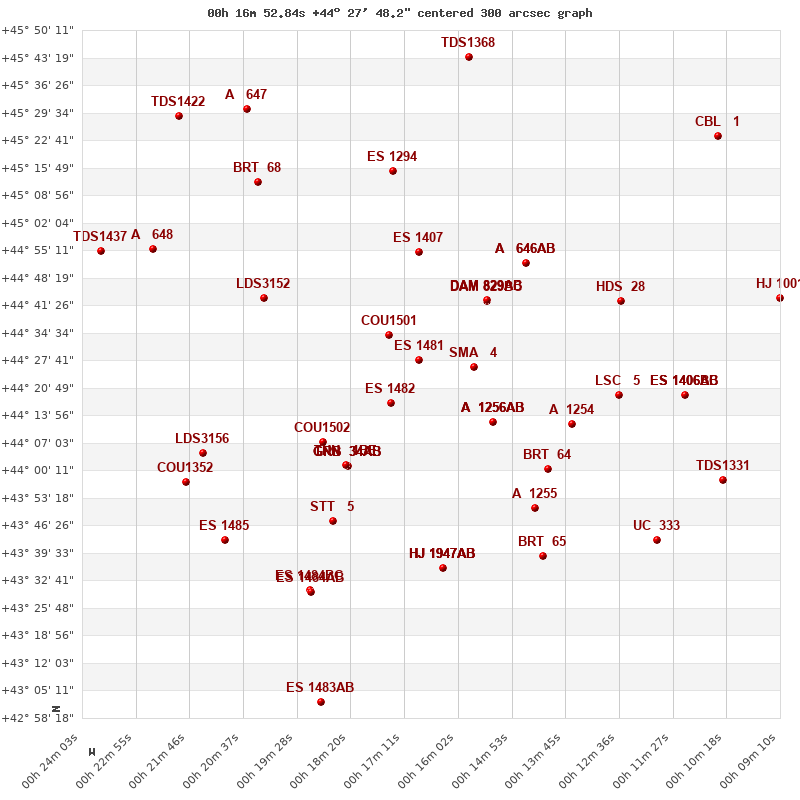

WDS 00169+4427 ES 1481 : NEIGHBORHOODS


FoV:
Limit:
Primaries only

00169+4427 ES 1481 distance=0' 00175+4434 COU1501 distance=10' 00175+4418 ES 1482 distance=13' 00156+4426 SMA 4 distance=13' 00154+4443 DAM 829BC distance=22' 00154+4443 DAM 829AB distance=22' 00154+4443 DAM 829AC distance=22' 00153+4412 A 1256AB distance=24' 00153+4412 A 1256AB,C distance=24' 00153+4412 A 1256AB,D distance=24' 00169+4454 ES 1407 distance=27' 00191+4406 COU1502 distance=31' 00184+4401 GRB 34AB distance=31' 00184+4401 GRB 34AC distance=31' 00184+4401 TNN 1AD distance=31' 00184+4401 TNN 1BE distance=32' 00184+4401 TNN 1BF distance=32' 00146+4452 A 646AB distance=35' 00146+4452 A 646Aa,Ab distance=35' 00202+4443 LDS3152 distance=39' 00136+4412 A 1254 distance=39' 00140+4401 BRT 64 distance=41' 00187+4347 STT 5 distance=45' 00144+4351 A 1255 distance=46' 00126+4419 LSC 5 distance=47' 00175+4514 ES 1294 distance=48' 00126+4442 HDS 28 distance=49' 00164+4336 HJ 1947AB distance=53' 00164+4336 WAL 5AC distance=53' 00164+4336 WAL 5AD distance=53' 00164+4336 WAL 5AE distance=53' 00215+4404 LDS3156 distance=55' 00142+4339 BRT 65 distance=57' 00204+4512 BRT 68 distance=58' 00218+4357 COU1352 distance=62' 00112+4419 ES 1406AB distance=62' 00112+4419 ABH 1AD distance=62' 00112+4419 ES 1406BC distance=62' 00192+4330 ES 1484BC distance=63' 00192+4330 ES 1484AB distance=64' 00210+4343 ES 1485 distance=64' 00225+4456 A 648 distance=67' 00118+4343 UC 333 distance=71' 00205+4531 A 647 distance=74' 00104+4358 TDS1331 distance=77' 00158+4543 TDS1368 distance=77' 00237+4455 TDS1437 distance=78' 00220+4529 TDS1422 distance=82' 00092+4443 HJ 1001 distance=84' 00105+4524 CBL 1 distance=88' 00190+4301 ES 1483AB distance=89' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 00169+4427 ES 1481 57 7.1 0
Show 00175+4434 COU1501 279 0.5 10
Show 00175+4418 ES 1482 203 3.7 13
Show 00156+4426 SMA 4 159 9.5 13
Show 00154+4443 DAM 829 BC 125 5.6 22
Show 00154+4443 DAM 829 AB 190 6.7 22
Show 00154+4443 DAM 829 AC 160 10.5 22
Show 00153+4412 A 1256 AB 223 0.0 24
Show 00153+4412 A 1256 AB,C 342 19.2 24
Show 00153+4412 A 1256 AB,D 136 26.0 24
Show 00169+4454 ES 1407 224 2.4 27
Show 00191+4406 COU1502 34 3.2 31
Show 00184+4401 GRB 34 AB 66 34.1 31
Show 00184+4401 GRB 34 AC 258 298.7 31
Show 00184+4401 TNN 1 AD 158 6.4 31
Show 00184+4401 TNN 1 BE 66 7.5 32
Show 00184+4401 TNN 1 BF 70 11.9 32
Show 00146+4452 A 646 AB 46 2.4 35
Show 00146+4452 A 646 Aa,Ab 38 0.3 35
Show 00202+4443 LDS3152 229 13.0 39
Show 00136+4412 A 1254 272 1.3 39
Show 00140+4401 BRT 64 132 4.8 41
Show 00187+4347 STT 5 240 6.1 45
Show 00144+4351 A 1255 350 4.3 46
Show 00126+4419 LSC 5 314 0.6 47
Show 00175+4514 ES 1294 228 1.1 48
Show 00126+4442 HDS 28 38 0.8 49
Show 00164+4336 HJ 1947 AB 76 8.6 53
Show 00164+4336 WAL 5 AC 14 76.4 53
Show 00164+4336 WAL 5 AD 43 99.5 53
Show 00164+4336 WAL 5 AE 44 114.7 53
Show 00215+4404 LDS3156 117 198.2 55
Show 00142+4339 BRT 65 293 2.7 57
Show 00204+4512 BRT 68 113 3.9 58
Show 00218+4357 COU1352 245 1.4 62
Show 00112+4419 ES 1406 AB 331 9.8 62
Show 00112+4419 ABH 1 AD 207 79.2 62
Show 00112+4419 ES 1406 BC 349 5.4 62
Show 00192+4330 ES 1484 BC 344 3.3 63
Show 00192+4330 ES 1484 AB 43 32.3 64
Show 00210+4343 ES 1485 96 9.2 64
Show 00225+4456 A 648 97 0.4 67
Show 00118+4343 UC 333 203 83.3 71
Show 00205+4531 A 647 91 0.7 74
Show 00104+4358 TDS1331 62 0.6 77
Show 00158+4543 TDS1368 337 0.7 77
Show 00237+4455 TDS1437 3 1.4 78
Show 00220+4529 TDS1422 256 1.2 82
Show 00092+4443 HJ 1001 77 15.0 84
Show 00105+4524 CBL 1 230 23.0 88
Show 00190+4301 ES 1483 AB 343 2.7 89



WDS 00169+4427 : COMPONENTS


  A
B pa=57.2°
sep=7.07"


00169+4427 A


Coord arcsec 2000 001652.84+442748.2 Mag 9.6 PmRA 42.00 PmDE -20.0
Tycho2 2794-01604-1
Tycho2
Tycho2 2794-01604-1 Pflag RAmdeg 4.22017051 DEmdeg 44.46338646
PmRA 39.6 PmDE -20.7 E RAmdeg 13 E DEmdeg 16
E pmRA 1.6 E pmDE 1.5 EpRAm 1991.10 EpDEm 1990.16
Num 3 Q RAmdeg 0.0 Q DEmdeg 0.6 Q pmRA 0.0
Q pmDE 0.7 BTmag 11.071 E BTmag 0.042 VTmag 9.595
E VTmag 0.018 Prox 73 TYC T HIP
CCDM RAdeg 4.22004472 DEdeg 44.46343611 EpRA 1990 1.83
EpDE 1990 1.35 E RAdeg 13.4 E DEdeg 15.6 Posflg
Corr -0.1


00169+4427 B


Coord arcsec 2000 001653.40+442752.0 Mag 11.22 PmRA 18.00 PmDE 8.0
Tycho2 2794-01604-2 Delta magnitude 1.62 Coordinate calculated yes
Tycho2
Tycho2 2794-01604-2 Pflag RAmdeg 4.22269279 DEmdeg 44.46431877
PmRA 21.1 PmDE 6.8 E RAmdeg 39 E DEmdeg 45
E pmRA 1.7 E pmDE 1.7 EpRAm 1986.16 EpDEm 1982.86
Num 3 Q RAmdeg 0.7 Q DEmdeg 1.7 Q pmRA 0.8
Q pmDE 1.6 BTmag 11.721 E BTmag 0.065 VTmag 11.217
E VTmag 0.069 Prox 73 TYC T HIP
CCDM RAdeg 4.22262556 DEdeg 44.46430278 EpRA 1990 1.83
EpDE 1990 1.36 E RAdeg 40.2 E DEdeg 46.6 Posflg
Corr -0.1
