12342+0917 SLW 735



12h 34m 14.76s +09° 17' 11.2" P.A. 342.00 sep 113.2 mag 15.92,18.43 Sp K7.3+M2.5


Coord 2000 12342+0917 Discov num SLW 735 Comp Coord arcsec 2000 12 34 14.76 +09 17 11.2
Date first 2000 Date last 2015 Obs 4
Pa first 342 Pa last 342.2 P.A. Now (θ) 342.2°
Sep first 113.2 Sep last 113.174 Sep. Now (ρ) 113.174"
Mag pri 15.92 Mag sec 18.43 delta mag (ΔM) 2.51 Spectral class K7.3+M2.5 (yellow-orange/red)
Pri motion ra -039 Sec motion ra -041
Pri motion dec -021 Sec motion dec -024
Notes V R (Proper motion indicates physical, Red magnitudes)
rPM=0.076 (< 0.3, Physical double)
This double is physical.


OTHER CATALOGS AND DESIGNATIONS


Constellation Virgo SAO 203596 Gaia DR2 3902910900126479872


WDS 12342+0917 SLW 735 : NOTES


No records found.



DISCOVERER


discov author
SLW Sloan Digital Sky Survey SLoWPoKES Catalog


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
12342+0917 SLW 735 2002 1 342 113.2 15.92 18.43 K7.3 M2.5 V R 123414.76+091711.2
12342+0917 SLW 735 2010 3 342 113.2 15.92 18.43 K7.3+M2.5 V R 123414.76+091711.2
12342+0917 SLW 735 2015 4 342 113.2 15.92 18.43 K7.3+M2.5 V R 123414.76+091711.2

If you need more information about this double, apply for a data request form to the WDS.



WDS 12342+0917 SLW 735 : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 12342+0917 SLW 735 : MEASURES


No records found.



WDS 12342+0917 : VIRTUAL EYEPIECE



12342+0917 SLW 735A mag 15.92 Sp K7.3 12342+0917 SLW 735B sep 113.2 P.A. 342.20 mag 18.43 Sp M2.5 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 12342+0917 : ALADIN DSS IMAGE @ 12h 34m 14.76s +09° 17' 11.2"

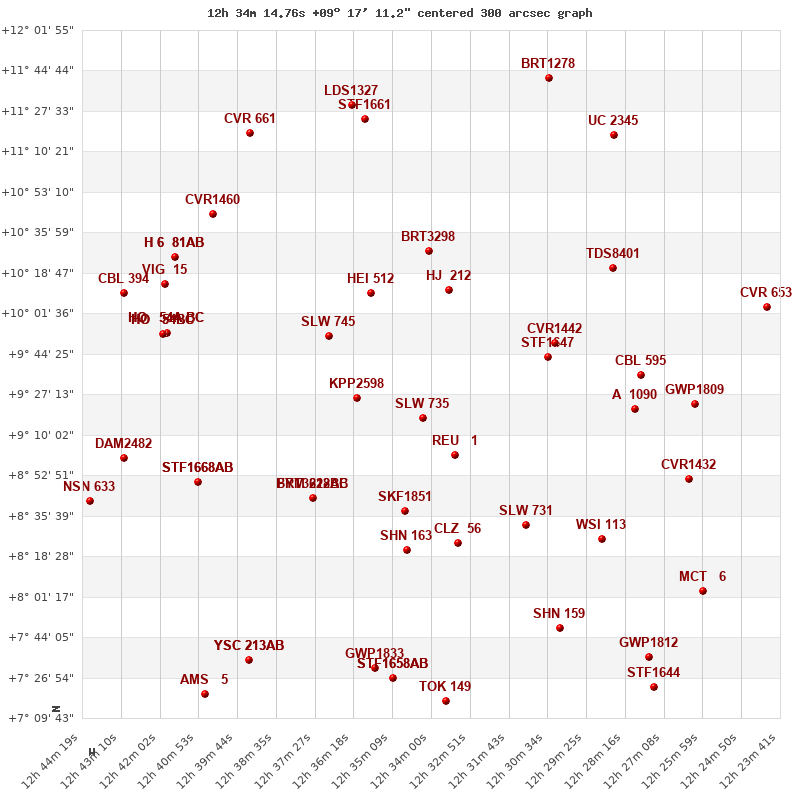

WDS 12342+0917 SLW 735 : NEIGHBORHOODS


FoV:
Limit:
Primaries only

12342+0917 SLW 735 distance=0' 12335+0901 REU 1 distance=22' 12362+0925 KPP2598 distance=31' 12348+0838 SKF1851 distance=41' 12370+0952 SLW 745 distance=55' 12332+0824 CLZ 56 distance=56' 12335+1012 HJ 212 distance=56' 12347+0821 SHN 163 distance=57' 12358+1009 HEI 512 distance=58' 12375+0843 FYM 622BC distance=59' 12375+0843 BRT3218AB distance=59' 12306+0943 STF1647 distance=61' 12312+0831 SLW 731 distance=65' 12303+0949 CVR1442 distance=67' 12337+1026 BRT3298 distance=72' 12281+0920 A 1090 distance=93' 12290+0826 WSI 113 distance=94' 12278+0935 CBL 595 distance=98' 12409+0850 STF1668AB distance=103' 12409+0850 STF1668AC distance=103' 12286+1021 TDS8401 distance=105' 12302+0748 SHN 159 distance=108' 12357+0731 GWP1833 distance=109' 12351+0727 STF1658AB distance=112' 12351+0727 STF1658AC distance=112' 12418+0953 HO 54A,BC distance=118' 12418+0953 HO 54AE distance=118' 12418+0953 HO 54BC distance=120' 12418+0953 HO 54BD distance=120' 12264+0851 CVR1432 distance=120' 12262+0923 GWP1809 distance=120' 12336+0717 TOK 149 distance=121' 12405+1044 CVR1460 distance=127' 12419+1014 VIG 15 distance=127' 12394+0734 YSC 213AB distance=128' 12394+0734 YSC 213AB,C distance=128' 12416+1026 H 6 81AB distance=129' 12416+1026 SHY 610AC distance=129' 12360+1124 STF1661 distance=130' 12431+0900 DAM2482 distance=132' 12364+1131 LDS1327 distance=137' 12431+1010 CBL 394 distance=141' 12276+0736 GWP1812 distance=142' 12394+1118 CVR 661 distance=143' 12260+0804 MCT 6 distance=143' 12286+1117 UC 2345 distance=147' 12441+0842 NSN 633 distance=151' 12407+0720 AMS 5 distance=152' 12274+0723 STF1644 distance=153' 12305+1142 BRT1278 distance=155' 12241+1004 CVR 653 distance=158' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 12342+0917 SLW 735 342 113.2 0
Show 12335+0901 REU 1 157 0.5 22
Show 12362+0925 KPP2598 43 23.6 31
Show 12348+0838 SKF1851 32 2.1 41
Show 12370+0952 SLW 745 274 38.9 55
Show 12332+0824 CLZ 56 147 110.9 56
Show 12335+1012 HJ 212 264 21.6 56
Show 12347+0821 SHN 163 -1 0.5 57
Show 12358+1009 HEI 512 161 0.3 58
Show 12375+0843 FYM 622 BC 6 5.4 59
Show 12375+0843 BRT3218 AB 357 7.7 59
Show 12306+0943 STF1647 249 1.3 61
Show 12312+0831 SLW 731 272 49.2 65
Show 12303+0949 CVR1442 355 4.1 67
Show 12337+1026 BRT3298 189 9.6 72
Show 12281+0920 A 1090 92 1.9 93
Show 12290+0826 WSI 113 5 0.3 94
Show 12278+0935 CBL 595 303 11.0 98
Show 12409+0850 STF1668 AB 185 1.0 103
Show 12409+0850 STF1668 AC 98 14.8 103
Show 12286+1021 TDS8401 105 0.7 105
Show 12302+0748 SHN 159 -1 0.7 108
Show 12357+0731 GWP1833 283 23.0 109
Show 12351+0727 STF1658 AB 22 2.8 112
Show 12351+0727 STF1658 AC 266 129.1 112
Show 12418+0953 HO 54 A,BC 101 112.3 118
Show 12418+0953 HO 54 AE 20 15.0 118
Show 12418+0953 HO 54 BC 141 2.3 120
Show 12418+0953 HO 54 BD 86 22.6 120
Show 12264+0851 CVR1432 140 3.5 120
Show 12262+0923 GWP1809 260 48.6 120
Show 12336+0717 TOK 149 223 17.1 121
Show 12405+1044 CVR1460 309 4.5 127
Show 12419+1014 VIG 15 58 12.7 127
Show 12394+0734 YSC 213 AB 270 0.0 128
Show 12394+0734 YSC 213 AB,C 238 1.6 128
Show 12416+1026 H 6 81 AB 279 78.1 129
Show 12416+1026 SHY 610 AC 52 999.9 129
Show 12360+1124 STF1661 253 2.3 130
Show 12431+0900 DAM2482 83 1.7 132
Show 12364+1131 LDS1327 35 8.6 137
Show 12431+1010 CBL 394 27 35.1 141
Show 12276+0736 GWP1812 166 14.9 142
Show 12394+1118 CVR 661 139 18.7 143
Show 12260+0804 MCT 6 109 2.0 143
Show 12286+1117 UC 2345 0 22.0 147
Show 12441+0842 NSN 633 10 0.6 151
Show 12407+0720 AMS 5 1 12.1 152
Show 12274+0723 STF1644 239 18.8 153
Show 12305+1142 BRT1278 26 2.8 155
Show 12241+1004 CVR 653 124 13.7 158



WDS 12342+0917 : COMPONENTS


  A
B pa=342.2°
sep=113.17"


12342+0917 A


Coord arcsec 2000 123414.76+091711.2 Mag 15.92 Spectral class K7.3 (yellow-orange) PmRA -39.00
PmDE -21.0 SAO 203596
SAO
SAO 203596 DelFlag RA1950 PmRA1950 -0.006
DE1950 PmDE1950 0.002 Vmag 7 SpType A5
Double code Source 70 CatNum 17130 DM CD-31 9775
DMcomp BDsup HD 109352 M HD 0
GC 17130 RA1950rad 3.27921167 DE1950rad -0.55531916 PmRA2000 -0.0059
PmDE2000 0.006


12342+0917 B


Coord arcsec 2000 123412.42+091859.0 Mag 18.43 Spectral class M2.5 (red) PmRA -41.00
PmDE -24.0 Delta magnitude 2.51 Coordinate calculated yes
