23476+4814 TDT 4196



23h 47m 34.06s +48° 13' 51.9" P.A. 321.00 sep 0.5 mag 11.58,11.75


Coord 2000 23476+4814 Discov num TDT4196 Comp Coord arcsec 2000 23 47 34.06 +48 13 51.9
Date first 1991 Date last 1991 Obs 1
Pa first 321 Pa last 320.5 P.A. Now (θ) 320.5°
Sep first 0.5 Sep last 0.49 Sep. Now (ρ) 0.49"
Mag pri 11.58 Mag sec 11.75 delta mag (ΔM) 0.17 Spectral class
Pri motion ra +002 Sec motion ra +002
Pri motion dec +000 Sec motion dec +000
Notes X (Dubious double)
Nature of this double is uncertain.


OTHER CATALOGS AND DESIGNATIONS


Constellation Andromeda Tycho2 3642-01507-1 Gaia DR2 1940489318376599040


WDS 23476+4814 TDT 4196 : NOTES


No records found.



DISCOVERER




WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
23476+4814 TDT4196 1991 1 321 0.5 11.58 11.75 234734.06+481351.9

If you need more information about this double, apply for a data request form to the WDS.



WDS 23476+4814 TDT 4196 : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 23476+4814 TDT 4196 : MEASURES


No records found.

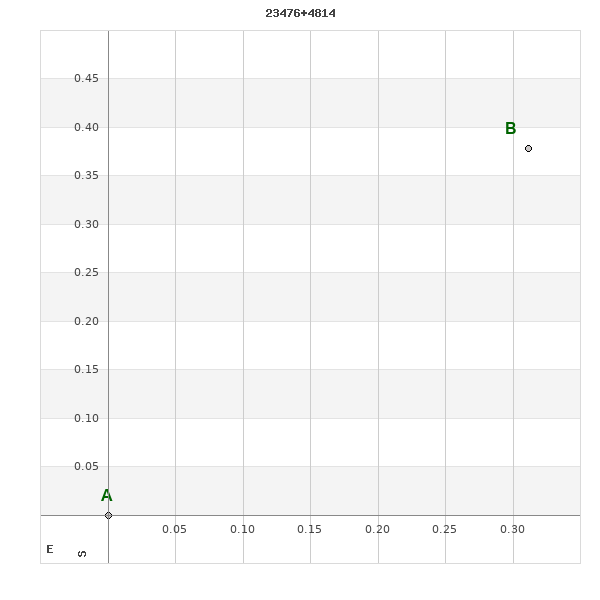

WDS 23476+4814 : VIRTUAL EYEPIECE



23476+4814 TDT4196A mag 11.58 23476+4814 TDT4196B sep 0.5 P.A. 320.50 mag 11.75 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 23476+4814 : ALADIN DSS IMAGE @ 23h 47m 34.06s +48° 13' 51.9"




WDS 23476+4814 TDT 4196 : NEIGHBORHOODS


FoV:
Limit:
Primaries only

23476+4814 TDT4196 distance=1' 23467+4806 COU2348 distance=12' 23463+4809 CBL 109 distance=14' 23461+4826 COU2250AB distance=19' 23461+4826 SCA 205AB,C distance=19' 23500+4829 OSO 206 distance=29' 23500+4755 TDT4226 distance=31' 23449+4831 ES 549AB distance=32' 23449+4831 ES 549AC distance=32' 23449+4831 ABH 179AE distance=32' 23451+4751 COU2149 distance=34' 23505+4837 TDT4230 distance=37' 23457+4856 ES 862AB distance=47' 23457+4856 ES 862AC distance=47' 23457+4856 ABH 180AD distance=47' 23457+4856 ABH 180AE distance=47' 23457+4856 ABH 180AF distance=47' 23457+4856 ABH 180AG distance=47' 23457+4856 ABH 180AH distance=47' 23514+4745 A 796 distance=49' 23512+4847 A 795 distance=50' 23509+4730 A 794BC distance=53' 23519+4743 TDT4243 distance=54' 23509+4730 A 794A,BC distance=55' 23495+4906 TDT4216 distance=56' 23454+4905 ES 861 distance=57' 23436+4857 TDT4163 distance=58' 23417+4825 HDS3366 distance=60' 23438+4725 LDS5115 distance=62' 23489+4916 TDT4212 distance=64' 23475+4918 BU 390 distance=64' 23463+4918 DOO 92 distance=65' 23428+4727 ES 548 distance=68' 23508+4914 BVD 290 distance=68' 23506+4915 TDT4231 distance=69' 23545+4814 ES 551AB distance=70' 23545+4814 ES 551AD distance=70' 23430+4907 BU 1531 distance=70' 23545+4814 ES 551BC distance=71' 23498+4923 TDT4223 distance=73' 23407+4803 ES 699 distance=73' 23528+4908 KPP3399 distance=75' 23506+4705 A 793 distance=76' 23424+4909 ABT9005 distance=76' 23442+4923 LDS5116 distance=77' 23505+4703 A 792 distance=78' 23519+4708 COU2349 distance=80' 23516+4704 ROE 58 distance=81' 23434+4703 TDT4161 distance=83' 23520+4702 ES 1291 distance=84' 23476+4650 BU 995 distance=84' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 23476+4814 TDT4196 321 0.5 1
Show 23467+4806 COU2348 72 1.0 12
Show 23463+4809 CBL 109 216 53.8 14
Show 23461+4826 COU2250 AB 6 2.4 19
Show 23461+4826 SCA 205 AB,C 260 8.3 19
Show 23500+4829 OSO 206 29 6.6 29
Show 23500+4755 TDT4226 228 0.4 31
Show 23449+4831 ES 549 AB 328 15.4 32
Show 23449+4831 ES 549 AC 238 16.9 32
Show 23449+4831 ABH 179 AE 10 27.8 32
Show 23451+4751 COU2149 238 0.2 34
Show 23505+4837 TDT4230 94 1.0 37
Show 23457+4856 ES 862 AB 40 7.2 47
Show 23457+4856 ES 862 AC 236 11.2 47
Show 23457+4856 ABH 180 AD 185 20.6 47
Show 23457+4856 ABH 180 AE 224 81.9 47
Show 23457+4856 ABH 180 AF 261 57.5 47
Show 23457+4856 ABH 180 AG 110 44.0 47
Show 23457+4856 ABH 180 AH 110 20.6 47
Show 23514+4745 A 796 9 0.7 49
Show 23512+4847 A 795 318 1.2 50
Show 23509+4730 A 794 BC 10 0.8 53
Show 23519+4743 TDT4243 269 2.2 54
Show 23509+4730 A 794 A,BC 263 232.7 55
Show 23495+4906 TDT4216 12 1.2 56
Show 23454+4905 ES 861 283 8.2 57
Show 23436+4857 TDT4163 270 1.0 58
Show 23417+4825 HDS3366 290 0.1 60
Show 23438+4725 LDS5115 358 12.8 62
Show 23489+4916 TDT4212 334 1.5 64
Show 23475+4918 BU 390 228 14.3 64
Show 23463+4918 DOO 92 46 9.0 65
Show 23428+4727 ES 548 316 14.3 68
Show 23508+4914 BVD 290 196 11.8 68
Show 23506+4915 TDT4231 35 0.6 69
Show 23545+4814 ES 551 AB 90 33.0 70
Show 23545+4814 ES 551 AD 12 30.0 70
Show 23430+4907 BU 1531 236 13.0 70
Show 23545+4814 ES 551 BC 314 5.4 71
Show 23498+4923 TDT4223 173 0.8 73
Show 23407+4803 ES 699 216 8.0 73
Show 23528+4908 KPP3399 74 4.0 75
Show 23506+4705 A 793 128 0.1 76
Show 23424+4909 ABT9005 320 34.1 76
Show 23442+4923 LDS5116 290 3.0 77
Show 23505+4703 A 792 268 0.7 78
Show 23519+4708 COU2349 220 0.7 80
Show 23516+4704 ROE 58 66 4.7 81
Show 23434+4703 TDT4161 156 1.9 83
Show 23520+4702 ES 1291 147 3.9 84
Show 23476+4650 BU 995 246 0.8 84



WDS 23476+4814 : COMPONENTS


  A
B pa=320.5°
sep=0.49"


23476+4814 A


Coord arcsec 2000 234734.06+481351.9 Mag 11.58 PmRA 2.00 PmDE 0.0


23476+4814 B


Coord arcsec 2000 234734.03+481352.3 Mag 11.75 PmRA 2.00 PmDE 0.0
Delta magnitude 0.17 Coordinate calculated yes
