23252+5006 TDT 4029



23h 25m 12.95s +50° 05' 50.1" P.A. 212.00 sep 2.5 mag 11.00,16.30


Coord 2000 23252+5006 Discov num TDT4029 Comp Coord arcsec 2000 23 25 12.95 +50 05 50.1
Date first 2016 Date last 2016 Obs 1
Pa first 212 Pa last 212 P.A. Now (θ) 212°
Sep first 2.5 Sep last 2.493 Sep. Now (ρ) 2.493"
Mag pri 11.00 Mag sec 16.30 delta mag (ΔM) 5.3 Spectral class
Pri motion ra +002 Sec motion ra
Pri motion dec +000 Sec motion dec
Notes
Nature of this double is uncertain.


OTHER CATALOGS AND DESIGNATIONS


Constellation Andromeda Tycho2 3644-01282-1 Gaia DR2 1943141443503867904


WDS 23252+5006 TDT 4029 : NOTES


No records found.



DISCOVERER




WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
23252+5006 TDT4029 1991 1 80 0.5 11.64 12.30 232512.95+500550.1
23252+5006 TDT4029 2016 1 212 2.5 11.00 16.30 232512.95+500550.1

If you need more information about this double, apply for a data request form to the WDS.



WDS 23252+5006 TDT 4029 : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 23252+5006 TDT 4029 : MEASURES


No records found.

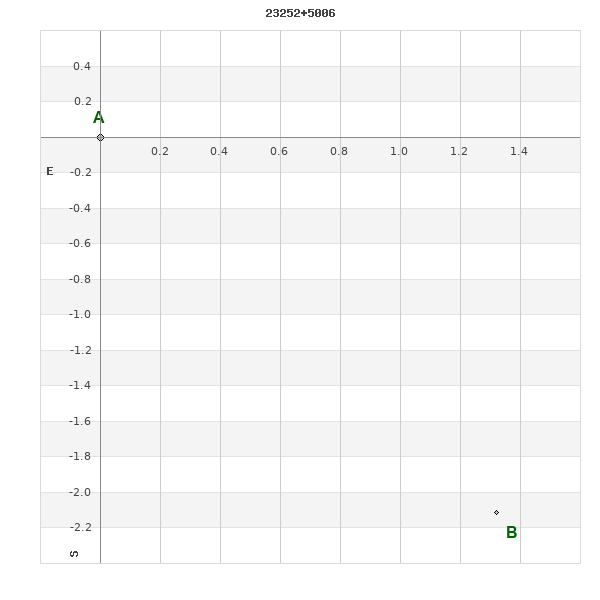

WDS 23252+5006 : VIRTUAL EYEPIECE



23252+5006 TDT4029A mag 11 23252+5006 TDT4029B sep 2.5 P.A. 212.00 mag 16.3 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 23252+5006 : ALADIN DSS IMAGE @ 23h 25m 12.95s +50° 05' 50.1"




WDS 23252+5006 TDT 4029 : NEIGHBORHOODS


FoV:
Limit:
Primaries only

23252+5006 TDT4029 distance=0' 23243+5017 ES 1188 distance=15' 23244+5022 TDT4023 distance=18' 23274+5016 OSO 197AB distance=24' 23274+5016 OSO 197AC distance=24' 23274+5016 OSO 197AD distance=24' 23274+5016 OSO 197AE distance=24' 23274+5016 OSO 197AF distance=24' 23279+5011 HJ 1884 distance=27' 23270+5026 HJ 1878 distance=28' 23275+5039 ES 1189 distance=40' 23236+4917 ES 545 distance=47' 23290+5046 TDT4055 distance=55' 23292+5045 TDT4060 distance=55' 23285+5052 CVR 990 distance=56' 23210+4926 COU2700 distance=58' 23198+5040 ES 2726 distance=62' 23250+5109 TDT4028 distance=63' 23313+5032 TDT4084AB distance=64' 23313+5045 TDT4083 distance=71' 23180+4952 ES 925 distance=71' 23326+4949 A 1489 distance=74' 23304+4912 TDT4072 distance=74' 23282+5120 TDT4051 distance=80' 23240+5125 ES 1187AB distance=81' 23240+5125 ES 1187AC distance=81' 23174+4925 TDT3968 distance=87' 23263+4839 TDT4034 distance=88' 23328+4917 SLN 47 distance=88' 23194+4858 TDT3981 distance=89' 23333+4926 TDT4093 distance=89' 23339+4938 COU2670 distance=89' 23207+4848 ARY 3AB distance=90' 23207+4848 KPP3394AC distance=90' 23191+4855 HDS3321Aa,Ab distance=93' 23191+4855 ES 2725AB distance=93' 23348+5018 COU2671 distance=93' 23219+4838 TDT3998AB distance=94' 23219+4838 DBR 204AC distance=94' 23323+5111 OL 84 distance=94' 23335+4919 ES 110AB distance=95' 23335+4919 ES 110AC distance=95' 23268+4833 HDS3338 distance=95' 23350+5008 TDT4110 distance=95' 23279+4834 ES 858AB distance=95' 23279+4834 ES 858BC distance=95' 23286+4836 TDT4052 distance=97' 23177+4901 BU 717AB distance=98' 23177+4901 BU 717AC distance=98' 23177+4901 FOX 273AD distance=98' 23177+4901 WAL 147AE distance=98' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 23252+5006 TDT4029 212 2.5 0
Show 23243+5017 ES 1188 143 2.7 15
Show 23244+5022 TDT4023 282 0.4 18
Show 23274+5016 OSO 197 AB 97 3.7 24
Show 23274+5016 OSO 197 AC 197 13.6 24
Show 23274+5016 OSO 197 AD 38 13.2 24
Show 23274+5016 OSO 197 AE 115 18.1 24
Show 23274+5016 OSO 197 AF 44 31.4 24
Show 23279+5011 HJ 1884 245 11.7 27
Show 23270+5026 HJ 1878 268 8.9 28
Show 23275+5039 ES 1189 137 1.6 40
Show 23236+4917 ES 545 342 8.5 47
Show 23290+5046 TDT4055 129 2.4 55
Show 23292+5045 TDT4060 40 0.6 55
Show 23285+5052 CVR 990 251 11.8 56
Show 23210+4926 COU2700 235 1.1 58
Show 23198+5040 ES 2726 296 7.6 62
Show 23250+5109 TDT4028 26 0.5 63
Show 23313+5032 TDT4084 AB 332 0.9 64
Show 23313+5045 TDT4083 238 0.5 71
Show 23180+4952 ES 925 63 6.2 71
Show 23326+4949 A 1489 221 0.5 74
Show 23304+4912 TDT4072 229 0.5 74
Show 23282+5120 TDT4051 338 0.9 80
Show 23240+5125 ES 1187 AB 132 3.2 81
Show 23240+5125 ES 1187 AC 340 6.8 81
Show 23174+4925 TDT3968 299 1.8 87
Show 23263+4839 TDT4034 330 0.8 88
Show 23328+4917 SLN 47 188 3.0 88
Show 23194+4858 TDT3981 118 2.4 89
Show 23333+4926 TDT4093 120 0.4 89
Show 23339+4938 COU2670 107 0.5 89
Show 23207+4848 ARY 3 AB 211 120.5 90
Show 23207+4848 KPP3394 AC 245 8.8 90
Show 23191+4855 HDS3321 Aa,Ab 94 0.5 93
Show 23191+4855 ES 2725 AB 235 54.5 93
Show 23348+5018 COU2671 116 0.2 93
Show 23219+4838 TDT3998 AB 192 1.1 94
Show 23219+4838 DBR 204 AC 241 7.9 94
Show 23323+5111 OL 84 328 1.9 94
Show 23335+4919 ES 110 AB 38 5.4 95
Show 23335+4919 ES 110 AC 341 17.7 95
Show 23268+4833 HDS3338 56 0.1 95
Show 23350+5008 TDT4110 280 1.6 95
Show 23279+4834 ES 858 AB 236 29.2 95
Show 23279+4834 ES 858 BC 122 4.1 95
Show 23286+4836 TDT4052 40 0.4 97
Show 23177+4901 BU 717 AB 163 7.8 98
Show 23177+4901 BU 717 AC 131 217.3 98
Show 23177+4901 FOX 273 AD 233 58.6 98
Show 23177+4901 WAL 147 AE 108 94.1 98



WDS 23252+5006 : COMPONENTS


  A
B pa=212.0°
sep=2.49"


23252+5006 A


Coord arcsec 2000 232512.95+500550.1 Mag 11 PmRA 2.00 PmDE 0.0


23252+5006 B


Coord arcsec 2000 232512.81+500548.0 Mag 16.3 Delta magnitude 5.3 Coordinate calculated yes
