23067+3302 COU 741 Aa,Ab



23h 06m 42.39s +33° 01' 46.6" P.A. 194.00 sep 0.9 mag 10.52,12.12 Sp K0 dist. 73.1 pc (238.45 l.y.)


Coord 2000 23067+3302 Discov num COU 741 Comp Aa,Ab Coord arcsec 2000 23 06 42.39 +33 01 46.6
Date first 1971 Date last 2013 Obs 14
Pa first 166 Pa last 193.9 P.A. Now (θ) 193.9°
Sep first 0.8 Sep last 0.924 Sep. Now (ρ) 0.924"
Mag pri 10.52 Mag sec 12.12 delta mag (ΔM) 1.6 Spectral class K0 (yellow-orange)
Pri motion ra -017 Sec motion ra -013
Pri motion dec -152 Sec motion dec -154
Notes N (See Notes)
rPM=0.029 (< 0.3, Physical double)
This double is physical.


23067+3302 SYSTEM COMPONENTS


Show name SAO coord wds_name last obs pa sep mag1 mag2 d_mag orb current
Show 23 06 42 +33 01 47 COU 741 Aa,Ab 2013 14 194 0.9 10.52 12.12 1.60 <===
Show 23 06 42 +33 01 47 STF 2975 AB 2015 23 316 37.2 10.38 10.52 0.14
Triple system
2 estimated visually detectable stars in this system


OTHER CATALOGS AND DESIGNATIONS


Constellation Pegasus HIP 114121 Tycho2 2755-00904-1 Gaia DR2 1911046316834893056
BD BD+32 4584 Distance 73.1 Distance ly 238.45


WDS 23067+3302 COU 741 Aa,Ab : NOTES


discov_num notes refcode
STF2975 Statistically the same parallax within the errors would indicate the
components are physical.


DISCOVERER


discov author
COU Couteau, P.


WDS HISTORIC DATA


coord_2000 discov_num comp epoch obs pa sep mag_pri mag_sec spectr dm_number notes coord_arcsec_2000
23067+3302 COU 741 Aa,Ab 1998 8 173 0.8 10.52 12.12 K0 +32 4584 230642.39+330146.6
23067+3302 COU 741 Aa,Ab 2008 10 190 0.9 10.52 12.12 K0 +32 4584 N 230642.39+330146.6
23067+3302 COU 741 Aa,Ab 2009 11 191 0.9 10.52 12.12 K0 +32 4584 N 230642.39+330146.6
23067+3302 COU 741 Aa,Ab 2011 13 192 0.9 10.52 12.12 K0 +32 4584 N 230642.39+330146.6
23067+3302 COU 741 Aa,Ab 2013 14 194 0.9 10.52 12.12 K0 +32 4584 N 230642.39+330146.6

If you need more information about this double, apply for a data request form to the WDS.



WDS 23067+3302 COU 741 Aa,Ab : VISUAL OBSERVATIONS REPORTS


No records found.




WDS 23067+3302 COU 741 Aa,Ab : MEASURES


No records found.

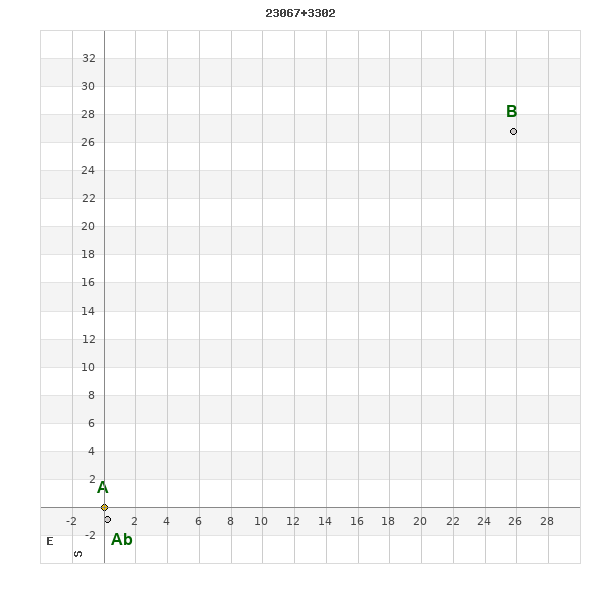

WDS 23067+3302 : VIRTUAL EYEPIECE



23067+3302 STF2975A mag 10.38 Sp K0 23067+3302 COU 741Ab sep 0.9 P.A. 193.90 mag 12.12 23067+3302 STF2975B sep 37.2 P.A. 316.10 mag 10.52 virtual eyepiece
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Radius:
Components only


WDS 23067+3302 : ALADIN DSS IMAGE @ 23h 06m 42.39s +33° 01' 46.6"




WDS 23067+3302 COU 741 Aa,Ab : NEIGHBORHOODS


FoV:
Limit:
Primaries only

23067+3302 COU 741Aa,Ab distance=0' 23075+3250 STF2978 distance=16' 23088+3310 CRB 150AB distance=28' 23050+3322 STF2974AB distance=31' 23104+3308 ES 397 distance=48' 23057+3348 GYL 66 distance=49' 23046+3346 NSN 764 distance=52' 23103+3229 BU 385AB distance=56' 23103+3229 HJ 5532AB,C distance=56' 23103+3229 ARN 25AB,D distance=56' 23095+3218 GRV 640 distance=57' 23101+3337 GRV 642 distance=57' 23114+3242 GRV 647 distance=63' 23117+3306 GRV 648 distance=64' 23065+3154 TDT3885 distance=68' 23094+3203 GRV 639 distance=68' 23123+3243 LDS5058 distance=74' 23019+3212 GRV 629 distance=78' 23024+3201 GRV 630 distance=82' 23141+3256 J 2380 distance=83' 23001+3300 J 3240 distance=83' 23076+3140 UC 4885 distance=83' 23002+3327 UC 4858 distance=86' 22598+3239 LDS5034 distance=90' 23026+3147 SKF2184 distance=92' 23098+3138 GRV 641 distance=92' 23079+3128 BU 78AB distance=96' 23079+3128 BU 78AC distance=96' 23045+3123 ES 396 distance=104' 23114+3133 LDS5056 distance=108' 23040+3116 NSN 801 distance=108' 23050+3116 RAO 492 distance=108' 23041+3444 ES 2205 distance=108' 23153+3317 WFC 260 distance=109' 23156+3235 GRV 658 distance=116' 23159+3312 ES 2724 distance=117' 22579+3343 HDS3266 distance=118' 23017+3122 CRB 148 distance=119' 23159+3336 CRB 152 distance=120' 23144+3147 HJ 983AB distance=124' 23144+3147 HJ 983AC distance=124' 23154+3206 CVR 984 distance=124' 22587+3422 ES 2204 distance=128' 23160+3206 TLB 34AB distance=131' 23039+3510 ES 2134 distance=134' 22587+3135 LDS5032 distance=135' 23015+3103 ES 2362 distance=137' 22567+3355 COU 740AB distance=137' 23176+3315 HU 790 distance=138' 23049+3045 GRV 632 distance=139' 23007+3105 STF2968 distance=140' grafico limitrofi
Click on the map to see the double of your interest.
Pass over with the mouse cursor to display the catalog designation.
Show name coord_2000 discov# comp pa sep dist(')
Show 23067+3302 COU 741 Aa,Ab 194 0.9 0
Show 23067+3302 STF2975 AB 316 37.2 0
Show 23075+3250 STF2978 145 8.3 16
Show 23088+3310 CRB 150 AB 146 31.2 28
Show 23050+3322 STF2974 AB 166 2.7 31
Show 23104+3308 ES 397 223 3.6 48
Show 23057+3348 GYL 66 22 18.4 49
Show 23046+3346 NSN 764 285 2.0 52
Show 23103+3229 BU 385 AB 84 0.7 56
Show 23103+3229 HJ 5532 AB,C 77 57.9 56
Show 23103+3229 ARN 25 AB,D 117 223.9 56
Show 23095+3218 GRV 640 129 8.0 57
Show 23101+3337 GRV 642 236 23.8 57
Show 23114+3242 GRV 647 323 73.2 63
Show 23117+3306 GRV 648 68 13.5 64
Show 23065+3154 TDT3885 284 0.7 68
Show 23094+3203 GRV 639 271 27.7 68
Show 23123+3243 LDS5058 40 29.1 74
Show 23019+3212 GRV 629 7 18.7 78
Show 23024+3201 GRV 630 207 32.0 82
Show 23141+3256 J 2380 338 5.7 83
Show 23001+3300 J 3240 104 4.5 83
Show 23076+3140 UC 4885 337 48.8 83
Show 23002+3327 UC 4858 266 56.0 86
Show 22598+3239 LDS5034 230 18.8 90
Show 23026+3147 SKF2184 268 141.4 92
Show 23098+3138 GRV 641 318 86.8 92
Show 23079+3128 BU 78 AB 53 18.6 96
Show 23079+3128 BU 78 AC 58 47.5 96
Show 23045+3123 ES 396 304 37.7 104
Show 23114+3133 LDS5056 220 23.3 108
Show 23040+3116 NSN 801 142 17.3 108
Show 23050+3116 RAO 492 201 3.7 108
Show 23041+3444 ES 2205 68 4.0 108
Show 23153+3317 WFC 260 110 10.9 109
Show 23156+3235 GRV 658 86 15.7 116
Show 23159+3312 ES 2724 109 13.9 117
Show 22579+3343 HDS3266 27 0.0 118
Show 23017+3122 CRB 148 16 9.4 119
Show 23159+3336 CRB 152 183 12.5 120
Show 23144+3147 HJ 983 AB 157 16.9 124
Show 23144+3147 HJ 983 AC 298 25.7 124
Show 23154+3206 CVR 984 44 12.6 124
Show 22587+3422 ES 2204 167 2.8 128
Show 23160+3206 TLB 34 AB 192 31.2 131
Show 23039+3510 ES 2134 119 1.6 134
Show 22587+3135 LDS5032 166 95.0 135
Show 23015+3103 ES 2362 184 2.0 137
Show 22567+3355 COU 740 AB 108 2.2 137
Show 23176+3315 HU 790 311 1.2 138
Show 23049+3045 GRV 632 6 67.7 139



WDS 23067+3302 : COMPONENTS


  A Ab
Ab pa=193.9°
sep=0.92"

B pa=316.1°
sep=37.17"
pa=317.3°
sep=37.67"


23067+3302 A


Coord arcsec 2000 230642.39+330146.6 Mag 10.38 Spectral class K0 (yellow-orange) PmRA -13.00
PmDE -154.0 HIP 114121 Tycho2 2755-00904-1 BD BD+32 4584
Tycho2
Tycho2 2755-00904-1 Pflag RAmdeg 346.67657633 DEmdeg 33.02924899
PmRA -17.1 PmDE -152.1 E RAmdeg 22 E DEmdeg 28
E pmRA 1.5 E pmDE 1.5 EpRAm 1986.48 EpDEm 1984.52
Num 10 Q RAmdeg 1.0 Q DEmdeg 1.6 Q pmRA 1.0
Q pmDE 1.6 BTmag 11.496 E BTmag 0.060 VTmag 10.517
E VTmag 0.040 Prox 9 TYC T HIP 114121
CCDM A RAdeg 346.67662389 DEdeg 33.02961500 EpRA 1990 1.67
EpDE 1990 1.67 E RAdeg 27.1 E DEdeg 33.6 Posflg
Corr 0.0
Hipparcos
Catalog H HIP 114121 Proxy H RAhms 23 06 42.39
DEdms +33 01 46.6 Vmag 10.15 VarFlag R Vmag G
RAdeg 346.677 DEdeg 33.0296 AstroRef A Plx 14.8
CCDM -12.95 - N CCDM I Nsys 2 Ncomp 2
MultFlag C Source Qual A M HIP AP
Theta 178 Rho 0.89 HD BD BD+32 4584
CD CP Dm number +32 4584 VIred 0.88
SpType K0 R SpType Coord arcsec 2000 230642.39+330146.6
Hipparcos 2
HIP 114121 Sn 15 So 3 Nc 2
RArad 6.0506487286 DErad 0.5764756642 Plx 13.68 PmRA -12.37
PmDE -155.15 E RArad 1.6 E DErad 1.43 E Plx 2.42
E pmRA 2.36 E pmDE 1.65 Hpmag E Hpmag 0.0044
SHp 0.036 VA 0 BV 0.87 E BV 0.02
VI 0.88
CCDM
Ccdm 23067+3302 RComp Comp A Note1
Note2 Discov num DRAs 0.44 DDEs -14.3
R dRAs 10 Year Theta Rho
Obs 3 Vmag 10.2 Sp K0 PmNote *
PmRA -4 PmDE -141 Dm number +32 4584 Cat1 BD
Name2 +32 2294 Cat2 AGK2/3 HD M HD
ADS BDS B12163 M ADS BDS N IDS IDS 23019N3229A
HIC 114121


23067+3302 Ab


Coord arcsec 2000 230642.37+330145.7 Mag 12.12 PmRA -13.00 PmDE -154.0
Delta magnitude 1.6 Coordinate calculated yes


23067+3302 B


Coord arcsec 2000 230640.34+330213.4 Mag 10.52 PmRA 14.00 PmDE 3.0
Coordinate calculated yes
CCDM
Ccdm 23067+3302 RComp Comp B Note1
Note2 Discov num STF2975 DRAs -1.73 DDEs 8.5
R dRAs 10 Year 1902 Theta 288 Rho 30.3
Obs 4 Vmag 10.2 Sp A2 PmNote *
PmRA 6 PmDE -12 Dm number Cat1
Name2 +32 2293 Cat2 AGK2/3 HD M HD
ADS BDS B12163 M ADS BDS N N IDS IDS 23019N3229B
HIC 114116
